TE7WR741NDV2150Mbps Wireless N Router

TP-Link Technologies Co., Ltd.
150Mbps Wireless N Router - FCC ID TE7WR741NDV2 - TP-Link Technologies Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 16, 2010
Application Purpose
Original Equipment
Date of Application
Dec 14, 2010
Equipment Note
150Mbps Wireless N Router
Frequency Range
2422.00000000 - 2452.00000000
Company
TP-Link Technologies Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TL-WR740N TL-WR741ND 150Mbps Wireless N Router Rev: 2.0.0 1910010391 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. - I - FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. - II - TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: 150Mbps Wireless N Router Model No.: TL-WR740N/TL-WR741ND Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC The above product is in conformity with the following standards or other normative documents ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V2.1.1:2009 EN60950-1:2006 Recommendation 1999/519/EC EN62311:2008 Directives 2004/108/EC The above product is in conformity with the following standards or other normative documents EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006 EN 61000-3-3:1995+A1:2001+A2:2005 Directives 2006/95/EC The above product is in conformity with the following standards or other normative documents EN60950-1:2006 Directive(ErP) 2009/125/EC Audio/Video, information and communication technology equipment- Environmentally conscious design EN62075:2008 Person is responsible for marking this declaration: Yang Hongliang Product Manager of International Business TP-LINK TECHNOLOGIES CO., LTD. South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China CONTENTS Package Contents..................................................................................................................................1 Chapter 1. Introduction .......................................................................................................................2 1.1 Overview of the Router .......................................................................................................2 1.2 Conventions ....................................................................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

Attestation for FCC Declaration of Conformity FCC ID:TE7WR741NDV2 Date:Dec 17, 2010 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F991215, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Cover Letter(s)

Date:Dec 10,2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7WR741NDV2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Cover Letter(s)

AGENCY AUTHORIZATION LETTER FCC ID:TE7WR741NDV2 Date:Dec 10,2010 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

External Photos

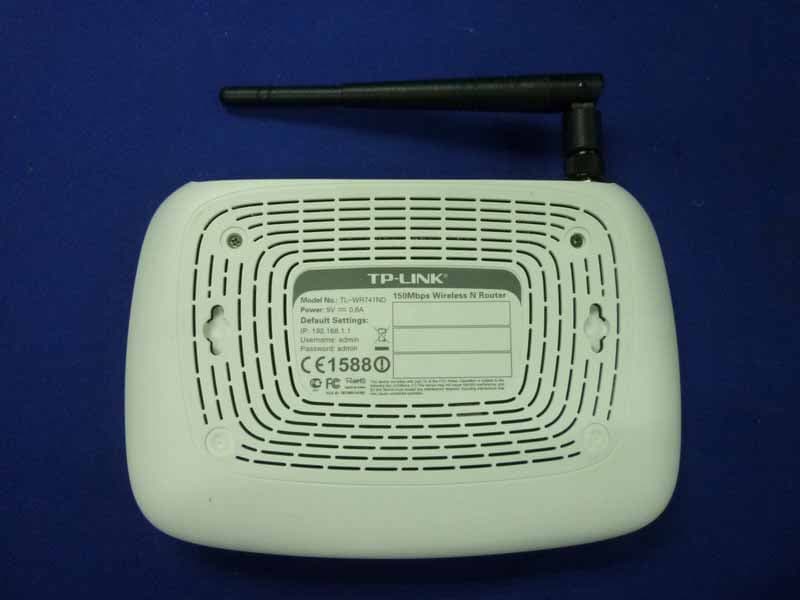

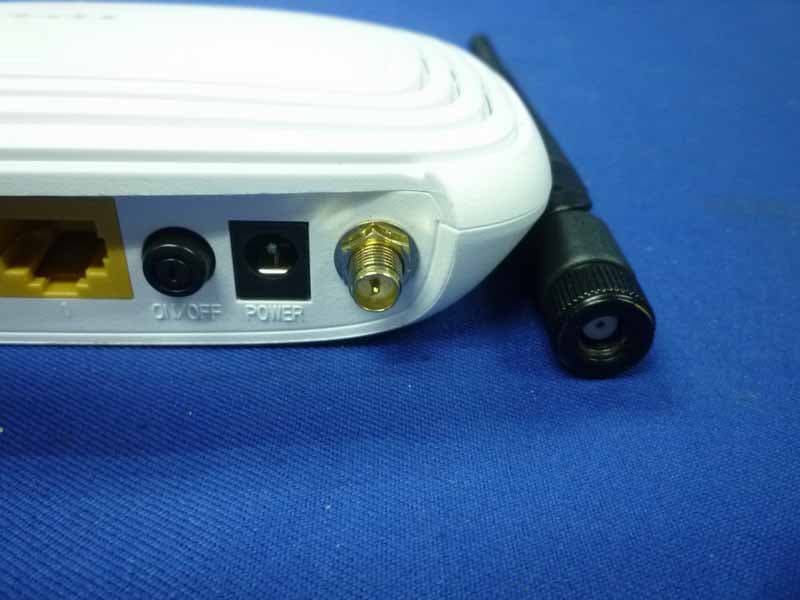

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

ID Label/Location Info

TL-WR741ND(欧)2.0产品规格标 A1 80g艾利铜版纸+雾膜 美A-174 TL-WR741ND(欧)2.0 2010-7-8 白色 PANTONE COOLGRAY 9C、白色 白色 PANTONE COOLGRAY 9C 陈静雯 12 E D C B A 12 3456789 E D C 345678 B A 9 料号: 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 与上一版的区别 记 录 68.48*39mm, 6R PANTONE COOLGRAY 9C Model No.:TL - WR741ND Power: 9V 0.6A 150M bps Wireless N Router 文字已转曲 FCC ID:TE7WR741NDV2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . TL-WR740N(欧)2.0产品规格标 A1 80g艾利铜版纸+雾膜 美A-174 TL-WR740N(欧)2.0 2010-7-8 白色 PANTONE COOLGRAY 9C、白色 白色 PANTONE COOLGRAY 9C 陈静雯 12 E D C B A 12 3456789 E D C 345678 B A 9 料号: 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 与上一版的区别 记 录 68.48*39mm, 6R PANTONE COOLGRAY 9C Model No.:TL-WR740N Power: 9V 0.6A 150M bps Wireless N Router 文字已转曲 FCC ID:TE7WR741NDV2 FCC I D:TE7WR741NDV2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . Label Location

Internal Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 14-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 14-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 14-5 Figure 9 Adapter

RF Exposure Info

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 11-2 11.MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.2, Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE 1 2412 21.30 134.90 53.160.0849 6 2437 21.55 142.89 53.160.0899 11b 11 2462 21.78 150.66 53.160.0948 1 2412 19.82 95.94 53.160.0604 6 2437 22.78 189.67 53.160.1194 11g 11 2462 19.56 90.36 53.160.0569 1 2412 18.1264.8653.160.0408 6 2437 22.50177.8353.160.1119 11n HT20 11 2462 17.9762.6653.160.0394 1 2422 17.1451.7653.160.0326 4 2437 20.80120.2353.160.0757 11n HT40 7 2452 15.3834.5153.160.0217 Note: The estimation distance is 20cm

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK Technologies Co., Ltd. 150Mbps Wireless N Router Model No.: TL-WR740N; TL-WR741ND FCC ID: TE7WR741NDV2 Prepared for : TP-LINK Technologies Co., Ltd. 1-6F, Building 2, Pingshandayuan Industrial, South Zone, Taoyuan Street, Nanshan District, Shenzhen, P.R.C. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number Κ ACS-F10333 Date of Test Κ Oct.15~Dec.04, 2010 Date of Report Κ Dec.09, 2010 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 TABLE OF CONTENTS Description Page 1.SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1.Description of Standards and Results .................................................................................. 1-1 2.GENERAL INFORMATION ......................................................................................... 2-1 2.1.Description of Device (EUT) ............................................................................................... 2-1 2.2.Test Information................................................................................................................... 2-2 2.3.Date rate VS power .............................................................................................................. 2-3 2.4.Tested Supporting System Details ....................................................................................... 2-4 2.5.Block diagram of connection between the EUT and simulators .......................................... 2-4 2.6.Test Facility ......................................................................................................................... 2-5 2.7.Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-5 3.POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1.Test Equipments................................................................................................................... 3-1 3.2.Block Diagram of Test Setup ............................................................................................... 3-1 3.3.Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4.Configuration of EUT on Test ............................................................................................. 3-2 3.5.Operating Condition of EUT................................................................................................ 3-2 3.6.Test Procedure...................................................................................................................... 3-2 3.7.Power Line Conducted Emission Test Results .................................................................... 3-2 4.RADIATED EMISSION TEST ...................................................................................... 4-1 4.1.Test Equipment .................................................................................................................... 4-1 4.2.Block Diagram of Test Setup ............................................................................................... 4-1 4.3.Radiated Emission Limit...................................................................................................... 4-2 4.4.EUT Configuration on Test..................................................................................................4-3 4.5.Operating Condition of EUT................................................................................................ 4-3 4.6.Test Procedure...................................................................................................................... 4-3 4.7.Radiated Emission Test Results ........................................................................................... 4-4 5.CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1.Test Equipment .................................................................................................................... 5-1 5.2.Limit..................................................................................................................................... 5-1 5.3.Test Procedure...................................................................................................................... 5-1 5.4.Test result ............................................................................................................................. 5-1 6.BAND EDGE COMPLIANCE TEST .......................................................................... 6-12 6.1.Test Equipment .................................................................................................................. 6-12 6.2.Limit................................................................................................................................... 6-12 6.3.Test Produce ....................................................................................................................... 6-12 6.4.Test Results ........................................................................................................................ 6-12 7.6dB Bandwidth Test....................................................................................................... 7-33 7.1.Test Equipment .................................................................................................................. 7-33 7.2.Limit................................................................................................................................... 7-33 7.3.Test Procedure..................................…

Text truncated - open the document above for the full version.

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-61 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-62 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-63 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-64 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-65 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-66 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-67 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-68 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-69 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-70 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-71 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 4-72 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-1 5. CONDUCTED SPURIOUS EMISSIONS 5.1.Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent E4446A US44300459 May.08,10 1 Year 2. Attenuator Agilent 8491B MY39262165 May.08,10 1 Year 3. RF Cable Hubersuhner SUCOFLEX10228618/2 May.08,10 1Year 5.2.Limit In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. 5.3.Test Procedure The transmitter output was connected to a spectrum analyzer, The resolution bandwidth is set to 100 kHz, The video bandwidth is set to 300 kHz and measure all the emissions detected. 5.4.Test result PASS (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-2 Test Mode: IEEE 802.11b TX R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-4 Test Mode: IEEE 802.11g TX R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-5 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-7 Test Mode: IEEE 802.11n HT20 TX R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-9 Test Mode: IEEE 802.11n HT40 TX R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 5-11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 6-12 6. BAND EDGE COMPLIANCE TEST 6.1.Test Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent E4446A US44300459 May.08,10 1 Year 2. Horn Antenna EMCO 3115 9607-4877 Nov.25, 09 1.5 Year 3. Amplifier Agilent 8449B 3008A02495 May.08, 10 1 Year 4. RF Cable Hubersuhner SUCOFLEX102 28620/2 May.08,10 1 Year 5. RF Cable Hubersuhner SUCOFLEX102 28618/2 May.08,10 1 Year 6. RF Cable Hubersuhner SUCOFLEX102 28610/2 May.08,10 1 Year 6.2.Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3.Test Produce 1. The EUT is placed on a turntable, which is 0.8m above the ground plane and worked at highest radiated power. 2. The turntable was rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission: (a) PEAK: RBW=1MHz; VBW=3MHz ;Sweep=AUTO (b) AVERAGE: RBW=1MHz ;VBW=10Hz ; Sweep=AUTO 6.4.Test Results Pass (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 6-1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 6-2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 6-3 R AUDIX Technology (Shenzhen)…

Text truncated - open the document above for the full version.

Test Setup Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR741NDV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10336 13-3 (Above 1000MHz)

Contact Information

Applicant

Jing Huang(Regulatory Compliance Manager)
[email protected]75521534921Fax: 75526508930

Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Ken Lu
[email protected]86-755-26639497

52 Block Shenzhen Science&Industry · Shenzhen · China

Non-Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Kris Zheng
[email protected]86-755-26639497

Test Firm

Audix Technology (Shenzhen) Co., Ltd.Smart Tsai
[email protected]86-755-26639495Fax: 86-755-26632877

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz120.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
