TE7WR841HPV1300Mbps High Power Wireless N Router

300Mbps High Power Router REV1.0.0 1910010810 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user ’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. S uch modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Korea Warning Statements 당해 무선설비는 운용중 전파혼신 가능성이 있음. Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами Ук раїни. Safety Information  When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the pr oduct or the power adapter from the power source.  Don’t disassemble the product, or make repa irs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.  Avoid water and wet locations. This product c an be used in the following countries: AT BG BY CA CZ DE DK EE ES FI FR GB GR HU IE IT LT LV MT NL NO PL PT RO RU SE SK TR UA TP-LINK TECHNOLOGIES CO., LTD TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1, 3 , 4 , 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China DECLARATION OF CONFORMITY For the following equipment: Pr oduct Description: 300Mbps High Power Router Model No.: TL-WR841HP Tr ademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC, Directives 2011/65/EU The above product is in conformity with the following standards or other normative doc uments ETSI EN 300 328 V1.7.1: 2006 ETSI EN 301 489-1 V1.9.2:2009& ETSI EN 301 489-17 V2.2.1:2012 EN 55022:2010 EN 55024:2010 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN60950-1:2006+A11:2009+A1:2010+A12:2011 EN62311:2008 The product carries the CE Mark: Person is responsible for marking this decla…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID：TE7WR841HPV1 Date: 2013-3-7 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Date: 2013-3-7 Federal Communications Commission Authorization and Evaluation Division FCC ID: TE7WR841HPV1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID: TE7WR841HPV1 Date: 2013-3-7 Please be notified that we, the undersigned, TP-LINK TECHNOLOGIES CO., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1020072, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

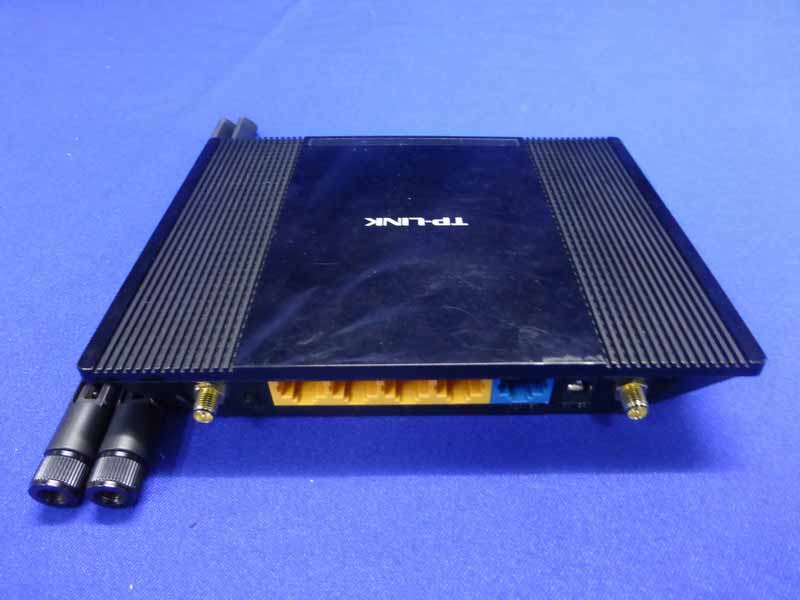

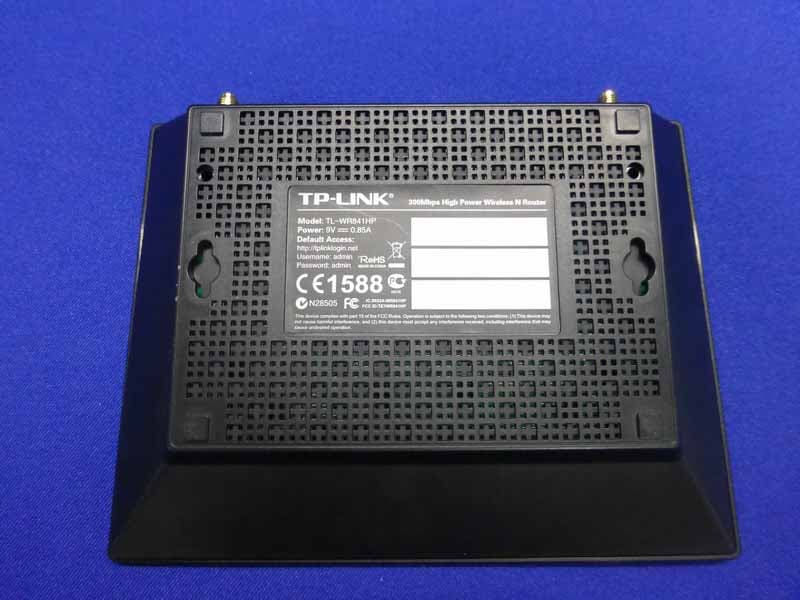

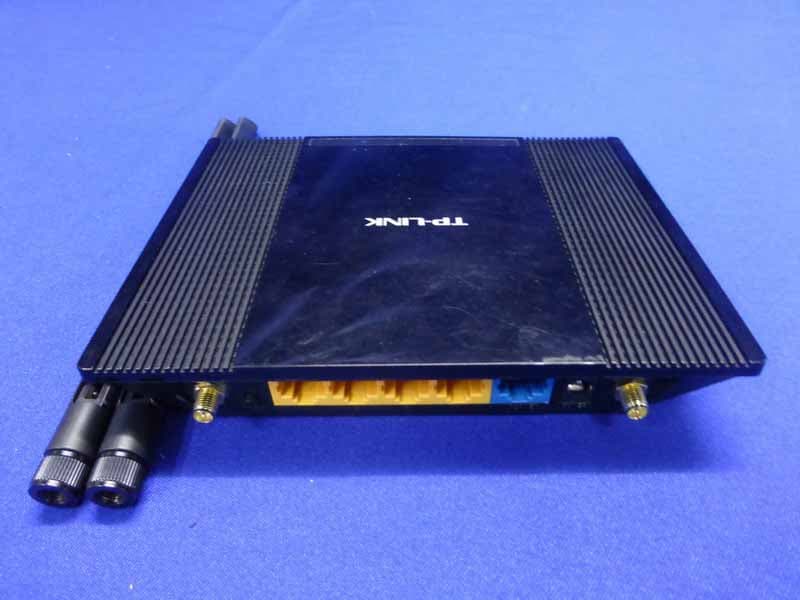

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 与上一版的区别 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 完成日期 设 计 300Mbps High Power Wireless N Router 注：S/N码由工厂打印空白标贴并贴在锡标上, MAC、PIN码则由工厂直接打印到锡标上 条码字体：Arial Regular 字号：4-5pt 此处条码为示意 MAC: 001478E48EB6 Model: TL-WR841HPVer: 1.0 S/N: 2012122101 Wireless Password/PIN: 1234567890 FCC ID:TE7WR841HP IC:8853A-WR841HP Model: Default Access: Power: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 14-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 14-6 Figure 11 Components Side of the PCB Figure 12 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 14-7 Figure 13 Power Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result EUT: 300Mbps High Power Wireless N Router M/N: TL-WR841HP Test date: 2013-03-13 Pressure: 101.2±1.0 kpa Humidity: 48.4±3.0% Tested by: Leo-Li Test site: RF site Temperature:20.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 5dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 27.15 518.80 5.0 3.16 0.3266 CH6 2437 27.05 506.99 5.0 3.16 0.3191 11b CH11 2462 27.44 554.63 5.0 3.16 0.3491 CH1 2412 26.66 463.45 5.0 3.16 0.2917 CH6 2437 26.57 453.94 5.0 3.16 0.2857 11g CH11 2462 26.49 445.66 5.0 3.16 0.2805 CH1 2412 23.56 226.99 5.0 3.16 0.1429 CH6 2437 23.57 227.51 5.0 3.16 0.1432 11n HT20 CH11 2462 23.41 219.28 5.0 3.16 0.1380 CH1 2422 22.6 181.97 5.0 3.16 0.1145 CH4 2437 22.33 171.00 5.0 3.16 0.1076 11n HT40 CH7 2452 21.98 157.76 5.0 3.16 0.0993

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 1-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TP-LINK TECHNOLOGIES CO., LTD. 300Mbps High Power Wireless N Router Model No.: TL-WR841HP FCC ID: TE7WR841HPV1 Prepared for : TP-LINK TECHNOLOGIES CO., LTD. Building 24(floors 1,3,4,5) and 28 (floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13061 Date of Test ： Feb.23~Mar.13, 2013 Date of Report ： Mar.19, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 1-2 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-3 2.4. Block Diagram of Test Setup ...............................................................................................2-3 2.5. Test Facility ..........................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-1 4.3. Radiated Emission Limit ......................................................................................................4-2 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-3 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure .......................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:TE7WR841HPV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13061 13-3 (Above 1000MHz)
