TE7X60AX3000 Whole Home Mesh Wi-Fi System

Next-Gen AX3000 Whole HomeMesh Wi-Fi System User Guide AX3000 Whole Home Mesh Wi-Fi System 1910012709 REV1.0.0 Contents About This Guide ···················································· 1Appearance ······························································· 2Set Up Your Deco ··················································· 3Dashboard ·································································· 6Overview ······································································ 7Wi-Fi Settings···························································· 9Internet Speedtest® ············································10Blacklist ······································································11Online Update ························································12Advanced Features ·············································13WPS ··············································································18Authentication ························································21 1 About This Guide This guide provides a brief introduction to Deco Whole Home Mesh Wi-Fi System and the Deco app, as well as regulatory informati on. Note: Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images, steps, and GHVFULSWLRQVLQWKLVJXLGHDUHRQO\H[DPSOHVDQGPD\QRWUHưHFW \RXUDFWXDO'HFRH[SHULHQFH Conventions In this guide, the following conventions are used: Convention Description Deco Stands for Deco Whole Home Mesh Wi-Fi System/Unit. Underline Hyperlinks are in teal and underlined. You can click to UHGLUHFWWRDZHEVLWHRUDVSHFLƮFVHFWLRQ Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. More Info • Specific product information can be found on the product page at https://www.tp-link.com . • A Technical Community is provided for you to discuss our products at https://community.tp-link.com . • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support . Speed/Coverage/Device Quantity DisclaimerMaximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput. wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.MU-MIMO DisclaimerUse of MU-MIMO requires clients to also support MU-MIMO.HomeCare DisclaimerTP-Link HomeCare™, powered by Trend Micro™, package is included for 3 years from date of activation at no additional cost. It includes Parental controls, Quality of Service, and Antivirus. Deactivation of HomeCare™ will disable certain controls and protections. For a complete list of HomeCare™ functions, go to www.tp-link.com.IoT Compatibility DisclaimerIoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use.Seamless Roaming DisclaimerClients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. 2 Appearance Each Deco has an LED that changes color according to its status, two RJ-45 Ethernet ports, a power slot, and a Reset button. Se e the explanation below: Yellow pulse:Deco is resetting.Yellow solid:Deco is starting up.Blue pulse:Deco is ready for setup.Blue solid:Deco is setting up.Green pulse:Deco is upgrading firmware.Green solid:Deco is registered and all is well.Red pulse:Deco is disconnected from main Deco.Red solid:Deco has an issue. Ethernet Ports: For connecting Deco to your modem, the Ethernet outlet or other internet devices. Reset Button:Press to reset Deco to factory default settings. Power Slot:For connecting Deco to the power socket via the provided power adapter. 3 Set Up Your Deco Follow the steps below to set up your Deco Whole Home Mesh Wi-Fi System.1. Download and install the Deco appScan the QR code below or go to Google Play or the Apple App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet. or 2. Log in or sign up with TP-Link IDOpen the app. Use your TP-Link ID to log in. If you don’t have a TP-Link ID, tap Sign Up. The Deco app will guide you through the rest. 3. Connect Deco to your modemFind and power off your modem. Connect your Deco to the modem and power them both on.If you don't have a modem, connect the Ethernet outlet directly to your Deco. 4 4. Select a locationSelect a location for this Deco. If its location is not listed, you can create a new one by choosing Custom. 5. Set up internet connectionSelect the internet connection type and enter the information. If you are not sure, contact your internet service provider. 6. Create your Wi-Fi networkSet a network name and a password. These will be the name and password you use to connect your devices to Wi-Fi. 5 8. Setup completeYour Deco network is now up. Connect all devices to the Deco network. 9. Add more DecosYou can add more Decos to expand Wi-Fi coverage. 7. Connect to your Wi-Fi networkConnect your devices to the Deco's Wi-Fi to continue the set up. 6 DashboardAfter you successfully set up your Deco network, you will see the dashboard of the Deco app. Here you can get an overview of th e network s…

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: _2019-12-24______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____BTL Inc/Mandy Wang______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____2020-12-24_____ By: ______________ _______Jing Huang_________________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: _75521534921_ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2019-12-24 Subject: Confidentiality Request for: TE7X60 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager __________ Jing Huang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Non-SDR (Software Defined Radio) Cover Letter Date: 2019.12.24 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AX3000 Whole Home Mesh Wi-Fi System (FCC ID: TE7X60) must be a Non-SDR. Name: Huang Jing Position: Regulatory Compliance Manager TP-Link Technologies Co., Ltd.

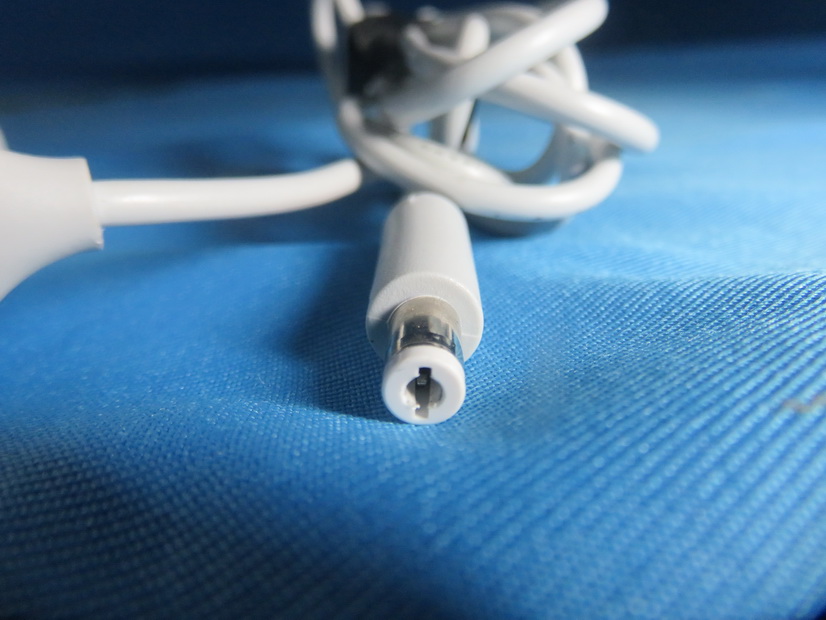

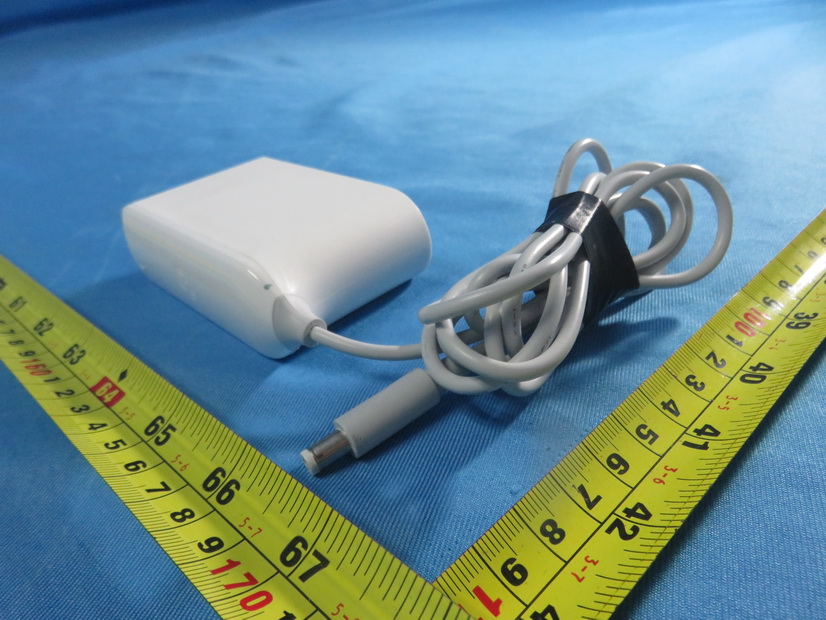

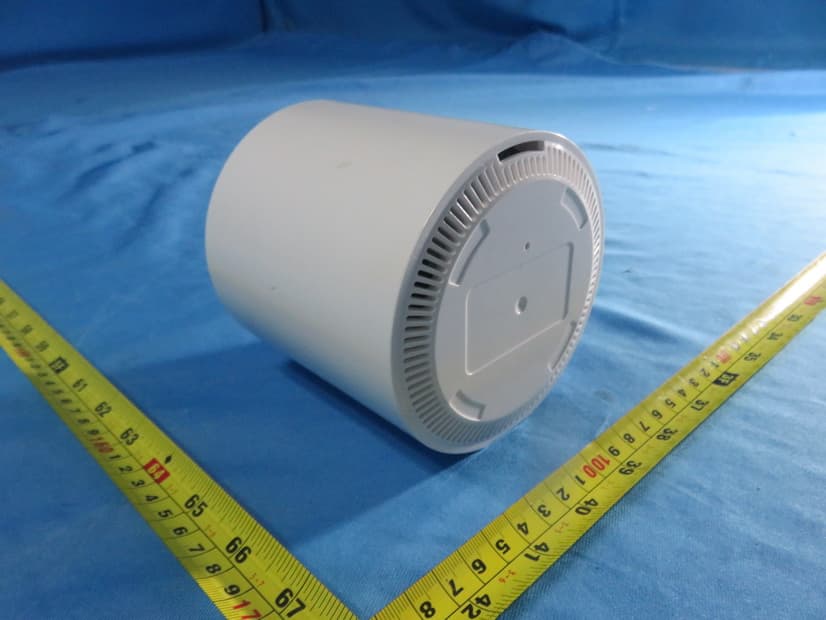

Project No.: 1910C039 Page 2 of 16 Project No.: 1910C039 Page 3 of 16 Project No.: 1910C039 Page 4 of 16 Project No.: 1910C039 Page 5 of 16 Project No.: 1910C039 Page 6 of 16

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 Pantone 877C 白色 Pantone 877C Pantone 877C 标贴尺寸：54.5*29.5mm ±0.2文字转曲（来料效果图） Deco X60(2-pack)(US) 1.0_产品规格标贴 A1 100#珠光合成纸+雾膜 Deco X60(2-pack)(US) 1.0 陈映徽 2019-08-27 备注： 1）S/N码由工厂用 23*6(7210500124) 空白标贴打印，贴于产品规格标贴指定位置； 2）MAC地址 、SSID由工厂直接打印于产品规格标贴指定位置。 MAC：条码由“XXXXXXXXXXXX”生成，文本格式写成“XX-XX-XX-XX-XX-XX”；具体内容以软件生成为准 SSID：“Deco_”为固定内容，XXXX为MAC地址后四位（大写），具体内容以软件生成为准 3）图示条码均为示意，具体请以生产实际为准。 29.5 54.5 R3.5 C2 No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC TP-Link Technologies Co., Ltd. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Model:Deco X60(US) Ver:1.0 S/N:XXXXXXXXXXXXX MAC:XX-XX-XX-XX-XX-XX SSID:Deco_XXXX Model: Deco X60 AX3000 Whole Home Mesh Wi-Fi System MADE IN CHINA IC: 8853A-X60 FCC ID: TE7X60 Power: 12V 2A

Project No.: 1910C039 Page 6 of 15 2.4G Ant.2 5G Ant.4 2.4G Ant.1 5G Ant.3 5G Ant.2 5G Ant.1 Project No.: 1910C039 Page 7 of 15 Project No.: 1910C039 Page 8 of 15 2.4G Ant.2 5G Ant.4 2.4G Ant.1 5G Ant.3 5G Ant.2 5G Ant.1 Project No.: 1910C039 Page 9 of 15 Project No.: 1910C039 Page 10 of 15 Project No.: 1910C039 Page 11 of 15 Project No.: 1910C039 Page 12 of 15 Project No.: 1910C039 Page 13 of 15 Project No.: 1910C039 Page 14 of 15 Project No.: 1910C039 Page 15 of 15

Report No.: BTL-FCCP-3-1910C039 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: TE7X60 Project No. : 1910C039 Equipment : AX3000 Whole Home Mesh Wi-Fi System Brand Name : tp-link Test Model : Deco X60 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Oct. 11, 2019 Date of Test : Oct. 14, 2019 ~ Nov. 12, 2019 Issued Date : Jan. 10, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2019101158 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Vincent Tan Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-1910C039 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Dec. 19, 2019 R01 Updated the Max. Average Output Power of the 2.4G and the max simultaneous transmission MPE. Jan. 10, 2020 Report No.: BTL-FCCP-3-1910C039 Page 3 of 4 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Antenna Specification: For 2.4GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 3101502756 Internal I-PEX 1.93 2 3101502757 Internal I-PEX 1.94 Note: This EUT supports CDD, and antenna gains are not equal, so Directional gain= 10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 1. 93/20 +10 1. 94/20 ) 2 /2]dBi =4.95. For 5GHz UNII-1: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 3101502754 Internal I-PEX 0.76 2 3101502755 Internal I-PEX 0.80 3 3101502756 Internal I-PEX 0.90 4 3101502757 Internal I-PEX 0.97 Note: This EUT supports CDD, and antenna gains are not equal, so Directional gain= 10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 0.76/20 +10 0.80/20 +10 0.90/20 +10 0.97/20 ) 2 /4]dBi =6.88.. Report No.: BTL-FCCP-3-1910C039 Page 4 of 4 2. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.95 3.1261 28.00 630.9573 0.25126 1 Complies For 5GHz UNII-1: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.88 4.8753 29.11 814.7043 0.50598 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.25126 0.50598 0.75724 1 Complies Note: The calculated distance is 25 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-2-1910C039 Page 1 of 162 FCC Radio Test Report FCC ID: TE7X60 This report concerns: Original Grant Project No. : 1910C039 Equipment : AX3000 Whole Home Mesh Wi-Fi System Brand Name : tp-link Test Model : Deco X60 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Oct. 11, 2019 Date of Test : Oct. 14, 2019 ~ Nov. 12, 2019 Issued Date : Dec. 19, 2019 Report Version : R00 Test Sample : Engineering Sample No.: DG2019101158 for conducted, DG2019101159 for radiated. Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Vincent Tan Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-1910C039 Page 2 of 162 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-1910C039 Page 3 of 162 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 13 2.4 DUTY CYCLE 14 2.5 BLOCK DIAGRAM SHOWING THEW CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS TEST 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 21 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 23 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 23 4.8 TEST RESULTS - ABOVE 1000 MHz 23 5 . BANDWIDTH TEST 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 TEST PROCEDURE 24 Report No.: BTL-FCCP-2-1910C039 Page 4 of 162 Table of Contents Page 5.4 TEST SETUP 24 5.5 EUT OPERATION CONDITIONS 24 5.6 TEST RESULTS 24 6 . MAXIMUM OUTPUT POWER TEST 25 6.1 LIMIT 25 6.2 TEST PROCEDURE 25 6.3 DEVIATION FROM STANDARD 25 6.4 TEST SETUP 25 6.5 EUT OPERATION CONDITIONS 25 6.6 TEST RESULTS 25 7 . POWER SPECTRAL DENSITY TEST 26 7.1 LIMIT 26 7.2 TEST PROCEDURE 26 7.3 DEVIATION FROM STANDARD 26 7.4 TEST SETUP 26 7.5 EUT OPERATION CONDITIONS 26 7.6 TEST RESULTS 26 8 . FREQUENCY STABILITY MEASUREMENT 27 8.1 LIMIT 27 8.2 TEST PROCEDURE 27 8.3 DEVIATION FROM STANDARD 27 8.4 TEST SETUP 27 8.5 EUT OPERATION CONDITIONS 27 8.6 TEST RESULTS 27 9 . MEASUREMENT INSTRUMENTS LIST 28 10 . EUT TEST PHOTOS 30 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 34 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 37 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 42 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 45 APPENDIX E - BANDWIDTH 126 APPENDIX F - MAXIMUM OUTPUT POWER 132 Report No.: BTL-FCCP-2-1910C039 Page 5 of 162 Table of Contents Page APPENDIX G - POWER SPECTRAL DENSITY 142 APPENDIX H - FREQUENCY STABILITY 161 Report No.: BTL-FCCP-2-1910C039 Page 6 of 162 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Dec. 19, 2019 Report No.: BTL-FCCP-2-1910C039 Page 7 of 162 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgement Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PA SS ------ 15.407(a) Maximum Output Power APPENDIX F PA S…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1910C039 Page 144 of 162 Test Mode TX A Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.26 0.22 9.48 16.12 Complies 40 5200 9.62 0.22 9.84 16.12 Complies 48 5240 10.62 0.22 10.84 16.12 Complies CH36 CH40 CH48 Test Mode TX A Mode_Ant. 4 Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.25 0.22 9.48 16.12 Complies 40 5200 9.25 0.22 9.47 16.12 Complies 48 5240 9.37 0.22 9.59 16.12 Complies CH36 CH40 CH48 Test Mode TX A Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 15.38 16.12 Complies 40 5200 15.52 16.12 Complies 48 5240 15.60 16.12 Complies Report No.: BTL-FCCP-2-1910C039 Page 145 of 162 Test Mode TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.60 0.17 9.77 16.12 Complies 40 5200 10.08 0.17 10.25 16.12 Complies 48 5240 8.52 0.17 8.69 16.12 Complies CH36 CH40 CH48 Test Mode TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 8.77 0.17 8.94 16.12 Complies 40 5200 8.90 0.17 9.07 16.12 Complies 48 5240 8.89 0.17 9.06 16.12 Complies CH36 CH40 CH48 Report No.: BTL-FCCP-2-1910C039 Page 146 of 162 Test Mode TX N (HT20) Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.86 0.17 10.03 16.12 Complies 40 5200 9.16 0.17 9.33 16.12 Complies 48 5240 9.69 0.17 9.86 16.12 Complies CH36 CH40 CH48 Test Mode TX N (HT20) Mode_Ant. 4 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.23 0.17 9.40 16.12 Complies 40 5200 9.78 0.17 9.95 16.12 Complies 48 5240 9.82 0.17 9.99 16.12 Complies CH36 CH40 CH48 Test Mode TX N (HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 15.58 16.12 Complies 40 5200 15.70 16.12 Complies 48 5240 15.46 16.12 Complies Report No.: BTL-FCCP-2-1910C039 Page 147 of 162 Test Mode TX N (HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 5.86 0.25 6.11 16.12 Complies 46 5230 8.09 0.25 8.34 16.12 Complies CH38 CH46 Test Mode TX N (HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 5.66 0.25 5.91 16.12 Complies 46 5230 8.28 0.25 8.53 16.12 Complies CH38 CH46 Report No.: BTL-FCCP-2-1910C039 Page 148 of 162 Test Mode TX N (HT40) Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 6.26 0.25 6.51 16.12 Complies 46 5230 9.96 0.25 10.21 16.12 Complies CH38 CH46 Test Mode TX N (HT40) Mode_Ant. 4 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 5.75 0.25 6.00 16.12 Complies 46 5230 9.04 0.25 9.29 16.12 Complies CH38 CH46 Test Mode TX N (HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 12.16 16.12 Complies 46 5230 15.18 16.12 Complies Report No.: BTL-FCCP-2-1910C039 Page 149 of 162 Test Mode TX AC (VHT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.99 0.16 10.15 16.12 Complies 40 5200 9.60 0.16 9.76 16.12 Complies 48 5240 9.03 0.16 9.19 16.12 Complies CH36 CH40 CH48 Te s t Mode TX AC (VHT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.25 0.16 9.41 16.12 Complies 40 5200 9.39 0.16 9.55 16.12 Complies 48 5240 9.13 0.16 9.29 16.12 Complies CH36 CH40 CH48 Report No.: BTL-FCCP-2-1910C039 Page 150 of 162 Test Mode TX AC (VHT20) Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 8.99 0.16 9.15 16.12 Complies 40 5200 10.02 0.16 10.18 16.12 Complies 48 5240 10.13 0.16 10.29 16.12 Complies CH36 CH40 CH48 Test Mode TX AC (VHT20) Mode_Ant. 4 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 9.62 0.16 9.78 16.12 Complies 40 5200 9.10 0.16 9.26 16.12 Complies 48 5240 10.01 0.16 10.17 16.12 Complies CH36 CH40 CH48 Test Mode TX AC (VHT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 15.66 16.12 Complies 40 5200 15.72 16.12 Complies 48 5240 15.78 16.12 Complies Report No.: BTL-FCCP-2-1910C039 Page 151 of 162 Test Mode TX AC (VHT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 4.98 0.00 4.98 16.12 Complies 46 5230 8.28 0.00 8.28 16.12 Complies CH38 CH46 Test Mode TX AC (VHT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 4.49 0.00 4.49 16.12 Complies 46 5230 7.97 0.00 7.97 16.12 Complies CH38 CH46 Report No.: BTL-FCCP-2-1910C039 Page 152 of 162 Test Mode TX AC (VHT40) Mode_Ant. 3 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Den…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1910C039 Page 29 of 248 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-1910C039 Page 30 of 248 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-1910C039 Page 31 of 248 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-1910C039 Page 32 of 248 Radiated Emissions Test Photos Above 1 GHz
