TE7X60V2AX3000 Whole Home Mesh Wi-Fi 6 System

Next-Gen AX3000 Whole HomeMesh Wi-Fi System User Guide AX3000 Whole Home Mesh Wi-Fi 6 System 1910012709 REV1.0.0 ContentsAbout This Guide ···················································· 1Appearance ······························································· 2Set Up Your Deco ··················································· 3Dashboard ·································································· 6Overview ······································································ 7Wi-Fi Settings···························································· 9Internet Speedtest® ············································10Blacklist ······································································11Online Update ························································12Advanced Features ·············································13WPS ··············································································18Authentication ························································21 1 About This GuideThis guide provides a brief introduction to Deco Whole Home Mesh Wi-Fi System and the Deco app, as well as regulatory informati on. Note: Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images, steps, and GHVFULSWLRQVLQWKLVJXLGHDUHRQO\H[DPSOHVDQGPD\QRWUHưHFW \RXUDFWXDO'HFRH[SHULHQFH ConventionsIn this guide, the following conventions are used: Convention Description Deco Stands for Deco Whole Home Mesh Wi-Fi System/Unit. Underline Hyperlinks are in teal and underlined. You can click to UHGLUHFWWRDZHEVLWHRUDVSHFLƮFVHFWLRQ Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. More Info• Specific product information can be found on the product page at https://www.tp-link.com . • A Technical Community is provided for you to discuss our products at https://community.tp-link.com . • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support . Speed/Coverage/Device Quantity DisclaimerMaximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput. wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.MU-MIMO DisclaimerUse of MU-MIMO requires clients to also support MU-MIMO.HomeCare DisclaimerTP-Link HomeCare™ includes Parental Controls, Quality of Service, and Antivirus. Deactivation of HomeCare™ will disable certain controls and protections. For a complete list of HomeCare™ functions, go to www.tp-link.com.IoT Compatibility DisclaimerIoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use.Seamless Roaming DisclaimerClients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. 2 AppearanceEach Deco has an LED that changes color according to its status, two RJ-45 Ethernet ports, a power slot, and a Reset button. Se e the explanation below: Yellow pulse:Deco is resetting.Yellow solid:Deco is starting up.Blue pulse:Deco is ready for setup.Blue solid:Deco is setting up.Green pulse:'HFRLVXSJUDGLQJƮUPZDUHGreen solid:'HFRLVUHJLVWHUHGDQGDOOLVZHOORed pulse:'HFRLVGLVFRQQHFWHGIURPPDLQ'HFRRed solid:Deco has an issue. Ethernet Ports: )RUFRQQHFWLQJ'HFRWR\RXUPRGHPWKHEthernet outlet or other internet devices. Reset Button:Press 1 second to reset Deco to factory default settings Power Slot:)RUFRQQHFWLQJ'HFRWRWKHSRZHUVRFNHWYLDWKHSURYLGHGSRZHUDGDSWHU 3 Set Up Your DecoFollow the steps below to set up your Deco Whole Home Mesh Wi-Fi System.1. Download and install the Deco appScan the QR code below or go to Google Play or the Apple App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet. or 2. Log in or sign up with TP-Link IDOpen the app. Use your TP-Link ID to log in. If you don’t have a TP-Link ID, tap Sign Up. The Deco app will guide you through the rest. 3. Connect Deco to your modemFind and power off your modem. Connect your Deco to the modem and power them both on.If you don't have a modem, connect the Ethernet outlet directly to your Deco. 4 4. Select a locationSelect a location for this Deco. If its location is not listed, you can create a new one by choosing Custom. 5. Set up internet connectionSelect the internet connection type and enter the information. If you are not sure, contact your internet service provider. 6. Create your Wi-Fi networkSet a network name and a password. These will be the name and password you use to connect your devices to Wi-Fi. 5 8. Setup completeYour Deco network is now up. Connect all devices to the Deco network. 9. Add more DecosYou can add more Decos to expand Wi-Fi coverage. 7. Connect to your Wi-Fi networkConnect your devices to the Deco's Wi-Fi to continue the set up. 6 DashboardAfter you successfully set up your Deco network, you will see the dashboard of the Deco app. Here you can get an overview of th e network status, create HomeCare™ services, and set up various advanced features. Note: To use Homecare services, …

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: _2020-08-04______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____BTL Inc/Rose Liu______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____2021-08-04_____ By: ______________ _______Jing Huang_________________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: _75521534921_ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-08-04 Subject: Confidentiality Request for: TE7X60V2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: /Regulatory Compliance Manager __ Jing Huang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Non-SDR (Software Defined Radio) Cover Letter Date: 2020.08.04 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AX3000 Whole Home Mesh Wi-Fi 6 System (FCC ID: TE7X60V2) must be a Non-SDR. Name: Huang Jing Position: Regulatory Compliance Manager TP-Link Technologies Co., Ltd.

< TP-Link Technologies Co., Ltd.> <Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China> 1 Operation Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21048 Date: <2020-08-04> Attn: Office of Engineering and Technology Subject: Attestation Letter regarding UNII devices FCC ID: TE7X60V2 ISED ID: 8853A-X60V2 Software security questions and answers per KDB 594280 D02: SOFTWARE SECURITY DESCRIPTION General Description 1. Describe how any software/firmware updates for elements than can affect the device’s RF parameters will be obtained, downloaded, validated and installed. For software that is accessed through manufacturer’s website or device’s management system, describe the different levels of security as appropriate. Software/firmware will be obtained by the factory, downloaded from the ODM website, and installed by the end user. Software is accessed through Web UI when computer is connected. 2. Describe the RF parameters that are modified by any software/firmware without any hardware changes. Are these parameters in some way limited such that any other software/firmware changes will not allow the device to exceed the authorized RF characteristics? The RF parameters cannot be modified by software. All these parameters will not exceed the authorized parameters. The firmware has been complied as binary file. It couldn’t change the setting RF parameter through this binary file. It is read-only without change. 3. Describe in detail the authentication protocols that are in place to ensure that the source of the RF-related software/firmware is valid. Describe in detail how the RF-related software is protected against modification. No any authentication protocol is used. The RF Parameters is put in read-only partition of EUT’s flash and are only installed in the factory. RF parameters including frequency of operation, power setting, modulation type, antenna types or country code setting will be locked in this partition. < TP-Link Technologies Co., Ltd.> <Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China> 2 4. Describe in detail any encryption methods used to support the use of legitimate RF-related software/firmware. No encryption methods used. 5. For a device that can be configured as a master and client (with active or passive scanning), explain how the device ensures compliance for each mode? In particular if the device acts as master in some band of operation and client in another; how is compliance ensured in each band of operation? The device ensures the compliance by checking the configured parameter and operation values according to the regulatory domain and country code in each band. Third-Party Access Control 1. Explain if any third parties have the capability to operate a U.S.-sold device on any other regulatory domain, frequencies, or in any manner that may allow the device to operate in violation of the device’s authorization if activated in the U.S. No any third parties have the capability to operate a US sold device on any other regulatory domain, frequencies, or in any manner that may allow the device to operate in violation of the device’s authorization if activated in the U.S. 2. Describe, if the device permits third-party software or firmware installation, what mechanisms are provided by the manufacturer to permit integration of such functions while ensuring that the RF parameters of the device cannot be operated outside its authorization for operation in the U.S. In the description include what controls and/or agreements are in place with providers of third-party functionality to ensure the devices’ underlying RF parameters are unchanged and how the manufacturer verifies the functionality. The RF Parameters is put in read-only partition of EUT’s flash and are only installed in the factory. RF parameters including frequency of operation, power setting, modulation type, antenna types or country code setting will be locked in this partition. 3. For Certified Transmitter modular devices, describe how the module grantee ensures that host manufacturers fully comply with these software security requirements for U-NII devices. If the module is controlled through driver software loaded in the host, describe how the drivers are controlled and managed such that the modular transmitter RF parameters are not modified outside the grant of authorization. This is not a module device. SOFTWARE CONFIGURATION DESCRIPTION GUIDE For devices which have “User Interfaces” (UI) to configure the device in a manner that may impact the operational RF parameters, the following questions shall be answered by the applicant and the information included in the operational description. The description must < TP-Link Technologies Co., Ltd.> <Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China> 3 address if the device supports any of the country code configurations or peer-peer mode communications discussed in KDB 594280 Publication D01. SOFTWARE CONFIGURATION DESCRIPTION USER CONFIGURATION GUIDE 1. Describe the user configurations permitted through the UI. If different levels of access are permitted for professional installers, system integrators or end-users, describe the differences. Authorized channel, bandwidth, and modulation can be configured through the UI. There are no different levels of access. a. What parameters are viewable and configurable by different parties? Authorized channel, bandwidth, and modulation. b. What parameters are accessible or modifiable by the professional installer or system integrators? This is not professional install device. (1) Are the parameters in some way limited, so that the installers will not enter parameters that exceed those authorized? …

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2020-08-04 We, the undersigned company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Declare that: Product description: AX3000 Whole Home Mesh Wi-Fi 6 System Type designation: Deco X60 Brand: tp-link FCC ID: TE7X60V2 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: _____________ Name: Jing Huang Tel: 75521534921 Email: [email protected]

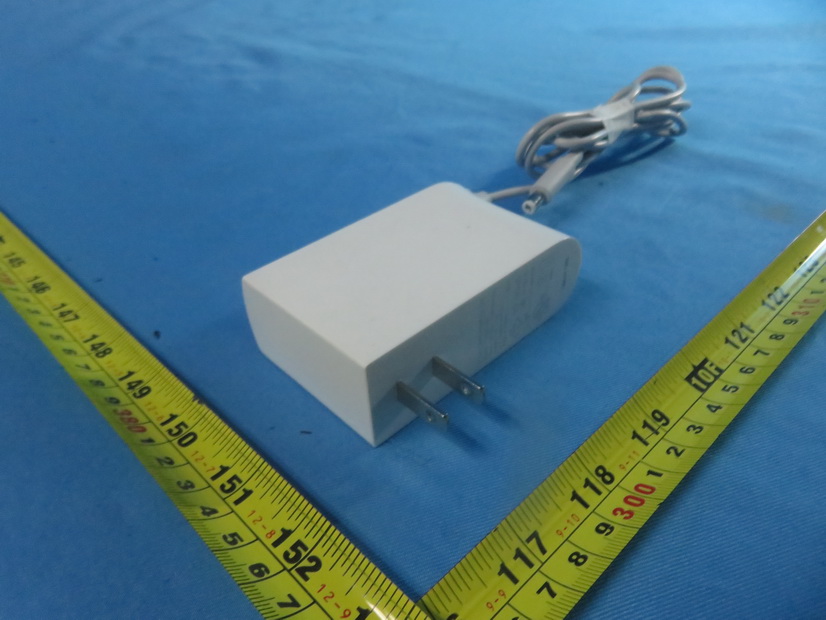

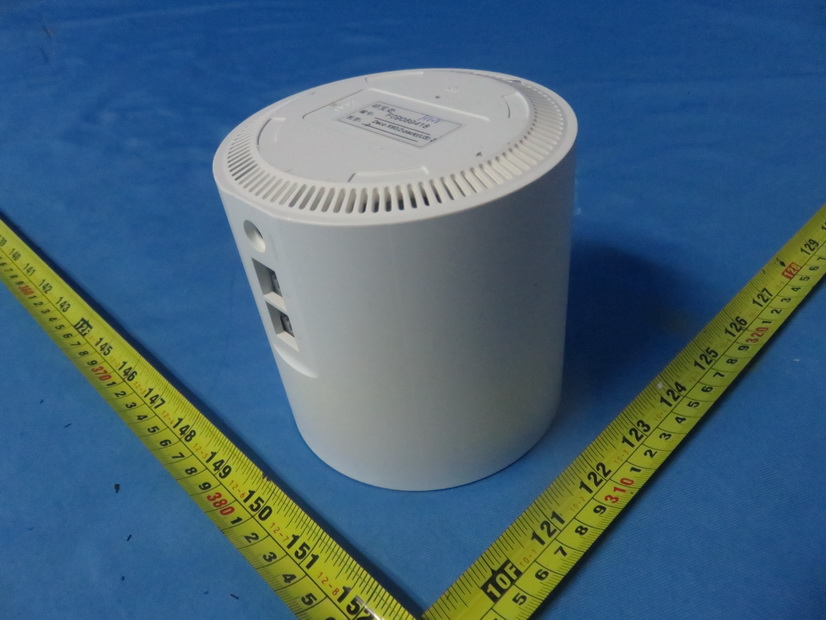

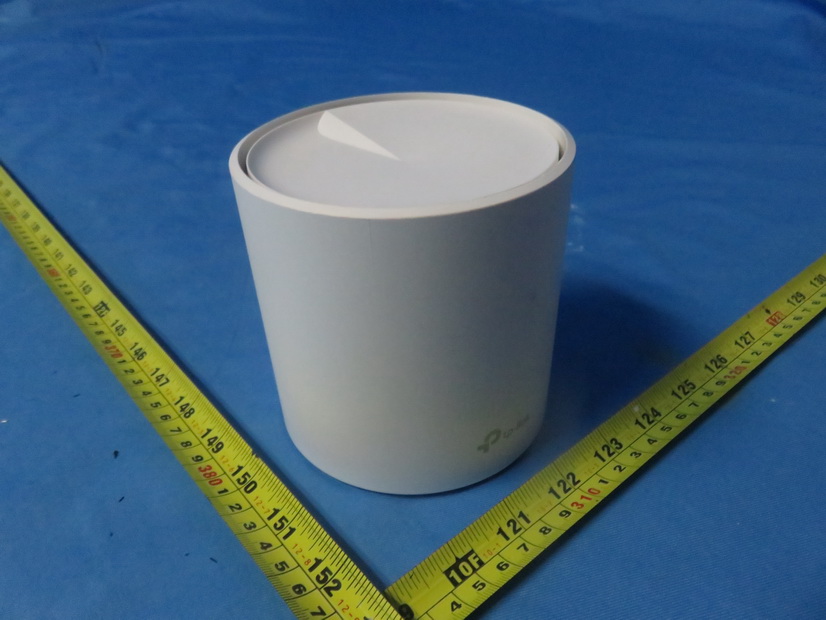

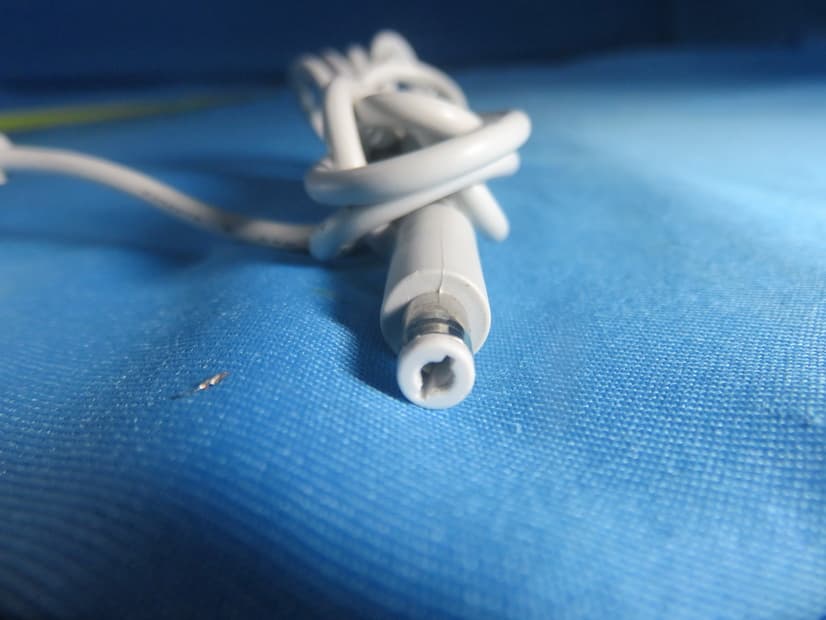

Project No.: 2006C089 Page 2 of 14 Project No.: 2006C089 Page 3 of 14 Project No.: 2006C089 Page 4 of 14 Project No.: 2006C089 Page 5 of 14

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 Pantone 877C 白色 Pantone 877C Pantone 877C 标贴尺寸：54.5*29.5mm ±0.2 Deco X60(US) 2.0_产品规格标贴 A1 100#珠光合成纸+雾膜 时针-110 Deco X60(US) 2.0 陈映徽 2020-04-10 备注： 1）S/N码由工厂用 23*6(7210500124) 空白标贴打印，贴于产品规格标贴指定位置； 2）MAC地址 、 SSID由工厂直接打印于产品规格标贴指定位置。 MAC：条码由“XXXXXXXXXXXX”生成，文本格式写成“XX-XX-XX-XX-XX-XX”；具体内容以软件生成为准 SSID：“Deco_”为固定内容，XXXX为MAC地址后四位（大写），具体内容以软件生成为准 3）图示条码均为示意，具体请以生产实际为准。 29.5 54.5 R3.5 C2 No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC TP-Link Technologies Co., Ltd. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Model:Deco X60(US) Ver:2.0 S/N:XXXXXXXXXXXXX MAC:XX-XX-XX-XX-XX-XX SSID:Deco_XXXX Model: Deco X60 AX3000 Whole Home Mesh Wi-Fi 6 System MADE IN CHINA IC: 8853A-X60V2 FCC ID: TE7X60V2 Power: 12V 2A HVIN:Deco X60V2 Label location

Project No.: 2006C089 Page 6 of 14 Project No.: 2006C089 Page 7 of 14 2.4G Ant.2 5G Ant.4 2.4G Ant.1 5G Ant.3 5G Ant.2 5G Ant.1 Project No.: 2006C089 Page 8 of 14 Project No.: 2006C089 Page 9 of 14 Project No.: 2006C089 Page 10 of 14 Project No.: 2006C089 Page 11 of 14 Project No.: 2006C089 Page 12 of 14 Project No.: 2006C089 Page 13 of 14 Project No.: 2006C089 Page 14 of 14

Report No.: BTL-FCCP-3-2006C089 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: TE7X60V2 Project No. : 2006C089 Equipment : AX3000 Whole Home Mesh Wi-Fi 6 System Brand Name : tp-link Test Model : Deco X60 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Jun. 11, 2020 Date of Test : Jun. 15, 2020 ~ Jul. 30, 2020 Issued Date : Aug. 03, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG20200611223 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Vincent Tan Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2006C089 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Aug. 03, 2020 Report No.: BTL-FCCP-3-2006C089 Page 3 of 5 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For WLAN 2.4GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 3101502756 Dipole I-PEX 1.93 2 3101502757 Dipole I-PEX 1.94 Note: This EUT supports CDD, and antenna gains are not equal, so Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi=10log[(10 1.93/20 +10 1.94/20 ) 2 /2]=4.95dB. Table for Antenna Configuration: Operating Mode TX Mode 2TX 802.11b V (Ant. 1 + Ant. 2) 802.11g V (Ant. 1 + Ant. 2) IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HEW20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HEW40) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2006C089 Page 4 of 5 For WLAN 5GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 3101502754 Dipole I-PEX 0.81 2 3101502755 Dipole I-PEX 0.88 3 3101502756 Dipole I-PEX 0.90 4 3101502757 Dipole I-PEX 0.97 Note: This EUT supports CDD, and antenna gains are not equal, so Directional gain= 10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 0. 81/20 +10 0. 88/20 +10 0.90/20 +10 0.97/20 ) 2 /4]dBi =6.91. So, the the UNII-1 and UNII-3 output power limit is 30-(6.91-6)=29.09, the the UNII-1 power spectral density limit is 17-(6.91-6)=16.09, the the UNII-3 power spectral density limit is 30-(6.91-6)=29.09 Table for Antenna Configuration: Operating Mode TX Mode 4TX IEEE 802.11a V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax (HEW20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax (HEW40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax (HEW80) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) Report No.: BTL-FCCP-3-2006C089 Page 5 of 5 2. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.95 3.1261 25.94 392.6449 0.1564 1 Complies For 5GHz UNII-1: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.91 4.9091 25.94 392.6449 0.2455 1 Complies For 5GHz UNII-3: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.91 4.9091 28 630.9573 0.3946 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.1564 0.3946 0.5510 1 Complies Note: The calculated distance is 25 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-2-2006C089 Page 1 of 169 FCC Radio Test Report FCC ID: TE7X60V2 This report concerns: Original Grant Project No. : 2006C089 Equipment : AX3000 Whole Home Mesh Wi-Fi 6 System Brand Name : tp-link Test Model : Deco X60 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Jun. 11, 2020 Date of Test : Jun. 15, 2020 ~ Jul. 30, 2020 Issued Date : Aug. 24, 2020 Report Version : R02 Test Sample : Engineering Sample No.: DG20200611223 for conducted, DG20200611224 for radiated Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Vincent Tan Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2006C089 Page 2 of 169 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2006C089 Page 3 of 169 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 15 2.4 DUTY CYCLE 16 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 18 2.6 SUPPORT UNITS 18 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 19 3.1 LIMIT 19 3.2 TEST PROCEDURE 19 3.3 DEVIATION FROM TEST STANDARD 19 3.4 TEST SETUP 20 3.5 EUT OPERATION CONDITIONS 20 3.6 TEST RESULTS 20 4 . RADIATED EMISSIONS TEST 21 4.1 LIMIT 21 4.2 TEST PROCEDURE 22 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 23 4.5 EUT OPERATION CONDITIONS 24 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 24 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 24 4.8 TEST RESULTS - ABOVE 1000 MHz 24 5 . BANDWIDTH TEST 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 DEVIATION FROM STANDARD 26 Report No.: BTL-FCCP-2-2006C089 Page 4 of 169 Table of Contents Page 5.4 TEST SETUP 26 5.5 EUT OPERATION CONDITIONS 26 5.6 TEST RESULTS 26 6 . MAXIMUM OUTPUT POWER TEST 27 6.1 LIMIT 27 6.2 TEST PROCEDURE 27 6.3 DEVIATION FROM STANDARD 27 6.4 TEST SETUP 27 6.5 EUT OPERATION CONDITIONS 27 6.6 TEST RESULTS 27 7 . POWER SPECTRAL DENSITY TEST 28 7.1 LIMIT 28 7.2 TEST PROCEDURE 28 7.3 DEVIATION FROM STANDARD 29 7.4 TEST SETUP 29 7.5 EUT OPERATION CONDITIONS 29 7.6 TEST RESULTS 29 8 . FREQUENCY STABILITY MEASUREMENT 30 8.1 LIMIT 30 8.2 TEST PROCEDURE 30 8.3 DEVIATION FROM STANDARD 30 8.4 TEST SETUP 30 8.5 EUT OPERATION CONDITIONS 30 8.6 TEST RESULTS 30 9 . MEASUREMENT INSTRUMENTS LIST 31 10 . EUT TEST PHOTOS 33 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 38 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 41 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 46 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 49 APPENDIX E - BANDWIDTH 110 APPENDIX F - MAXIMUM OUTPUT POWER 123 Report No.: BTL-FCCP-2-2006C089 Page 5 of 169 Table of Contents Page APPENDIX G - POWER SPECTRAL DENSITY 138 APPENDIX H - FREQUENCY STABILITY 167 Report No.: BTL-FCCP-2-2006C089 Page 6 of 169 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Aug. 03, 2020 R01 Only updated the parameters of test software in Section 2.3 Aug. 11, 2020 R02 Only updated the measurement instruments list . Aug. 12, 20…
