TE7X90AX6600 / AX5700 Whole Home Mesh Wi-Fi 6 System

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China TPC Declaration Letter Date: 2020/10/23 FCC ID： TE7X90 To Whom It May Concern: We, TP-Link Technologies Co., Ltd., declare that the device supports the TPC function in final F/W when EUT is sold to FCC market. Regards, Sincerely yours, Applicant’s company name : TP-Link Technologies Co., Ltd. Applicant’s company address : Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China Signature : Name and Job Title : Jing Huang / Regulatory Compliance Manager E-Mail : [email protected] Tel : 75521534921 Fax : 75526508930

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China SDoC Attestation Letter Date: 2020/10/23 We TP-Link Technologies Co., Ltd., as the grantee of this project (FCC ID: TE7X90 / Brand Name: tp-link / Model No.: Deco X90, Deco X5700), would like to declare that the composite portion has been authorized under the Supplier's Declaration of Conformity procedures (Sporton report No.: FD070131, FCC designation number: TW1096). The final product shall consequently comply with the FCC rule applied for SDoC Procedure. Regards, Sincerely, Applicant’s company name : TP-Link Technologies Co., Ltd. Applicant’s company address : Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China Signature : Name and Job Title : Jing Huang / Regulatory Compliance Manager E-Mail : [email protected] Tel : 75521534921 Fax : 75526508930

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China Confidential Letter Date: 2020/10/23 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID： TE7X90 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant’s company name : TP-Link Technologies Co., Ltd. Applicant’s company address : Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China Signature : Name and Job Title : Jing Huang / Regulatory Compliance Manager E-Mail : [email protected] Tel : 75521534921 Fax : 75526508930

TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China Power of Attorney Date: 2020/10/23 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: TE7X90 Sincerely, Applicant’s company name : TP-Link Technologies Co., Ltd. Applicant’s company address : Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China Signature : Name and Job Title : Jing Huang / Regulatory Compliance Manager E-Mail : [email protected] Tel : 75521534921 Fax : 75526508930

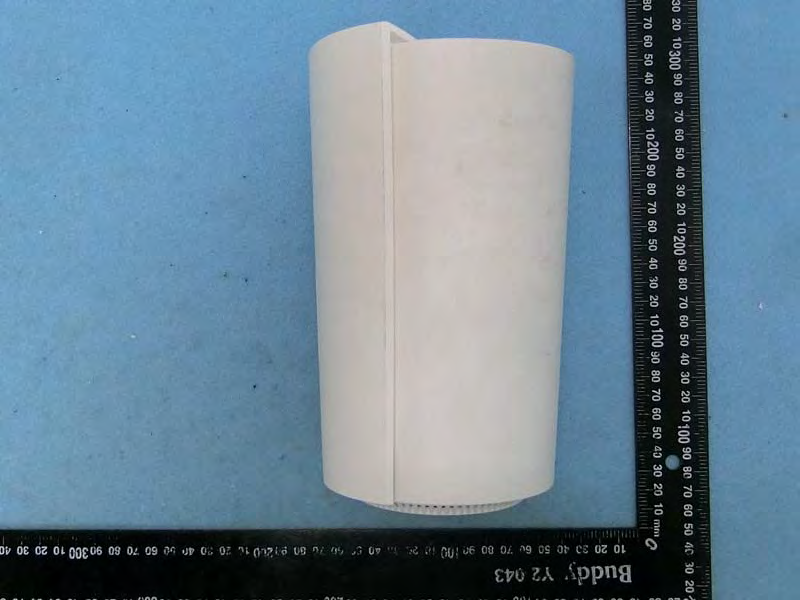

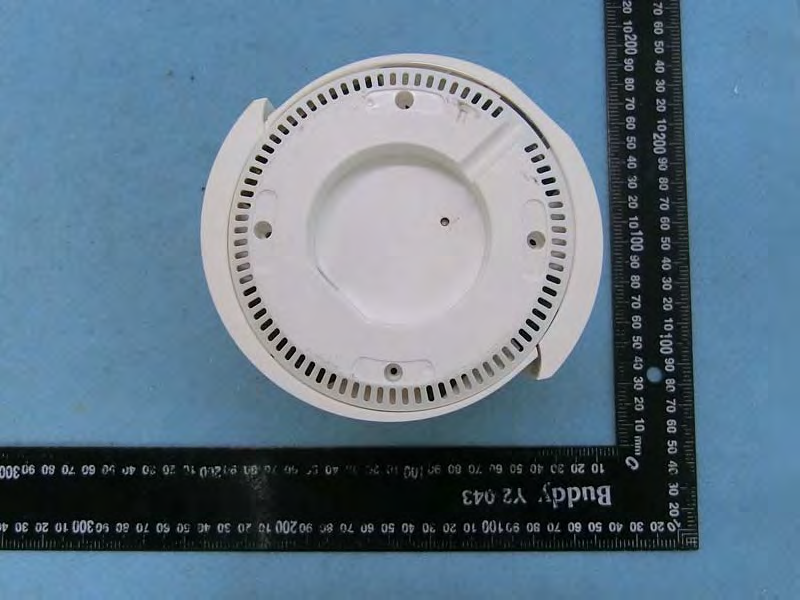

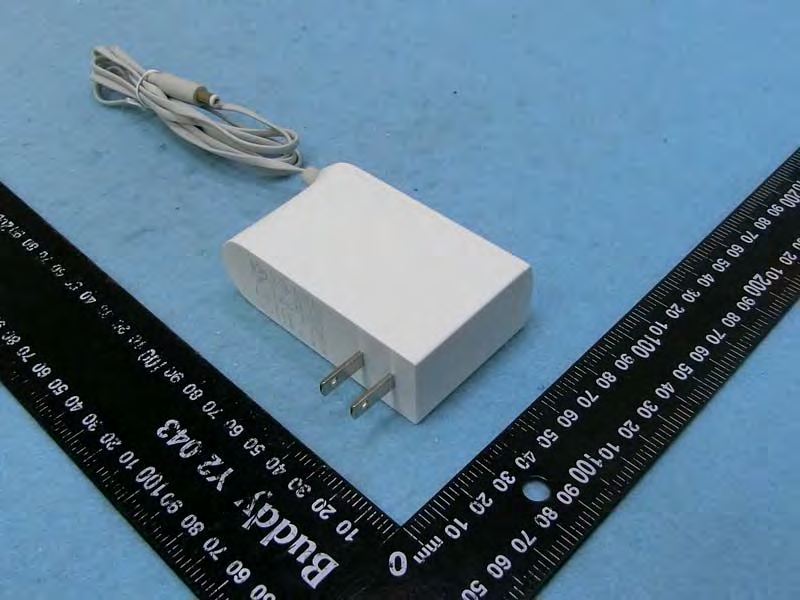

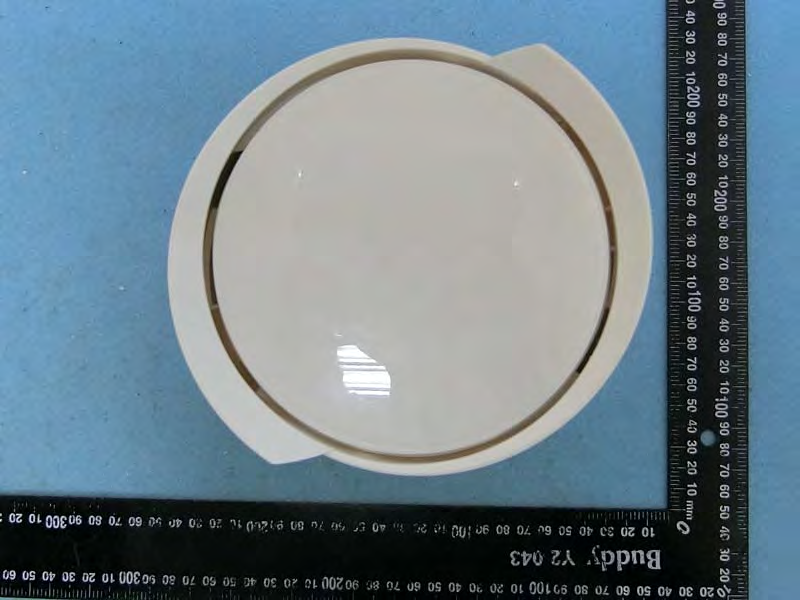

PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: tp-link Model Name: Deco X90, Deco X5700 PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Adapter PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 6 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

Label Location Label Here

PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: tp-link Model Name: Deco X90, Deco X5700 Ant.2 5G band 4 Ant.1 5G band 4 Ant.3 2.4G+5G band1~2 Ant.4 2.4G+5G band1~2 Ant. 5 5G band1~2 Ant. 6 5G band1~2 PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 7 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 8 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 9 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 10 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 11 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 12 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 13 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 14 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 15 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 16 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 17 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 18 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 19 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 20 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Ant. 1 5G band 4 Ant. 2 5G band 4 Ant. 3 2.4G+5G band 1~2 Ant. 4 2.4G+5G band 1~2 Ant. 5 5G band 1~2 Ant. 6 5G band 1~2 PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 21 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP070131 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 22 of 28 TEL : 886-3-656-9065 Issued Date : Nov. 04, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report …

Text truncated - open the document above for the full version.

FCC RADIO EXPOSURE TEST REPORT Report No. : FA070131 TEL : 886-3-656-9065 Page Number : 2 of 8 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Table of Contents History of this test report.................................................................................................................................3 Summary of Test Result...................................................................................................................................4 1 General Description .............................................................................................................................5 1.1 EUT General Information .......................................................................................................................5 1.2 Testing Location .....................................................................................................................................6 2 Maximum Permissible Exposure ........................................................................................................7 2.1 Limit of Maximum Permissible Exposure ...............................................................................................7 2.2 MPE Calculation Method........................................................................................................................7 2.3 Calculated Result and Limit....................................................................................................................8 Photographs of EUT v01 FCC RADIO EXPOSURE TEST REPORT Report No. : FA070131 TEL : 886-3-656-9065 Page Number : 3 of 8 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA070131 01 Initial issue of report Nov. 04, 2020 FCC RADIO EXPOSURE TEST REPORT Report No. : FA070131 TEL : 886-3-656-9065 Page Number : 4 of 8 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Wendy Pan FCC RADIO EXPOSURE TEST REPORT Report No. : FA070131 TEL : 886-3-656-9065 Page Number : 5 of 8 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5725-5850 5180-5250 5260-5320 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 1.1.1 Table for Multiple Listing The EUT has two equipment and model names which are identical to each other in all aspects except for the following table: Brand Name Equipment Name Model Name Description AX6600 Whole Home Mesh Wi-Fi 6 System Deco X90 tp-link AX5700 Whole Home Mesh Wi-Fi 6 System Deco X5700 All the equipment and model names are identical; the difference equipment name and model name served as marketing strategy. From the above models, model: Deco X90 was selected as representative model for the test and its data was recorded in this report. 1.1.2 Table for EUT support type Function AP Router Mesh Note: After evaluating, there is only the Router selected to test and recorded in the report. FCC RADIO EXPOSURE TEST REPORT Report No. : FA070131 TEL : 886-3-656-9065 Page Number : 6 of 8 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Test site registered number IC 4086D with Industry Canada. FCC RADIO EXPOSURE TEST REPORT Report No. : FA070131 TEL : 886-3-656-9065 Page Number : 7 of 8 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Method The MPE was calculated at 29 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP…

Text truncated - open the document above for the full version.

FCC DFS TEST REPORT Report No. : FZ070131 TEL : 886-3-656-9065 Page Number : 2 of 145 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_4 Ver1.0 Report Version : 01 Table of Contents History of this test report.................................................................................................................................3 Summary of Test Result...................................................................................................................................4 1 General Description .............................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Accessories ............................................................................................................................................9 1.3 Support Equipment.................................................................................................................................9 1.4 Applicable Standards .............................................................................................................................9 1.5 Testing Location Information ................................................................................................................10 2 Test Configuration of EUT.................................................................................................................11 2.1 Test Channel Frequencies Configuration.............................................................................................11 2.2 The Worst Case Measurement Configuration......................................................................................11 3 Dynamic Frequency Selection (DFS) Test Result ...........................................................................12 3.1 General DFS Information .....................................................................................................................12 3.2 Radar Test Waveform Calibration ........................................................................................................15 3.3 UNII Detection Bandwidth ....................................................................................................................25 3.4 Channel Availability Check (CAC)........................................................................................................30 3.5 In-service Monitoring ............................................................................................................................34 3.6 Statistical Performance Check .............................................................................................................38 4 Test Equipment and Calibration Data ............................................................................................144 5 Measurement Uncertainty ...............................................................................................................145 Appendix A. Test Photos Appendix B. Dynamic In-Service Monitoring Test (Zero-Wait CAC) Photographs of EUT v01 FCC DFS TEST REPORT Report No. : FZ070131 TEL : 886-3-656-9065 Page Number : 3 of 145 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_4 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FZ070131 01 Initial issue of report Nov. 04, 2020 FCC DFS TEST REPORT Report No. : FZ070131 TEL : 886-3-656-9065 Page Number : 4 of 145 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_4 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.3 FCC KDB 905462 7.8.1 DFS: UNII Detection Bandwidth Measurement PASS - 3.4 FCC KDB 905462 7.8.2.1 DFS: Initial Channel Availability Check Time PASS - 3.4 FCC KDB 905462 7.8.2.2 DFS: Radar Burst at the Beginning of the Channel Availability Check Time PASS - 3.4 FCC KDB 905462 7.8.2.3 DFS: Radar Burst at the End of the Channel Availability Check Time PASS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Channel Move Time (CMT) PASS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Channel Closing Transmission Time (CCTT) PASS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Non-Occupancy Period (NOP) PASS - 3.6 FCC KDB 905462 7.8.4 DFS: Statistical Performance Check PASS - 3.1.4 FCC KDB 905462 8.1 User Access Restrictions N/A Manufacturer attestation NOT accessible to user Note: Mesh mode, only Statistical Performance Check (Section 7.8.4) on one of the radar types is required to perform. Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Wendy Pan FCC DFS TEST REPORT Report No. : FZ070131 TEL : 886-3-656-9065 Page Number : 5 of 145 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_4 Ver1.0 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Specification Items Description Frequency Range 5250 MHz – 5350 MHz Power Type From power adapter Channel Bandwidth 20/40/80/160 MHz operating channel bandwidth Master Bridge Mesh Client with radar detection Operating Mode Client without radar detection Communication Mode IP Based (Load Based) Frame Based TPC Function With TPC Without TPC Power-on cycle 160MHz: Requires 116.957 seconds to complete its power-on cycle. Firmware Number 1.0.0 Build 20200817 Rel. 67781 11a, HT20 and HT40 use a combination of …

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR070131AB TEL : 886-3-656-9065 Page Number : 2 of 35 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 Table of Contents History of this test report.................................................................................................................................3 Summary of Test Result...................................................................................................................................4 1 General Description .............................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Applicable Standards ...........................................................................................................................12 1.3 Testing Location Information ................................................................................................................12 1.4 Measurement Uncertainty ....................................................................................................................13 2 Test Configuration of EUT.................................................................................................................14 2.1 Test Channel Mode ..............................................................................................................................14 2.2 The Worst Case Measurement Configuration......................................................................................16 2.3 EUT Operation during Test ..................................................................................................................17 2.4 Accessories ..........................................................................................................................................17 2.5 Support Equipment...............................................................................................................................17 2.6 Test Setup Diagram .............................................................................................................................18 3 Transmitter Test Result .....................................................................................................................21 3.1 AC Power-line Conducted Emissions ..................................................................................................21 3.2 Emission Bandwidth .............................................................................................................................23 3.3 Maximum Conducted Output Power ....................................................................................................24 3.4 Peak Power Spectral Density...............................................................................................................26 3.5 Unwanted Emissions ............................................................................................................................29 4 Test Equipment and Calibration Data ..............................................................................................33 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of Emission Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Peak Power Spectral Density Appendix E. Test Results of Unwanted Emissions Appendix F. Test Results of Radiated Emission Co-location Appendix G. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR070131AB TEL : 886-3-656-9065 Page Number : 3 of 35 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 History of this test report Report No. Version Description Issued Date FR070131AB 01 Initial issue of report Nov. 04, 2020 FCC RADIO TEST REPORT Report No. : FR070131AB TEL : 886-3-656-9065 Page Number : 4 of 35 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.407(a) Emission Bandwidth PASS - 3.3 15.407(a) Maximum Conducted Output Power PASS - 3.4 15.407(a) Peak Power Spectral Density PASS - 3.5 15.407(b) Unwanted Emissions PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Wendy Pan FCC RADIO TEST REPORT Report No. : FR070131AB TEL : 886-3-656-9065 Page Number : 5 of 35 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number 5150-5250 a, n (HT20), ac (VHT20), ax (HEW20) 5180-5240 36-48 [4] 5250-5350 5260-5320 52-64 [4] 5725-5850 5745-5825 149-165 [5] 5150-5250 n (HT40), ac (VHT40), ax (HEW40) 5190-5230 38-46 [2] 5250-5350 5270-5310 54-62 [2] 5725-5850 5755-5795 151-159 [2] 5150-5250 ac (VHT80), ax (HEW80) 5210 42 [1] 5250-5350 5290 58 [1] 5725-5850 5775 155 [1] 5150-5350 ac (VHT160), ax (HEW160) 5250 50 [1] FCC RADIO TEST REPORT Report No. : FR070131AB TEL : 886-3-656-9065 Page Number : 6 of 35 FAX : 886-3-656-9085 Issued Date : Nov. 04, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 Band Mode BWch (MHz) Nant 5.15-5.25GHz 802.11a 20 4…

Text truncated - open the document above for the full version.

Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 1 of 3 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 2 of 3 2. Photographs of Radiated Emissions Test Configuration Test Configurati…

Text truncated - open the document above for the full version.
