TEB-AIRPT677Low Power Transmitter for Power Meter

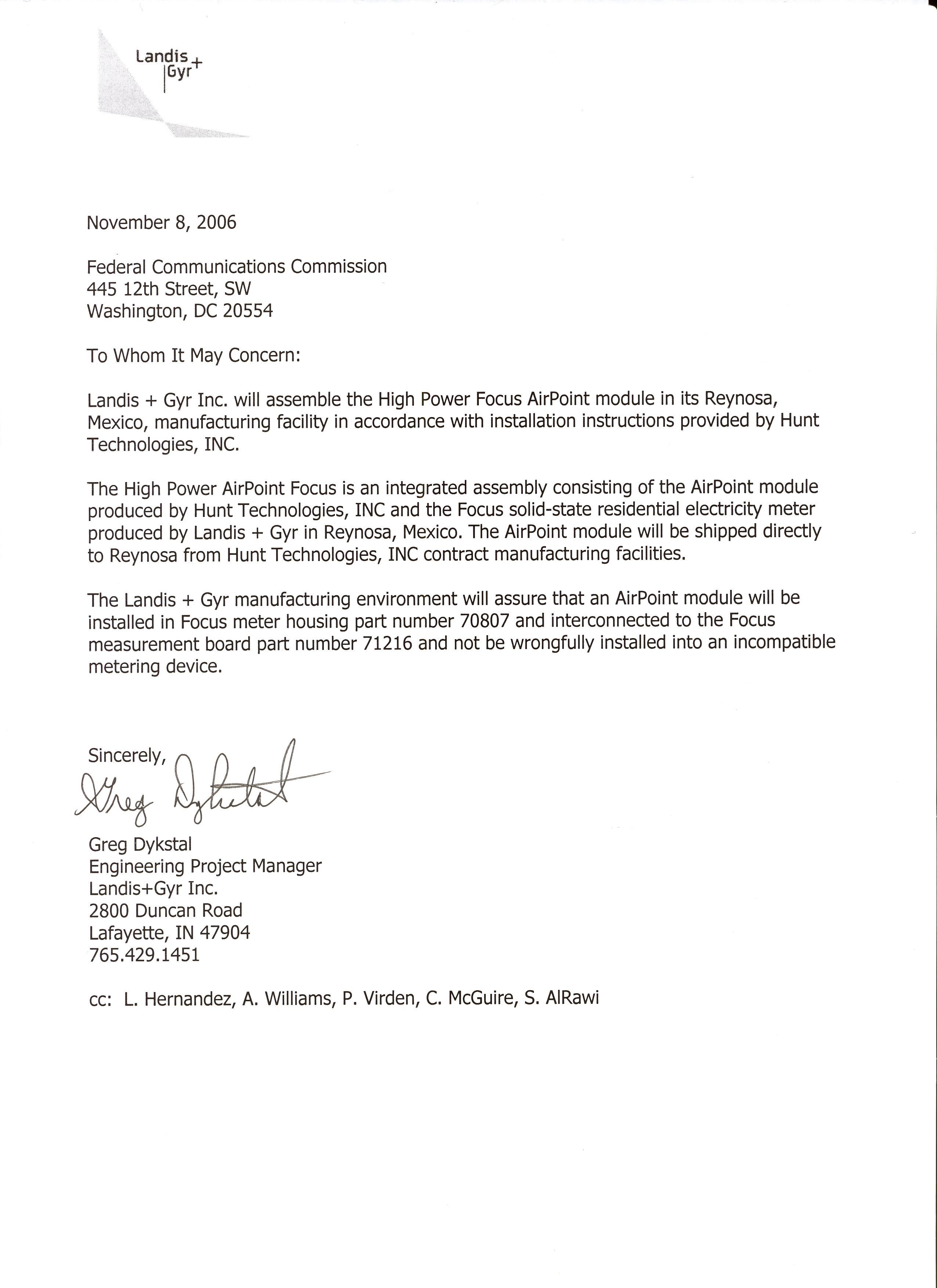

This email chain was regarding the testing of the TEB-AIRPT622, the proposed approval of the TEB-AIRPT677 is the same type of product. EMAILS REGARDING FCC DISCUSSIONS ON LIMITED MODULAR APPROVAL -----Original Message----- From: Joe Dichoso [mailto:[email protected]] Sent: Wednesday, June 01, 2005 11:51 AM To: Matt Karlgaard Cc: Joe Dichoso Subject: RE: Limited modular approval Hello Matt, Yes, a standalone test with the boards attached. You will get a Limited Modular Approval. The module must be OEM installed in water meters with the specific L&G boards and will be installed as indicated in the Certification filing. Regards, Joe -----Original Message----- From: Matt Karlgaard [mailto:[email protected]] Sent: Wednesday, June 01, 2005 12:33 PM To: Joe Dichoso Subject: RE: Limited modular approval Joe, Indicating how we will control the install with only L&G boards and no other circuit boards will not be a problem. I will test standalone with the L&G PCB board. I have tried getting a hold of you to clarify this, but since I have been unable to reach you, I am moving forward in that direction. Does this mean I will only have to run one test? (standalone with our PCB attached to the L&G PCB) Matt -----Original Message----- From: Joe Dichoso [mailto:[email protected]] Sent: Tuesday, May 31, 2005 1:00 PM To: Matt Karlgaard Cc: Joe Dichoso Subject: RE: Limited modular approval Hello Matt, You need to indicate how you will be able to control the installation of the LMA with only the Landis and Gyr PCB boards. You also need to indicate how you will ensure that the device will be installed in specific meters with no other circuit boards. If you can ensure these installation conditions, you can get a LMA with the appropriate grant conditions. You will still need to test standalone, but I suggest testing with the Landis and Gyr PCB boards. Regards, -Joe -----Original Message----- From: Matt Karlgaard [mailto:[email protected]] Sent: Tuesday, May 31, 2005 12:49 PM To: Joe Dichoso Subject: Limited modular approval Joe, I spoke with you earlier today on the phone. I would like to get limited modular approval for the T300 PCB for use with any Landis & Gyr "Focus" solid state electric meter. The T300 circuit board is shown by itself in pictures 6 and 7. Picture 6 shows the side of the circuit board that the transmitter circuitry is on. Picture 7 shows the side of the circuit board that shields the transmitter circuit from the back of the meter. In both pictures 6 and 7, the area that the transmitter occupies is circled in red. I was mistaken when I spoke with you on the phone and told you that all the meter circuitry is behind the plane of the sheilding surface of our PCB. Some of it is behind it, and some is on the side of the transmitter. Pictures 1, 2, and 4 show an earlier version of our circuit board with some of the meter plastic cut off. The product is in its final configuration. Pictures 5 and 8 show the view of the inside of the meter when it is taken apart. Picture 8 has our board installed and picture 5 has no board installed and the 10- pin connector is visible. Picture 9 shows the difference between a Landis & Gyr 1S and 2S meter. The black piece is the base of the meter and is the part that plugs into the meter socket. You can see there is a toroid around only 1 of the incoming lines on the 1S meter (on the bottom in picture 9) and the toroid is around both lines of the 2S meter (on top of picture 9). In any case, to get a limited modular approval for this product, I am thinking we would need to test it in one or more of its final configurations as shown in these pictures. Do you agree? Since the back of the circuit board sheilds the transmitter portion from the base of the meter, will we be able to get a Limited Modular Approval for this product without having to test it in all the different meter types we plan to sell? Note that the back of the circuit board doesn't sheild the transmitter portion of our PCB from the Landis and Gyr PCB, which may change from meter to meter. However, if we could guarantee that the Landis and Gyr meter PCB will not change, could we get a LMA for this without retesting all types of meters? I am leaving the office at 2:00 CST today. I will be driving 2 hours to an FCC-approved test lab tomorrow morning. If you can get me a response by 2:00 CST (in 2 hours and 15 minutes), that would be ideal. If not, please let me know by that time when you will be able to get back to me. I could come back in and check my email later in the evening if I know I will hear back from you by then. Regards, Matt Karlgaard RF Engineer Hunt Technologies, Inc. Pequot Lakes, MN 56472 (218)562-5198

Test Report FCC ID: TEB-AIRPT677 Page 1 of 19 Hunt Technologies, Inc. 11/8/2006 6436 County Rd. 11 Pequot Lakes, MN 56472 FCC Part 15.247 Transmitter Certification Frequency Hopping Spread Spectrum Transmitter Test Report FCC ID: TEB-AIRPT677 FCC Rule Part: 15.247 Test Begin Date: 10/06/06 Test End Date: 10/06/06 Report Issue Date: TBD Test Report FCC ID: TEB-AIRPT677 Page 2 of 19 Hunt Technologies, Inc. 11/8/2006 6436 County Rd. 11 Pequot Lakes, MN 56472 Table of Contents 1.0 GENERAL.............................................................................................................................................. 3 1.1 PURPOSE............................................................................................................................................ 3 1.2 PRODUCT DESCRIPTION................................................................................................................... 3 1.2.1 General.................................................................................................................................... 3 1.2.2 Intended Use........................................................................................................................ 3 2.0 STATEMENT OF COMPLIANCE...................................................................................................... 3 3.0 APPLICABLE STANDARD REFERENCES..................................................................................... 5 4.0 LIST OF TEST EQUIPMENT............................................................................................................ 5 5.0 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM............................................................ 6 6.0 SUMMARY OF TESTS........................................................................................................................ 6 6.1 FREQUENCIES TO BE EXAMINED [§15.31(M)].............................................................................. 6 6.2 ANTENNA REQUIREMENT [§15.203]............................................................................................. 6 6.3 ANTENNA CHARACTERISTICS [§15.204]....................................................................................... 6 6.3.1 Antenna Type........................................................................................................................ 6 6.3.2 Antenna Manufacturer...................................................................................................... 6 6.3.3 Antenna Gain........................................................................................................................ 6 6.4 POWER LINE CONDUCTED EMISSIONS [§15.207]....................................................................... 7 6.4.1 Test Methodology................................................................................................................ 7 6.4.2 Test Results........................................................................................................................... 7 6.5 RADIATED EMISSIONS [§15.109] AND RADIATED SPURIOUS EMISSIONS (RESTRICTED BANDS) [§15.205]................................................................................................................................. 7 6.5.1 Test Methodology................................................................................................................ 7 6.5.2 Calculation of allowed limit for Radiated Spurious Emissions........................... 7 6.5.3 Test Results........................................................................................................................... 8 6.6 PEAK OUTPUT POWER – [§15.247(B)(2)].................................................................................. 8 6.6.1 Test Methodology (Conducted Method)..................................................................... 8 6.6.2 Test Results........................................................................................................................... 8 6.6.3 De Facto EIRP Limit......................................................................................................... 10 6.6.4 RF Exposure Compliance Requirements................................................................... 10 6.7 CHANNEL USAGE REQUIREMENTS [§15.247(A) (1)]................................................................ 10 6.7.1 Carrier Frequency Separation....................................................................................... 10 6.7.1.1 Test Methodology...................................................................................................................... 10 6.7.1.2 Test Results................................................................................................................................. 11 6.7.2 Number of Hopping Channels....................................................................................... 11 6.7.3 Channel Dwell Time......................................................................................................... 12 6.7.3.1 Test Methodology...................................................................................................................... 12 6.7.3.2 Test Results................................................................................................................................. 12 6.7.4 20dB Bandwidth................................................................................................................ 13 6.7.4.1 Test Methodology...................................................................................................................... 13 6.7.4.2 Test Results................................................................................................................................. 13 6.8 BAND-EDGE COMPLIANCE AND SPURIOUS EMISSIONS [§15.247(C)]..................................... 15 6.8.1 Band-Edge Compliance of RF Conducted Emissions.......................................…

Text truncated - open the document above for the full version.

RADIATED EMISSIONS Test Report #: WC605425 Run 1 Test Area: LTS EUT Model #: 677 Focus Date: 10/6/2006 EUT Serial #: 53106070 EUT Power: 60 Hz / 220 VAC Temperature: 23.0 °C Test Method: FCC 15.247 Air Pressure: 99.0 kPa Customer: Hunt Technology Rel. Humidity: 35.0 % EUT Description: Power meter transmitter Notes: Limited modular. Data File Name: 5425.dat Page: 1of 4 Tested by: J. C. Sausen Printed Signature Reviewed by: Greg Jakubowski Printed Signature List of measurements for run #: 1 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 DELTA2 909.542 MHz 88.28 Qp 2.51 / 22.32 / 0.0 / 0.0 113.11 H / 1.88 / 19 n/a n/a 909.542 MHz 87.45 Qp 2.51 / 22.32 / 0.0 / 0.0 112.28 V / 1.22 / 352 n/a n/a 921.734 MHz 92.33 Qp 2.53 / 22.5 / 0.0 / 0.0 117.35 V / 1.10 / 276 n/a n/a 921.734 MHz 87.17 Qp 2.53 / 22.5 / 0.0 / 0.0 112.19 H / 1.00 / 347 n/a n/a 915.991 MHz 86.14 Qp 2.52 / 22.41 / 0.0 / 0.0 111.07 H / 1.00 / 345 n/a n/a 915.991 MHz 87.37 Qp 2.52 / 22.41 / 0.0 / 0.0 112.3 V / 1.00 / 15 n/a n/a -20dBc Limit for spurious and harmonics will be 97.35 dBuV 1.832 GHz 91.55 Pk 4.04 / 26.99 / 50.55 / 0.61 72.64 V / 1.00 / 15 n/a n/a 1.832 GHz 80.5 Pk 4.04 / 26.99 / 50.55 / 0.61 61.59 H / 1.00 / 15 n/a n/a 2.748 GHz 60.35 Pk 4.61 / 29.42 / 49.65 / 0.3 45.02 H / 1.00 / 0 n/a n/a 2.748 GHz 62.9 Pk 4.61 / 29.42 / 49.65 / 0.3 47.57 V / 1.00 / 0 n/a n/a 3.664 GHz 45.95 Pk 5.41 / 31.49 / 48.67 / 0.52 34.7 V / 1.00 / 0 n/a n/a 3.664 GHz 51.35 Pk 5.41 / 31.49 / 48.67 / 0.52 40.1 H / 1.00 / 0 n/a n/a 4.58 GHz 39.7 Pk 6.01 / 32.21 / 47.69 / 0.5 30.72 H / 1.00 / 0 n/a n/a 4.58 GHz 42.35 Pk 6.01 / 32.21 / 47.69 / 0.5 33.37 V / 1.00 / 0 n/a n/a 5.496 GHz 41.75 Pk 6.84 / 33.41 / 46.71 / 0.75 36.04 H / 1.00 / 0 n/a n/a 5.496 GHz 37.8 Pk 6.84 / 33.41 / 46.71 / 0.75 32.09 V / 1.00 / 0 n/a n/a 7.328 GHz 41.2 Pk 8.07 / 35.82 / 47.09 / 0.91 38.9 V / 1.00 / 0 n/a n/a 7.328 GHz 39.5 Pk 8.07 / 35.82 / 47.09 / 0.0 37.2 H / 1.00 / 0 n/a n/a 8.244 GHz 37.9 Pk 8.84 / 36.85 / 46.95 / 0.74 37.38 H / 1.00 / 0 n/a n/a 8.244 GHz 37.7 Pk 8.84 / 36.85 / 46.95 / 0.74 37.18 V / 1.00 / 0 n/a n/a 9.16 GHz 37.4 Pk 9.69 / 37.4 / 46.65 / 0.51 38.35 V / 1.00 / 0 n/a n/a 9.16 GHz 39.0 Pk 9.69 / 37.4 / 46.65 / 0.51 39.95 H / 1.00 / 0 n/a n/a 1.819 GHz 71.05 Pk 4.04 / 26.91 / 50.52 / 0.6 52.07 H / 1.00 / 0 n/a n/a 1.819 GHz 66.3 Pk 4.04 / 26.91 / 50.52 / 0.6 47.32 V / 1.00 / 0 n/a n/a 2.729 GHz 67.45 Pk 4.57 / 29.38 / 49.68 / 0.3 52.03 V / 1.00 / 0 n/a n/a 2.729 GHz 67.6 Pk 4.57 / 29.38 / 49.68 / 0.3 52.18 H / 1.00 / 0 n/a n/a RADIATED EMISSIONS Test Report #: WC605425 Run 1 Test Area: LTS EUT Model #: 677 Focus Date: 10/6/2006 EUT Serial #: 53106070 EUT Power: 60 Hz / 220 VAC Temperature: 23.0 °C Test Method: FCC 15.247 Air Pressure: 99.0 kPa Customer: Hunt Technology Rel. Humidity: 35.0 % EUT Description: Power meter transmitter Notes: Limited modular. Data File Name: 5425.dat Page: 2of 4 Tested by: J. C. Sausen Printed Signature Reviewed by: Greg Jakubowski Printed Signature List of measurements for run #: 1 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 DELTA2 3.638 GHz 48.35 Pk 5.39 / 31.43 / 48.7 / 0.51 36.99 H / 1.00 / 0 n/a n/a 3.638 GHz 47.45 Pk 5.39 / 31.43 / 48.7 / 0.51 36.09 V / 1.00 / 0 n/a n/a 4.548 GHz 40.15 Pk 5.98 / 32.16 / 47.72 / 0.48 31.06 V / 1.00 / 0 n/a n/a 4.548 GHz 42.2 Pk 5.98 / 32.16 / 47.72 / 0.48 33.11 H / 1.00 / 0 n/a n/a 5.457 GHz 41.45 Pk 6.8 / 33.36 / 46.75 / 0.74 35.59 V / 1.00 / 0 n/a n/a 5.457 GHz 43.55 Pk 6.8 / 33.36 / 46.75 / 0.74 37.69 H / 1.00 / 0 n/a n/a 6.367 GHz 40.3 Pk 7.56 / 34.55 / 46.34 / 0.83 36.91 H / 1.00 / 0 n/a n/a 6.367 GHz 41.3 Pk 7.56 / 34.55 / 46.34 / 0.83 37.91 V / 1.00 / 0 n/a n/a 7.276 GHz 40.95 Pk 8.04 / 35.75 / 47.05 / 0.88 38.57 V / 1.00 / 0 n/a n/a 7.276 GHz 41.5 Pk 8.04 / 35.75 / 47.05 / 0.88 39.12 H / 1.00 / 0 n/a n/a 8.186 GHz 41.3 Pk 8.78 / 36.81 / 46.97 / 0.75 40.68 H / 1.00 / 0 n/a n/a 8.186 GHz 38.85 Pk 8.78 / 36.81 / 46.97 / 0.75 38.23 V / 1.00 / 0 n/a n/a 9.096 GHz 37.75 Pk 9.67 / 37.36 / 46.67 / 0.52 38.63 V / 1.00 / 0 n/a n/a 9.096 GHz 38.6 Pk 9.67 / 37.36 / 46.67 / 0.52 39.48 H / 1.00 / 0 n/a n/a 1.843 GHz 84.2 Pk 4.04 / 27.06 / 50.56 / 0.62 65.35 V / 1.00 / 0 n/a n/a 1.843 GHz 81.1 Pk 4.04 / 27.06 / 50.56 / 0.62 62.25 H / 1.00 / 0 n/a n/a 2.765 GHz 66.35 Pk 4.63 / 29.45 / 49.64 / 0.3 51.09 H / 1.00 / 0 n/a n/a 2.765 GHz 67.95 Pk 4.63 / 29.45 / 49.64 / 0.3 52.69 V / 1.00 / 0 n/a n/a 3.687 GHz 45.2 Pk 5.42 / 31.55 / 48.65 / 0.53 34.05 V / 1.00 / 0 n/a n/a 3.687 GHz 42.4 Pk 5.42 / 31.55 / 48.65 / 0.53 31.25 H / 1.00 / 0 n/a n/a 4.609 GHz 43.0 Pk 6.03 / 32.24 / 47.66 / 0.5 34.12 H / 1.00 / 0 n/a n/a 4.609 GHz 39.7 Pk 6.03 / 32.24 / 47.66 / 0.5 30.82 V / 1.00 / 0 n/a n/a 5.531 GHz 41.8 Pk 6.89 / 33.45 / 46.67 / 0.75 36.22 V / 1.00 / 0 n/a n/a 5.531 GHz 44.45 Pk 6.89 / 33.45 / 46.67 / 0.75 38.87 H / 1.00 / 0 n/a n/a 6.452 GHz 41.85 Pk 7.6 / 34.67 / 46.41 / 0.81 38.53 H / 1.00 / 0 n/a n/a 6.452 GHz 40.5 Pk 7.6 / 34.67 / 46.41 / 0.81 37.18 V / 1.00 / 0 n/a n/a 7.374 GHz 40.75 Pk 8.09 / 35.88 / 47.13 / 0.94 38.53 V / 1.00 / 0 n/a n/a RADIATED EMISSIONS Test Report #: WC605425 Run 1 Test Area: LTS EUT Model #: 677 Focus Date: 10/6/2006 EUT Serial #: 53106070 EUT Power: 60 Hz / 220 VAC Temperature: 23.0 °C Test Method: FCC 15.247 Air Pressure: 99.0 kPa Customer: Hunt Technology Rel. Humidity: 35.0 % EUT Description: Power meter transmitter Notes: Limited modular. Data File Name: 5425.dat Page: 3of 4 Tested by: J. C. Sausen Printed Signature Reviewed by: Greg Jakubowski Printed Signature List of measurements for run #: 1 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 DELTA2 7.374 GHz 41.95 Pk 8.09 / 35.88 / 47.13 / 0.94 39.73 H / 1.00 / 0 n/a n/a 8.296 GHz 37.95 Pk 8.9 / 36.88 / 46.93 / 0.73 37.52 H / 1.00 / 0 n/a n/a 8.296 GHz 41.4 Pk 8.9 / 36.88 / 46.93 / 0.73 40.97 V / 1.00 / 0 n/a n/a 9.217 GHz 38.3 Pk 9.72 / 37.43 / 46.63 / 0.…

Text truncated - open the document above for the full version.

CONDUCTED EMISSIONS Test Report #: WC605425 Run 3 Test Area: LTS EUT Model #: 677 Focus Date: 10/6/2006 EUT Serial #: 53106070 EUT Power: 60 Hz / 220 VAC Temperature: 23.0 °C Test Method: FCC 15.247 Air Pressure: 99.0 kPa Customer: Hunt Technology Rel. Humidity: 35.0 % EUT Description: Power meter transmitter Notes: Wooden stand / plexiglass enclosure: Data File Name: 5425.dat Page: 1of 4 Tested by: J. C. Sausen Printed Signature Reviewed by: Greg Jakubowski Printed Signature List of measurements for run #: 3 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) EUT Lead DELTA1 EN55022 B Qp DELTA2 EN55022 B Avg 364.844 kHz 24.52 Qp 0.16 / 0.1 / 0.0 / 0.0 24.78 L1 -33.84 n/a 364.844 kHz 12.73 Av 0.16 / 0.1 / 0.0 / 0.0 12.99 L1 n/a -35.63 415.625 kHz 23.8 Qp 0.17 / 0.1 / 0.0 / 0.0 24.07 L1 -33.47 n/a 415.625 kHz -0.11 Av 0.17 / 0.1 / 0.0 / 0.0 0.16 L1 n/a -47.38 454.688 kHz 25.87 Qp 0.17 / 0.1 / 0.0 / 0.0 26.14 L1 -30.65 n/a 454.688 kHz -0.44 Av 0.17 / 0.1 / 0.0 / 0.0 -0.17 L1 n/a -46.96 567.969 kHz 16.62 Qp 0.19 / 0.1 / 0.0 / 0.0 16.91 L1 -39.09 n/a 567.969 kHz 0.84 Av 0.19 / 0.1 / 0.0 / 0.0 1.13 L1 n/a -44.87 185.156 kHz 16.82 Qp 0.12 / 0.21 / 0.0 / 0.0 17.15 L1 -47.1 n/a 185.156 kHz 7.49 Av 0.12 / 0.21 / 0.0 / 0.0 7.82 L1 n/a -46.43 26.216 MHz 25.73 Qp 1.23 / 0.8 / 0.0 / 0.0 27.75 L1 -32.25 n/a 26.216 MHz 26.84 Av 1.23 / 0.8 / 0.0 / 0.0 28.86 L1 n/a -21.14 185.156 kHz 16.92 Qp 0.12 / 0.1 / 0.0 / 0.0 17.14 N -47.11 n/a 185.156 kHz 4.63 Av 0.12 / 0.1 / 0.0 / 0.0 4.85 N n/a -49.4 364.844 kHz 24.4 Qp 0.16 / 0.09 / 0.0 / 0.0 24.64 N -33.97 n/a 364.844 kHz -1.36 Av 0.16 / 0.09 / 0.0 / 0.0 -1.12 N n/a -49.73 415.625 kHz 23.74 Qp 0.17 / 0.15 / 0.0 / 0.0 24.06 N -33.48 n/a 415.625 kHz -0.73 Av 0.17 / 0.15 / 0.0 / 0.0 -0.41 N n/a -47.95 454.688 kHz 25.87 Qp 0.17 / 0.19 / 0.0 / 0.0 26.24 N -30.55 n/a 454.688 kHz 3.68 Av 0.17 / 0.19 / 0.0 / 0.0 4.05 N n/a -42.74 567.969 kHz 16.46 Qp 0.19 / 0.04 / 0.0 / 0.0 16.7 N -39.3 n/a 567.969 kHz 2.62 Av 0.19 / 0.04 / 0.0 / 0.0 2.86 N n/a -43.14 26.216 MHz 28.56 Qp 1.23 / 0.29 / 0.0 / 0.0 30.07 N -29.93 n/a 26.216 MHz 28.72 Av 1.23 / 0.29 / 0.0 / 0.0 30.23 N n/a -19.77 End of conducted emission measurements. CONDUCTED EMISSIONS Test Report #: WC605425 Run 3 Test Area: LTS EUT Model #: 677 Focus Date: 10/6/2006 EUT Serial #: 53106070 EUT Power: 60 Hz / 220 VAC Temperature: 23.0 °C Test Method: FCC 15.247 Air Pressure: 99.0 kPa Customer: Hunt Technology Rel. Humidity: 35.0 % EUT Description: Power meter transmitter Notes: Wooden stand / plexiglass enclosure: Data File Name: 5425.dat Page: 2of 4 Tested by: J. C. Sausen Printed Signature Reviewed by: Greg Jakubowski Printed Signature Measurement summary for limit1: EN55022 B Qp (Qp) FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) EUT Lead DELTA1 EN55022 B Qp 26.216 MHz 28.56 Qp 1.23 / 0.29 / 0.0 / 0.0 30.07 N -29.93 454.688 kHz 25.87 Qp 0.17 / 0.19 / 0.0 / 0.0 26.24 N -30.55 415.625 kHz 23.8 Qp 0.17 / 0.1 / 0.0 / 0.0 24.07 L1 -33.47 364.844 kHz 24.52 Qp 0.16 / 0.1 / 0.0 / 0.0 24.78 L1 -33.84 567.969 kHz 16.62 Qp 0.19 / 0.1 / 0.0 / 0.0 16.91 L1 -39.09 185.156 kHz 16.82 Qp 0.12 / 0.21 / 0.0 / 0.0 17.15 L1 -47.1 CONDUCTED EMISSIONS Test Report #: WC605425 Run 3 Test Area: LTS EUT Model #: 677 Focus Date: 10/6/2006 EUT Serial #: 53106070 EUT Power: 60 Hz / 220 VAC Temperature: 23.0 °C Test Method: FCC 15.247 Air Pressure: 99.0 kPa Customer: Hunt Technology Rel. Humidity: 35.0 % EUT Description: Power meter transmitter Notes: Wooden stand / plexiglass enclosure: Data File Name: 5425.dat Page: 3of 4 Tested by: J. C. Sausen Printed Signature Reviewed by: Greg Jakubowski Printed Signature Measurement summary for limit2: EN55022 B Avg (Av) FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) EUT Lead DELTA2 EN55022 B Avg 26.216 MHz 28.72 Av 1.23 / 0.29 / 0.0 / 0.0 30.23 N -19.77 364.844 kHz 12.73 Av 0.16 / 0.1 / 0.0 / 0.0 12.99 L1 -35.63 454.688 kHz 3.68 Av 0.17 / 0.19 / 0.0 / 0.0 4.05 N -42.74 567.969 kHz 2.62 Av 0.19 / 0.04 / 0.0 / 0.0 2.86 N -43.14 185.156 kHz 7.49 Av 0.12 / 0.21 / 0.0 / 0.0 7.82 L1 -46.43 415.625 kHz -0.11 Av 0.17 / 0.1 / 0.0 / 0.0 0.16 L1 -47.38 CONDUCTED EMISSIONS Test Report #: WC605425 Run 3 Test Area: LTS EUT Model #: 677 Focus Date: 10/6/2006 EUT Serial #: 53106070 EUT Power: 60 Hz / 220 VAC Temperature: 23.0 °C Test Method: FCC 15.247 Air Pressure: 99.0 kPa Customer: Hunt Technology Rel. Humidity: 35.0 % EUT Description: Power meter transmitter Notes: Wooden stand / plexiglass enclosure: Data File Name: 5425.dat Page: 4of 4 Tested by: J. C. Sausen Printed Signature Reviewed by: Greg Jakubowski Printed Signature Graph: 100kHz1MHz10MHz100MHz 0 10 20 30 40 50 60 70 E N55022 B Qp E N55022 B Avg Qp -mea surements Av-me asure me nts

Channel Selector Table The Following Spreadsheet is used to populate the Frequency Table in HP AirPoint The Table Identifier is based on the last byte of the meter ERT ID Channel Selector ID 0*/326213810472431234164463643084820407490391725262728293031323334353637383940414243444546474849 1*/12497351838242044162923301536222821341451433628146133522271837941193111295332345153224251442} 2*/935124013332136193922262434285491732641202523372432104313271725194144854011473469262039831} 3*/124320362331343292244144103254010462431174813341037153884611441447127182933024427311645048} 4*/16331230331223222514820291746113913402434194310371845112782692844719391625730153521496422338} 5*/1545174323603462923325441328123914122332135244183752864772702623454422136143815499441835} 6*/10481129144783034118421932213415262312049132512402042182711259314487301938337142616478461049} 7*/3381232114523295491726839235214718311541193403523364392233528164317447469401276452438037} 8*/172821401844526225433164910379451148632133922281337736204843024421331427104622436401644925} 9*/1934540184112271733233842522497266461145102814423461543193012702984124351234203623317381447} 10*/1634233111463475421438232104414524251840437844930154316372428481329047243213121362035339} 11*/64716391125232837542440204334413469262349104194863621282230173913277351926204904315291233} 12*/19431232222783993654513261531335244121481729031224114360277331230172915451828193821341482435} 13*/14312349222912441301033041152711451332946172818441837747233143411302038140628104916462342425} 14*/33724374623392035172911341533243122261644132553964824474371926535825164023620387342142343} 15*/547203604414814491340104684262794112291832328122718322148144510424369408496471411938030} 16*/8411332346937154717362431103922913004820441830224511251926233924381535213317312341637443728} 17*/10477252372343153121281649113419292038539172683316387282134124022421149635142742652523451943} 18*/23417255451311546122711424351334242822441839835223202712481840646341243694444513301442133} 19*/1043134014823362922377459301139042164934421481632030202664021372361729103894934719431433} 20*/133120281044841142544724261530122718367429482135183815262327831447123220345361425174124281946} 21*/232693313421541193710492231330113243921432025238645335193316390292249140537243113217342346} 22*/337936742104382521394491640238203013119472348134838174016441235244762853672914461845027} 23*/1833728942213714019452448143852564723516291128123411321735183304614292441152713455266442248} 24*/24820344431042213834452522398401126741637244383233417461226154420492339133003122271041436} 25*/644146434132518361640103220272242124814308282427234592918351746132819300471433153613216311249} 26*/1842740222933112391941245102654894624331138031192621299380431141153574524717372339533349} 27*/202923371430246744331141154913471833935114204317321547428637144416272035130233421498361325} 28*/246114893715491632193114431330829173514704534544812395272132192862616402438224383410361725} 29*/932144315492138644225163622421030202883744812721362334124024417446391838533442102622252028} 30*/338545113422351740748243116391229233043214413473918402446133119270411147173554533312292326} 31*/14618351539173723311933112720345382241325729242813302036947104215322349641143742782518461926} 32*/8411371145214994224022356391344348743529026214310401442124864483624593013471628032449} 33*/16261230436214010288472032244319312259422338143316261236204624341727154710311438192823321830425} 34*/113222311441123594044253324319282126202523382441137529114615353332245749184462703417481339} 35*/53511402246641132814441734729204312724332337036747639163710341529173082718443461450481349} 36*/15372225733929194613451281449104364816362425301036154721311638339194293244518262498481225} 37*/1138533927204274813118410282129123910441547244012470328344442138202633924351831234111271730} 38*/843427739204213403449472141122510312326113024361330834245173223266431625346437143519402249} 39*/22348401430212818357261745114812311327444162524331829232144517381528193422461637035648136549} 40*/5311040194712341146183823398322452428425142164793315395463431032142203623376382291941049} 41*/43023272232345184184013392137931113514204424306351544223793621431348143372720493290261741} 42*/1443426173716402230935114421332313382025234972954824772820431633153814461234636102617251949} 43*/1427495411046327834153764420391847132523364391829142124115475341036194682762813450482432} 44*/19342448224644173023120261043143711288420401326173224301635212823394012311945144322380481129} 45*/173143711332234745163813934819302461043152524449492347212916325276451351839123633317251538} 46*/184714271030740644212603444812288411149174513426291236847932204113261428234452721351840049} 47*/15352226229745214117346331839243012252344112813432239235532153119461259292337333163624422038} 48*/84416352450292236242815486391469381232184254010471274322046164293184314495370481936338} 49*/16261230223834514291042114623311827243415320331933194110272025447114934023311426213413377431730} 50*/84818451284410365466271949173815471432123410411375471328203943517362148643249940725844} 51*/745446242617361844525143716403472333103862793323432026329162511302131244244213402239737935} 52*/64317402391236164593821321358302349347425193220292149142114319300391241152822488351331234} 53*/43033294310421926214120311433123622481549238031184215271437114120341346726103354824282229044} 54*/545029192616391727740831124821341138104334724295287341835174414616456398371147234024271325} 55*/16371930113202633810491533144522292461834173123302025444141144223215336372346936133518282249} 56*/10272034144215461330114874714332963319371625244112445367251281335244083920474272143942648} 57*/1426725837114519481727223454334143815466352435245939174021385362332222618284318441241049} 58*/2145224322963853519287331634153911422337242513913203312362044234224793018281629134021311049} 59*/629183513333451937540163423472360321726213924462047182743113301044332841940143617481249026} 60*/224016292352338344043830143793120362132174913144310…
