TFB-1002SaBLE-x

SaBLE-x Module DATASHEET The information in this document is subject to change without notice. 330-0166 Copyright © 2015 LSR Page 1 of 14 SaBLE-x TM Bluetooth ® Smart (BLE) Module FEATURES • Built in CC2640F128 Bluetooth Smart (BLE 4.1) System-On-Chip (SOC) • 128 kB Flash / 20 kB SRAM • RF Output Power: +5 dBm • RF Receive Sensitivity: -96 dBm • Size: 11.6mm x 17.9mm x 2.4mm • Operating Voltage: 1.8V to 3.8V • Operating Temperature: -40 to +85C • 9.1mA Transmit Mode (+5 dBm) • 6.1mA Receive Mode • 1μA Standby (SRAM/CPU retention and RTC running) with quick 100 μs start up • 200nA Shutdown • 61μA/MHz Active CPU Current • Drivers, Bluetooth Low Energy Controller, and bootloader in ROM • Flexible peripheral set • On board 32 kHZ and 24 MHz Crystals. • Worldwide Acceptance: FCC (USA), IC (Canada), ETSI (Europe), Giteki (Japan), C-Tick (AU/NZ) • REACH and RoHS compliant APPLICATIONS • Consumer electronics • Mobile phone accessories • Sports & Fitness equipment • HID applications • Home and Building Automation, Lighting Control, Alarm and Security • Electronic Shelf Labeling, Proximity Ta g s DESCRIPTION LSR would like to announce a low-cost and low- power consumption module which has all of the Bluetooth Smart 4.1 functionalities. The SaBLE-x module fully supports the single mode Bluetooth Low Energy operation, and the output power can support class 2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice. RF Core’s dedicated ARM Cortex M0 improves system performance and frees up FLASH memory for custom applications. Need to get to market quickly? Not an expert in Bluetooth Low Energy? Need a custom antenna? Do you need help with your host board? LSR Design Services will be happy to develop custom hardware or software, or help integrate the design. Contact us at [email protected] or call us at 262-375-4400. SaBLE-x Module DATASHEET The information in this document is subject to change without notice. 330-0166 Copyright © 2015 LSR Page 2 of 14 TABLE OF CONTENTS FEATURES .......................................................................................................................... 1 APPLICATIONS ................................................................................................................... 1 DESCRIPTION ..................................................................................................................... 1 FOOTPRINT AND PIN DEFINITIONS.................................................................................. 3 PIN DESCRIPTIONS ............................................................................................................ 4 ELECTRICAL SPECIFICATIONS ........................................................................................ 5 Absolute Maximum Ratings ....................................................................................................................... 5 Recommended Operating Conditions ...................................................................................................... 5 General Characteristics .............................................................................................................................. 5 DC Characteristics ...................................................................................................................................... 6 General Power Consumption ..................................................................................................................... 7 AGENCY CERTIFICATIONS ............................................................................................... 8 AGENCY STATEMENTS ..................................................................................................... 8 Federal Communication Commission Interference Statement .............................................................. 8 Industry Canada Statements...................................................................................................................... 9 OEM RESPONSIBILITIES TO COMPLY WITH FCC AND INDUSTRY CANADA REGULATIONS ....................................................................................................... 10 OEM LABELING REQUIREMENTS FOR END-PRODUCT .............................................. 11 OEM END PRODUCT USER MANUAL STATEMENTS.................................................... 12 EUROPE ............................................................................................................................ 13 CE Notice ................................................................................................................................................... 13 Declaration of Conformity (DOC) ............................................................................................................ 13 CONTACTING LSR............................................................................................................ 14 SaBLE-x Module DATASHEET The information in this document is subject to change without notice. 330-0166 Copyright © 2015 LSR Page 3 of 14 FOOTPRINT AND PIN DEFINITIONS 1 33 2 32 3 31 4 30 5 29 6 28 7 34 37 27 8 26 9 35 38 25 10 24 11 36 39 23 12 22 13 14 15 16 17 18 19 20 21 Figure 1 SaBLE-x Module Footprint (Viewed From Top) SaBLE-x Module DATASHEET The information in this document is subject to change without notice. 330-0166 Copyright © 2015 LSR Page 4 of 14 PIN DESCRIPTIONS Module Pin Name I/O Type Description 1 RF OUT RF ANTENNA, 50 OHMS 2 GND GND GROUND 3 GND GND GROUND 4 NC - NO CONNECT (DO NOT CONNECT) 5 NC - NO CONNECT (DO NOT CONNECT) 6 /RESET DI ACTIVE LOW RESET. 100kΩ PULL-UP 7 JTAG TCKC DI/DIO JTAG TCKC 8 JTAG TMSC DIO JTAG TMSC 9 NC - NO CONNECT (DO NOT CONNECT) 10 NC - NO CONNECT (DO NOT CONNECT) 11 VCC PI POWER SUPPLY TO MODULE 12 VCC PI POWER SUPPLY TO MODULE 13 DIO 5/JTAG TDO DIO …

Text truncated - open the document above for the full version.

The information in this document is subject to change without notice. 330-0167 Copyright © 2015 LSR Page 1 of 25 SABLE-X MODULE APPLICATION GUIDE Last updated May 13, 2015 SaBLE-x Module APPLICATION GUIDE The information in this document is subject to change without notice. 330-0167 Copyright © 2015 LSR Page 2 of 25 Table of Contents 1 Introduction ................................................................................................................... 3 1.1 Purpose & Scope ....................................................................................................................... 3 1.2 Applicable Documents ............................................................................................................... 3 2 PCB Trace Antenna ....................................................................................................... 4 2.1 PCB Trace Antenna Specifications ............................................................................................ 4 3 Dipole Antenna .............................................................................................................. 5 3.1 Dipole Antenna Specifications ................................................................................................... 6 3.2 Mechanical Dimensions ............................................................................................................. 7 4 FlexPIFA Antenna.......................................................................................................... 8 4.1 FlexPIFA Antenna Specifications ............................................................................................... 9 4.2 FlexPIFA Mechanical Dimensions ........................................................................................... 10 5 FlexNotch Antenna ...................................................................................................... 11 5.1 FlexNotch Antenna Specifications ........................................................................................... 12 5.2 FlexNotch Antenna Mechanical Dimensions ........................................................................... 13 6 PCB Layout Requirements ......................................................................................... 14 6.1 Reference Design Schematic .................................................................................................. 19 6.2 Reference Design BOM ........................................................................................................... 20 6.3 U.FL Connector Drawing.......................................................................................................... 22 7 EMC Compliance ......................................................................................................... 23 7.1 Summary .................................................................................................................................. 23 7.2 Module Integration Considerations - Antenna Systems ........................................................... 23 7.3 Module Integration Considerations - Substitute Antenna Systems ......................................... 23 7.4 Module Integration Considerations - Circuit Implementation ................................................... 24 7.5 Module Integration Considerations - Top Assembly ................................................................ 24 7.6 Testing Requirements for End-Product .................................................................................... 24 7.7 SAR Testing Requirements for End-Product ........................................................................... 24 8 Contacting LSR ........................................................................................................... 25 SaBLE-x Module APPLICATION GUIDE The information in this document is subject to change without notice. 330-0167 Copyright © 2015 LSR Page 3 of 25 1 Introduction 1.1 Purpose & Scope The purpose of this document is to provide details regarding the design and integration of certified antennas to the SaBLE-x module. It covers the on-module PCB trace antenna as well as several off-module antennas (Dipole, FlexPIFA, and FlexNotch). It will inform the designer as to the required PCB layout details, and provide expected performance specifications. 1.2 Applicable Documents  SaBLE-x Module Datasheet (330-0166)  SaBLE-x Development Board User Guide (330-0168)  LSR U.FL to RPSMA Cable Datasheet (330-0018)  LSR 2.4 GHz Dipole Antenna Datasheet (330-0016)  LSR 2.4 GHz FlexPIFA Antenna Datasheet (330-0149)  LSR 2.4 GHz FlexNotch Antenna Datasheet (330-0150) SaBLE-x Module APPLICATION GUIDE The information in this document is subject to change without notice. 330-0167 Copyright © 2015 LSR Page 4 of 25 2 PCB Trace Antenna The PCB trace antenna is integral to the SaBLE-x 450-0119 module, such that the end user does not incur the added cost of adding an external antenna to their end product. LSR Part Number Description 450-0119 SaBLE-x Module with PCB Trace Antenna Table 1 PCB Trace Antenna Overview 2.1 PCB Trace Antenna Specifications Specification Value Peak Gain 0 dBi Type PCB Trace Polarization Linear Vertical Frequency 2400-2500MHz Table 2 PCB Trace Antenna Specifications SaBLE-x Module APPLICATION GUIDE The information in this document is subject to change without notice. 330-0167 Copyright © 2015 LSR Page 5 of 25 3 Dipole Antenna The LSR 2.4 GHz Dipole Antenna can be used in conjunction with the LSR U.FL to Reverse Polarity SMA Cable, and the Hirose PCB mounted U.FL connector, to provide an externally mounted antenna solution for the SaBLE-x 450-0144 module. Part Number Description 450-0144 SaBLE-x Module, External Antenna Port 001-0001 2.4 GHz Dipole Antenna with Reverse Polarity SMA Connector 080-0001 U.FL to Reverse Polarity SMA Bulkhead Cable 105 mm Hirose U.FL-R-SMT(10) PCB Mounted U.FL Connector Table 3 Dipole Antenna Overview SaBL…

Text truncated - open the document above for the full version.

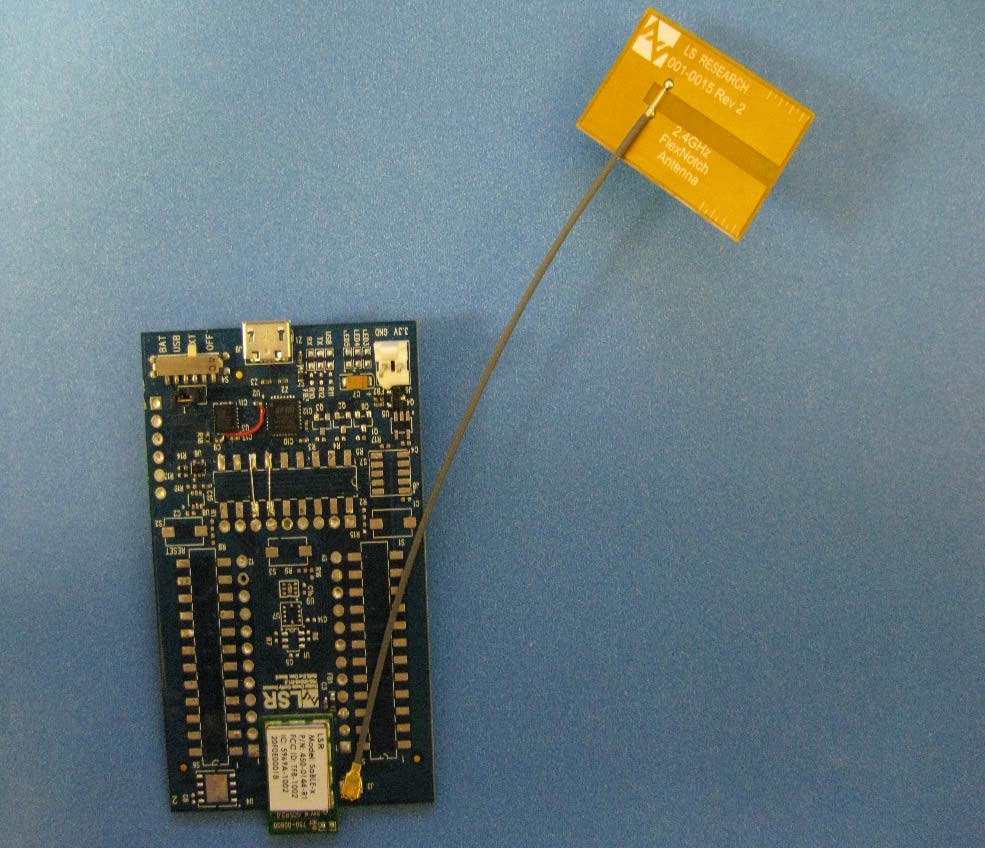

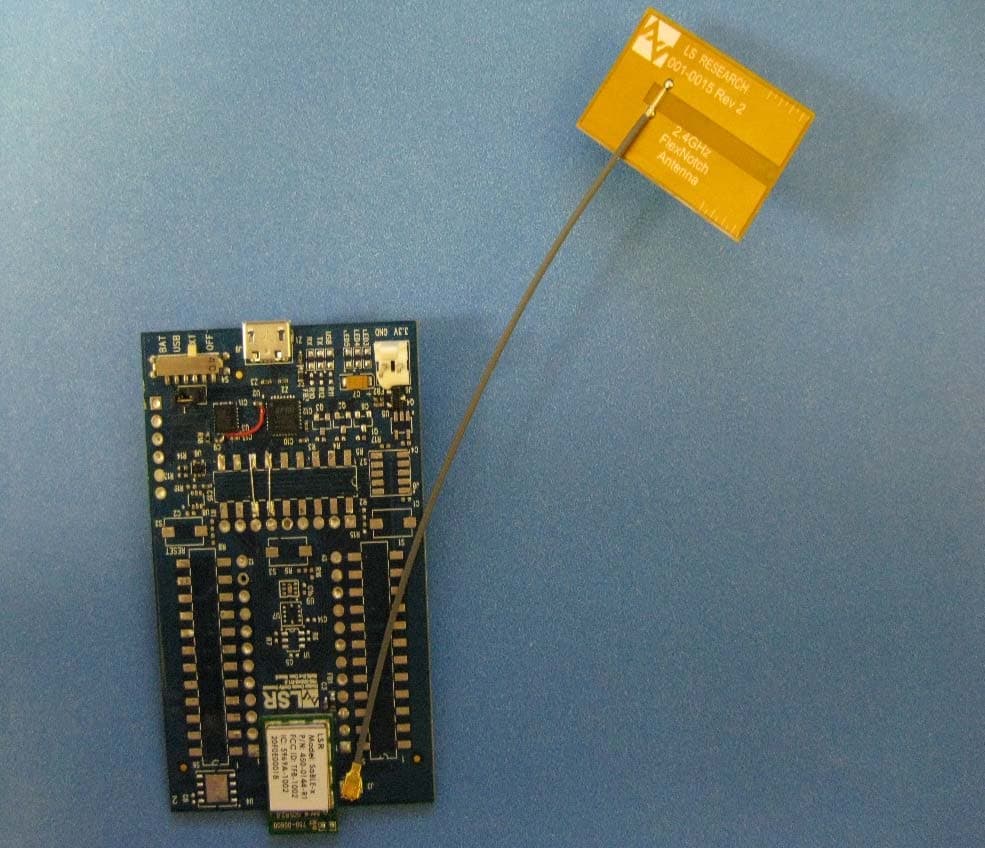

EXTERNAL PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 1 of 5 EXTERNAL PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 2 of 5 Close up of trace antenna Module with u.fl connecter EXTERNAL PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 3 of 5 Module with dipole antenna attached Antenna to cable connection EXTERNAL PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 4 of 5 FlexPIFA Antenna FlexNotch Antenna EXTERNAL PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 5 of 5 u.fl cable connection (Picture 1) u.fl cable connection (Picture 2)

INTERNAL PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 1 of 1

SABLE-X MODULE THEORY OF OPERATION Theory of Operation The SaBLE-x Module is a radio module that implements a Bluetooth Low Energy (BLE) transceiver. A Texas Instruments CC2640 System-on-Chip (SoC) integrated circuit includes a 2.4 GHz BLE RF transceiver and ARM Cortex microcontroller. All of the radio functions use an on-module 24 MHz Crystal Oscillator as the station frequency reference. An on module 32 kHz crystal oscillator is used for low-power operation. The data source/sink and command interface for the transceiver is via the integrated ARM Cortex microcontroller. The transmitter is based on a direct PLL modulation for the FSK-based modulations (BLE 4.1 signalling. The receiver uses a near-zero IF architecture. Both the transmit and receive local oscillators are generated at two-times the carrier frequency and divided by two. A bandpass filter is included on the path between the CC2640 RF signal and the antenna terminal. The radio transceiver power supplies are provided by internal voltage regulators. 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 1 of 19 2.4 GHz – 2.5 GHz FlexNotch 2 dBi Antenna w/U.FL Cable ORDERING INFORMATION Order Number Description 001-0015 2.4 GHz FlexNotch Antenna w/U.FL cable Table 1 Orderable Part Numbers KEY FEATURES  Can be installed on flat or curved surfaces.  Simple custom options with trimming length.  Quick and easy Installation  Flexible, ultra-low profile  RoHS Compliant  Adhesive holds to surface during humidity exposure and hot/cold cycles 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 2 of 19 SPECIFICATIONS Specification Value Typical Gain +2 dBi Efficiency >-1.5 dB Impedance 50 ohms Type Flexible Notch Polarization Linear VSWR < 2.5:1, 2400 - 2480 MHz Frequency 2400 – 2480 MHz Weight 0.85g Size 32.0mm × 21.08mm Antenna Color Clear Yellow Adhesive 3M 100MP Operating Temp -40°C to +85°C Table 2 Specifications 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 3 of 19 PHYSICAL DIMENSIONS (MM) Figure 1 Physical Dimensions 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 4 of 19 TEST SETUP Antenna measurements such as VSWR were measured with an Agilent E5071C Vector Network Analyzer. Radiation patterns were measured with an Agilent 5181A Signal Generator and Agilent E4445A Spectrum Analyzer in a 3 meter Anechoic Chamber. Flat surface measurements were done with the antenna centered on a 1.5 mm thick plate of Polycarbonate. FLAT SURFACE ANTENNA MEASUREMENTS VSWR Figure 2 Antenna VSWR measured on a 1.5 mm thick plate of Polycarbonate 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 5 of 19 FLAT SURFACE ANTENNA RADIATION PERFORMANCE FlexNotch centered on a 1.5 mm thick plate of Polycarbonate Antenna Measurement Set-Up Figure 3 Horizontal Orientation Measurement 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 6 of 19 Horizontal Orientation at 2440 MHz: Figure 4 Horizontal Orientation Pattern 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 7 of 19 Antenna Measurement Set-Up Figure 5 Vertical Orientation Measurement 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 8 of 19 Vertical Orientation at 2440 MHz: Figure 6 Vertical Orientation Pattern 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 9 of 19 Antenna Measurement Set-Up Figure 7 Flat Orientation Measurement 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 10 of 19 Flat Orientation at 2440 MHz: Figure 8 Flat Orientation Pattern 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 11 of 19 OPTIMAL INSTALLATION GUIDE F r i n g i n g F i e l d s E - F i e l d I n s i d e N o t c h Figure 9 E-Field Radiation from FlexNotch, Taken from CST Simulation The FlexNotch should be kept clear of any non-metal objects (such as plastics) on top of it by at least 5 mm (see Figure 10). Similarly, all four sides of the FlexNotch should be kept clear of any non-metal object by at least 1 mm (See Figure 11 and Figure 12). Mounting the FlexNotch in a situation that does not allow for these clearance recommendations may change the gain characteristics stated in the datasheet, which could impact overall range of the wireless system. 5 m m Figure 10 Above FlexNotch Clearance 2.4 GHz FlexNotch Antenna DATASHEET The information in this document is subject to change without notice. 330-0150-R2.0 Copyright © 2014 LSR Page 12 of 19 1 m m 1 m m Top Clearance Bottom Clearance Figure 11 Top and Bottom Clearance 1 m m 1 m m Left ‘Cold’ Side Clearance Open Side Clearance Figure 12 Open Side Clearance The ideal material for the FlexNotch to be mounted on is 1.5 mm thick polycarbonate; this will result in maximum performance. If the FlexNotch is mounted on a different material, the tuning will change. This can cause a decrease in performance. LSR can retune the FlexNotch for specific implementations and different materials on request. The coaxial cable feeding the FlexNotch should be routed away from the antenna. Do not run the coaxial cable above the FlexNotch or near the open end…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com SAR Test Exclusion Exhibit For: SaBLE-x Prepared by: Shane D. Rismeyer, EMC Engineer 4/24/2015 LSR Page 2 Contents Product Description: ..................................................................................................................................... 3 Associated Antenna(s): ................................................................................................................................. 4 Statement of compliance: ............................................................................................................................. 4 Separation Distance: ..................................................................................................................................... 5 SAR Test Exclusion Threshold: ...................................................................................................................... 6 Data and calculation: .................................................................................................................................... 6 LSR Page 3 Product Description: The SaBLE-x module fully supports the single mode Bluetooth Low Energy operation, and the output power can support class 2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice. RF Core’s dedicated ARM Cortex M0 improves system performance and frees up FLASH memory for custom applications. LSR Page 4 Associated Antenna(s): Dipole – 2dBi Peak Antenna Gain Flex PIFA – 2dBi Peak Antenna Gain Flex Notch – 2 dBi Peak Antenna Gain Trace – 0 dBi Peak Antenna Gain Statement of compliance: SaBLE-x was evaluated against the SAR test exclusion threshold listed in KDB 447498 D01 General RF Exposure Guidance v05r02, section 4.3 (1). The EUT was found to be compliant with the SAR exclusion threshold for 100MHz to 6000MHz. Evaluation was performed using a distance of 5 mm. LSR Page 5 Separation Distance: The lowest separation distance is assumed. (5mm) LSR Page 6 SAR Test Exclusion Threshold: Extremities SAR test exclusion threshold for 1000MHz to 6GHz at minimum separation distance of ≤ 50mm. 1-g SAR test exclusion threshold equation: [(maximum power of channel including tune-up tolerance) / (minimum separation distance)] * [√f (GHz) ] ≤ 3.0 Data and calculation: Maximum Conducted Output Power: Screen Capture of maximum output power LSR Page 7 LSR Page 8 Comparison to SAR threshold: The output power used in the calculation below is the highest output power available by the device. This output power was determined to be at 2462MHz (channel 11) and when the radio is operating in the 802.11g mode (54MBPS). Frequency = 2.402 GHz Output power = 4.9 dBm Output power = 3.1 mW Minimum separation distance = 5 mm [3.1mW/5mm]*[√2.402GHz] = 0.961 < 3.0 LSR Page 9 MPE Calculation: The following MPE calculations are based on a measured conducted RF power of +4.9 dBm as presented to the antenna. The peak gain of this antenna, based on the data sheet is 2 dBi.

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com ENGINEERING TEST REPORT # 315054 LSR Job #: C-2167 Compliance Testing of: SaBLE-x Test Date(s) April 14 th – 23 rd , 2015 Prepared For: LSR Attn: Josh Bablitch W66N220 Commerce Court Cedarburg, WI 53012 This Test Report is issued under the Authority of: Shane D. Rismeyer, EMC Engineer Signature: Date: 4/25/15 Test Report Reviewed by: Khairul Aidi Zainal, Sr. EMC Engineer Signature: Date: 4/24/15 Report by: Shane D. Rismeyer, EMC Engineer Signature: Date: 4/24/15 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 40 Prepared For: LSR Model Number: SaBLE-x Report #: 315054 EUT: SaBLE-x Serial Number: 450-0144-R1 LSR Job #: C-2176 Table of Contents 1.0 Summary of Test Report ............................................................................................................ 4 2.0 Test Facilities ............................................................................................................................. 4 3.0 Client Information ...................................................................................................................... 5 3.1 Equipment Under Test (EUT) Information ................................................................................ 5 3.2 Product Description ................................................................................................................... 5 3.3 Modifications Incorporated In the EUT for Compliance Purposes ........................................... 5 3.4 Deviations & Exclusions from Test Specifications ................................................................... 5 3.5 Additional Information .............................................................................................................. 5 4.0 Conditions of Test ...................................................................................................................... 6 5.0 Test Equipment .......................................................................................................................... 6 6.0 Conformance Summary ............................................................................................................. 6 Appendix A – Test Equipment ............................................................................................................. 7 Appendix B – Test Data ........................................................................................................................ 8 B.1 – RF Conducted Emissions ........................................................................................................ 8 B.2 – Radiated Emissions ............................................................................................................... 21 Appendix C - Uncertainty Summary .................................................................................................. 37 Appendix D - References .................................................................................................................... 37 Appendix E – Duty Cycle Calculation................................................................................................ 38 LS Research, LLC Page 3 of 40 Prepared For: LSR Model Number: SaBLE-x Report #: 315054 EUT: SaBLE-x Serial Number: 450-0144-R1 LSR Job #: C-2176 LS Research, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 LS Research, LLC Page 4 of 40 Prepared For: LSR Model Number: SaBLE-x Report #: 315054 EUT: SaBLE-x Serial Number: 450-0144-R1 LSR Job #: C-2176 1.0 Summary of Test Report In April 2015 the EUT, SaBLE-x, was tested and MEETS the following requirements: FCC and IC Paragraph Test Requirements Compliance (Yes/No) FCC:15.247 (a)(2) IC: RSS 210 A8.2 (a) 6 dB Bandwidth of a Digital Modulation System Yes FCC : 15.247(b) & 1.1310 IC : RSS 210 A8.4 Maximum Output Power Yes FCC:15.247 (d) IC: RSS 210 A8.2 (b) Power Spectral Density of a Digital Modulation System Yes FCC :15.247(d) IC : RSS 210 A8.5 RF Conducted Spurious Emissions at the Transmitter Antenna Terminal Yes FCC : 15.247(c), 15.209 & 15.205 IC : RSS 210 A8.2(b), section 2.2, 2.6 and 2.7 Transmitter Radiated Emissions Yes FCC : 15.109 IC : RSS GEN Receive Mode (Digital Device) Radiated Emissions Yes FCC : 2.1055 (d) Frequency Stability Yes FCC : 15.207 IC : RSS GEN sect. 7.2.2 Power Line Conducted Emissions Measurements Yes 2.0 Test Facilities All testing was performed at: LS Research, LLC W66 N220 Commerce Court Cedarburg, Wisconsin, 53012 USA LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to the requirements of ISO/IEC 17025, 2005 “General …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 1 of 3 TEST SETUP PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 2 of 3 TEST SETUP PHOTOS Company Name LS Research, LLC Model # SaBLE‐x FCC ID # TFB‐1002 IC # 5969A‐1002 Page 3 of 3
