TFB-BT2TiWi-uB1

TiWi-uB1 Module DATASHEET The information in this document is subject to change without notice. 330-0132 Copyright © 2013 LS Research, LLC Page 1 of 22 TiWi-uB1 Bluetooth Smart (BLE) Module FEATURES  Built in CC2541 single-chip Bluetooth Smart (BLE 4.0) System-On-Chip (SOC).  RF Output Power: 0 dBm (Class 3)  RF Receive Sensitivity: -92 dBm  Size: 11.6mm x 17.9 mm x 2.3 mm  Operating Voltage: 2.0V to 3.6V  Operating Temperature: -40 to +85 o C  Worldwide Acceptance: FCC (USA), IC (Canada), and CE (Europe)  REACH and RoHS compliant  Complete power-optimized stack, including Controller and Host o GAP – Central, Peripheral, Observer, or Broadcaster (Including Combination Roles) o ATT/GATT – Client and Server o SMP – AES-128 Encryption and Decryption o L2CAP  Multiple Configuration Options o Single-Chip Configuration, Allowing Applications to Run on CC2541 o Network Processor Interface for Applications Running on an External Microcontroller APPLICATIONS  2.4 GHz Bluetooth Low Energy Systems  Human-Interface Devices (Keyboard, Mouse, Remote Control)  Sports and Leisure Equipment  Mobile Phone Accessories  Consumer Electronics DESCRIPTION LSR would like to announce a low-cost and low- power consumption module which has all of the BluetoothSmart functionalities. The TiWi-uB1 module fully supports the single mode Bluetooth Low Energy operation, and the output power can support class 3. The module provides the ability to either put your entire application into the integrated 8051 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice. Need to get to market quickly? Not an expert in Bluetooth Low Energy? Need a custom antenna? Do you need help with your host board? LS Research Design Services will be happy to develop custom hardware or software, or help integrate the design. Contact us at [email protected] or call us at 262-375-4400. TiWi-uB1 Module DATASHEET The information in this document is subject to change without notice. 330-0132 Copyright © 2013 LS Research, LLC Page 2 of 22 TABLE OF CONTENTS FEATURES .......................................................................................................................... 1 APPLICATIONS ................................................................................................................... 1 DESCRIPTION ..................................................................................................................... 1 FOOTPRINT AND PIN DEFINITIONS.................................................................................. 4 PIN DESCRIPTIONS ............................................................................................................ 5 ELECTRICAL SPECIFICATIONS ........................................................................................ 6 Absolute Maximum Ratings ....................................................................................................................... 6 Recommended Operating Conditions ...................................................................................................... 6 General Characteristics .............................................................................................................................. 6 General Specifications ............................................................................................................................... 7 DC Characteristics ...................................................................................................................................... 7 Current Consumption ................................................................................................................................. 8 CURRENT CONSUMPTION WITH DC to DC Converter ........................................................................... 8 RF Characteristics ...................................................................................................................................... 9 SLOW CLOCK (32 KHZ) SOURCE REQUIREMENTS ..................................................... 10 32.768-kHz EXTERNAL CRYSTAL OSCILLATOR................................................................................... 10 32-kHz INTERNAL RC OSCILLATOR ....................................................................................................... 11 SPI INTERFACE CHARACTERISTICS ............................................................................. 12 DEBUG INTERFACE CHARACTERISTICS ...................................................................... 14 AGENCY CERTIFICATIONS ............................................................................................. 16 AGENCY STATEMENTS ................................................................................................... 16 Federal Communication Commission Interference Statement ............................................................ 16 Industry Canada Statements.................................................................................................................... 17 OEM RESPONSIBILITIES TO COMPLY WITH FCC AND INDUSTRY CANADA REGULATIONS ....................................................................................................... 18 OEM LABELING REQUIREMENTS FOR END-PRODUCT .............................................. 19 OEM END PRODUCT USER MANUAL STATEMENTS.................................................... 20 EUROPE ............................................................................................................................ 21 CE Notice ................................................................................................................................................... 21 TiWi-uB1 Module DATASHEET The information in this document is subject to change without notice. 330-0132 Copyright © 2013 LS Research, LLC Page 3 of 22 Declaration of Conformity (DOC) ..........................................…

Text truncated - open the document above for the full version.

TIWI-UB1 BLOCK DIAGRAM T i W i - u B 1 M o d u l e C C 2 5 4 1 B l u e t o o t h L o w E n e r g y ( B L E ) S y s t e m - o n - C h i p ( S O C ) B a n d P a s s F i l t e r P C B T r a c e A n t e n n a ( o p t i o n a l ) 3 2 M H z C r y s t a l 3 2 k H z C r y s t a l ( o p t i o n a l ) o r I / O O f f M o d u l e A n t e n n a ( o p t i o n a l ) V C C 2 / R e s e t 2 1 9 D e b u g / I O I / O TiWi-uB1 Block Diagram

Compan Model # FCC ID # IC # ny Name # # F EXTERN LS Research TiWi-uB1 TFB-BT2 5969A-BT2 P Front of modu Back s NAL PHOTO h, LLC Page 1 of 3 ule with trace side of modu OS e antenna le EXTERNAL PHOTOS Company Name LS Research, LLC Model # TiWi-uB1 FCC ID # TFB-BT2 IC # 5969A-BT2 Page 2 of 3 EXTERNAL PHOTOS Company Name LS Research, LLC Model # TiWi-uB1 FCC ID # TFB-BT2 IC # 5969A-BT2 Page 3 of 3

INTERNAL PHOTOS Company Name LS Research, LLC Model # TiWi-uB1 FCC ID # TFB-BT2 IC # 5969A-BT2 Page 1 of 1

W66 N220 Commerce Court ● Cedarburg, WI 53012 USA ● Phone: 262.375.4400 ● Fax: 262.375.4248 ● www.lsr.com Prepared For: LS Research, LLC. Name: TiWi-uB1 Report: TR 313136 C RFX Model: TiWi-uB1 LSR: C-1724 Serial: Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) Page 1 of 8 i. Title Page ENGINEERING TEST REPORT # 313136 C LSR Job #: C-1724 RF Exposure Compliance of: TiWi-uB1 Test Date(s): August 6, 2013 Prepared For: LS Research, LLC. Attn: Josh Bablitch W66 N220 Commerce Court Cedarburg, WI 53012 This Test Report is issued under the Authority of: Adam Alger, EMC Engineer Signature: Date: 8-20-13 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: LS Research, LLC. Name: TiWi-uB1 Report: TR 313136 C RFX Model: TiWi-uB1 LSR: C-1724 Serial: Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) Page 2 of 8 ii. Table of Contents Table of Contents i. Title Page ................................................................................................................................... 1 ii. Table of Contents ....................................................................................................................... 2 iii. LS Research, LLC ...................................................................................................................... 3 1.0 Conformance Summary ............................................................................................................. 4 2.0 SAR Test Exclusion Threshold .................................................................................................. 4 3.0 Client Information ...................................................................................................................... 5 3.1 Equipment Under Test (EUT) Information ................................................................................ 5 3.2 Product Description ................................................................................................................... 5 3.3 Additional Information .............................................................................................................. 5 4.0 RF Conducted Measurement Data ............................................................................................. 6 5.0 SAR Test Exclusion Calculation ............................................................................................... 7 Prepared For: LS Research, LLC. Report: TR 313136 C RFX LSR: C-1724 iii. LS Research, LLC As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Accreditation based on ISO/IEC 17025: 2005 A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) Listing of 3 Meter Semi-Anechoic Chamber based on Title FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi- Anechoic Chamber based on RSS File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Name: TiWi-uB1 Model: TiWi-uB1 Serial: Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) Page 3 of 8 LS Research, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Anechoic Chamber based on RSS-212 – Issue 1 On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union munication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the with Electrical (EMC) Scope of Accreditation Part 2.948 Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union 2004/108/EC (formerly 89/336/EEC, Article Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Prepared For: LS Research, LLC. Name: TiWi-uB1 Report: TR 313136 C RFX Model: TiWi-uB1 LSR: C-1724 Serial: Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) Page 4 of 8 1.0 Conformance Summary The EUT was found to MEET the 5mm minimum test separation distance threshold for SAR test exclusion per FCC §2.1091(mobile) and §2.1093(portable) using methods of FCC KDB 447498 D01 General RF Exposure Guidance v05r01 as a standalone device. 2.0 SAR Test Exclusion Threshold SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm 1-g SAR test exclu…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 USA ● Phone: 262.375.4400 ● Fax: 262.375.4248 ● www.lsr.com Prepared For: LS Research, LLC. Name: TiWi-uB1 Report: TR 313136 FCCICTX A Model: TiWi-uB1 LSR: C-1724 Serial: Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) Page 1 of 37 i. Title Page ENGINEERING TEST REPORT # 313136 A LSR Job #: C-1724 Compliance Testing of: TiWi-uB1 Test Date(s): August 6,8,9,12,15 2013 Prepared For: LS Research, LLC. Attn: Josh Bablitch W66 N220 Commerce Court Cedarburg, WI 53012 This Test Report is issued under the Authority of: Adam Alger, EMC Engineer Signature: Date: 8-20-13 Test Report Reviewed by: Ryan M. Urness, Quality and Operations Manager Signature: Date: 8-19-13 Report by: Adam Alger, EMC Engineer Signature: Date: 8-19-13 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: LS Research, LLC. Name: TiWi-uB1 Report: TR 313136 FCCICTX A Model: TiWi-uB1 LSR: C-1724 Serial: Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) Page 2 of 37 ii. Table of Contents Table of Contents i. Title Page ................................................................................................................................... 1 ii. Table of Contents ....................................................................................................................... 2 iii. LS Research, LLC ...................................................................................................................... 3 1.0 Summary of Test Report ............................................................................................................ 4 2.0 Test Facilities ............................................................................................................................. 4 3.0 Client Information ...................................................................................................................... 5 3.1 Equipment Under Test (EUT) Information ................................................................................ 5 3.2 Product Description ................................................................................................................... 5 3.3 Modifications Incorporated In the EUT for Compliance Purposes ........................................... 5 3.4 Deviations & Exclusions from Test Specifications ................................................................... 5 3.5 Additional Information .............................................................................................................. 5 4.0 Conditions of Test ...................................................................................................................... 6 5.0 Test Equipment .......................................................................................................................... 6 6.0 Conformance Summary ............................................................................................................. 6 Appendix A – Test Equipment ............................................................................................................. 7 Appendix B – Test Data ........................................................................................................................ 8 B.1 – RF Conducted Emissions ........................................................................................................ 8 B.2 – Radiated Emissions ............................................................................................................... 21 Appendix C - Uncertainty Summary .................................................................................................. 35 Appendix D - References .................................................................................................................... 36 Prepared For: LS Research, LLC. Report: TR 313136 FCCICTX A LSR: C-1724 iii. LS Research, LLC As an EMC Testing Laboratory, our Accreditation and Assessments are following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 A2LA Certificate Number: 1255.01 Federal Communications Commission Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi- Anechoic Chamber based on RSS File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the Electromagnetic Compatibility 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Name: TiWi-uB1 Model: TiWi-uB1 Serial: Trace Antenna Unit (1CBA8C1B8B35); U.FL Unit (1CBA8C1B8C65) Page 3 of 37 LS Research, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Anechoic Chamber based on RSS-212 – Issue 1 OATS based on RSS-212 – Issue 1 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified …

Text truncated - open the document above for the full version.

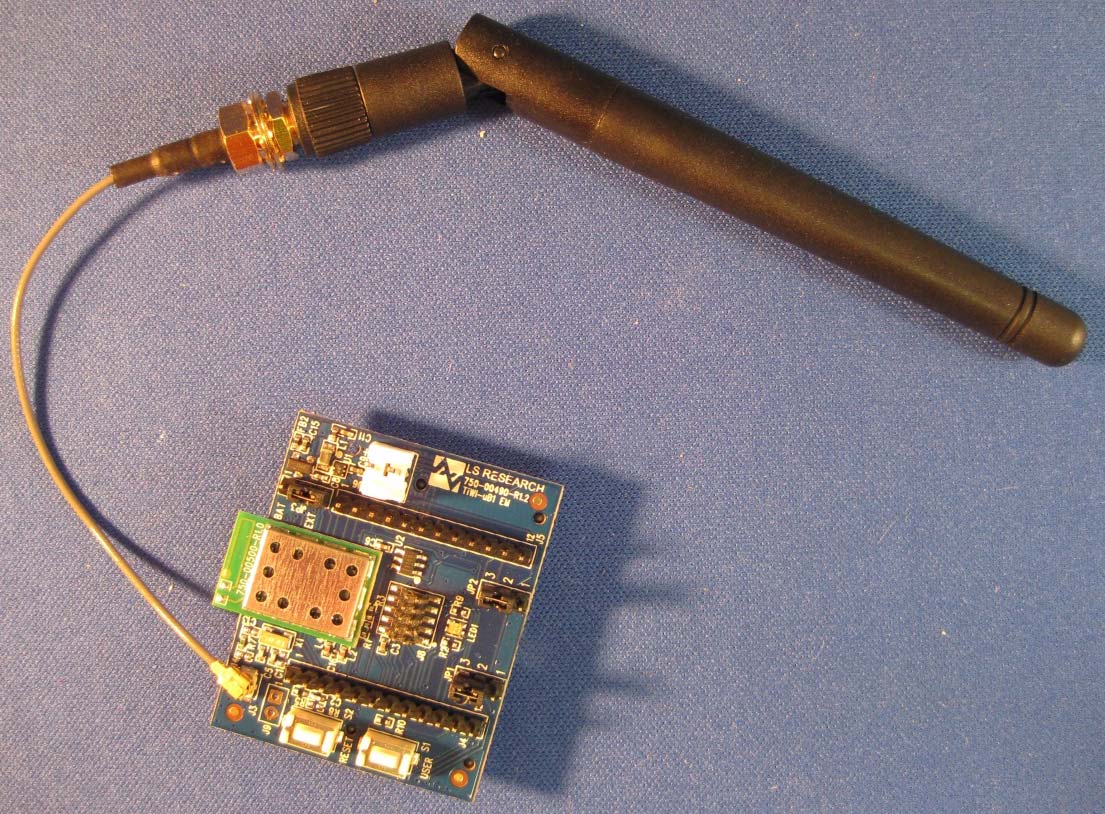

TEST SETUP PHOTOS Company Name LS Research, LLC Model # TiWi-uB1 FCC ID # TFB-BT2 IC # 5969A-BT2 Page 1 of 4 Trace Antenna Photos TEST SETUP PHOTOS Company Name LS Research, LLC Model # TiWi-uB1 FCC ID # TFB-BT2 IC # 5969A-BT2 Page 2 of 4 Terminated Set up Photos TEST SETUP PHOTOS Company Name LS Research, LLC Model # TiWi-uB1 FCC ID # TFB-BT2 IC # 5969A-BT2 Page 3 of 4 TEST SETUP PHOTOS Company Name LS Research, LLC Model # TiWi-uB1 FCC ID # TFB-BT2 IC # 5969A-BT2 Page 4 of 4 AC Conducted Set-up Photos
