SiFLEX01 TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. 330-0026-R0.4 Copyright © 2010-2012 LS Research, LLC Page 1 of 23 Integrated Transceiver Modules (900 MHz) Development Kit Available FEATURES  250mW output power  Long range  Up to 500 kBaud RF data rate  128 bit AES encryption available  Miniature footprint: 0.9” x 1.63”  Multiple antenna options  Certifiable for FCC and IC acceptance  MSP430 based CPU  Low power operation  RoHS compliant  Streamlined development with LSR design services.  License options available to purchase design or integrate design. APPLICATIONS  Security  Lighting Control  HVAC Control  Sensor Networks  Medical  Industrial Automation DESCRIPTION The SiFLEX01 module is a high performance 900MHz radio based on the Texas Instruments CC430 combined with the CC1190 front-end in a cost effective footprint. Need to get to market quickly? Not an expert in frequency hopping? Need a custom antenna? Would you like to own the design? Would you like a custom design? Not quite sure what you need? Do you need help with your host board? LS Research Design Services will be happy to develop custom hardware or software, integrate the design, or license the design so you can manufacture yourself. Contact us at [email protected] or call us at 262-375-4400. SiFLEX01 TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. 330-0026-R0.4 Copyright © 2010-2012 LS Research, LLC Page 2 of 23 MODULE ACCESSORIES Order Number Description 001-0002 900 MHz Dipole Antenna with Reverse Polarity SMA Connector 080-0001 U.FL to Reverse Polarity SMA Bulkhead Cable 105mm SiFLEX01 TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. 330-0026-R0.4 Copyright © 2010-2012 LS Research, LLC Page 3 of 23 BLOCK DIAGRAM C C 4 3 0 S O C M S P 4 3 0 M i c r o c o n t r o l l e r A n d 9 0 0 M H z R a d i o T r a n s c e i v e r C C 1 1 9 0 ( P A / L N A ) A n a l o g J T A G T M R / P W M 3 2 , 7 6 8 H z 2 6 M H z L P F G P I O S e r i a l I / O Figure 1 SiFLEX01 Module Block Diagram – High-Level SiFLEX01 TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. 330-0026-R0.4 Copyright © 2010-2012 LS Research, LLC Page 4 of 23 TABLE OF CONTENTS FEATURES .......................................................................................................................... 1 APPLICATIONS ................................................................................................................... 1 DESCRIPTION ..................................................................................................................... 1 MODULE ACCESSORIES ................................................................................................... 2 BLOCK DIAGRAM ............................................................................................................... 3 MODULE PINOUT AND PIN DESCRIPTIONS .................................................................... 5 MODULE OVERVIEW .......................................................................................................... 9 Microcontroller .......................................................................................................................................... 10 Radio .......................................................................................................................................................... 11 RF Power Amplifier ................................................................................................................................... 11 Antenna Options ....................................................................................................................................... 12 DEVELOPMENT TOOLS ................................................................................................... 13 TI MSP-FET430UIF .................................................................................................................................... 13 IAR Embedded Workbench for MSP430 ................................................................................................. 13 ELECTRICAL SPECIFICATIONS ...................................................................................... 14 Absolute Maximum Ratings ..................................................................................................................... 14 Recommended Operating Conditions .................................................................................................... 14 General Characteristics ............................................................................................................................ 14 AGENCY CERTIFICATIONS ............................................................................................. 16 AGENCY STATEMENTS ................................................................................................... 16 MECHANICAL DATA......................................................................................................... 21 PCB Footprint ............................................................................................................................................ 21 General Module Dimensions .................................................................................................................... 22 CONTACTING LS RESEARCH ......................................................................................... 23 SiFLEX01 TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. 330-0026-R0.4 Copyright © 2010-2012 LS Research, LLC Page 5 of 23 MODULE PINOUT AND PIN DESCRIPTIONS MCU# GND 1 Texas Instruments CC430F6137 69 GND MCU# - GND 2 68 GND - - GND 3 67 GND - - NC 4 66 NC - - NC 5 65 NC - - NC 6 64 NC - - NC 7 63 NC - - NC 8 62 NC - 48 JTAG TMS 9 61 P1.3 …

Text truncated - open the document above for the full version.

BLOCK DIAGRAM / THEORY OF OPERATION SIFLEX01 MODULE Page 4 of 5 2 Block Diagram The block diagram for the SiFLEX01 Radio Module is presented below. CC430 SOC MSP430 Microcontroller And 900 MHz Radio Transceiver CC1190 (PA/LNA) Analog JTAG TMR/PWM 32,768 Hz26 MHz LPF GPIO Serial I/O Figure 1 - SiFLEX01 Block Diagram

W66 N220 Commerce Court, Cedarburg, Wisconsin 53012-2636 BUS 262.375.4400 FAX 262.375.4248 www.lsr.com Request for Confidentiality Date: August 20, 2012 Subject: Confidentiality Request for: FCC ID: __TFB-SISEN1 IC ID: ___5969A-SISEN1 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual LS Research has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __William Steinike / President_____ (Signature) (Print name/Title)

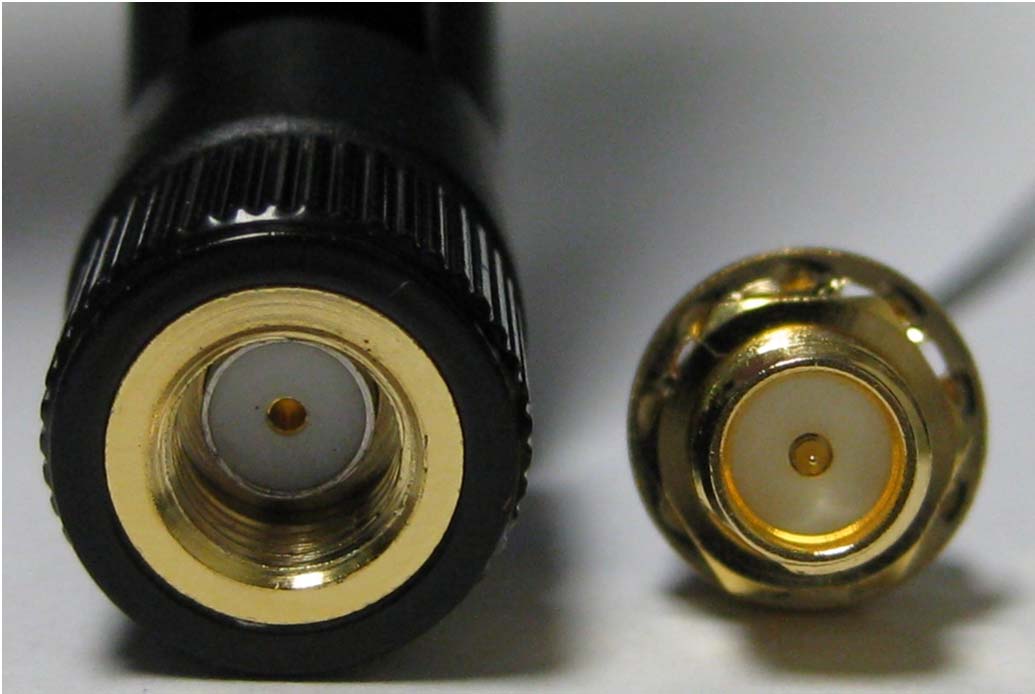

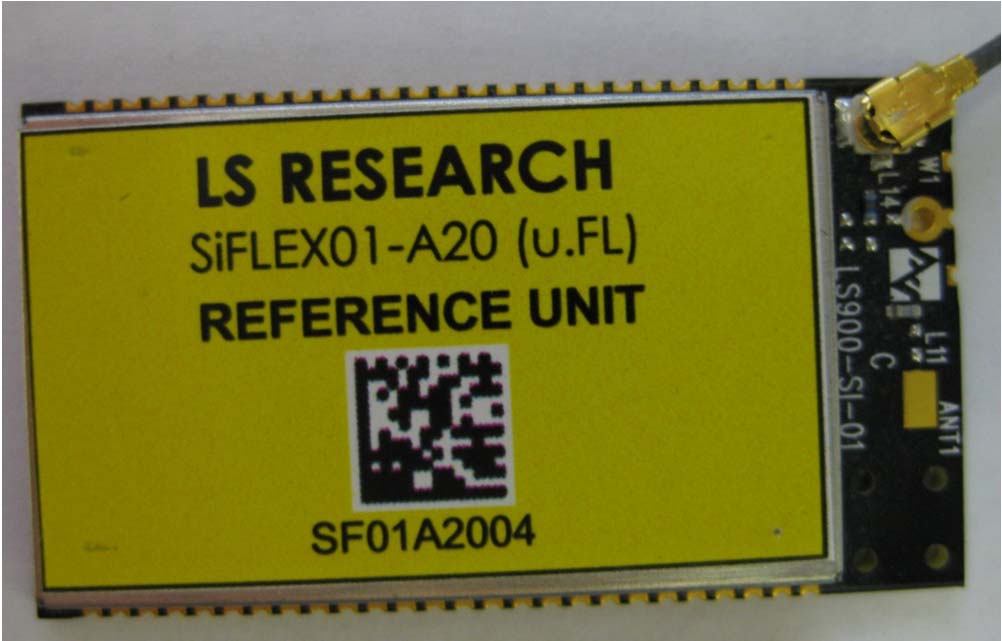

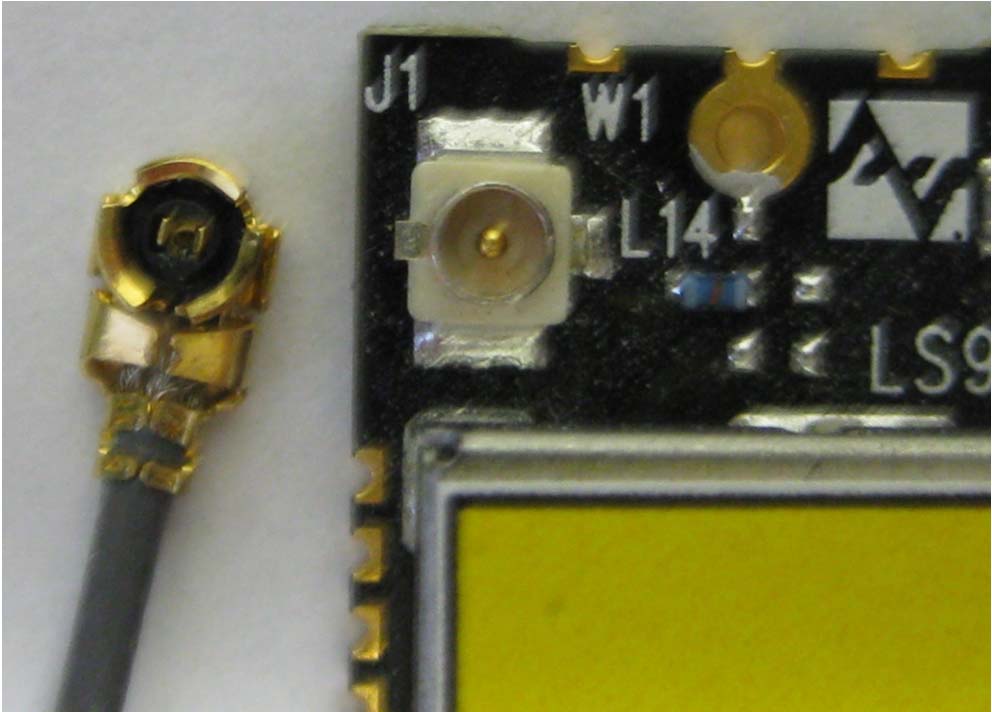

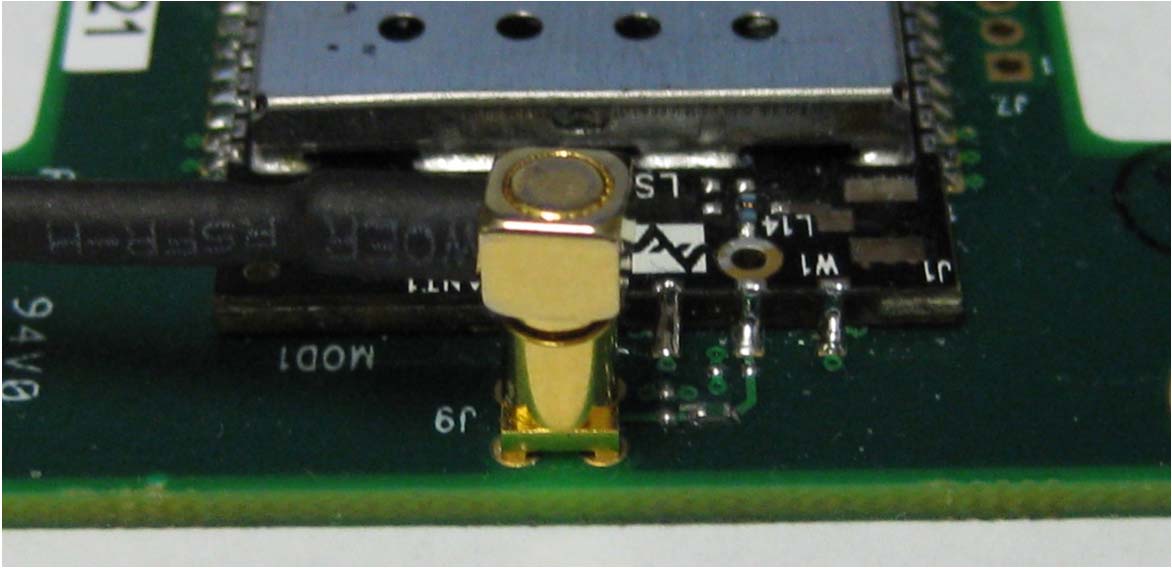

EXTERNAL PHOTOS Company Name LS Research, LLC Model # SiFLEX01 FCC ID # TFB‐SISEN1 IC # 5969A‐SISEN1 Page 1 of 5 EXTERNAL PHOTOS Company Name LS Research, LLC Model # SiFLEX01 FCC ID # TFB‐SISEN1 IC # 5969A‐SISEN1 Page 2 of 5 Module with LSR antenna pictures EXTERNAL PHOTOS Company Name LS Research, LLC Model # SiFLEX01 FCC ID # TFB‐SISEN1 IC # 5969A‐SISEN1 Page 3 of 5 EXTERNAL PHOTOS Company Name LS Research, LLC Model # SiFLEX01 FCC ID # TFB‐SISEN1 IC # 5969A‐SISEN1 Page 4 of 5 Module with Antenna Factor Antenna Pictures EXTERNAL PHOTOS Company Name LS Research, LLC Model # SiFLEX01 FCC ID # TFB‐SISEN1 IC # 5969A‐SISEN1 Page 5 of 5
