TFB-FREESTAR3FreeStar Tranceiver Module

FreeStar Transceiver Module California Eastern Laboratories (CEL)'s FreeStar Module is a small, fully-integrated, drop-in RF transmission solution that is ideal for ZigBee and other low cost, low power IEEE 802.15.4 RF transmission applications. FreeStar incorporates the MC13202 transceiver IC and MC9S08GT60 microprocessor from Freescale with a power amplifier and an Inverted-F PCB antenna. It delivers up to 4,000 feet of range and features a streamlined communications protocol that results in the lowest power consumption in transmit mode of any Module on the market. The FreeStar is also FCC and CE Certified, which eliminates the need for a costly and time-consuming approval process when incorporated into your design. Integrated Transceiver Module for ZigBee ® /IEEE 802.15.4 The information in this document is subject to change without notice, please confirm data is current Document No: 0001-00-07-01-000 Date Published: October 26, 2012 PRELIMINARY DATA SHEET DESCRIPTION ZFSM-101-3 • Communication Modes: Point-to-Point, Point-to Multipoint, Mesh Networking • 4,000+ feet Line of Sight Performance • Small Form Factor: 1.4” x 1.0” • Integrated PCB Trace Antenna • FCC, IC and CE Certified • R oHS Compliance • Direct Sequence Spread Spectrum • CSMA-CA • Wireless Boot Loader • Flash-Based/Upgradable • 10 Bit A/D (2 inputs) • General Purpose I/O (8 ports) • Microsoft ® Windows ® -Based Configuration and Test Tool • Simple Serial UART Interface • Over 65,000 Network Addresses FEATURES FreeStar ZFSM-101-3 • Transmit Power: 100 mW • Receive Sensitivity: -91 dBm • RF Data Rate: 250 kbps • Based on the Freescale MC13202 tr ansceiver IC • 8-bit HCS08-based MCU APPLICATIONS Health Care • Patient Monitoring • Fitness Monitoring Industrial Controls • Asset Tracking and Monitoring • Homeland Security • Process Management • Environmental Monitoring and Control • Heating, Ventilation, Air-Conditioning (HVAC) • Automated Meter Reading (AMR) Consumer • Human Interface Devices (keyboard, mice, etc.) • Remote Control • Wireless Toys Residential and Commercial Automation • Lighting Control • Security • Access Control • Heating, Ventilation, Air-Conditioning (HVAC) • Automated Meter Reading (AMR) Part NumberOrder NumberDescriptionMins/MultsStatus FreeStar ZFSM-101-3 ZFSM-101-3 FreeStar 100mW transceiver module PCB Trace Antenna with / Freescale MC13202 200 pcs / 200 pcs Not Recommended For New Designs ORDERING INFORMATION FreeStar ZFSM-101-3 Page 2 Introduction and Overview Description..............................................................................................................................................................................................1 Features..................................................................................................................................................................................................1 Applications............................................................................................................................................................................................1 Ordering Information............................................................................................................................................................................. 1 Module Block Diagram........................................................................................................................................................................... 3 Development Kit..................................................................................................................................................................................... 3 System Level Function Transceiver IC......................................................................................................................................................................................... 3 Electrical Specification Antenna...................................................................................................................................................................................................4 Absolute Maximum Ratings................................................................................................................................................................... 4 Recommended Operating Conditions...................................................................................................................................................4 Electrical Characteristics....................................................................................................................................................................... 5 Typical Transmit Power vs. Power Setting.......................................................................................................................................... 5 Pin Signal & Interfaces Pin Definitions........................................................................................................................................................................................6 Connector Legend.................................................................................................................................................................................. 7 Connector Configuration....................................................................................................................................................................... 7 Radiation Patterns.................................................................................................................................................................................. 8 Example Interface Diagrams.................................................................................................................................................................. 9 Module Dimensions.....................................................................................…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court, Cedarburg, Wisconsin 53012-2636 BUS 262.375.4400 FAX 262.375.4248 www.lsr.com Request for Confidentiality Date: December 7, 2012 Subject: Confidentiality Request for: FCC ID: __TFB-FREESTAR3 IC ID: ___5969A-FREESTAR3 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______(Insert Company Name)______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ __William Steinike / President_____ (Signature) (Print name/Title)

W66 N220 Commerce Court, Cedarburg, Wisconsin 53012-2636 BUS 262.375.4400 FAX 262.375.4248 www.lsr.com Re: Modular Transmitter Approval FCC ID: TFB-FREESTAR3 To Whom It May Concern, The following information is being provided per the requirements of 15.212 regarding modular approval of Part 15 devices. This transceiver is a complete RF module with an integral reference oscillator. External connections are provided for power and data communication. The following numbered items correspond to similarly numbered paragraphs in 15.212. Each item is a response to the requirements of that document. 1) The module has integral RF shielding to isolate it from surrounding equipment and the larger environment in general. 2) All inputs are processed as data by the on-board microcontroller. The outside user has no direct control of transmit modulation. 3) There is a 1.8V voltage regulator on board that powers the radio transceiver. The power amplifier supply is monitored by the microcontroller and transmission is disabled if the source voltage is greater than 3.6V. 4) An integral PCB – trace antenna is used with this module. This is in accordance with Part 15.203. 5) The module was tested in a stand-alone configuration and found to be compliant with Part 15 regulations. 6) An FCC ID label is affixed to each unit at the time of manufacture. Information is also clearly presented in the user guide about labeling requirements for the final assembly. 7) This unit is compliant with Part 15.247. Installation and other requirements are presented in the user guide to allow the unit to be correctly installed. 8) The unit is compliant with the RF exposure requirements of Parts 15.247 and 2.1091. Further information may be obtained from LS Research, LLC. Sincerely, William Steinike President of LS Research, LLC

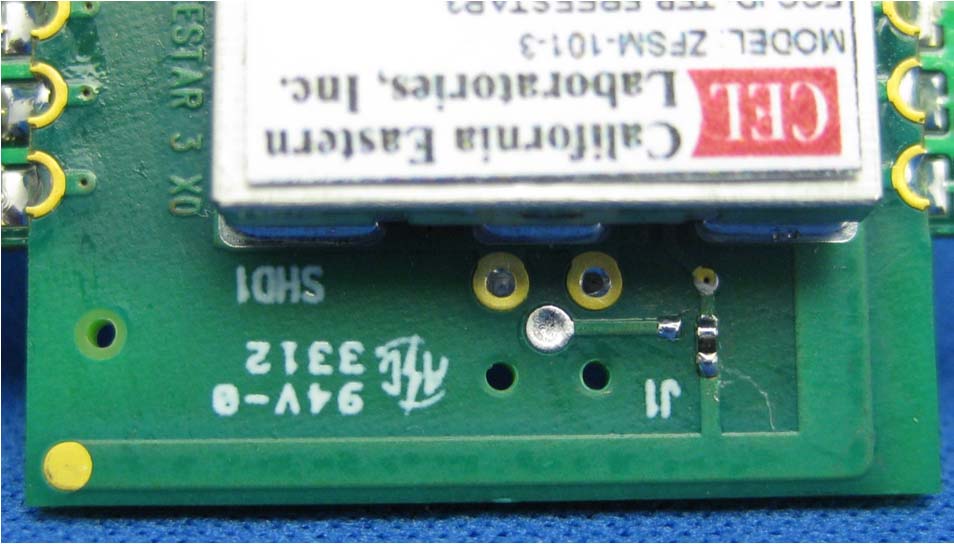

EXTERNAL PHOTOS Company Name LS Research, LLC FCC ID # TFB‐FREESTAR3 IC ID # 5969A‐FREESTAR3 Model # ZFSM‐101‐3 Page 1 of 2 EXTERNAL PHOTOS Company Name LS Research, LLC FCC ID # TFB‐FREESTAR3 IC ID # 5969A‐FREESTAR3 Model # ZFSM‐101‐3 Page 2 of 2

Label Placement Company Name LS Research, LLC FCC ID # TFB‐FREESTAR3 IC ID # 5969A‐FREESTAR3 Model # ZFSM‐101‐3 Page 1 of 1

INTERNAL PHOTOS Company Name LS Research, LLC FCC ID # TFB‐FREESTAR3 IC ID # 5969A‐FREESTAR3 MODEL # ZFSM‐101‐3 Page 1 of 2 INTERNAL PHOTOS Company Name LS Research, LLC FCC ID # TFB‐FREESTAR3 IC ID # 5969A‐FREESTAR3 MODEL # ZFSM‐101‐3 Page 2 of 2

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:19.90 (dBm) Maximum peak output power at antenna input terminal:97.724 (mW) Antenna gain(typical):4.8 (dBi) Maximum antenna gain:3.020 (numeric) Prediction distance:20 (cm) Prediction frequency:2400 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power density at prediction frequency:0.058712 (mW/cm^2) Maximum allowable antenna gain:17.1 (dBi) 20cm =12.3 dB Margin of Compliance at 2 4R PG S  

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT #: 312230 LSR Job #: C-1544 Compliance Testing of: FreeStar Module Test Date(s): September 17 th – October 18 th , 2012 Prepared For: LS Research, LLC Attn: William Steinike W66N220 Commerce Court Cedarburg, WI 53012 This Test Report is issued under the Authority of: Shane D. Rismeyer, EMC Engineer Signature: Date: 11/7/12 Quality Assurance by: Peter Feilen, EMC Engineer Signature: Date: 11/5/12 Project Engineer: Shane D. Rismeyer, EMC Engineer Signature: Date: 11/2/12 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 55 Prepared For: LS Research Model Number: ZFSM-101-3 Report #: 312230 EUT: FreeStar Serial Number: 7, 8, 11, 14 LSR Job #: C-1544 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................. 4 1.1 - Scope .................................................................................................................................. 4 1.2 – Normative References ....................................................................................................... 4 1.3 - LS Research, LLC in Review .............................................................................................. 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................... 6 2.1 – Client Information ............................................................................................................... 6 2.2 - Equipment Under Test (EUT) Information .......................................................................... 6 2.3 - Associated Antenna Description ......................................................................................... 6 2.4 - EUT’S Technical Specifications .......................................................................................... 7 2.5 - Product Description ............................................................................................................. 8 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS ................... 9 3.1 - Climate Test Conditions ...................................................................................................... 9 3.2 - Applicability & Summary Of EMC Emission Test Results ................................................... 9 3.3 - Modifications Incorporated In the EUT for Compliance Purposes ...................................... 9 3.4 - Deviations & Exclusions from Test Specifications .............................................................. 9 EXHIBIT 4. DECLARATION OF CONFORMITY .............................................................................. 10 EXHIBIT 5. RADIATED EMISSIONS TEST ...................................................................................... 11 5.1 - Test Setup ......................................................................................................................... 11 5.2 - Test Procedure ................................................................................................................. 11 5.3 - Test Equipment Utilized .................................................................................................... 11 5.4 - Test Results ...................................................................................................................... 11 5.5 - Calculation of Radiated Emissions Limits ......................................................................... 12 5.6 - Radiated Emissions Test Data Chart ................................................................................ 13 5.7 - Screen Captures - Radiated Emissions Test .................................................................... 15 5.8 - Receive Mode Testing ...................................................................................................... 19 5.9 - Screen Captures - Radiated Emissions Testing – Receive Mode .................................... 20 EXHIBIT 6. CONDUCTED EMISSIONS TEST, AC POWER LINE .................................................. 24 6.1 - Test Setup ......................................................................................................................... 24 6.2 - Test Procedure ................................................................................................................. 24 6.3 - Test Equipment Utilized .................................................................................................... 24 6.4 - Test Results ...................................................................................................................... 24 6.5 - FCC Limits of Conducted Emissions at the AC Mains Ports ............................................ 25 LS Research, LLC Page 3 of 55 Prepared For: LS Research Model Number: ZFSM-101-3 Report #: 312230 EUT: FreeStar Serial Number: 7, 8, 11, 14 LSR Job #: C-1544 6.6 – Conducted Emissions Test Data Chart ............................................................................ 26 6.7 - Test Setup Photo(s) – Conducted Emissions Test ........................................................... 27 6.8 - Screen Captures – Conducted Emissions Test ................................................................ 28 EXHIBIT 7. OCCUPIED BANDWIDTH ............................................................................................. 29 7.1 - Limits ................................................................................................................................. 29 7.2 - Method of Measurements ................................................................................................. 29 7.3 - Test Equipment List .......................................................................................................... 29 7.4 - Test Data ......…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT #: 312230 LSR Job #: C-1544 Compliance Testing of: FreeStar Module Test Date(s): September 17 th – October 18 th , 2012 Prepared For: LS Research, LLC Attn: William Steinike W66N220 Commerce Court Cedarburg, WI 53012 This Test Report is issued under the Authority of: Shane D. Rismeyer, EMC Engineer Signature: Date: 11/7/12 Quality Assurance by: Peter Feilen, EMC Engineer Signature: Date: 11/5/12 Project Engineer: Shane D. Rismeyer, EMC Engineer Signature: Date: 11/2/12 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 55 Prepared For: LS Research Model Number: ZFSM-101-3 Report #: 312230 EUT: FreeStar Serial Number: 7, 8, 11, 14 LSR Job #: C-1544 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................. 4 1.1 - Scope .................................................................................................................................. 4 1.2 – Normative References ....................................................................................................... 4 1.3 - LS Research, LLC in Review .............................................................................................. 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................... 6 2.1 – Client Information ............................................................................................................... 6 2.2 - Equipment Under Test (EUT) Information .......................................................................... 6 2.3 - Associated Antenna Description ......................................................................................... 6 2.4 - EUT’S Technical Specifications .......................................................................................... 7 2.5 - Product Description ............................................................................................................. 8 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS ................... 9 3.1 - Climate Test Conditions ...................................................................................................... 9 3.2 - Applicability & Summary Of EMC Emission Test Results ................................................... 9 3.3 - Modifications Incorporated In the EUT for Compliance Purposes ...................................... 9 3.4 - Deviations & Exclusions from Test Specifications .............................................................. 9 EXHIBIT 4. DECLARATION OF CONFORMITY .............................................................................. 10 EXHIBIT 5. RADIATED EMISSIONS TEST ...................................................................................... 11 5.1 - Test Setup ......................................................................................................................... 11 5.2 - Test Procedure ................................................................................................................. 11 5.3 - Test Equipment Utilized .................................................................................................... 11 5.4 - Test Results ...................................................................................................................... 11 5.5 - Calculation of Radiated Emissions Limits ......................................................................... 12 5.6 - Radiated Emissions Test Data Chart ................................................................................ 13 5.7 - Screen Captures - Radiated Emissions Test .................................................................... 15 5.8 - Receive Mode Testing ...................................................................................................... 19 5.9 - Screen Captures - Radiated Emissions Testing – Receive Mode .................................... 20 EXHIBIT 6. CONDUCTED EMISSIONS TEST, AC POWER LINE .................................................. 24 6.1 - Test Setup ......................................................................................................................... 24 6.2 - Test Procedure ................................................................................................................. 24 6.3 - Test Equipment Utilized .................................................................................................... 24 6.4 - Test Results ...................................................................................................................... 24 6.5 - FCC Limits of Conducted Emissions at the AC Mains Ports ............................................ 25 LS Research, LLC Page 3 of 55 Prepared For: LS Research Model Number: ZFSM-101-3 Report #: 312230 EUT: FreeStar Serial Number: 7, 8, 11, 14 LSR Job #: C-1544 6.6 – Conducted Emissions Test Data Chart ............................................................................ 26 6.7 - Test Setup Photo(s) – Conducted Emissions Test ........................................................... 27 6.8 - Screen Captures – Conducted Emissions Test ................................................................ 28 EXHIBIT 7. OCCUPIED BANDWIDTH ............................................................................................. 29 7.1 - Limits ................................................................................................................................. 29 7.2 - Method of Measurements ................................................................................................. 29 7.3 - Test Equipment List .......................................................................................................... 29 7.4 - Test Data ......…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS – TFB-FREESTAR3 View of the EUT setup in vertical orientation. View of the EUT setup in Horizontal orientation. View of the EUT setup in Side orientation. Setup for the Conducted Emissions Test
