ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 1 of 34 Integrated Transceiver Modules for ZigBee / 802.15.4 (2.4 GHz) Development Kit Available FEATURES • 100mW output power • Long range: 4000 feet • Miniature footprint: 0.9” x 1.63” • Integrated PCB F antenna or u.fl connector for external antenna • Worldwide acceptance: FCC, IC and ETSI • Integrated 8051 microcontroller with 256k FLASH and 8k RAM • 4MBit Serial FLASH • Supports ZigBee, 802.15.4 MAC, RF4CE, SimpliciTI, and custom • LSR serial protocol based on 802.15.4 MAC • Low power operation • RoHS compliant • Streamlined development with LSR design services. • License options available to purchase design or integrate design. APPLICATIONS • Security • Lighting Control • HVAC Control • Sensor Networks • Medical • Smart Energy DESCRIPTION The ProFLEX01-SOC module is a high performance 2.4 GHz IEEE 802.15.4 System- On-Chip (CC2530) radio/microcontroller and power amplifier (CC2591) in a cost effective, pre-certified footprint. The module comes preloaded with the TI MAC- Stack that can be used with the LSR host serial protocol. Full debug and programming capabilities are included to develop custom applications. Easily load the TI ZigBee stack, 802.15.4 MAC, RF4CE, or SimplicitTI onto the module and create your own network. Need to get to market quickly? Not an expert in 802.15.4 or ZigBee? Need a custom antenna? Would you like to own the design? Would you like a custom design? Not quite sure what you need? Do you need help with your host board? LS Research Design Services will be happy to develop custom hardware or software, integrate the design, or license the design so you can manufacture yourself. Contact us at [email protected] or call us at 262-375-4400. ORDERING INFORMATION Order Number Description 450-0035 ProFLEX01-SOC Module with PCB F antenna 450-0044 ProFLEX01-SOC Module with u.fl connector for external antenna 450-0051 ProFLEX01-SOC Development Kit Table 1 Orderable ProFLEX01-SOC Model Numbers ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 2 of 34 MODULE ACCESSORIES Order Number Description 001-0001 2.4 GHz Dipole Antenna with Reverse Polarity SMA Connector 080-0001 u.fl to Reverse Polarity SMA Bulkhead Cable 105mm ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 3 of 34 BLOCK DIAGRAM CC2530 SOC 8051 Microcontroller And Radio CC2591 (PA/LNA) Antenna Serial I/O Analog GPIO PGM/DBG TMR/PWM Serial FLASH (4MBit) Figure 1 ProFLEX01-SOC Module Block Diagram – High-Level DEVELOPMENT KIT The ProFLEX01-SOC Development Kit can be used out of the box to evaluate RF range performance with the simple press of a button. Users interested in further investigating the performance and capabilities of the ProFLEX01-SOC Module can use the ModFLEX Test Tool. This PC-based software can demonstrate just how easy it is to send & receive data, collect performance data, change channels, power levels, or addresses using the LSR Serial Host Protocol with another microcontroller. More advanced users can use the development board to create and debug their own software for the ProFLEX01-SOC module using the 802.15.4 MAC, ZigBee stack, RF4CE stack, or SimpliciTI stack from TI. Part Number Description 450-0051 ProFLEX01-SOC Development Kit Figure 2 ProFLEX01-SOC Development Board Kit Contents • ModFLEX Development Board with ProFLEX01-SOC Series Transceiver Module with F antenna (x2) • USB Cable (x2) • AA Batteries (x4) • Software & Technical Information CD • Quick Start Guide ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 4 of 34 TABLE OF CONTENTS FEATURES .......................................................................................................................... 1 APPLICATIONS ................................................................................................................... 1 DESCRIPTION ..................................................................................................................... 1 ORDERING INFORMATION ................................................................................................ 1 MODULE ACCESSORIES ................................................................................................... 2 BLOCK DIAGRAM ............................................................................................................... 3 DEVELOPMENT KIT............................................................................................................ 3 Kit Contents ................................................................................................................................................. 3 MODULE PINOUT AND PIN DESCRIPTIONS .................................................................... 6 MODULE OVERVIEW ........................................................................................................ 10 SOC Microcontroller ................................................................................................................................. 10 SOC Radio.................................................................................................................................................. 10 PA/LNA .........................................…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court, Cedarburg, Wisconsin 53012-2636 BUS 262.375.4400 FAX 262.375.4248 www.lsr.com September 20, 2011 Re: Modular Transmitter Approval FCC ID: TFB-PROFLEX1SOC IC: 5969A-PROFLEX1SOC To Whom it May Concern: The following information is being provided per the requirements of 15.212 regarding modular approval of Part 15 devices: This transceiver is a complete RF module with an integral reference oscillator. External connections are provided for power and data communication. The following numbered items correspond to similarly numbered paragraphs in 15.212. Each item is a response to the requirements of that document. 1. The module has integral RF shielding to isolate it from surrounding equipment and the larger environment in general. 2. All inputs are processed as data by the on-board microcontroller. The outside user has no direct control of transmit modulation. 3. There is a 1.8V voltage regulator that powers the radio circuits other than the power amplifier. The microcontroller monitors the front end power supply voltage on a continuous basis. Should the supply voltage be found to be greater than the specified maximum of 3.6 volts, the unit will refuse to transmit. The minimum operating voltage is declared as 2.4 volts. 4. An integral PCB trace antenna, or a LSR 001-0001 dipole antenna and LSR 080-0001 U.FL to SMA cable is used in with this module. This is in accordance with Part 15.203. 5. The module was tested in a stand-alone configuration and found to be compliant with Part 15 regulations. 6. An FCC ID label is affixed to each unit at the time of manufacture. Information is also clearly presented in the user guide about labeling requirements for the final assembly. 7. This unit is compliant with Part 15.247. Installation and other requirements are presented in the user guide to allow the unit to be correctly installed. 8. The unit is compliant with the RF exposure requirements of Parts 15.247 and 2.1091. Further information may be obtained from LS Research, LLC. Sincerely, William Steinike President, LS Research

MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 O S The informatio Confirm the d 330-0016-R1. 2.4 GHz ORDERING SPECIFICA on in this doc ata is current .1 z – 2.5 G G INFORMA Order Num 001-0001 ATIONS Specificati Average Gai Peak Gain Impedanc Type Polarizatio VSWR Frequenc Weight Size Antenna Co [1] Average [2] Maximum G ument is subj t by download Cop DATAS Antenna HEET GHz Dipo ATION ber 1 2. 4 on n [1] [2] ce on cy olor e over all Co-Po Gain over all Co ject to change ding the latest pyright © 2009 ole 2dBi 4 GHz dipole lar Responses o -Polar Respons e e without noti t revision from 9-2010 LS Re i Antenn D antenna for r +1. +4. 50 o Lin ≤2.5 24 1 ver Frequency, A es over Frequenc ce. m www.lsr.com esearch, LLC na for Re Description reverse polari Value 2 dBi, Typica 3 dBi, Typica ohms, Nomina Dipole near Vertical ：1, Maximum 00-2500MHz 13g 105×10 mm Black Azimuth Pattern cy, Azimuth Patt m. everse P ity SMA conn al al al m and Elevation Pa ern and Elevatio Polarity Pag nector. SMA attern. on Pattern. T ge 1 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 P The informatio Confirm the d 330-0016-R1. PHYSICAL on in this doc ata is current .1 DIMENSIO ument is subj t by download Cop DATAS Antenna HEET ONS (MM) ject to change ding the latest pyright © 2009 e without noti t revision from 9-2010 LS Re ce. m www.lsr.com esearch, LLC m. T Pagge 2 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 T The informatio Confirm the d 330-0016-R1. TYPICAL A on in this doc ata is current .1 ANTENNA Figu Fig ument is subj t by download Cop DATAS Antenna HEET REFLECTI ure 1 Reflecti gure 2 Reflec ject to change ding the latest pyright © 2009 ON PERFO ion Paramete ction Parame e without noti t revision from 9-2010 LS Re ORMANCE ers for Exten eters for Fold ce. m www.lsr.com esearch, LLC E nded Configu ded Configur m. uration (S11) ration (S11) ) T Pagge 3 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 T The informatio Confirm the d 330-0016-R1. TYPICAL A on in this doc ata is current .1 ANTENNA Figure 3 ument is subj t by download Cop DATAS Antenna HEET RADIATIO 3 Antenna Po ject to change ding the latest pyright © 2009 N PERFOR ower Gain Pe e without noti t revision from 9-2010 LS Re RMANCE erformance a ce. m www.lsr.com esearch, LLC at 2400 MHz, m. Azimuth Pa t ttern T Pagge 4 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 The informatio Confirm the d 330-0016-R1. on in this doc ata is current .1 Figure 4 ument is subj t by download Cop DATAS Antenna HEET Antenna Pow ject to change ding the latest pyright © 2009 wer Gain Per e without noti t revision from 9-2010 LS Re rformance at ce. m www.lsr.com esearch, LLC t 2400 MHz, m. Elevation P a attern T Pagge 5 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 The informatio Confirm the d 330-0016-R1. on in this doc ata is current .1 Figure 5 ument is subj t by download Cop DATAS Antenna HEET 5 Antenna Po ject to change ding the latest pyright © 2009 ower Gain Pe e without noti t revision from 9-2010 LS Re erformance a ce. m www.lsr.com esearch, LLC at 2440 MHz, m. Azimuth Pa t ttern T Pagge 6 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 The informatio Confirm the d 330-0016-R1. on in this doc ata is current .1 Figure 6 ument is subj t by download Cop DATAS Antenna HEET Antenna Pow ject to change ding the latest pyright © 2009 wer Gain Per e without noti t revision from 9-2010 LS Re rformance at ce. m www.lsr.com esearch, LLC t 2440 MHz, m. Elevation P a attern T Pagge 7 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 The informatio Confirm the d 330-0016-R1. on in this doc ata is current .1 Figure 7 ument is subj t by download Cop DATAS Antenna HEET 7 Antenna Po ject to change ding the latest pyright © 2009 ower Gain Pe e without noti t revision from 9-2010 LS Re erformance a ce. m www.lsr.com esearch, LLC at 2480 MHz, m. Azimuth Pa t ttern T Pagge 8 of 10 MModFLEX AAccessorees – 2.4 GHHz Dipole A C 3 The informatio Confirm the d 330-0016-R1. on in this doc ata is current .1 Figure 8 ument is subj t by download Cop DATAS Antenna HEET Antenna Pow ject to change ding the latest pyright © 2009 wer Gain Per e without noti t revision from 9-2010 LS Re rformance at ce. m www.lsr.com esearch, LLC t 2480 MHz, m. Elevation P a attern T Pagge 9 of 10 T C 3 C T p t C D I P D W I B r to u fo fo The informatio Confirm the d 330-0016-R1. CONTACTI Headqua Website Technic a Sales Co The informatio products. No his documen t CONDITIONS DISCLAIMS NCLUDING, PARTICULAR DIRECT, IND WITHOUT LI NFORMATI O BEEN ADVIS respect to the o specificatio update the in for, and shall for use as com on in this doc ata is current .1 ING LS RE arters al Support ontact on in this do license, expre t or in connec S OF SALE L ANY EXPR E BUT NOT L R PURPOSE DIRECT, CO MITATION, D ON) ARISING ED OF THE e accuracy or ons and prod formation co n not be used mponents in a ument is subj t by download Cop ESEARCH ocument is pr ess or implied ction with the OCATED ON ESS, IMPLIE IMITED TO, E, OR NON-I NSEQUENTI DAMAGES F G OUT OF TH POSSIBILITY completenes uct descripti o ntained herei in, automotiv applications in M ject to change ding the latest pyright © 2009 LS Resear W66 N220 Cedarburg USA Tel: 1(262 ) Fax: 1(262 www.lsr.co support@ls sales@lsr. rovided in co d, by estoppe e sale of LSR N LSR’S WEB ED OR STA THE IMPLIE INFRINGEME IAL, PUNITIV FOR LOSS O HE USE OR Y OF SUCH D s of the conte ons at any ti in. Unless sp ve application ntended to su ModFLEX A e without noti t revision from 9-2010 LS Re rch, LLC Commerce , WI 53012- ) 375-4400 2) 375-4248 om sr.com com onnection with el or otherwis products. EX B SITE, LSR ATUTORY W ED WARRAN ENT. IN NO VE, SPECIA OF PROFITS INABILITY T DAMAGES. L ents of this do me without n pecifically pro s. LSR’s prod upport or susta Accessore ce. m www.lsr.com esearch, LLC Court 2636 h LS Researc se, to any inte XCEPT AS S ASSUMES N WARRANTY TY OF ME R EVENT SH L OR INCID S, BUSINESS O USE THIS LSR makes no ocument and notice. LSR d ovided…

Text truncated - open the document above for the full version.

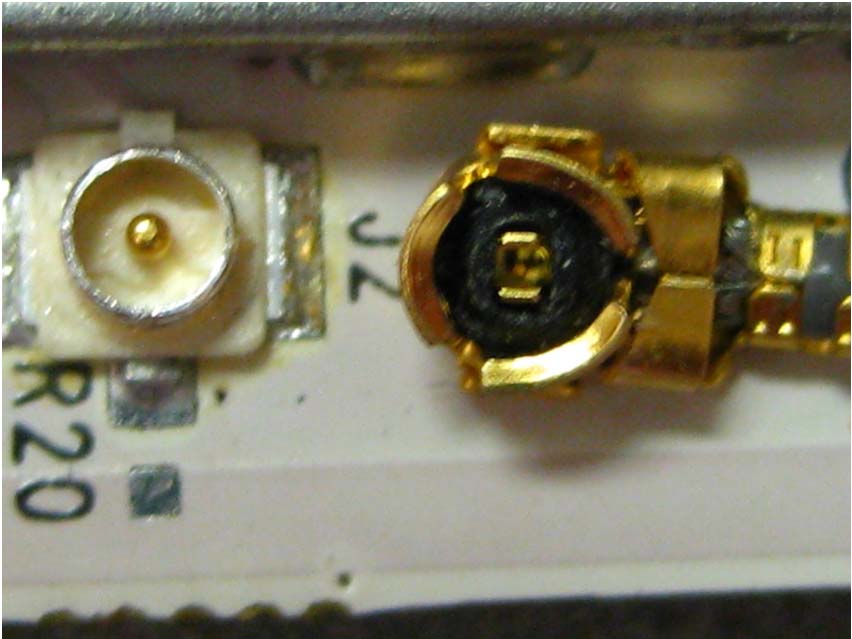

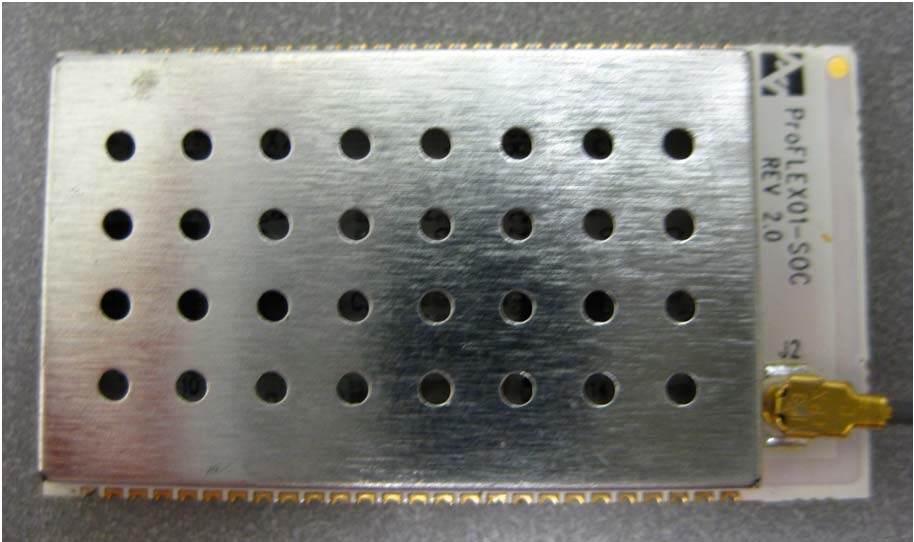

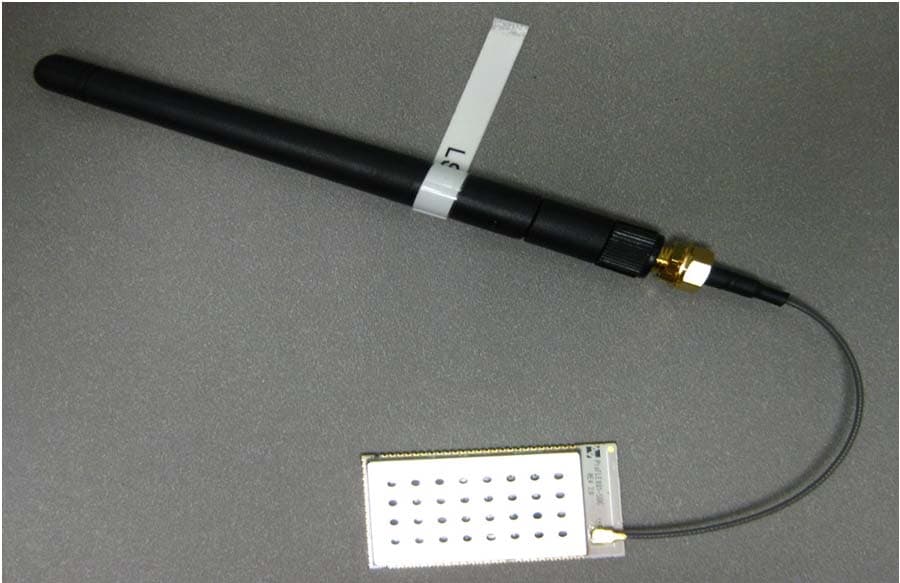

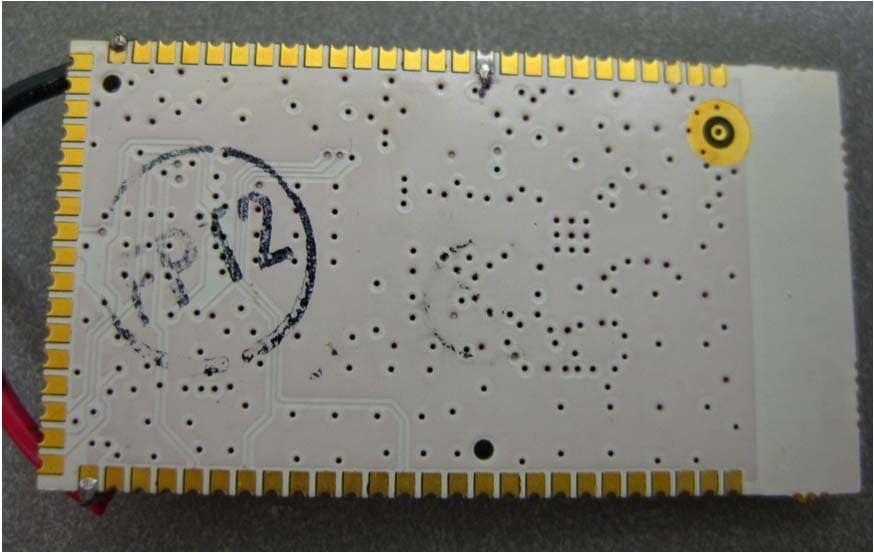

EXTERNAL PHOTOS Company Name LS Research, LLC Model # ProFLEX01‐SOC FCC ID # TFB‐PROFLEX1SOC IC # 5969A‐PROFLEX1SOC Page 1 of 4 Front side of board with PIFA Close up of PIFA EXTERNAL PHOTOS Company Name LS Research, LLC Model # ProFLEX01‐SOC FCC ID # TFB‐PROFLEX1SOC IC # 5969A‐PROFLEX1SOC Page 2 of 4 Front side of module with dipole antenna connection Full module and dipole antenna assembly connected EXTERNAL PHOTOS Company Name LS Research, LLC Model # ProFLEX01‐SOC FCC ID # TFB‐PROFLEX1SOC IC # 5969A‐PROFLEX1SOC Page 3 of 4 Cable to antenna connection EXTERNAL PHOTOS Company Name LS Research, LLC Model # ProFLEX01‐SOC FCC ID # TFB‐PROFLEX1SOC IC # 5969A‐PROFLEX1SOC Page 4 of 4 Cable to board connection Backside of board

1.27 .74 .30 .30 .25 Artwork provided by LSR Scale to fit. Label Material: Polyonics XF-781 White ESD Polyimide 1mil film, 1mil adh., 55# liner. All Fonts: Century Gothic Bold (Sizes can be approximated from picture). Minimum 600dpi print quality. 2D Barcode Format: All fields on one line with comma seperated values, no spaces -MAC ID in hexidecimal -Build Rev* -Model Name -Part Number *R = major revision See purchase order (PO) for revision. The revision on the PO is in the format R.r where R is the major revision, and r is the minor revision. Note that the label only contains the major revision. For example if the PO shows 450-0035-R1.2, the major revision is 1 and the minor revision is 2, and only the major revision of 1 is printed on the label. A 0.25" x 0.3" area is reserved for the revision. This allows a secondary revision label to be placed over the existing revision should the need arise. Example Readout from Scanner: 0025CA0700000515,1,ProFLEX01-SOC,450-0035 A sequential ID ending in FFFF is NOT allowed. REV.DESCRIPTIONDATEAPPROVED 1.0Initial Release12/08/2010CMH 1.1Only Major Rev printed on label, MAC ID's not on PO5/31/2011CMH PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF LS RESEARCH, LLC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF LS RESEARCH IS PROHIBITED. 5 4 3 2 1 LS RESEARCH, LLC TITLE: FILENAME: APPROVED BY: CHECKED BY: DRAWN BY: DATE: DATE: DATE: PROJECT: SCALE: DRAWING NO:REV: W66 N220 COMMERCE COURT CEDARBURG, WI 53012 PHONE: (262) 375-4400 FAX: (262 ) 375-4248 WIRELESS PRODUCT DEVELOPMENT 12-08-2010 CMH 1 TO 1 A SIZE: ProFLEX01-SOC F Antenna Module Label 1.1630-0038 630-0038-R1.1 Label Placement Company Name LS Research, LLC Model # ProFLEX01‐SOC FCC ID # TFB‐PROFLEX1SOC IC # 5969A‐PROFLEX1SOC Page 1 of 1

INTERNAL PHOTOS Company Name LS Research, LLC Model # ProFLEX01‐SOC FCC ID # TFB‐PROFLEX1SOC IC # 5969A‐PROFLEX1SOC Page 1 of 1

MPE CALCULATIONS – Dipole Antenna The following MPE calculations are based on a measured conducted RF power of +20.5 dBm as presented to the antenna. The gain of this antenna, based on the data sheet is 2.0 dBi. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power densit y P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:20.50 (dBm) Maximum peak output power at antenna input terminal:112.202 (mW) Antenna gain(typical):2 (dBi) Maximum antenna gain:1.585 (numeric) Prediction distance:20 (cm) Prediction frequency:2405 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power density at prediction frequency:0.035378 (mW/cm^2) Maximum allowable antenna gain:16.5 (dBi) 20cm =14.5 dBMargin of Compliance at 2 4R PG S  
