SiFLEX02-HP TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0047-R0.7 Copyright © 2010-2011 LS Research, LLC Page 1 of 35 Integrated Transceiver Modules for ZigBee / 802.15.4 (900 MHz) Development Kit Available FEATURES • 650mW output power • Long range • Up to 1Mbps RF data rate • Miniature footprint: 0.9” x 1.63” • Multiple antenna options • Dual antennas • Agency Approvals: FCC and IC • Powerful Atmel 256k ATXMEGA256A3 with 802.15.4 MAC or ZigBee Stack • LSR serial interface based on 802.15.4 MAC • Low power operation • RoHS compliant • Streamlined development with LSR design services. • License options available to purchase design or integrate design. APPLICATIONS • Security • Lighting Control • HVAC Control • Sensor Networks • Medical • Industrial Automation DESCRIPTION The SiFLEX02-HP module is a high performance 900MHz IEEE 802.15.4 radio (AT86RF212 & RF amplifier circuit) and microcontroller (ATXMEGA256A3) in a cost effective, pre-certified footprint. The module comes preloaded with the LSR host serial interface running on top of the Atmel 802.15.4 MAC. Full debug and programming capabilities are included to develop custom applications. Easily load the ZigBee stack or 802.15.4 MAC onto the module and create your own network. Need to get to market quickly? Not an expert in 802.15.4 or ZigBee? Need a custom antenna? Would you like to own the design? Would you like a custom design? Not quite sure what you need? Do you need help with your host board? LS Research Design Services will be happy to develop custom hardware or software, integrate the design, or license the design so you can manufacture yourself. Contact us at [email protected] or call us at 262-375-4400. ORDERING INFORMATION Order Number Description 450-0047 SiFLEX02-HP Module with u.fl connectors for external antennas 450-0049 SiFLEX02-HP Module with castellated RF traces for off board antenna. Note: See Antenna Options section for more details. SiFLEX02-HP Dev Kit Table 1 Orderable SiFLEX02-HP Model Numbers SiFLEX02-HP TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0047-R0.7 Copyright © 2010-2011 LS Research, LLC Page 2 of 35 MODULE ACCESSORIES Order Number Description 001-0002 900 MHz Dipole Antenna with Reverse Polarity SMA Connector 080-0001 u.fl to Reverse Polarity SMA Bulkhead Cable 105mm SiFLEX02-HP TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0047-R0.7 Copyright © 2010-2011 LS Research, LLC Page 3 of 35 BLOCK DIAGRAM ATXMEGA256A3 (Microcontroller) AT86RF212 (802.15.4 Radio) RF Front End Power Amplifier / LNA SPI Antenna Serial I/O Analog GPIO PGM/DBG TMR/PWM Antenna Figure 1 SiFLEX02-HP Module Block Diagram – High-Level DEVELOPMENT KIT The SiFLEX02-HP Development Kit can be used out of the box to evaluate RF range performance with the simple press of a button. Users interested in further investigating the performance and capabilities of the SiFLEX02- HP Module can use the ModFLEX TM Test Tool. This PC-based software can demonstrate just how easy it is to send & receive data, collect performance data, change channels, power levels, or addresses using the LSR Serial Host Protocol with another microcontroller. More advanced users can use the development board to create and debug their own software for the SiFLEX02-HP module using the 802.15.4 MAC or ZigBee stack from Atmel. Part Number Description SiFLEX02-HP Dev Kit Figure 2 SiFLEX02-HP Development Board Kit Contents • ModFLEX TM Development Board with SiFLEX02-HP Module with external antennas (x2) • USB Cable (x2) • AA Batteries (x4) • Software & Technical Information CD SiFLEX02-HP TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0047-R0.7 Copyright © 2010-2011 LS Research, LLC Page 4 of 35 TABLE OF CONTENTS FEATURES .......................................................................................................................... 1 APPLICATIONS ................................................................................................................... 1 DESCRIPTION ..................................................................................................................... 1 ORDERING INFORMATION ................................................................................................ 1 MODULE ACCESSORIES ................................................................................................... 2 BLOCK DIAGRAM ............................................................................................................... 3 DEVELOPMENT KIT............................................................................................................ 3 Kit Contents ................................................................................................................................................. 3 MODULE PINOUT AND PIN DESCRIPTIONS .................................................................... 6 MODULE OVERVIEW ........................................................................................................ 10 Microcontroller .......................................................................................................................................... 10 Radio .......................................................................................................................................................... 12 RF Front End (Power Amplifier and LNA) ............................................................................................... 13 Antenna Option…

Text truncated - open the document above for the full version.

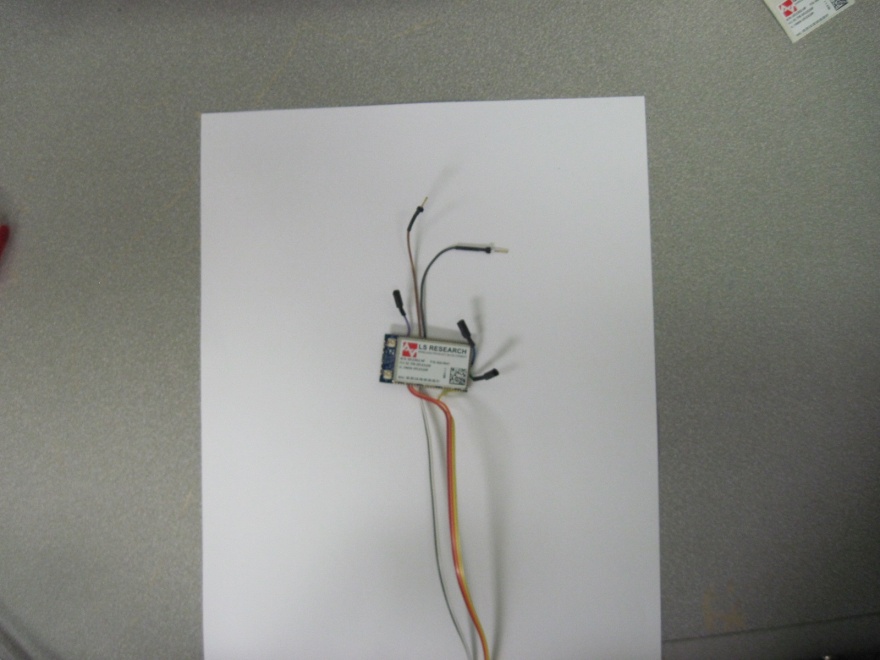

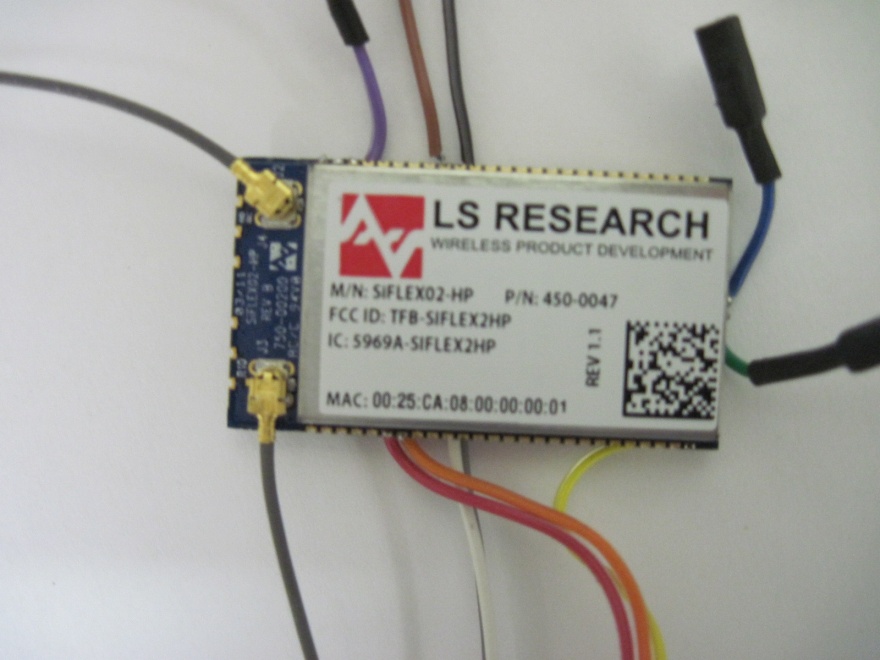

EXTERNAL PHOTOS Company Name LS Research Model # SiFLEX02‐HP FCC ID # TFB‐SIFLEX2HP IC # 5969A‐SIFLEX2HP Page 1 of 5 Module with Articulating Dipole Antenna EXTERNAL PHOTOS Company Name LS Research Model # SiFLEX02‐HP FCC ID # TFB‐SIFLEX2HP IC # 5969A‐SIFLEX2HP Page 2 of 5 EXTERNAL PHOTOS Company Name LS Research Model # SiFLEX02‐HP FCC ID # TFB‐SIFLEX2HP IC # 5969A‐SIFLEX2HP Page 3 of 5

LABELPLACEMENTPHOTO Company Name LS Research Model # SiFLEX02‐HP FCC ID # TFB‐SIFLEX2HP IC # 5969A‐SIFLEX2HP Page 1 of 1

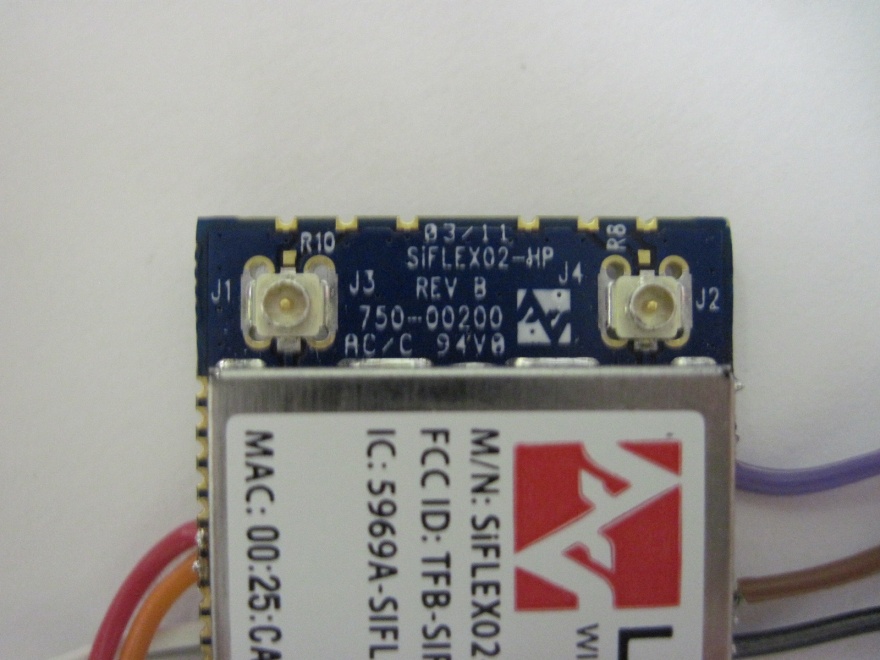

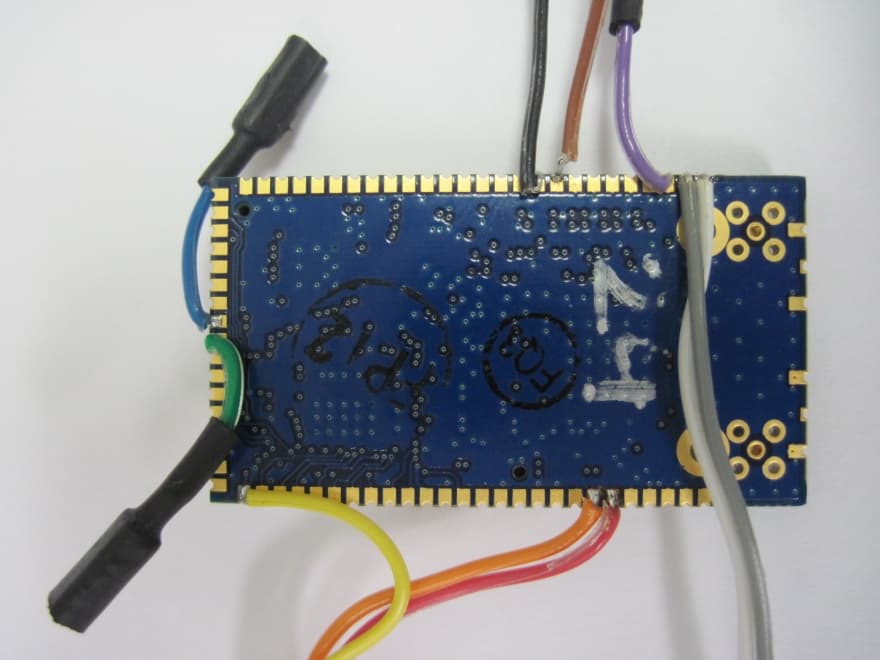

INTERNAL PHOTOS Company Name LS Research Model # SiFLEX02‐HP FCC ID # TFB‐SIFLEX2HP IC # 5969A‐SIFLEX2HP Page 1 of 1

MPE CALCULATIONS The following MPE calculations are based on a +2.0 dBi dipole antenna, with a measured ERP of 127.90 dBμV/m, at 3 meters, and conducted RF power of +28.14 dBm as presented to the antenna.

W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # 311094 LSR Job #: C-1148 Compliance Testing of: SiFlex-02 HP With Articulating Dipole Antenna Test Date(s): March 16-17, 22, May 11, 2011 Prepared For: LS Research, LLC Attn: Bill Steinike W66 N220 Commerce Ct Cedarburg, WI 53012 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Industry Canada (IC) RSS 210 Annex 8 Digital Modulation Transmitters (DTS) Operating in the Frequency Band 902 MHz – 928 MHz This Test Report is issued under the Authority of: Peter Feilen, EMC Engineer Signature: Date: 5/26/2011 Test Report Reviewed by: Aidi Zainal, EMC Engineer Signature: Date: 5/11/2011 Tested by: Peter Feilen, EMC Engineer Signature: Date: 3/31/2011 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: LS Research, LLC EUT: SiFlex-02 HP LS Research, LLC Report # 311094 Model #: SiFLEX02-HP Template: Class B DTS 10-22-09 LSR Job #: C-1148 Serial #: 00:25:CA:08:00:00:00:01 Page 2 of 44 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 Product Description 8 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 3.1 Climate Test Conditions 9 3.2 Applicability & Summary of EMC Emission Test Results 9 3.3 Modifications Incorporated in the EUT for Compliance Purposes 9 3.4 Deviations & Exclusions from Test Specifications 9 EXHIBIT 4: DECLARATION OF CONFORMITY 10 EXHIBIT 5: RADIATED EMISSIONS TESTING Note: Items 5.1 through 5.8 are for TRANSMIT MODE Item 5.9 is for RECEIVE MODE 5.1 Test Setup 11 5.2 Test Procedure 11 5.3 Test Equipment Utilized 12 5.4 Test Results 12 5.5 Calculation of Radiated Emissions Limits 13 5.6 Radiated Emissions Test Data Chart 14 5.7 Screen Captures – Radiated Emissions Test 16 5.8 Receive Mode Testing 19 EXHIBIT 6: CONDUCTED EMISSIONS TEST, AC POWER LINE 6.1 Test Setup 22 6.2 Test Procedure 22 6.3 Test Equipment Utilized 22 6.4 Test Results 22 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports 22 6.6 Conducted Emissions Test Data Chart 23 6.7 Screen Captures – Conducted Emissions Test 24 Prepared For: LS Research, LLC EUT: SiFlex-02 HP LS Research, LLC Report # 311094 Model #: SiFLEX02-HP Template: Class B DTS 10-22-09 LSR Job #: C-1148 Serial #: 00:25:CA:08:00:00:00:01 Page 3 of 44 TABLE OF CONTENTS (Page 2 of 2) EXHIBIT 7: OCCUPIED BANDWIDTH 7.1 Limits 25 7.2 Method of Measurements 25 7.3 Test Equipment List 25 7.4 Test Data 25 7.5 Screen Captures – Occupied Bandwidth 26 EXHIBIT 8: BAND-EDGE MEASUREMENTS 29 Method of Measurements EXHIBIT 9: POWER OUTPUT (CONDUCTED): 15.247(b) 9.1 Method of Measurements 30 9.2 Test Equipment List 30 9.3 Test Data 30 9.4 Screen Captures – Power Output (Conducted) 31 EXHIBIT 10: POWER SPECTRAL DENSITY: 15.247(e) 10.1 Limits 33 10.2 Test Equipment List 33 10.3 Test Data 33 10.4 Screen Captures – Power Spectral Density 34 EXHIBIT 11: SPURIOUS RADIATED EMISSIONS: 15.247(d) 11.1 Limits 36 11.2 Test Equipment List 37 11.3 Test Data 37 11.4 Screen Captures – Spurious Radiated Emissions 38 EXHIBIT 12: FREQUENCY & POWER STABILITY OVER VOLTAGE VARIATION 40 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 41 APPENDIX B: TEST STANDARDS – RADIO 43 APPENDIX C: UNCERTAINTY STATEMENT 44 Prepared For: LS Research, LLC EUT: SiFlex-02 HP LS Research, LLC Report # 311094 Model #: SiFLEX02-HP Template: Class B DTS 10-22-09 LSR Job #: C-1148 Serial #: 00:25:CA:08:00:00:00:01 Page 4 of 44 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.247 and 15.209 FCC Part 2, Section 2.1043 paragraph (b)1. RSS GEN and RSS 210 Annex 8 Title: FCC : Telecommunication – Code of Federal Regulations, CFR 47, Part 15. IC : Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment Purpose of Test: To gain FCC and IC Certification Authorization for Low- Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification:  Commercial, Industrial or Business  Residential 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2008-10 Code of Federal Regulations - Telecommunications RSS 210 Annex 8 2010-12 Low-power License-exempt Radio- communication Devices (All Frequency Bands): Category I Equipment ANSI C63.4 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. FCC Public Notice DA 00-1407 2000 Part 15 Unlicensed Modular Transmitter Approval FCC ET Docket No. 99-231 2002 Amendment to FCC Part 15 of the Commission’s Rules Regarding Spread Spectrum Devices. FCC Procedures 2007 Measurement of Digital Transmission Systems operating under Section 15.247. Prepared For: LS Research, LLC EUT: SiFlex-02 HP LS Research, LLC Report # 311094 Model #: SiFLEX02-HP Template: Class B DTS 10-22-09 LSR Job #: C-1148 Serial #: 00:25:CA:08:00:00:00:01 Page 5 of 44 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accre…
