TFJ680TGContactless Smart Card Reader Module

UIC680 Simple Manual 2008-10-20 PM076-S Revision 2 Page 1 of 2 UIC680 SERIES Contactless Smart Card Reader Module - RS232 & USB HID Keyboard Interface - (Support M-Chip & qVSDC) Thank you for purchasing the UIC680 series products. The contactless smart card reader module UIC680 is mainly to support the contactless payment systems. The small footprint size of the module makes it easily to integrate to the current transaction system such as Point-of-Sale terminal, kiosk, and vending machine station as the part of the system. The module communicates with a host computer or terminal using a standard RS-232, USB or TTL interface. FEATURES  Small footprint PCB size: 50 L* 40 W (mm) without antenna board  Supports ISO 14443 type A & B standard  Supports American Express® ExpressPay, MasterCard® PayPassTM, Visa® MSD applications  Reads/writes Philips Mifare® classical contactless smart card  Provides the options for the direct coupling antenna and the remote antenna  RS232, USB 2.0 and serial TTL (optional) Interface  RS232 data pass through function  TTL F2F magnetic stripe decode data pass through (optional)  F2F decoder data emulation (optional)  Firmware upgradeable AGENCY APPROVAL  Specifications for FCC Class B, CE Class B NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void your authority to operate such equipment. SPECIFICATIONS Communication Standard RS232 signal level Compatible with USB 2.0 specification (optional)/TTL 5V signal level (optional) Power Requirements 5VDC Power Consumption 330mA in idle mode; 430mA in operating mode Operating Temperature -10 to 50 Operating Humidity 10 to 85% (non condensing) Dimensions 50L x 40W mm, without antenna board Pb The external cover label must show "contains transmitter module FCC ID: TFJ680TG" UIC680 Simple Manual 2008-10-20 PM076-S Revision 2 Page 2 of 2 PIN ASSIGNMENT Interface J3 Pin Assignment DB9SignalDirectionPCB-J1Signal 5 GND 1 GND 2 RxD  Serial data to host 2 TXD1 3 TxD  Serial data from host 3 RXD1 4 VCC Serial Pass-thru or USB data 5 TXD2 (or USB D-) Serial Pass-thru or USB data 6 RxD2 (or USB D+) Shield 7 Shield Extension Port J1 Pin Assignment PinSignalComment 1 GND 2 GND 3 Extended IO 4 Extended IO 5 GND 6 VCC 5Vdc 7 Extended IO 8 Extended IO 9 Extended IO 10 Extended IO 11 Extended IO 12 Extended IO 13 Extended IO 14 Extended IO 15 Extended IO 16 Extended IO 17 Extended IO 18 Extended IO 19 GND 20 VCC_33 3.3V 21 Extended IO 22 Extended IO 23 Extended IO 24 Buzzer Control Signal 25 Extended IO 26 Extended IO 27 Extended IO 28 Extended IO 50 RF Antenna Port J2B Pin Assignment Contact numberSignal 1 RF output 2 GND Direct Match Antenna Port J2A Pin Assignment Contact numberSignal 1 RX 2 TX 3 GND 4 GND

UIC 47436 Fremont Blvd, Fremont, CA 94538 Tel: (510) 438-6799 Fax (510) 438-6790 Date: August 11, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent and Request for Confidentiality / FCC ID: TFJ680TG Gentlemen: On Behalf of Uniform Industrial Corp. , we hereby authorize Central Research Technology Co. to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by Central research Technology Co. on our behalf shall have the same effect as acts of our own. Sincerely Yours, Joseph Y. Kwong Director of Sales and Marketing Uniform Industrial Corp.

UIC 47436 Fremont Blvd, Fremont, CA 94538 Tel: (510) 438-6799 Fax (510) 438-6790 Date: August 11, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TFJ680TG Subject: Confidentiality Request Pursuant to 0.457 and 0.459 of the Commission’s Rules/ IC regulation, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that the disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Joseph Y. Kwong Director of Sales and Marketing Uniform Industrial Corp.

SCS-F26 Modular Approval Letter Page 1 of 3 Rev 1.0 Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (current)1.01.0Dec-04-2006 SCS-F26 Modular Approval Letter Page 2 of 3 Rev 1.0 UIC 47436 Fremont Blvd, Fremont, CA 94538 Tel: (510) 438-6799 Fax (510) 438-6790 Date: August 16, 2011 (UIC680) FCC ID : TFJ680TG , is seeking FCC Authorization as a modular transmitter. The EUT meets the requirements for modular approval as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” 2. “The modular transmitter must have buffered modulation/data inputs.” 3. “The modular transmitter must have its own power supply regulation.” 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” 5. “The modular transmitter must be tested in a stand-alone configuration.” 6. “The modular transmitter must be labeled with its own FCC ID number.” 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Ans: YES Ans: YES Ans: YES Ans: YES Ans: YES Ans: YES Ans: YES Ans: YES SCS-F26 Modular Approval Letter Page 3 of 3 Rev 1.0 Sincerely Yours, Joseph Y. Kwong Director of Sales and Marketing Uniform Industrial Corp. 47436 Fremont Blvd Fremont, CA 94538

Label

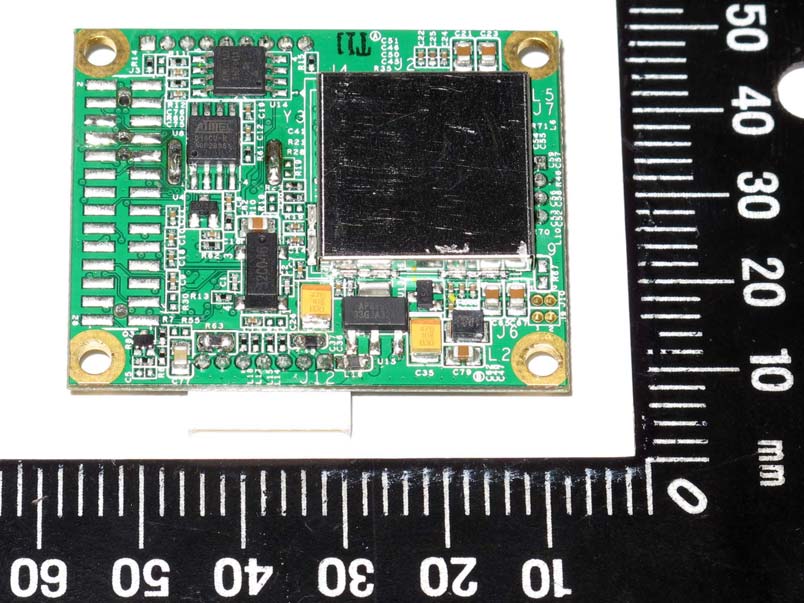

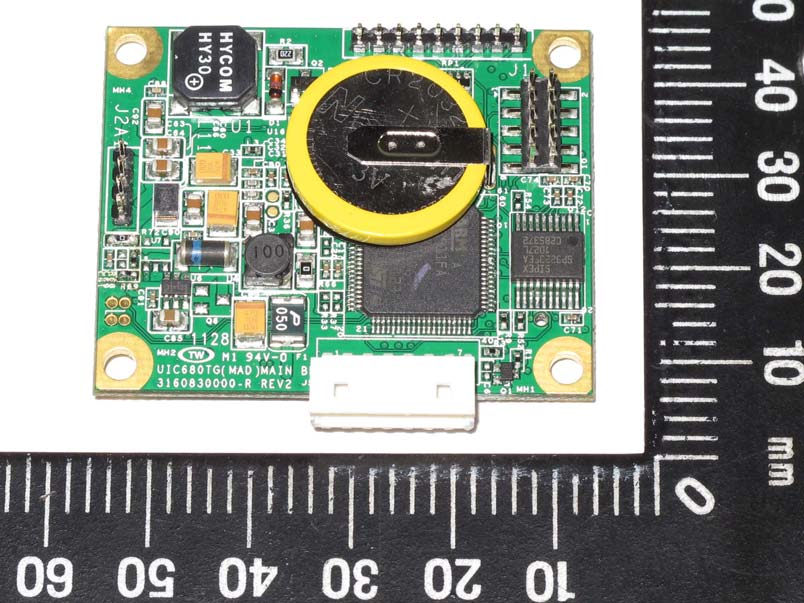

FCC Test Report Report No.: RF-U010-1107-380 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 0 Attachment 3 Internal Photographs of EUT FCC Test Report Report No.: RF-U010-1107-380 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 FCC Test Report Report No.: RF-U010-1107-380 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 2 FCC Test Report Report No.: RF-U010-1107-380 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 3
