TFJA10-PPIN Pad

A10P manual Page 1 PIN Pad A10-P The A10-P is a compact PIN pad, designed to support financial inclusion scenarios as well as innovative payment schemes in mature markets. Another optional feature is fingerprint reader, the spec is TBD. Quick Features • 4-in-1 PIN pad: MSR, Chip, NFC and PIN entry • USB or RS-232 interface connectivity pure PIN pad • POS-A transmission type • Colorful LCD display • High performance and security • PCI & EMV Level 1 & Level 2 certification approved, typical payment brand schemes supported Specification Processor Microchip SAMA5D28 Memory DDR2 64MB Storage Flash 256MB Display 2.8” IPS 320x240 OS Linux Audio Buzzer (Default) Speaker x1 (PCBA Reserved) Buzzer Sound Pressure Level:70 dB/10cm(2.5KHz) Reader Magnetic Card Reader Bi-directional, support triple tracks ISO7811 Speed 5 to 40 IPS 1,000,000. swipe times Smart Card Reader ISO7816, T=0 , T=1 EMV Level 1, Support 5V/3V 500,000. inserted times Contactless ISO14443A&B, MIFARE HW Ready for NFC I/O Connector RJ45 Wafer to RJ45 (optional) Pig-tail cable Wafer to USB/RS232 (Cable selection) (USB port A for SAMBA) DC Jack On cable SAM X0, x2(optional) Debug console 2.54mm Head X1(2pin) LED indicator Mono, Green X4 for EMV Keypad Rubber Keys *18 (Func. keys*3, STD Keys *15) Environment Operating 0°C to +50°C A10P manual Page 2 Temperature Storage Temperature -20°C to +70°C Humidity 5% to 90% Reliability Requirements MTBF 100,000 hours Drop test 76 cm without damage ESD Air：+/-15KV Contact：+/- 8KV Installation guide(USB Interface) 1 Plug the USB cable to the USB port of PC. 2 Install the driver A10P manual Page 3 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. A10P manual Page 4 CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

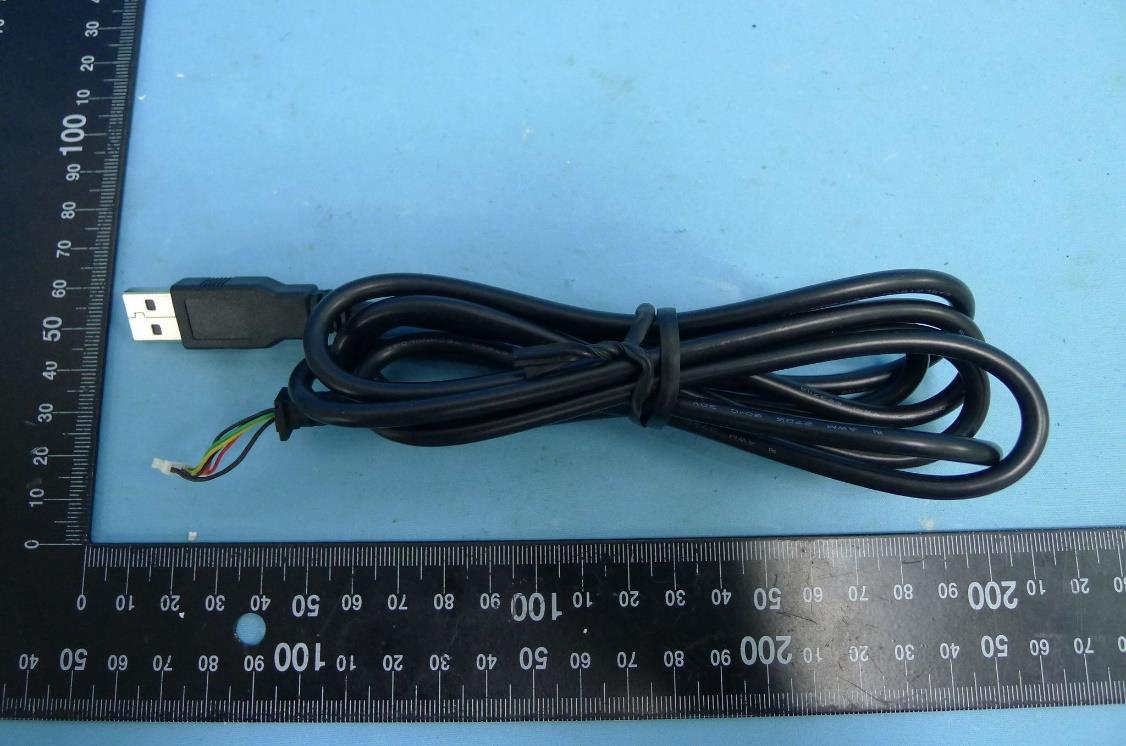

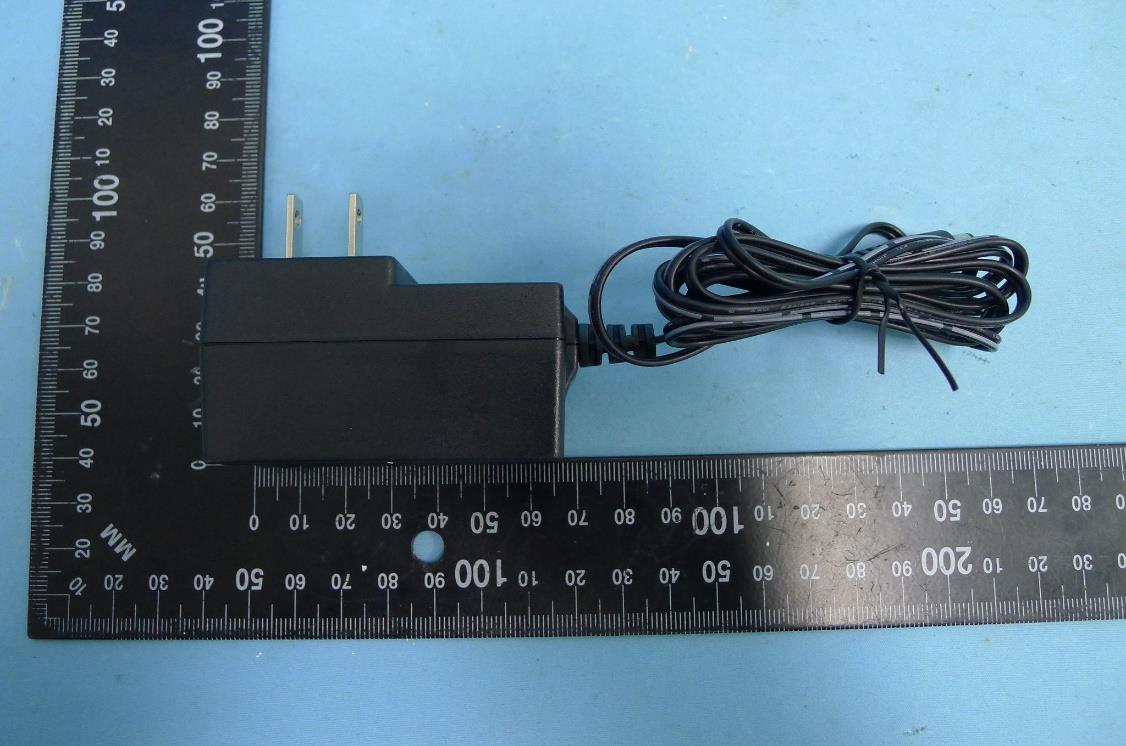

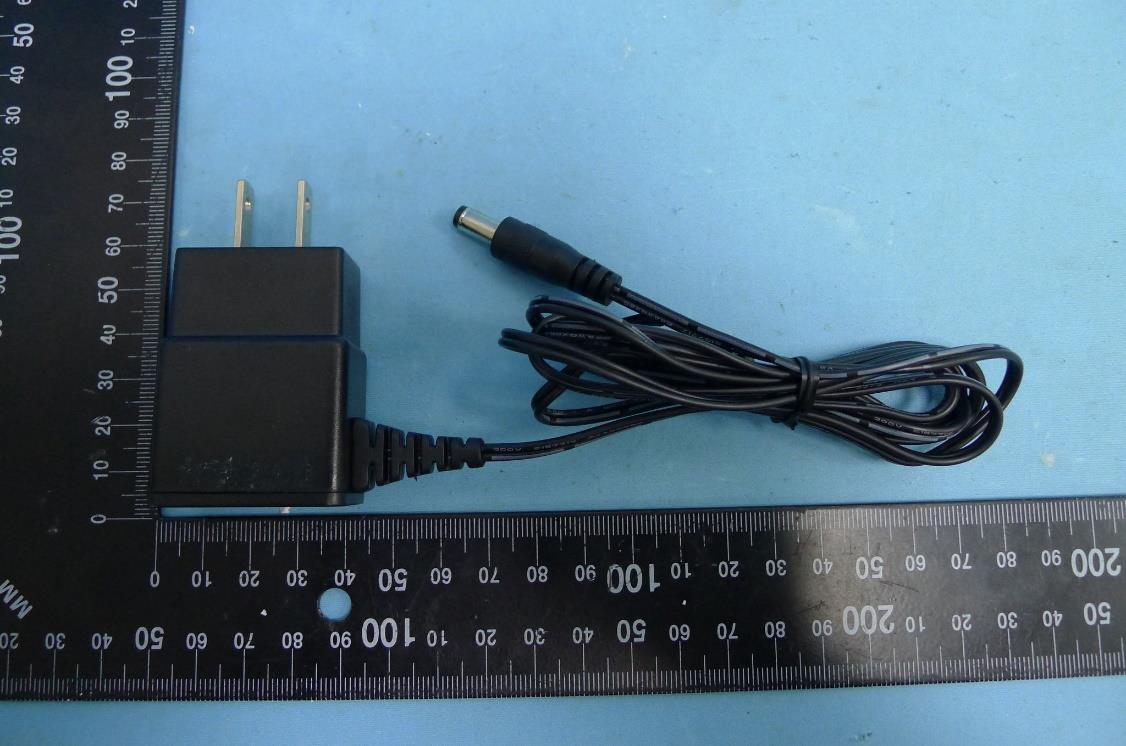

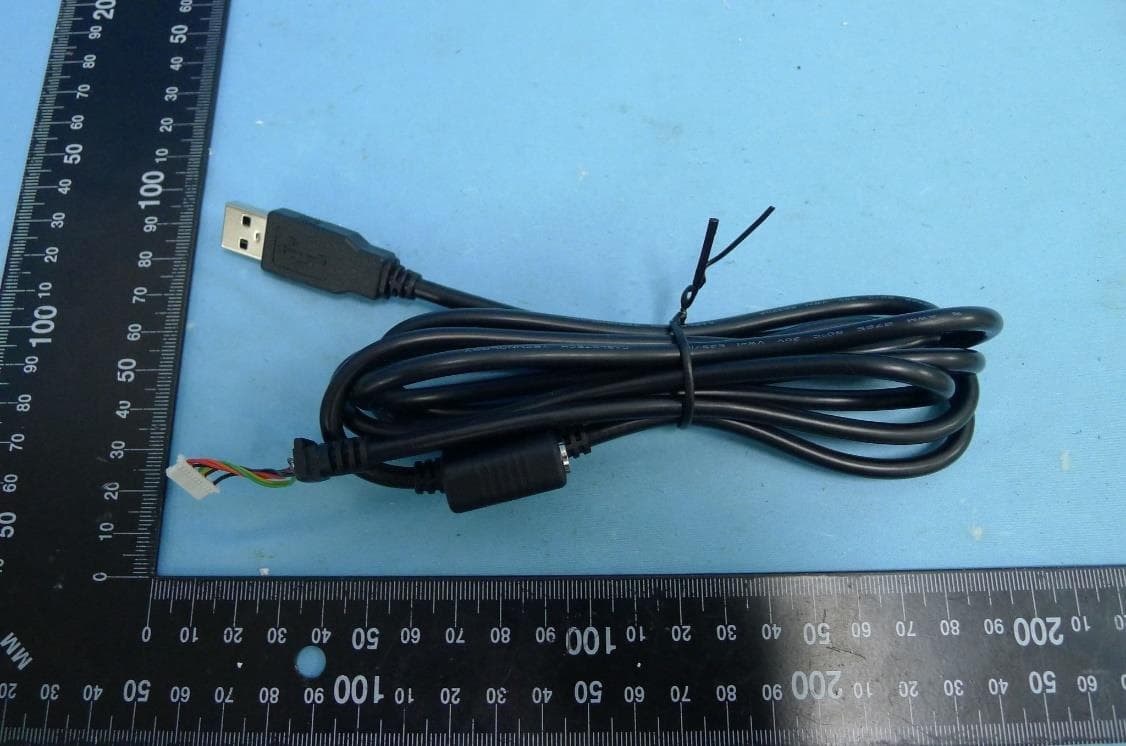

Report No.: 2011TW5401-U1 Product: PIN Pad Brand Name: UIC Model Number: A10-P 1 of 12 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2011TW5401-U1 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 2011TW5401-U1 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 2011TW5401-U1 4 of 12 (7) EUT Photo (8) EUT Photo (Adapter: A106-2050103U) Report No.: 2011TW5401-U1 5 of 12 (9) EUT Photo (Adapter: A106-2050103U) (10) EUT Photo (Adapter: A106-2050103U) Report No.: 2011TW5401-U1 6 of 12 (11) EUT Photo (Adapter: A106-2050103U) (12) EUT Photo (Adapter: A106-2050103U) Report No.: 2011TW5401-U1 7 of 12 (13) EUT Photo (Adapter: A106-2050103U) (14) EUT Photo (Adapter: A106-2050103U) Report No.: 2011TW5401-U1 8 of 12 (15) EUT Photo (Adapter: BA006-050100AXU) (16) EUT Photo (Adapter: BA006-050100AXU) Report No.: 2011TW5401-U1 9 of 12 (17) EUT Photo (Adapter: BA006-050100AXU) (18) EUT Photo (Adapter: BA006-050100AXU) Report No.: 2011TW5401-U1 10 of 12 (19) EUT Photo (Adapter: BA006-050100AXU) (20) EUT Photo (Adapter: BA006-050100AXU) Report No.: 2011TW5401-U1 11 of 12 (21) EUT Photo (Adapter: BA006-050100AXU) (22) EUT Photo (Cable: Signal to RS-232 with DC Input) Report No.: 2011TW5401-U1 12 of 12 (23) EUT Photo (Cable: Signal to USB with DC Input) (24) EUT Photo (Cable: Signal to USB)

Label Label location Label Location

Report No.: 2011TW5401-U1 Product: PIN Pad Brand Name: UIC Model Number: A10-P 1 of 12 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2011TW5401-U1 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 2011TW5401-U1 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 2011TW5401-U1 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 2011TW5401-U1 5 of 12 (9) EUT Photo (10) EUT Photo Report No.: 2011TW5401-U1 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 2011TW5401-U1 7 of 12 (13) EUT Photo (14) EUT Photo Report No.: 2011TW5401-U1 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 2011TW5401-U1 9 of 12 (17) EUT Photo (18) EUT Photo Report No.: 2011TW5401-U1 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 2011TW5401-U1 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 2011TW5401-U1 12 of 12 (23) EUT Photo

Report No.: 2011TW5401-U1 Product: PIN Pad Brand Name: UIC Model Number: A10-P 1 of 5 Test Photograph Test Mode: Mode 1 Description: Front View of Conducted Emission Test Setup Test Mode: Mode 1 Description: Back View of Conducted Emission Test Setup Report No.: 2011TW5401-U1 2 of 5 Test Mode: Mode 2 Description: Front View of Conducted Emission Test Setup Test Mode: Mode 2 Description: Back View of Conducted Emission Test Setup Report No.: 2011TW5401-U1 3 of 5 Test Mode: Mode 3 Description: Front View of Conducted Emission Test Setup Test Mode: Mode 3 Description: Back View of Conducted Emission Test Setup Report No.: 2011TW5401-U1 4 of 5 Test Mode: Mode 1 Description: Radiated Emission Test Setup for 9KHz ~ 30MHz Test Mode: Mode 1 Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Report No.: 2011TW5401-U1 5 of 5 Test Mode: Mode 2 Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Test Mode: Mode 3 Description: Radiated Emission Test Setup for 30MHz ~ 1GHz
