TFJHE7620802.11n 20HT WIFI modular

Modification History Date Revision Editor Comment 0.1 2014/10/15 Wi-Fi module Specification Product Name Wi-Fi module Model Number Home Extender Family Host interface Wifi, Fast Ethernet ,USB, I2c,SPI,UART Wireless LAN Band 2.4G ISM Channels USA and Canada: ch1~ch11 Standard 82.11 n 20HT TX power(high gain) 802.11n:17~19dbm RX sensitivity 802.11n:-61dbm Antenna gain 5dbi Wire LAN Fast Ethernet(10/100M) x2 Led indicator Wireless x1, Ethernet x2, power x1 Input power DC5V/2.1A Power consumption <15W Temperature Range Operating Temp:-10~60°C Storage Temp:-10~65°C Humidity Operation Humidity: 10~90% Non-condensing PCB Dimension 70x57.66mm Regulatory compliance FCC Detail description 1 Description 802.11n 20HT Wi-Fi Board, High Power High Gain 2 System CPU : 580 MHz MIPS® 24K™ CPU core / MT7620A Flash : 16MB DDR2 : 64MB RTC : NO RF : 1T1R,802.11n 20HT,High power Ethernet : 10/100Mbps Fast ethernet 3 Function 3.0 Function Block 3.1 Wi‐Fi spec Compliance IEEE802.11n 20HT 3.2 Ethernet Compliance IEEE802.3u 3.4 USB Support USB2.0 host 3.5 I2c Support standard speed (100kbps) 3.6 SPI 3.7 UART Compatible with RS232 4 HW interface Interface Connector MT7620A Function Pin Wi‐Fi SMA N/A N/A Ethernet port 0 RJ45 MDI_TN_P0 MDI_TP_P0 MDI_RN_P0 MDI_RP_P0 U17 U16 T15 U15 Ethernet port 4 RJ45 MDI_RP_P0 MDI_TP_P4 MDI_RN_P4 MDI_RN_P4 M17 M16 N17 N16 USB Mini USB UPHY0_PADM UPHY0_PADP C16 C17 UART0 Pin header 1x4 TXD RXD R12 P12 UART1 Pin header 1x4 TXD2 RXD2 P13 P14 I2C Pin header 1x6 I2C_SCLK I2C_SD U14 T14 SPI Pin header 1x6 SPI_CS0 SPI_CLK SPI_MOSI SPI_MISO SPI_CS1 C7 D8 A8 C8 C9 Reset Button Tack switch ND_D0 P8 Power Jack Mini DC Jack N/A N/A GPIO Test point ND_D3 ND_D4 U10 T9 5 PCB Placement Warning: This device must be professionally installed. The intended use is generally not for the general public. It is generally for industry/commercial use. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for he FCC compliance requirement of the end product which integrates this module. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: TFJHE7620. If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

TFJHE7620

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent and Request for Confidentiality / FCC ID: TFJHE7620 We, Uniform Industrial Corp., Incorporated declare under our sole responsibility that the frequency 2412MHz~2462MHz will be used in USA. It is not supply the passive scan on CH12 and CH13. Sincerely yours,

FCC Test Report Report No.: RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 2 External Photographs of EUT FCC Test Report Report No.: RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report Report No.: RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-2 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report Report No.: RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-3 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Adaptor FCC Test Report Report No.: RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-4 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546

Label Location FCC ID: TFJHE7620

Label Location FCC ID: TFJHE7620

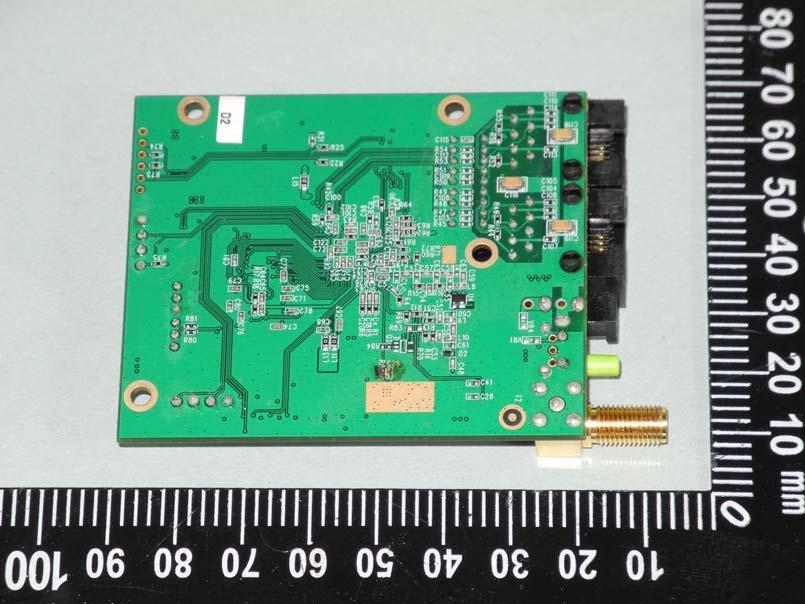

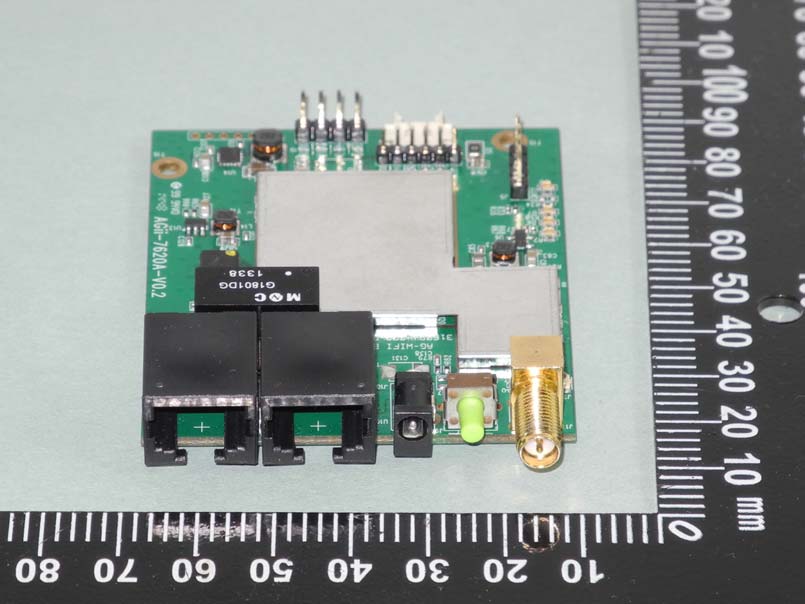

FCC Test Report Report No.: RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 0 Attachment 3 Internal Photographs of EUT FCC Test Report Report No.: RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 1

FCC Test Report Report No.:RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : 1/60 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report for Wi-Fi module Model Number : Home Extender Family FCC ID : TFJHE7620 Report Number : RF-U010-1503-046 Date of Receipt : March 10, 2015 Date of Report : May 15, 2015 Prepared for Uniform Industrial Corp. 47436 Fremont Blvd., Fremont, CA 94538-6512, USA. Prepared by Central Research Technology Co. EMC Test Laboratory No.11, Lane41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. NVLAP LAB CODE 200575-0 This report shall not be reproduced, except in full, without the written approval of Central Research Technology Co.. It may be duplicated completely in its entirely for legal use with the permission of the applicant. It should not be used to claim product endorsement by NVLAP, NIST or any U.S. government agency. The test result in the report applies only to the sample tested. FCC Test Report Report No.:RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : 2/60 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Verification of Compliance Equipment under Test : Wi-Fi module Model No. : Home Extender Family FCC ID : TFJHE7620 Manufacturer : Uniform Industrial Corp. Applicant : Uniform Industrial Corp. Address : 47436 Fremont Blvd., Fremont, CA 94538-6512, USA Applicable Standards : 47 CFR part 15, Subpart C ANSI 63.10:2009 Date of Testing : March 12~ 23, 2015 Deviation : N/A Condition of Test Sample : Mass Production We, Central Research Technology Co., hereby certify that one sample of the designated product was tested in our facility during the period mentioned above. The test records, data evaluation and Equipment Under Test (EUT) configurations shown in the present report are true and accurate representation of the measurements of the sample’s RF characteristics under the conditions herein specified. The test results show that the EUT as described in the present report is in compliance with the requirements set forth in the standards mentioned above and apply to the tested sample identified in the present report only. The test report shall not be reproduced, except in its entirety, without the written approval of Central Research Technology Co. FCC Test Report Report No.:RF-U010-1503-046 CENTRAL RESEARCH TECHNOLOGY CO. Page : 3/60 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Contents 1 General Description .............................................................................................. 5 1.1 General Description of EUT .................................................................................. 5 1.2 Test Methodology .................................................................................................. 6 1.3 Applied standards ................................................................................................. 7 1.4 The Support Units ................................................................................................. 9 1.5 Layout of Setup ..................................................................................................... 9 1.6 Test Capability ..................................................................................................... 10 1.7 Measurement Uncertainty .................................................................................. 12 2 Conducted Emission Measurement .................................................................. 13 2.1 Applied Standard ................................................................................................. 13 2.2 Test Instruments .................................................................................................. 14 2.3 Test Procedures .................................................................................................. 15 2.4 Test Configurations ............................................................................................. 16 2.5 Test Results ......................................................................................................... 17 3 6dB Bandwidth .................................................................................................... 19 3.1 Applied standard ................................................................................................. 19 3.2 Test Instruments ................................................................................................. 19 3.3 Measurement Procedure .................................................................................... 20 3.4 Test configuration ............................................................................................... 20 3.5 Test Data .............................................................................................................. 21 4 Maximum Peak Output Power ............................................................................ 23 4.1 Applied standard ................................................................................................. 23 4.2 Test Instruments ................................................................................................. 23 4.3 Measurement Procedure .................................................................................... 24 4.4 Test configuration ............................................................................................... 24 4.5 Test Data .............................................................................................................. 25 5 Peak Power Spectral Density ............................................................................. 27 5.1 Applied standard ................................................................................................. 27 5.2 Test Instruments ............................…
