TKH-A155TRI-BAND GSM MOBILE PHONE (Model: A155)

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 May 25, 2006 RE: 15.19 Statement (FCC ID: TKH-A155) TO WHOM IT MAY CONCERN The statement: "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” Is not placed in the label of the equipment due to the following reasons: - Type label is too small (No room for this writing). - Required text is already included in the user guide This statement is placed in a prominent location in the instruction manual. Please contact me if there is any information you may need. If you have any questions, please feel free to contact me at the address shown below. Sincerely, P.A. Mr. Rafael Abad SW Validation Managing Director Vitelcom Mobile Technology, S.A. Parque Tecnologico de Andalucia, Av. Juan Lopez Peñalver, E-29590 Campanillas-Malaga, SPAIN

- -- - 6 66 6 - -- - Safety information For your safety, please read the following instructions prior to the use of the phone. Violation of the following instructions is illegal and dangerous. Advice for safety and maintenance of the device - Do not try to disassemble or repair the mobile phone. - Keep it from humidity and moisture. - Do not use strong detergents or harmful chemicals to clean the device. Use a smooth cloth instead. - Do not apply strong impact on the device. - The device shall be located closely to the switch for easy access to the battery charger. - Do not place the mobile phone at a high temperature, which may cause defects in the device. - If the device is repaired by an unauthorized person, its guarantee will be void and the maker is not responsible for any defects caused by. - Do not remove the battery while the mobile phone is on, which will cause defects in the product. - Ambient temperature of about 25 degrees is recommended for normal operation of the mobile phone. - If the mobile phone or one of its parts (charger, battery, etc.) fails to operate, contact the agent you enlisted in. FCC statement Modification statement The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Vitelcom Mobile Safety Instructions - -- - 7 77 7 - -- - Technology S.A. may void the userís authority to operate the equipment. Interference statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class B digital devices regulatory notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by 1 or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - -- - 8 88 8 - -- - • Consult the dealer or an experienced radio or television technician for help Wireless notice This product emits radio frequency energy, but it has been tested and the SAR levels are far bellow the FCC limits. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for RF exposure. For body-worn operation, the phone meets FCC RF exposure guidelines provided that it is used with accessories that contain no metallic components in its construction and provides a separation of at least 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Nevertheless, the device should be used in such a manner that the potential for human contact with the antenna during normal operation is minimized. Measurement of radio frequency exposed (absorbed special rate information SAR) This mobile phone is a transmitter-receiver with the low-output electric wave. The mobile phone conforms to mandatory requirements of EU standard related with radio wavelength exposed, This product is designed and manufactured, kept from exceeding the exposed range of radio frequency energy as EU council has recommended. The international standard value is developed on the basis of thorough and regular scientific researches and evaluation (examination) by an independent research institute. - -- - 9 99 9 - -- - The range standard is to search for safety of all regardless of age or health state. Standard value exposed of the mobile phone is displayed in ìSpecific Absorption Rateî (SAR) unit. The SAR range (limit) that EU council recommends is 2.0w/kg. Based on the mobile functions, SAR test will be performed, and then the mobile sends the maximum output at the certified frequency. Its maximum output will be measured in SAR, but the level of the usual SAR will be far less than the maximum value. It is because the mobile phone is designed to operate at various strength of frequency. Consequently you are required to use the phone with the minimum strength as necessary in the communication network. In general, the closer a transmitting tower is, the lower the strength is. The manufacturer shall demonstrate that the phone conforms to R&TTE standard of Europe prior to release in the communication market. All of these requirements are mandatory to keep all the users safe and healthy. The maximum output of SAR in the phone is tested to be 1,15W/Kg. SAR limit for all the used mobile phones is 2.0 W/Kg for 10g of the human body, which is the maximum value in consideration of the additional safety items so to include all the other variables. SARís standard value can be changed to cope with national requirements and functions of the communication service network. Communication network service The product is approved to be available in GSM850~1900 environment. Please read the user manual carefully to get familiar with the functions of the device. Besides, this mobile phone is allowed to accept other communication network services. However, you need to contact the operator to use the services. How to join will be described later. Safety on the road Please remember that use of the mobile…

Text truncated - open the document above for the full version.

attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION May 25, 2006 To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorizations (FCC ID: TKH-A155), including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, P.A. Mr. Rafael Abad SW Validation Managing Director Vitelcom Mobile Technology Parque Tecnologico de Andalucia, Av. Juan Lopez Peñalver, E-29590 Campanilla-Málaga, SPAIN

attn: Reviewing Engineer Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Declaration of equivalence Vitecom Mobile Technology S.A. declares under our own reposability that the product TKH-A155 is a variant of the the already cerified product with FCC ID: TKHSP-100 in which no modifications have been made in the RF part. The product has been modified to add the following additional features: 1.- Camera function 2.- Colour display 3.- EMS service These changes does not affect to the RF functionality and RF circuitry, which remains unchanged. PCB has been changed slightly, but not in the RF circuitry and layout, to accomodate the new HW (Camera DSP, Camera and Colour display). 1 Product History Basic Model Variant Model Product name TKHSP-100 TKH-A155 2 Change Description Change Description HW part Adding camera DSP, Camera sensor,Backlight LED Driver and Color LCD SW part ADDING Camera function, phonebook memory, EMS Function Design part New casing and keys shape Based on all these changes a selection of test cases have been performed on the improved model (FCC ID: TKH-A155) to ensure the compliance of the device. Signed in Málaga on behalf of Vitelcom Mobile Technology S.A. P.A. Date: 26/05/2006 Name: Rafael Abad Cano Company: Vitelcom Mobile Technology S.A. Address: Parque Tecnológico de Andalucía Av. Juan López Peñalver, E-29590 Campanillas-Málaga SPAIN Phone: +34 669753333 E-mail: [email protected]

DOC-FCC009 4/14/2005 Page 1 of 3 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 2006-03-14 Item 1. Applicant's complete, legal business name: Vitelcom Mobile Technology S.A. Item 2. Applicant's mailing address Line 1: Parque Tecnologico de Andalucia Line 2: Av. Juan Antonio Peñalver P.O.Box: City: Campanillas-Málaga State: Málaga Country (if foreign address): Spain Zip/Postal Code: E-25950 Item 3. FCC ID: TKH-A155 Grantee code: TKH Equipment Product Code (14 characters maximum): -A155 Item 4. Person at the applicant's address to receive grant or for contact: First Name: Mail Stop: Last Name: Telephone: Ext: Title: E-mail: Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: Centro de Tecnología de las Comunicaciones S.A. (CETECOM) Paque Tecnologico de Andalucía Severo Ochoa 2 E-29590 Campanillas, Málaga SPAIN ATTN: Ricardo Orejas Phone: +34952619317 Fax: +34952619113 E-mail: [email protected] Item 6. Technical Contact: Firm Name: Vitelcom Mobile Technology, S.A. Telephone: +34 952367590 Ext: Fax No: +34 952367590 First Name: Rafael Middle Initial: Last Name: Abad Address Line 1: Parque Tecnológico de Andalucía P.O.Box: Address Line 2: Av. Juan Lopez Peñalver City: Campanillas - Málaga Country (if foreign address): Spain Zip/Postal Code: E-29590 E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: Vitelcom Mobile Technology, S.A. Telephone: +34 952367590 Ext: Fax No: +34 952367590 First Name: Rafael Middle Initial: Last Name: Abad Address Line 1: Parque Tecnológico de Andalucía P.O.Box: Address Line 2: Av. Juan Lopez Peñalver City: Campanillas - Málaga Country (if foreign address): Spain Zip/Postal Code: E-29590 E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) X Yes Ο No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) NO If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: PCE Licensed transmitter * Description of Product as it is Marketed: Triple band (850/1800/1900 MHz) GSM/GPRS mobile phone / Model: A155 (NOTE: This text will appear below the equipment class on the grant) Item 11. * Application is for: (please mark as appropriate) X Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) DOC-FCC009 4/14/2005 Page 2 of 3 Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes X No Ο Yes X No (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: Centro de Tecnologia de las Comunicaciones S.A. Last Name: Telephone +34952619100 Ext Fax No. +3495261913 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 22H 824.2 - 848.8 4.27 1.0 PM 300KGXW 24E 1850.2 - 1909.8 0.65 1.0 PM 300KGXW WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? X Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable th…

Text truncated - open the document above for the full version.

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 May 25, 2006 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Vitelcom Mobile Technology S.A. requests confidentiality for the following products: FCC ID Number Product Title/Model TKH-A155 Triple Band (850/1800/1900 MHz) GSM/GPRS mobile phone / Model: A155 For the product stated above, we request that the following information be held confidential: 1) Circuit diagrams 2) Block Diagrams 3) Bill of materials 4) Operational Description 5) Tune up information No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Vitelcom Mobile Technology S.A. trade secrets and proprietary information that could be of benefit to our competitors. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Rafael Abad Cano P.A. Date: May 25, 2006 Place: Campanillas-Málaga Signature and company stamp

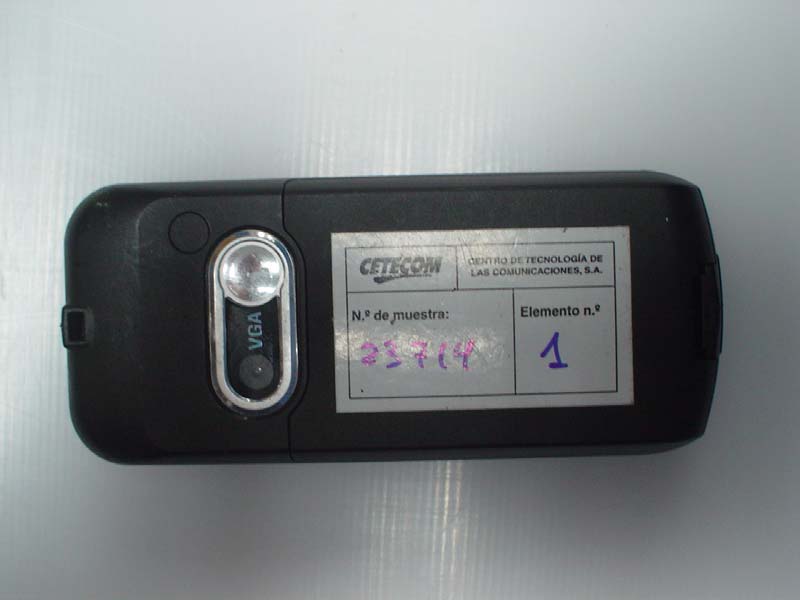

Report No. : ES/2006/40003-01 Page : 53 of 69 Photographs of the EUT Front view of device Back view of device Report No. : ES/2006/40003-01 Page : 54 of 69 Connected Charger Report No. : ES/2006/40003-01 Page : 55 of 69 Photographs of the Battery Back view of Battery Front view of Battery

The equipment with brand name GRUNDIG and model name A155 (FCC ID: TKH-A155) is a tri-band GSM phone but only GSM850 and PCS1900 are available in the USA market. The device architecture can be described by the following block diagram: In the following pages can be found a description of the different functional blocks of this block diagram. IrDA Port System Connector Baseba nd Processor CX80501-32 Flash RAM Data Se rvice s Keypad Display Back light Vo lume Contro l Ana lo g Baseba nd Processor CX20524-13 Camera Control Processor MV3018SOK DCR & VCOs SKY74117 Tr i- Ba nd PA SKY77328 DAI Dat a Services Speaker Microphone Battery Antenna Cam era SI M IrDA Port System Connector Baseba nd Processor CX80501-32 Flash RAM Data Se rvice s Keypad Display Back light Vo lume Contro l Ana lo g Baseba nd Processor CX20524-13 Camera Control Processor MV3018SOK DCR & VCOs SKY74117 Tr i- Ba nd PA SKY77328 DAI Dat a Services Speaker Microphone Battery Antenna Cam era SI M Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • [email protected] • www.skyworksinc.com 200152A • Skyworks Proprietary and Confidential information • Products and product information are subject to change without notice • March 16, 2005 1 PRODUCT SUMMARY SKY74117-13: RF Transceiver for Multi-Band GSM, GPRS, and EDGE Applications Applications • GSM850, EGSM900, DCS1800, and PCS1900 handsets • GPRS handsets and modules • EDGE receive handsets and modules Features • Direct down-conversion transceiver eliminates the external image reject/IF filters • Integrated LDO voltage regulators for direct connection to battery • Four separate LNAs with single-ended inputs • Gain selectable in 2 dB steps • Integrated receive baseband filtering with programmable bandwidth • Integrated low droop DCOC sequencer • Integrated IP2 calibration • Multiplexed and non-multiplexed I/Q input and output lines • Integrated loop filters • Integrated quad-band transmit VCOs • Single integrated, fully programmable fractional-N synthesizer suitable for multi-slot EGPRS operation • Fully integrated wideband UHF VCO • Integrated crystal oscillator maintaining amplifier with sinusoidal output buffer • Digital crystal oscillator center frequency control • Automatic frequency control possible with fractional-N synthesizer • Low power standby mode • Separate enable lines for transmit, receive, and synthesizer • Band selection possible with the three-wire interface • Four, fully programmable GPOs to control any antenna switch module • Low external component count • Interfaces to low dynamic range receive ADC • Meets AM suppression requirements without baseband interaction Description The SKY74117-13 RF transceiver is a highly integrated device for multi-band Global System for Mobile Communications (GSM), General Packet Radio Service (GPRS), and/or Enhanced Data Rate for GSM Evolution (EDGE) receive applications. The device supports GSM850, EGSM900, DCS1800, and PCS1900 applications. The receive path implements a direct down-conversion architecture that eliminates the need for Intermediate Frequency (IF) components. The device consists of four integrated Low Noise Amplifiers (LNAs), a quadrature demodulator, selectable receiver baseband filter bandwidths, low droop DC Offset Correction (DCOC) sequencer, and integrated 2 nd order Intercept Point (IP2) calibration circuitry. Similar to its predecessors, Skyworks innovative DCR™ architecture allows for this highly integrated device to be combined with virtually any standard GSM/EGPRS baseband without requiring any special processing interfaces. The device uses a translation loop transmit architecture. This architecture consists of an In-phase and Quadrature (I/Q) modulator and a frequency translation loop to perform frequency up-conversion with high output spectral purity. The translation loop also contains a phase-frequency detector, charge pump, mixer, programmable dividers, and high power transmit Voltage Controlled Oscillators (VCOs) with no external tank required. The SKY74117-13 also features an integrated, fully programmable, sigma-delta fractional-N synthesizer suitable for EGPRS multi-slot operation. The reference frequency for the synthesizer is supplied by an integrated Voltage Controlled Crystal Oscillator (VCXO) circuit that enables the use of a low-cost crystal. The VCXO also provides a buffered reference frequency output to supply other devices in the system. The SKY74117-13 is packaged in a small, 40-pin 6 x 6 mm RF Land Grid Array (RFLGA™) package. A functional block diagram is shown in Figure 1. Skyworks offers lead (Pb)-free “environmentally friendly” packaging that is RoHS compliant (European Parliament for the Restriction of Hazardous Substances). PRODUCT SUMMARY • SKY74117-13 Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • [email protected] • www.skyworksinc.com 2 March 16, 2005 • Skyworks Proprietary and Confidential information • Products and product information are subject to change without notice • 200152A 1900 1800 900 850 Limiters I Q Crystal Oscillator ∑∆ ÷N/N+1 ÷R PFD Output Control PFD High Band Transmit VCO Low Band Transmit VCO Mixer Output Stage Filter Mixer Output Stage FilterFilterFilter FilterFilter DCOC1DCOC2 DCOC1DCOC2DCOC3DCOC4DCOC5 Loop Filter Programming TX_I+ TX_I– NC/RX_I– NC/RX_I+ M U X TX_Q+ TX_Q– NC/RX_Q– NC/RX_Q+ M U X Read/W rite Serial Interface SXENA XTAL XTUNE CHIPENA XBUF 1900LNA 1800LNA RXENA 900LNA LNAGND 850LNA Loop Filter LO Generation GPO1GPO2 LPFADJ GPO3GPO4 SO14 FREF_SELECT DCOC3DCOC4DCOC5 I Q Q+/TX_Q+ DATA_OUT LE CLK DATA_IN Q–/TX_Q– I+/TX_I+ TXLB I–/TX_I– TXHB VCC2VCC1 LO_TEST+ VCC3LO_TEST– 90 o+ Loop Filter Programming Loop Filter TX_I+ TX_I– TX_Q– TX_Q+ TXENA Figure 1. SKY74117-13 RF Transceiver Block Diagram Ordering Information Model Name Manufacturing Part Number Product Revision SKY74117 RF Transceiver SKY74117-13 (Pb-free package) Copyright © 2003, 2004, 2005 Skyworks Solutions, Inc. All Rights Reserved. Inform…
