TLZ-AM497617802.11ac with BT5.2 Combo Module, 802.11ac with BT 5.3 Combo Module

Date: 2023-08-14 Declaration for KDB 996369 Module Q&A FCC ID: TLZ-AM497617 To whom it may concern, Question 1. Information that includes permitted variances(e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); Description: The AW-AM497 is configured for monostatic operation, which requires only a single RF I/O pin for full simplex communication. The output must be routed to the antenna via 50 ohm microstrip or stripline on the PCB. No coupling capacitor is required given that the RF pin is AC-coupled internal to the AW-AM497. To maximize the radiated power (and corresponding communication range), the length of the transmission line between _Model name_ and antenna should be made as short as possible. The AW-AM497 is designed for 50 Ohm characteristic impedance, and the connection between AW-AM497 and antenna should all be designed for 50 Ohm characteristic impedance. If using PCB connections, should design the PCB layout for 50 Ohm characteristic impedance using microstrip, stripline, etc. (Figure 1) Microstrip Figure 1: PCB Transmission Line Styles For example, user can design Microstrip according to PCB stack up (Figure 2) by tool Polar ( Microstrip Impedance, Figure 3) to get PCB path width for RF is 15 mil. Figure 2: PCB Stack Up Figure 3: Microstrip Impedance Question 2. Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); Description: If, as recommended above, a microstrip trace is used as the RF transmission line, there are additional guidelines that can be applied to minimize interference with other signals on the PCB. Most notable are clearance between the RF traces and other nearby traces, and via stitching to connect ground fills to one another. This section provides a bit of detail. Any conductor carrying electrical current can potentially act as an antenna, 2400~2500 MHz frequency. In order to minimize interference between traces, they should be adequately spaced. Ideally, all RF traces should be surrounded on the same layer by ground fill. Question 3. The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; Description: I In order to operate FCC ID: TLZ-AM497617 the product must strictly use only with the follow- ingantennas or antenna types with maximum gain as shown. MAG. LAYERS Scientific-Technics Corporation., LTD model MSA-4008-25GC1-A2 Linear Vertical polarization antenna with 2.98dBi (2.4~2.5GHz) and 5.16dBi (4.9~5.9GHz) gain. Question 4. Appropriate parts by manufacturer and specifications. Description: Reference question 1 Question 5. Test procedures for design verification. Description: RF I/O interface to antenna connector on the PCB shall accomplished via microstrip MHF4 connector. The multiplexer on carry board PCB with interface to antenna. The connector on carry board PCB with interfaces to antenna must be of a unique type to disable connection to a non-permissible antenna in compliance with FCC section 15.203. The following connectors are allowed. 1. MHF4 Connector : I-PEX, model 20449-001E or equivalent Custom 50 ohm coaxial pigtail from PCB to antenna Question 6. Production test procedures for ensuring compliance. Description: AW-AM497 shall follow the above design rule for characteristic impedance of 50 ohms +/- 10% and measure microstrip or stripline transmission line width on PCB. Question 7. Production test procedures for ensuring compliance. Description: AW-AM497 shall measure output power to make sure the tolerance of output power meet AW- AM497 specification. It proofs the characteristic impedance is 50 ohms +/- 10%. Thank you for your attention. Sincerely yours, ----------------------------------- Patrick Lin / Director AzureWave Technologies, Inc. Tel: 02-55995599 *5580 Fax: 02-66289666 E-mail: [email protected]

1 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Datasheet AW-AM497,AW-AM617 802.11ac with BT5.2 Combo Module 802.11ac with BT5.3 Combo Module Rev. H DF (For Standard) 2 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Features WLAN  Full IEEE 802.11a/b/g/n compatibility with enhanced performance:  802.11ac friendly, MCS8 (256-QAM) for 20 MHz channels in 5 GHz band.  Single spatial stream with PHY data rates of up to 72.2 Mbps with 802.11n (MCS7) and 78 Mbps with 802.11ac (MCS8).  20 MHz channels with optional SGI support for MCS0-MCS7.  IEEE 802.11ac explicit beamformer support.  TX and RX low-density parity check (LDPC) support for improved range and power efficiency.  Receive space-time block coding (STBC)  On-chip power amplifier/low-noise amplifier for both bands. Bluetooth  All optional Bluetooth 5.2 features supported.  Bluetooth Class 1 or Class 2 transmitter operation.  Supports BDR (1Mbps), EDR (2/3Mbps), BLE (1/2Mbps).  Host controller interface (HCI) using a high- speed UART interface.  PCM for audio data.  Bluetooth 5.2 compliant with 2 Mbps GFSK data rate for BLE. 3 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Revision History Document NO: R2-2497-DST-01 Version Revision Date DCN NO. Description Initials Approved A 2020/07/27 DCN018259  First Release QM.TAN N.C Chen B 2021/01/26 DCN020584  Re-format QM.TAN N.C Chen C 2021/04/13 DCN021225  Cypress to Infineon  Update ESD Specification  Modify BT Rx Specification QM.TAN N.C Chen D 2021/06/18 DCN022113  Update Power Consumption  Update ESD Specification QM.TAN N.C Chen E 2021/08/19 DCN022947  Update Pin Out QM.TAN N.C Chen F 2022/04/07 DCN025890  Modified BT Ver. 5.0 to 5.2 QM.TAN N.C Chen G 2022/10/04 DCN027596  Modified BT Power Spec QM.TAN N.C Chen H 2023/04/13 DCN029041  Removed External Crystal Information QM.TAN N.C Chen 4 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Table of Contents Revision History .............................................................................................................................. 3 1. Introduction ................................................................................................................................. 5 1.1 Product Overview .......................................................................................................................... 5 1.2 Block Diagram ................................................................................................................................ 5 1.3 Specifications Table ...................................................................................................................... 6 1.3.1 General ................................................................................................................................. 6 1.3.2 WLAN ................................................................................................................................... 6 1.3.3 Bluetooth ............................................................................................................................... 8 2. Pin Definition ............................................................................................................................. 10 2.2 Pin Table ....................................................................................................................................... 11 3. Electrical Characteristics ......................................................................................................... 13 3.1 Absolute Maximum Ratings ........................................................................................................ 13 3.2 Recommended Operating Conditions ........................................................................................ 13 3.3 Digital IO Pin DC Characteristics ................................................................................................ 13 3.4 Power up Timing Sequence ........................................................................................................ 14 3.4.1 SDIO Host Interface Specification ....................................................................................... 14 3.4.2 UART Interface ................................................................................................................... 16 3.4.3 Sequencing of Reset and Regulator Control Signals ........................................................... 18 3.5 Power Consumption * ................................................................................................................... 22 3.5.1 WLAN ................................................................................................................................. 22 3.5.2 Bluetooth ............................................................................................................................. 23 3.6 Frequency Reference .................................................................................................................. 24 4. Mechanical Information ...................................................................................…

Text truncated - open the document above for the full version.

Date: August 14, 2023 We, AzureWave Technologies, Inc. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: TLZ-AM497617 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Patrick Lin / Director AzureWave Technologies, Inc. Tel: 02-55995599 *5580 Fax: 02-66289666 E-mail: [email protected]

Date: 2023-08-14 FCC ID: TLZ-AM497617 To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing AzureWave Technologies, Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receivingan equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing AzureWave Technologies, Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely yours, ----------------------------------------------- Patrick Lin / Director AzureWave Technologies, Inc. Tel: 02-55995599 *5580 Fax: 02-66289666 E-mail: [email protected]

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 U.S. Agent for Service of Process Attestation Date: 2023/2/27 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 USA Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: TLZ To Whom It May Concern: AzureWave Technologies, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, AzureWave Technologies (USA), Inc. is our designated U.S. agent for service of process for the above referenced Gantee code. AzureWave Technologies, Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. AzureWave Technologies (USA), Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced Gantee code. Designated U.S. Agent Information: Name: AzureWave Technologies (USA), Inc. FRN: 0033444027 Address: 467 Saratoga ave #108 San Jose, CA95129 Contact Person: Patrick Lin Tel.: 5624633818 Email: [email protected] Sincerely, Applicant Designated U.S. Agent Company Name : AzureWave Technologies, Inc. Company Name : AzureWave Technologies (USA), Inc. Company Address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Company Address : 467 Saratoga ave #108 San Jose, CA95129 Signature : Signature : Name : Patrick Lin Name : Patrick Lin E-Mail : [email protected] E-Mail : [email protected] Tel : 02-55995599 Tel : 5624633818

Date: 2023-08-14 FCC ID: TLZ-AM497617 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Patrick Lin / Director AzureWave Technologies, Inc. Tel: 02-55995599 *5580 Fax: 02-66289666 E-mail: [email protected]

Date: 2023-08-14 FCC ID: TLZ-AM497617 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Patrick Lin / Director AzureWave Technologies, Inc. Tel: 02-55995599 *5580 Fax: 02-66289666 E-mail: [email protected]

Date: 2023-08-14 FCC ID: TLZ-AM497617 AUTHORIZATION LETTER To Whom It May Concern: AzureWave Technologies, Inc. hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on AzureWave Technologies, Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Patrick Lin / Director AzureWave Technologies, Inc. Tel: 02-55995599 *5580 Fax: 02-66289666 E-mail: [email protected]

FCC ID: TLZ-AM497617 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch August 18, 2023 Dear Application Examiner, AzureWave Technologies, Inc., 802.11ac with BT5.2 Combo Module, 802.11ac with BT 5.3 Combo Module, FCC ID: TLZ-AM497617 would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of KDB996369 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CYW43012, CYW43022. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is CYW43012, CYW43022. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-AM497617 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Emerald Chen Specialist Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

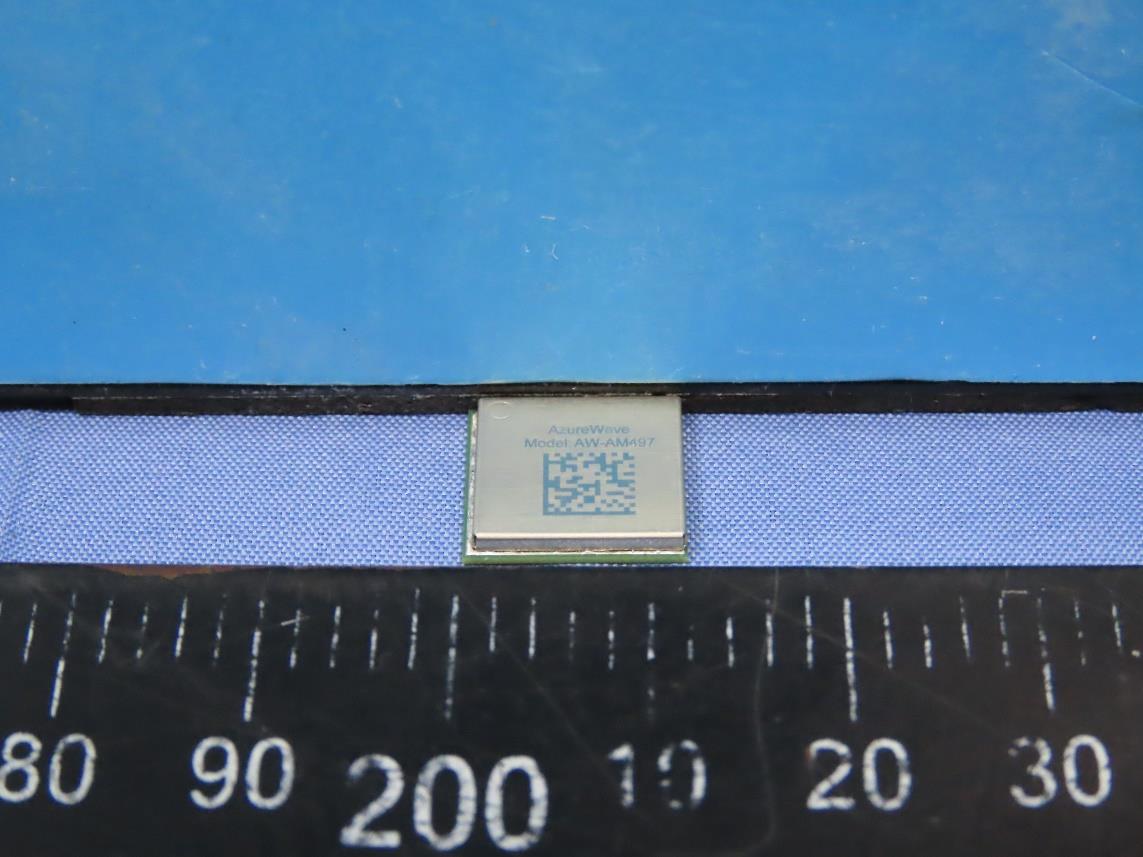

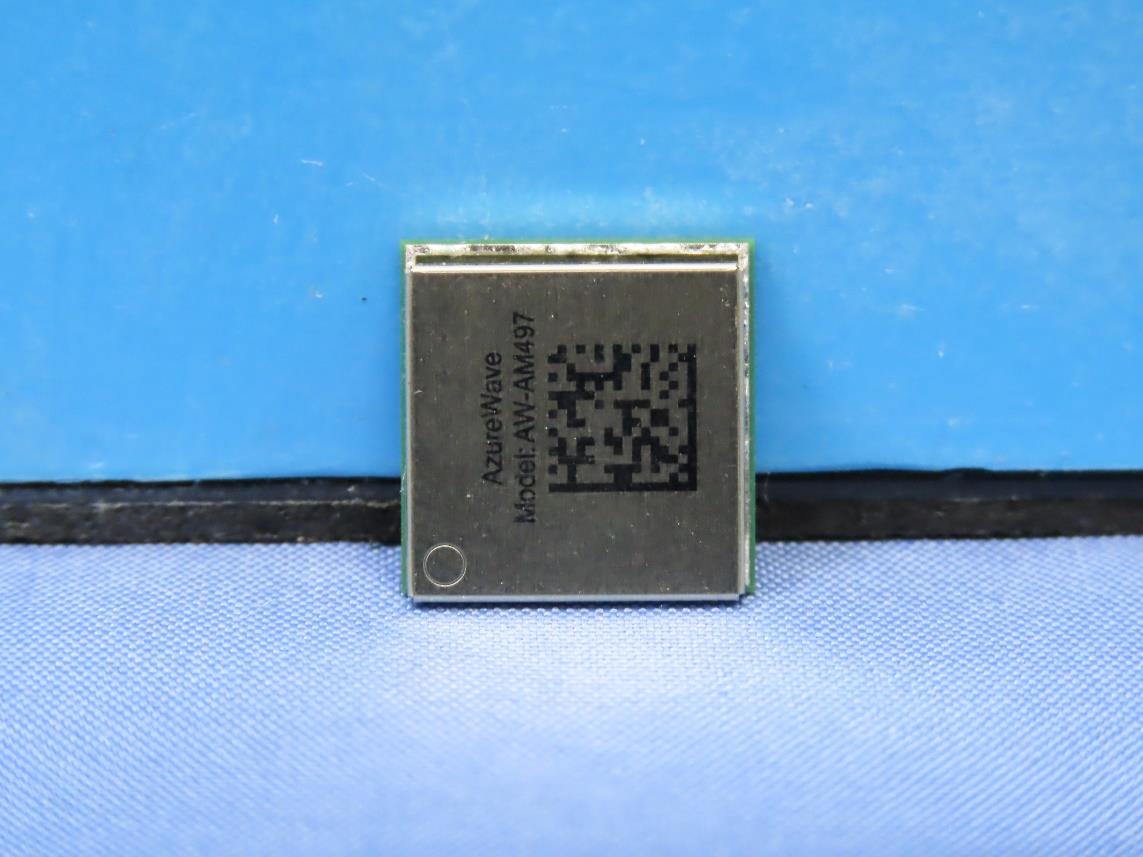

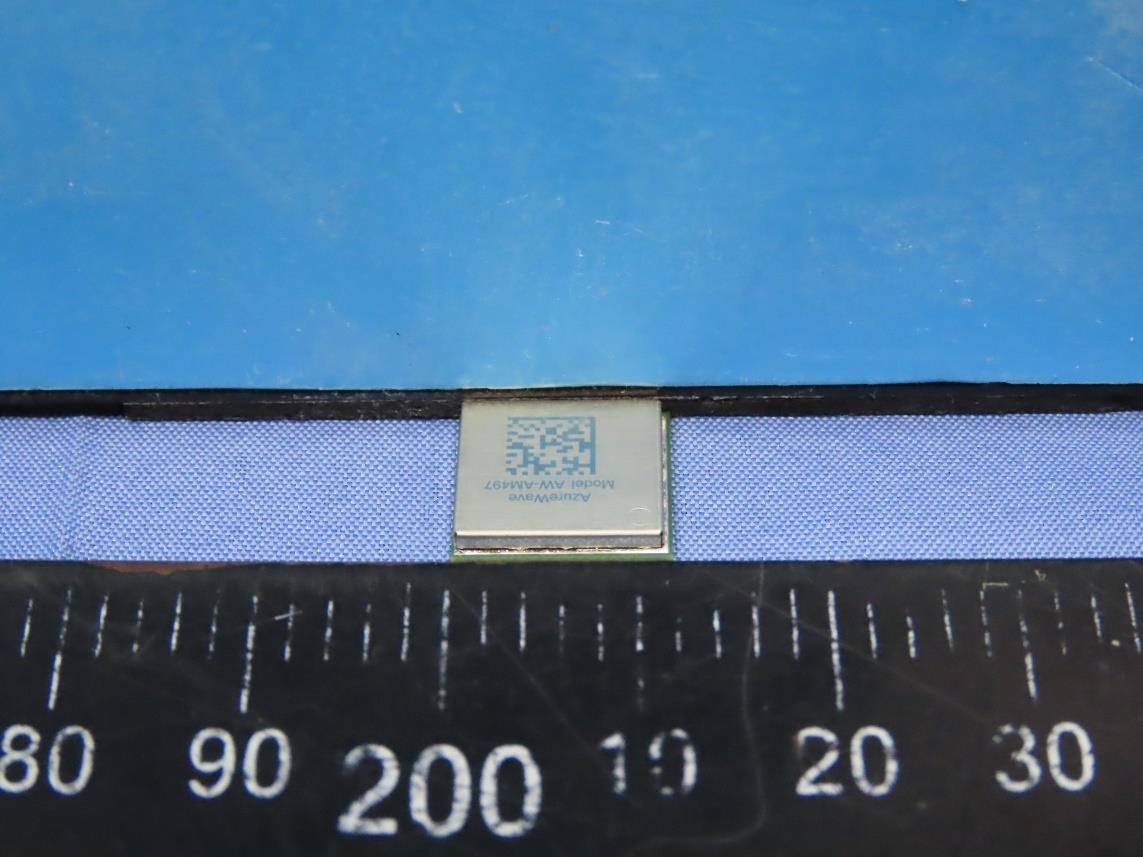

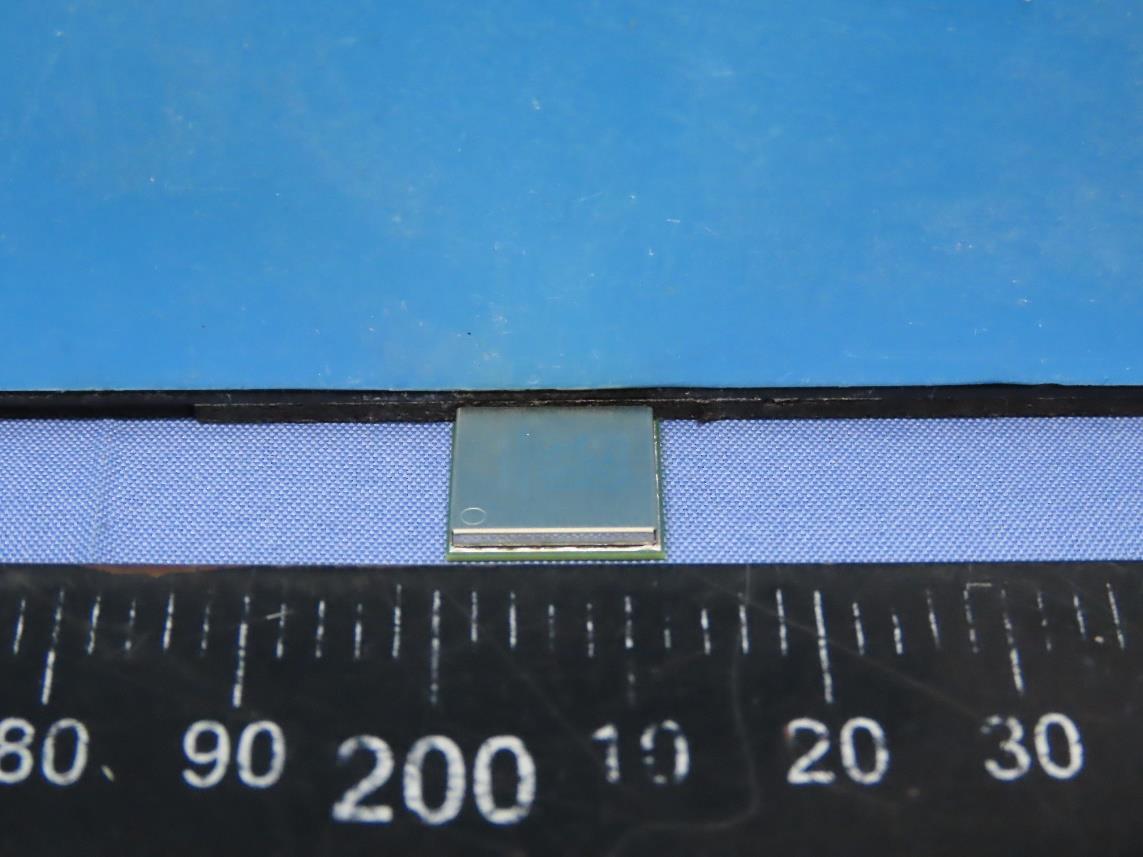

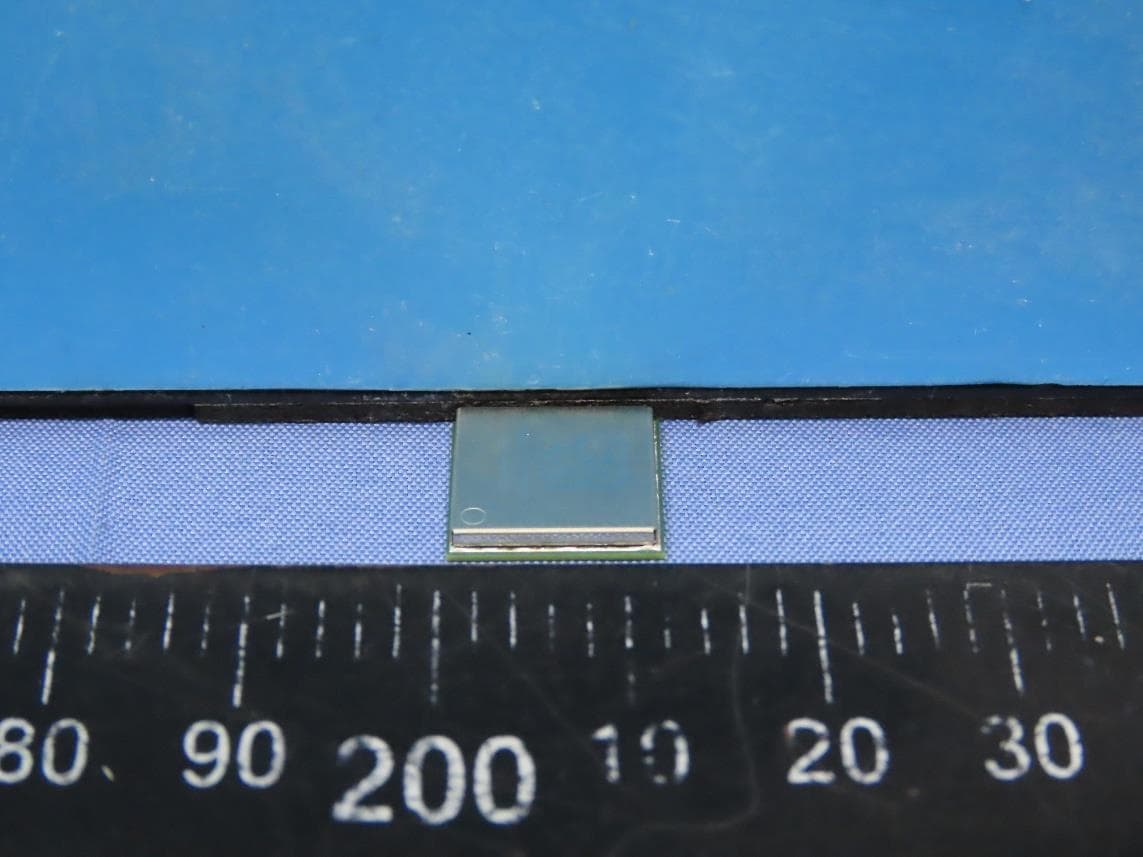

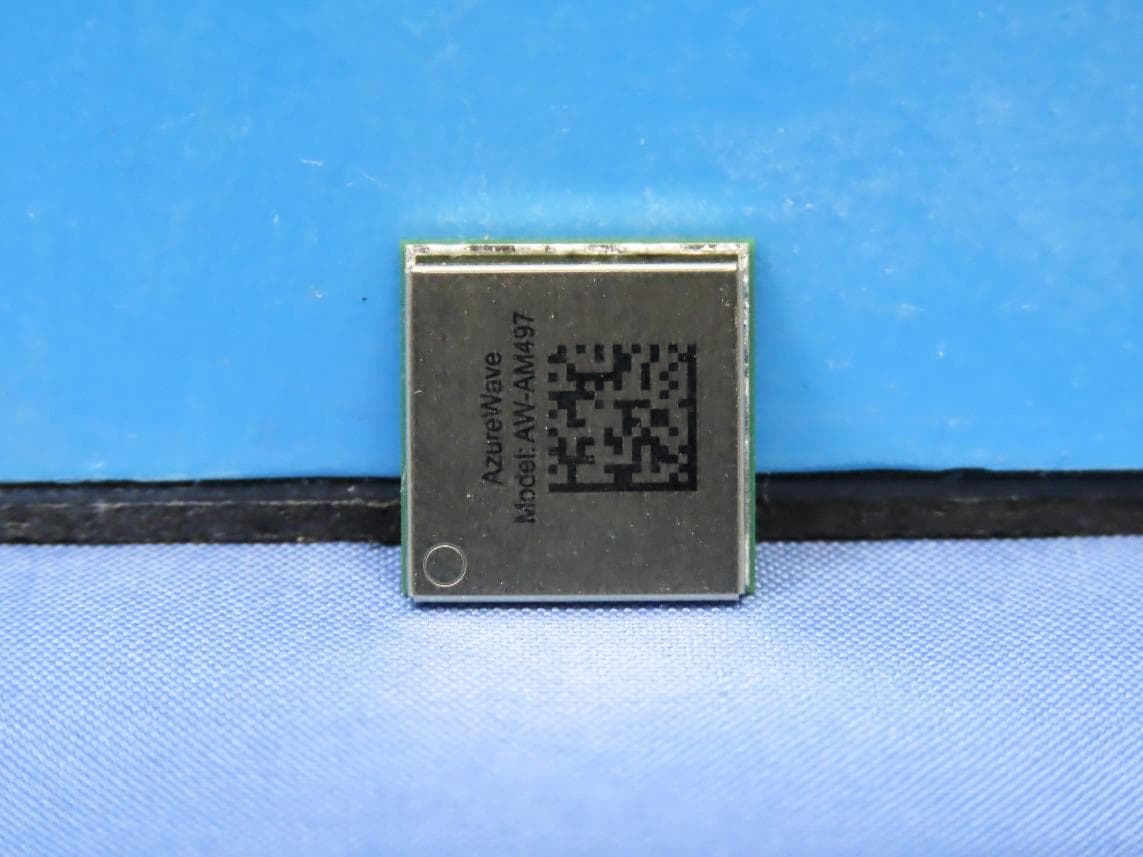

Reference No.: BECO-WTW-P22120330_EXT Page 1/4 CONSTRUCTION PHOTOS OF EUT Model: AW-AM497 Reference No.: BECO-WTW-P22120330_EXT Page 2/4 Reference No.: BECO-WTW-P22120330_EXT Page 3/4 Reference No.: BECO-WTW-P22120330_EXT Page 4/4

Reference No.: BECO-WTW-P22120330_EXT Page 1/4 CONSTRUCTION PHOTOS OF EUT Model: AW-AM617 Reference No.: BECO-WTW-P22120330_EXT Page 2/4 Reference No.: BECO-WTW-P22120330_EXT Page 3/4 Reference No.: BECO-WTW-P22120330_EXT Page 4/4

Model:AW-AM617 AW-AM617 FCCID:TLZ-AM497617 AzureWave IC:6100A-AM497617 AW-AM497 Model:AW-AM497 FCCID:TLZ-AM497617 AzureWave IC:6100A-AM497617

Reference No.: BECO-WTW-P22120330_INT Page 1/3 CONSTRUCTION PHOTOS OF EUT Model: AW-AM497 Reference No.: BECO-WTW-P22120330_INT Page 2/3 Reference No.: BECO-WTW-P22120330_INT Page 3/3

Reference No.: BECO-WTW-P22120330_INT Page 1/3 CONSTRUCTION PHOTOS OF EUT Model: AW-AM617 Reference No.: BECO-WTW-P22120330_INT Page 2/3 Reference No.: BECO-WTW-P22120330_INT Page 3/3

Report No.: MFBECO-WTW-P22120330 Page No. 1 / 10 Report Format Version: 7.1.0 Reference No.: BECO-WTW-P22120330 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBECO-WTW-P22120330 FCC ID: TLZ-AM497617 Product: 802.11ac with BT5.2 Combo Module,802.11ac with BT 5.3 Combo Module Brand: AzureWave Model No.: AW-AM497 Series Model: AW-AM617 Received Date: 2022/12/12 Test Date: 2022/12/28 Issued Date: 2023/8/14 Applicant: AzureWave Technologies, Inc. Address: 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan FCC Registration / Designation Number: 198487 / TW2021 Approved by: , Date: 2023/8/14 Jeremy Lin / Project Engineer This test report consists of 10 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vito Lung / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBECO-WTW-P22120330 Page No. 2 / 10 Report Format Version: 7.1.0 Reference No.: BECO-WTW-P22120330 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 3 Test Results ................................................................................................................................................................ 8 3.1 RF Exposure ............................................................................................................................................................. 8 4 Conclusion .................................................................................................................................................................. 9 5 Information of the Testing Laboratories ................................................................................................................ 10 Report No.: MFBECO-WTW-P22120330 Page No. 3 / 10 Report Format Version: 7.1.0 Reference No.: BECO-WTW-P22120330 Release Control Record Issue No. Description Date Issued MFBECO-WTW-P22120330 Original release. 2023/8/14 Report No.: MFBECO-WTW-P22120330 Page No. 4 / 10 Report Format Version: 7.1.0 Reference No.: BECO-WTW-P22120330 1 Certificate Product: 802.11ac with BT5.2 Combo Module,802.11ac with BT 5.3 Combo Module Brand: AzureWave Test Model: AW-AM497 Series Model: AW-AM617 Sample Status: Engineering sample Applicant: AzureWave Technologies, Inc. Test Date: 2022/12/28 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBECO-WTW-P22120330 Page No. 5 / 10 Report Format Version: 7.1.0 Reference No.: BECO-WTW-P22120330 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatialaverage SAR of 8 …
