TLZ-AM510IEEE 802.11 1X1 a/b/g/n Wireless LAN + Bluetooth 5.1 Combo 12 x 12 LGA Module

1 AW-AM510 IEEE 802.11 1X1 a/b/g/n Wireless LAN + Bluetooth 5.1 Combo 12 x 12 LGA Module Datasheet Rev. A DF For Standard 2 Features WLAN  Support 802.11 a/b/g/n  Dual bands: 2.4 GHz and 5 GHz  Single stream 802.11n with 20 MHz and 40 MHz channels  Up to MCS7 data rates (150 Mbps)  Support 802.11mc for location  Dynamic Rapid Channel Switching (DRCS) for simultaneous and power efficient operation in 2.4 GHz and 5 GHz bands  Interface to coexist with 802.15.4, LTE, or other radios.  Security: WPA3, WPA2, WPA2 and WPA mix mixed mode, WEP Bluetooth  Full Bluetooth 5.1 features  Long range - 4x coverage  2 Mbps data rate - 2x faster  Connection/connectionless AoA  Connection/connectionless AoD  Improved advertisement capacity- enables more IoT services  Audio interface: I2S and PCM  Security: AES 3 Revision History Document NO: R2-2510-DST-01 Version Revision Date DCN NO. Description Initials Approved A 2020/09/17 DCN018312  Draft version Renton Tao N.C Chen 4 Table of Contents Revision History .............................................................................................................................. 3 Table of Contents ............................................................................................................................ 4 1. Introduction ................................................................................................................................. 5 1.1 Product Overview .............................................................................................................. 5 1.2 Block Diagram .................................................................................................................... 6 1.3 Specifications Table .......................................................................................................... 7 1.3.1 General ......................................................................................................................... 7 1.3.2 WLAN ............................................................................................................................ 7 1.3.3 Bluetooth ....................................................................................................................... 9 1.3.4 Operating Conditions ..................................................................................................... 9 2. Pin Definition ............................................................................................................................. 10 2.1 Pin Map ............................................................................................................................. 10 2.2 Pin Table ........................................................................................................................... 11 3. Electrical Characteristics ......................................................................................................... 12 3.1 Absolute Maximum Ratings ............................................................................................ 12 3.2 Recommended Operating Conditions ............................................................................ 12 3.3 Digital IO Pin DC Characteristics .................................................................................... 12 3.3.1 1.8V Operation (VDDIO).............................................................................................. 12 3.3.2 3.3V Operation (VDDIO).............................................................................................. 13 3.4 Host Interface ................................................................................................................... 14 3.4.1 SDIO Interface ............................................................................................................. 14 3.4.2 SDIO Protocol Timing .................................................................................................. 15 3.4.3.High-Speed UART Interface ........................................................................................ 19 3.4.4 PCM Interface ............................................................................................................. 20 3.5 Timing Sequence ............................................................................................................. 22 3.6 Power Consumption* ....................................................................................................... 23 3.6.1 WLAN .......................................................................................................................... 23 3.6.2 Bluetooth ..................................................................................................................... 23 3.7 Sleep Clock(Optional) ...................................................................................................... 24 4. Mechanical Information ............................................................................................................ 25 4.1 Mechanical Drawing ........................................................................................................ 25 5. Packing Information .................................................................................................................. 26 5 1. Introduction 1.1 Product Overview AzureWave Technologies, Inc. introduces the IEEE 802.11a/b/g/n WLAN, BT, combo module – AW-AM510. With four advanced radio technologies integrated into a module, AW-AM510 provides the best and most convenient SMT process. The module is targeted to mobile devices including, Tablet PC, Portable Media Players (PMPs), Portable Navigation Devices (PNDs), Personal Digital Assistants (PDAs), Tracking Devices, Gaming Devices which need convenient SMT process, low power consumption. By using AW-AM510, the customers can easily integrate the Wi-Fi, BT, by a combo module with the benefits of high design flexibility, high success rate on SMT proc…

Text truncated - open the document above for the full version.

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 SDoC Attestation Letter Date: 2021/5/11 We AzureWave Technologies, Inc., as the grantee of this project (FCC ID: TLZ-AM510 / Brand Name: A zureWave / Model No.: AW-AM510, AW-AM510-I, AW-AM510MA), would like to declare that the composite portion has been authorized under the Supplier's Declaration of Conformity procedures (Sporton report No.: FD131001, FCC designation number: TW1096). The final product shall consequently comply with the FCC rule applied for SDoC Procedure. Respectfully, A pplicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 *5580 Fax : 02-66289666

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Confidential Letter Date: 2021/3/29 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：TLZ-AM510 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 90 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Respectfully, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 *5580 Fax : 02-66289666

Page No. : 43 Module Approval Request Letter Date: 2021/5/14 Subject: Module Approval FCC ID: TLZ-AM510 To Whom It May Concern: We, Sporton International Inc., are authorized by AzureWave Technologies, Inc. to have their state-of-the-art device approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip NXP IW416 CSP. 3. The requirement of power supply regulation: The part number of the power regulator in chip NXP IW416 CSP. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Power of Attorney Date: 2021/3/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: TLZ-AM510 Respectfully, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 *5580 Fax : 02-66289666

PHOTOGRAPHS OF EUT Report No. : EP131001 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 1 TEL : 886-3-656-9065 Issued Date : May 14, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: AzureWave Model Name: AW-AM510 ; AW-AM510-I ; AW-AM510MA

Label location

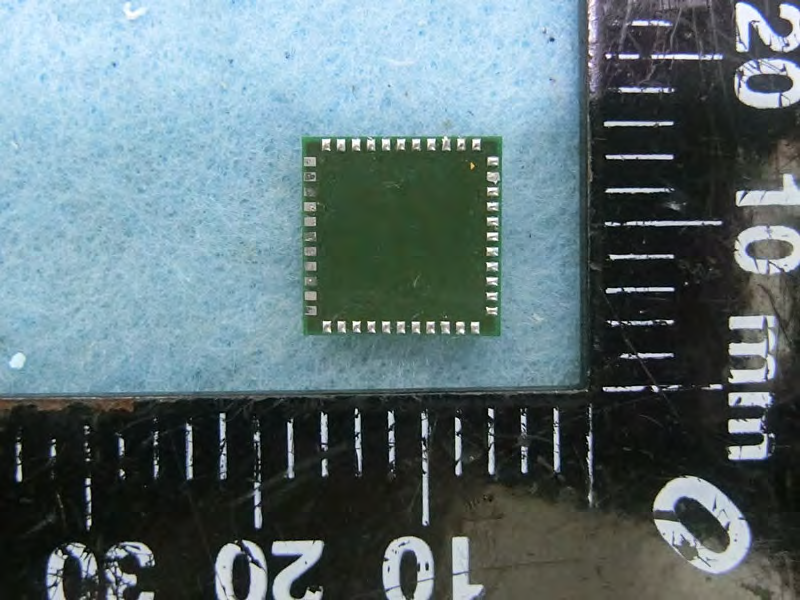

PHOTOGRAPHS OF EUT Report No. : EP131001 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 5 TEL : 886-3-656-9065 Issued Date : May 14, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: AzureWave Model Name: AW-AM510 ; AW-AM510-I ; AW-AM510MA PHOTOGRAPHS OF EUT Report No. : EP131001 Sporton International Inc. Hsinchu Laboratory Page Number : 2 of 5 TEL : 886-3-656-9065 Issued Date : May 14, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Ant. 1 PHOTOGRAPHS OF EUT Report No. : EP131001 Sporton International Inc. Hsinchu Laboratory Page Number : 3 of 5 TEL : 886-3-656-9065 Issued Date : May 14, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP131001 Sporton International Inc. Hsinchu Laboratory Page Number : 4 of 5 TEL : 886-3-656-9065 Issued Date : May 14, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Ant. 2 PHOTOGRAPHS OF EUT Report No. : EP131001 Sporton International Inc. Hsinchu Laboratory Page Number : 5 of 5 TEL : 886-3-656-9065 Issued Date : May 14, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Ant. 3

RADIO EXPOSURE TEST REPORT Report No. : FA131001 TEL : 886-3-656-9065 Page Number : 2 of 9 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Table for Multiple Listing ........................................................................................................................ 7 1.4 Accessories ............................................................................................................................................ 7 1.5 Testing Location ..................................................................................................................................... 7 2 Maximum Permissible Exposure ........................................................................................................ 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 MPE Calculation Method ........................................................................................................................ 8 2.3 Calculated Result and Limit .................................................................................................................... 9 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA131001 TEL : 886-3-656-9065 Page Number : 3 of 9 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA131001 01 Initial issue of report May 14, 2021 RADIO EXPOSURE TEST REPORT Report No. : FA131001 TEL : 886-3-656-9065 Page Number : 4 of 9 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang RADIO EXPOSURE TEST REPORT Report No. : FA131001 TEL : 886-3-656-9065 Page Number : 5 of 9 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5700 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Bluetooth 2400-2483.5 2402-2480 BR / EDR: FHSS (GFSK / π/4-DQPSK / 8DPSK) LE: GFSK RADIO EXPOSURE TEST REPORT Report No. : FA131001 TEL : 886-3-656-9065 Page Number : 6 of 9 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) 1 1 Molex 1461531050 Dipole I-PEX Note 1 2 1 MAG. LAYERS MSA-4008-25GC1-A2 PIFA I-PEX Note 1 3 1 LYNwave 5-PP005421 PIFA I-PEX Note 1 Note1: Ant. Antenna Gain (dBi) WLAN 2.4GHz WLAN 5GHz Bluetooth 1 3.20 4.25 3.20 2 2.98 5.16 2.98 3 2.90 4.30 2.90 Note2: The above information was declared by manufacturer. Note3: <For conducted test> 2.4GHz and Bluetooth Only the higher gain antenna “Ant. 1” was tested and recorded in the report. 5GHz Only the higher gain antenna “Ant. 2” was tested and recorded in the report. <For WLAN 2.4GHz> For IEEE 802.11b/g/n mode (1TX/1RX) Only Port 1 can be used as transmitting/receiving. <For WLAN 5GHz> For IEEE 802.11a/n mode (1TX/1RX) Only Port 1 can be used as transmitting/receiving. <For Bluetooth> (1TX/1RX) Only Port 1 can be used as transmitting/receiving. RADIO EXPOSURE TEST REPORT Report No. : FA131001 TEL : 886-3-656-9065 Page Number : 7 of 9 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.3 Table for Multiple Listing Model No. Description AW-AM510 All the model names are identical, the difference model names served as marketing strategy. AW-AM510-I AW-AM510MA Note 1 : From the above models, model: AW-AM510 was selected as representative model for the test and its data was recorded in this report. Note 2 : The above information was declared by manufacturer. 1.4 Accessories N/A 1.5 Testing Location Testing Location Information Test Lab.：Sporton International Inc. Hsinchu Laboratory Hsinchu ADD: No.8, Ln. 724, Bo’ai St., Zhubei City, Hsinchu County 302010, Taiwan (R.O.C.) (TAF: 3787) TEL: 886-3-656-9065 FAX: 886-3-656-9085 Test site Designation No. TW3787 with FCC. Conformity Assessment Body Identifier (CABID) TW3787 with ISED. RADIO EXPOSURE TEST REPORT Report No. : FA131001 TEL : 886-3-656-9065 Page Number : 8 of 9 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Temp…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No. : FR131001AC TEL : 886-3-656-9065 Page Number : 2 of 28 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A10_5 Ver1.3 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 Test Configuration of EUT ................................................................................................................. 10 2.1 Test Channel Mode .............................................................................................................................. 10 2.2 The Worst Case Measurement Configuration ...................................................................................... 11 2.3 EUT Operation during Test .................................................................................................................. 12 2.4 Accessories .......................................................................................................................................... 12 2.5 Support Equipment ............................................................................................................................... 13 2.6 Test Setup Diagram ............................................................................................................................. 14 2.7 Transmitter Test Result ........................................................................................................................ 17 2.8 AC Power-line Conducted Emissions .................................................................................................. 17 2.9 20dB Bandwidth and Carrier Frequency Separation............................................................................ 19 2.10 Maximum Conducted Output Power .................................................................................................... 20 2.11 Number of Hopping Frequencies and Hopping Bandedge .................................................................. 21 2.12 Time of Occupancy (Dwell Time) ......................................................................................................... 22 2.13 Emissions in Non-restricted Frequency Bands .................................................................................... 23 2.14 Emissions in Restricted Frequency Bands ........................................................................................... 24 3 Test Equipment and Calibration Data .............................................................................................. 27 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of 20dB Bandwidth and Carrier Frequency Separation Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Number of Hopping Frequencies and Hopping Bandedge Appendix E. Test Results of Time of Occupancy (Dwell Time) Appendix F. Test Results of Emissions in Non-restricted Frequency Bands Appendix G. Test Results of Emissions in Restricted Frequency Bands Appendix H. Test Photos Photographs of EUT v01 RADIO TEST REPORT Report No. : FR131001AC TEL : 886-3-656-9065 Page Number : 3 of 28 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A10_5 Ver1.3 Report Version : 01 History of this test report Report No. Version Description Issued Date FR131001AC 01 Initial issue of report May 14, 2021 RADIO TEST REPORT Report No. : FR131001AC TEL : 886-3-656-9065 Page Number : 4 of 28 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A10_5 Ver1.3 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 2.8 15.207 AC Power-line Conducted Emissions PASS - 2.9 15.247(a) 20dB Bandwidth PASS - 2.9 15.247(a) Carrier Frequency Separation PASS - 2.10 15.247(b) Maximum Conducted Output Power PASS - 2.11 15.247(a) Number of Hopping Frequencies and Hopping Band edge PASS - 2.12 15.247(a) Time of Occupancy (Dwell Time) PASS - 2.13 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 2.14 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang RADIO TEST REPORT Report No. : FR131001AC TEL : 886-3-656-9065 Page Number : 5 of 28 FAX : 886-3-656-9085 Issued Date : May 14, 2021 Report Template No.: CB-A10_5 Ver1.3 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) Bluetooth Version Ch. Frequency (MHz) Channel Number 2400-2483.5 BR / EDR 2402-24…

Text truncated - open the document above for the full version.

Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 8 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 2 of 8 CLOSE-UP VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 3 of 8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 30MHz~1GHz / Test Mode: Mode 3 FRONT VIEW REAR VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 4 of 8 CLOSE-UP VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 5 of 8 Test Configuration: Above 1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 6 of 8 CLOSE-UP VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 7 of 8 Test Mode: Mode 2 FRONT VIEW REAR VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 8 of 8 CLOSE-UP VIEW ─────THE END─────
