- 1 - AW-AM691NF IEEE 82.11 a/b/g/n Wireless LAN, Bluetooth, FM Combo Module Demo Board User Guide Document release Date Modification Initials Approved Version 0.1 2013/07/26 Initial Version N.C. Chen Chihha o Liao IEEE 802.11 a/b/g/n Wireless LAN and Bluetooth Combo LGA Module - 2 - Contents 1. Activate AW-AM634NF 1-1. What you need1-2. Power-Up AW-AM634NF1-3. Test Software Version 2. WLAN Basic Test 2-1. Driver Installation2-2. Throughput Test2-3. RF Tx/Rx Performance Test 3. Bluetooth Basic Test 3-1. Download Mini-driver3-2. Throughput Test3-3. RF Performance Test 4. Known Limitation/Issues5. Demo board schematic - 3 - 1. Activate AW-AM634NF 1-1. what you needHardware: AW-AM691NF Demo Board V.01 SDIO to PCI Host ControllerUSB-B type to A type CableSoftware (Windows XP):Ubuntu 12.04 LTS WLAN: firmware, nvram file, dhd.ko, wl.exeBluetooth: Bluetool V1.1.9.3, HCD HCI download file, ActivePerl 5.8 and driver for Prolific USB to UART Bridge. FIG. 1.1 - 4 - 1-2. Power UP AW-AM634NF 1-3. Test Software VersionTest Station Item Version Remarks WLAN firmware sdio-ag-mfgtest-seqcmds-autoabn.bin 6.10 .185 nvram AH691.NVRAM_20130605.txt BT HCD File BCM4324B3_002.004.006.0076.0081_RC.hcd BCM4324B3_002.004.006.0076.0082_RC.hcd SDIO FIG. 1.2 J4: VBAT In RF ANT port B type USB Connector UART to USB Bridge VDDIO power select - 5 - 2. WLAN Basic TestJ5/J1 setting as belowMust connect USB to PC 2-1. Driver Installation COMPONENTSdhd.kodhd.ko is an utility application that one can use to control the software running in the dongle host fo r test and debug purposes.wl.exewl is an utility application that one can use to con trol the software running in the SDIO dongle, e.g. initiate an association and modify WLAN parameters. - 6 - DRIVER INSTALLATION (IN LINUX)•First prepare the Broadcom’s Linux package, and put it in the “ home ” folder. •Open the Terminal, enter the command: sudo su and password . •Enter cd /home/username/5.90.195.26.3/open-src/src/dhd/li nux •Enter make dhd-cdc-sdmmc-gpl to generate the dhd.ko file in /home/username/5.90.195.26.3/open-src/src/dhd/linux /dhd-cdc-sdmmc-gpl-2.6.32-21-generic •EnterInsmod /(path of dhd.ko file) firmware_path=/(path of firmware file) nvram_path=/ (path of nvram file) to enable. •Enter rmmod dhd to disable • 2-2. Throughput TestCONNECTING TO WIRELESS NETWORKSThe examples in the following sections illustrate h ow to connect to both infrastructure and ad hoc net works, including Infrastructure networks that use no security , WEP security, and WPA/PSK and WPS2/PSK security. SCANNING FOR WIRELESS NETWORKS To force the dongle to scan• Run wl scan . To force the dongle to return the results of the sc an • Run wl scanresults . Example results returned when an AP is found:• SSID: “Eval4325” • Mode: Managed: RSSI: -48 dBm noise: -105 dBm Channe l: 1 • BSSID: 00:10:18:90:2E:C1 Capability: ESS ShortSlot • Supported Rates: [ 1(b) 2(b) 5.5(b) 11(b) 18 24 36 54 6 9 12 48 ] Example results returned when an ad hoc network is f ound: • SSID: “ADHOC#1” • Mode: Ad Hoc RSSI: -41 dBm noise: -105 dBm Channel: 1 • BSSID: B2:51:28:6B:3C:A1 Capability: IBSS • Supported Rates: [ 1(b) 2(b) 5.5(b) 11(b) ] CONNECTING TO AN INFRASTRUCTURE NETWORK WITH NO SEC URITY (AP CONNECTION) To connect to the network through an AP with SSID = Eval4325 Run wl join Eval4325 . - 7 - CONNECTING TO AN INFRASTRUCTURE NETWORK WITH WEP SE CURITY To connect to the network that uses 12345 as the ne twork key • Run wl join Eval4325 key 12345 . CONNECTING TO AN INFRASTRUCTURE NETWORK WITH WPA-PS K/WPA2-PSK SECURITY To specify TKIP or AES as the data encryption metho d • Run wl wsec 3/7 . To enable the supplicant• Run wl sup_wpa 1 . To specify the PSK passphrase (network key) to use• Run wl set_psk $passphrase . To connect to a network that uses WPA-PSK security• Run wl join Eval4325 imode bss amode wpapsk . To connect to a network that uses WPA2-PSK security• Run wl join Eval4325 imode bss amode wpa2psk . CONNECTING TO AN AD HOC NETWORK USING CHANNEL 1 To set the channel to channel 1• Run wl channel 1 . To connect to the ad hoc network with SSID = 4325-A DHOC • Run wl join 4325-ADHOC imode ibss . MANAGING POWER CONSUMPTIONTo disable Power Save (PS) mode (default)• Run wl PM 0 . To enable legacy IEEE 802.11 Power Save (PS) mode• Run wl PM 1 . To enable Fast IEEE 802.11 Power Save mode• Run wl PM 2 . Note:• The STA automatically transitions to Legacy PS mode when no data is being sent or received. • The STA automatically disables PS mode when data is being sent or received. - 8 - MEASURING WLAN THROUGHPUTThe throughput measurement shows the performance of the TCP/IP layer over the wireless link. To achiev e the best results,run the measurement test in a clean environment wit h as little interference as possible . The test can be run with the adapterconnected to either an Infrastructure network (see F ig. 2.2) or an ad hoc network (see Fig. 2.3). An AP t hat is known to bein good working order should be used for the infrast ructure mode test. MEASURING THROUGHPUT USING NETIQ CHARIOTTest Procedure1. Bring up the AW-AM691NF demo boar with the IP address set as 192.168.1.110. 2. Connect the reference computer with Chariot Console , which is assigned an IP address of 192.168.1.100, to the LANport of the AP3. Verify that communication exists between the refere nce computer and the AW-AM691NF demo board by pinging 192.168.1.100 from the AW-AM691NF host console. HOST COMPUTER.AW-AM691NFEndPoint ReferenceComputerChariot Console HOST COMPUTER.AW-AM691NFEndPoint A LAN ReferenceComputerChariot Console FIG. 2.2FIG. 2.3 - 9 - 4. Set up Chariot. a. On the host computer, activate EndPoint:b. Using Chariot Console on the reference computer, create two pair groups (192.168.1.100 and 192.168.1.110) using the Chariot Throughput.scr scri pt. Run the throughput test for a specified period of time and observe the results. 2-3. RF Tx/Rx Performance Test CREATING A Tx TEST 1. From the Start menu, select Run . 2. Type cmd , then click OK . 3…

Text truncated - open the document above for the full version.

FCC ID: TLZ-AM691NF

FCC ID: TLZ-AM691NF Report No.: RF130726E06 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch September 11, 2013 Dear Application Examiner, AzureWave Technologies, Inc., It’s an IEEE 802.11 a/b/g/n Wireless LAN and Bluetooth Combo LGA Module , FCC ID: TLZ-AM691NF would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM43241. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM43241. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

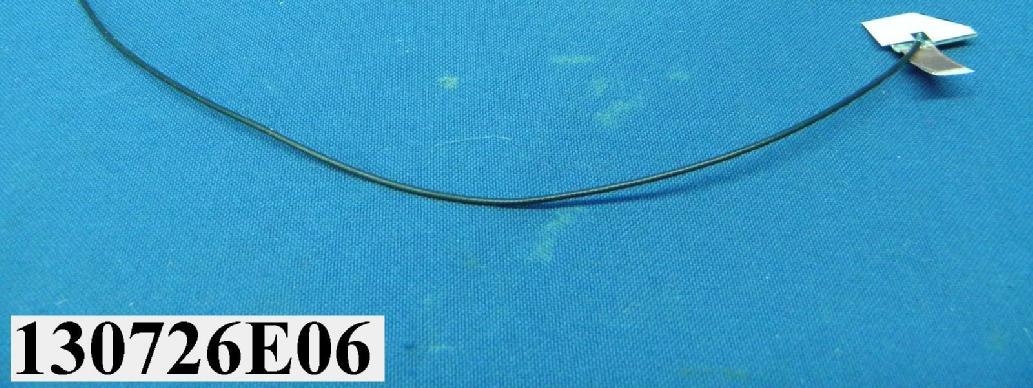

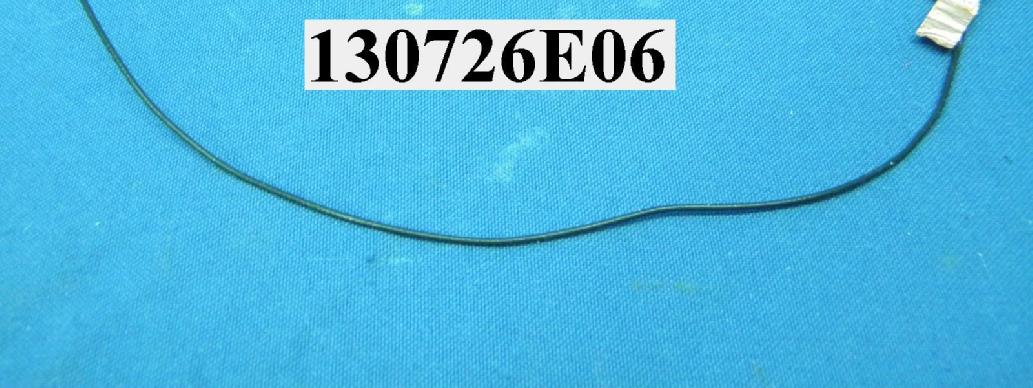

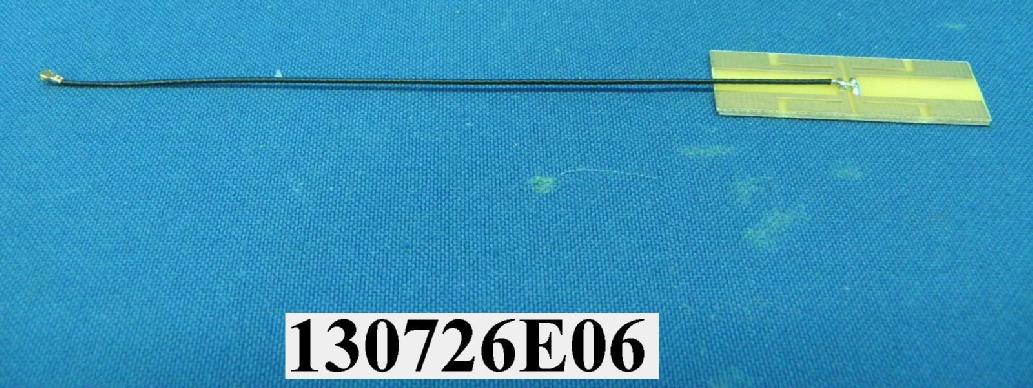

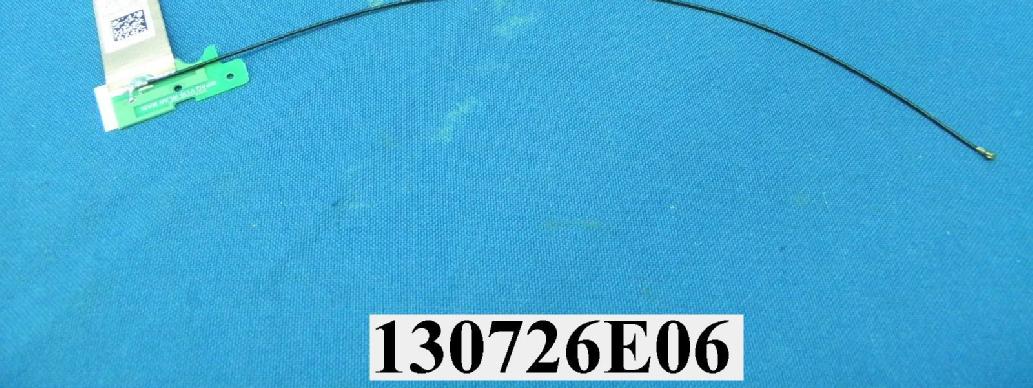

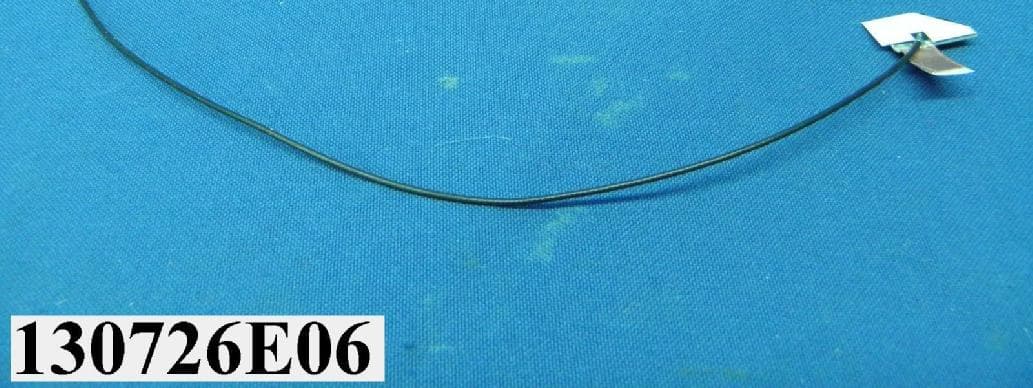

Report No.: 130726E06 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130726E06 Page 3 Antenna 1: Brand: MAG.LAYERS Model: MSA-4008-25GC1-A1 Antenna 2: Brand: INPAQ Model: WA-C-XT-02-001 Report No.: 130726E06 Page 4 Antenna 3: Brand: INPAQ Model: WA-P-LB-02-035 Antenna 4: Brand: WHA YU Model: SSR-31604 Report No.: 130726E06 Page 5 Antenna 5: Brand: Smart Approach Co., Ltd Model: SE-ECJH0-001 Antenna 6: Brand: Smart Approach Co., Ltd Model: SE-ECJH0-002 Report No.: 130726E06 Page 6 Antenna 7: Brand: JiengtaiCorporation Model: JT1301209Y0311 Antenna 8: Brand: JiengtaiCorporation Model: JT1301209Y1511 Report No.: 130726E06 Page 7 Antenna 9: Brand: Hua Chen Technology Co.,Ltd Model: DC33001FK00 Antenna 10: Brand: Hua Chen Technology Co.,Ltd Model: DC33001FK10

CCAXXXLPXXXXT4 11mm 11mm FCC ID: TLZ-AM691NF ANATEL: XXXX-XX-XXXX XXX-XXXXXXX XXX-XXXXXXX R T (Fig. 1) FCC ID: TLZ-AM691NF FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Report No.: 130726E06 Page 2

FCC ID: TLZ-AM691NF Report No.: RF130726E06 Operational Description This device is a IEEE 802.11 a/b/g/n Wireless LAN and Bluetooth Combo LGA Module, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered from DC 3.3V. The antennas provided to the EUT, please refer to the following table: The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA130726E06 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130726E06 MODEL NO.: AW-AM691NF FCC ID: TLZ-AM691NF RECEIVED: July 26, 2013 TESTED: Aug. 15 to 20, 2013 ISSUED: Sep. 06, 2013 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130726E06 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA130726E06 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130726E06 Original release Sep. 06, 2013 Report No.: SA130726E06 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: IEEE 802.11 a/b/g/n Wireless LAN and Bluetooth Combo LGA Module BRAND NAME: AzureWave MODEL NO.: AW-AM691NF TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: AzureWave Technologies, Inc. TESTED DATE: Aug. 15 to 20, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: AW-AM691NF) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: July 24, 2012 ( Lori Chung, Specialist ) APPROVED BY : , DATE: July 24, 2012 ( May Chen, Manager ) Report No.: SA130726E06 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130726E06 6 of 6 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 389.801 2.98 20 0.15402 1.00 For WLAN: 15.247(5GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 - 5825 255.711 5.16 20 0.16691 1.00 For WLAN: 15.407(5GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 -5240, 5260 - 5320, 5500 – 5580, 5660 - 5700 182.666 5.16 20 0.11923 1.00 For Bluetooth: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 8.017 2.98 20 0.00317 1.00 --- END ---

Report No.: RF130726E06-3 1 of 27 Report Format Version 5.2.0 DFS TEST REPORT REPORT NO.: RF130726E06-3 MODEL NO.: AW-AM691NF FCC ID: TLZ-AM691NF RECEIVED: July 26, 2013 TESTED: Aug. 27, 2013 ISSUED: Sep. 06, 2013 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130726E06-3 2 of 27 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 3 1. CERTIFICATION .................................................................................................... 4 2. EUT INFORMATION ............................................................................................... 5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT ..................................... 5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ...................................................... 5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT .................................... 6 2.4 EUT MAXIMUM CONDUCTED POWER ................................................................ 7 2.5 EUT MAXIMUM EIRP POWER ............................................................................... 8 2.6 TRANSMIT POWER CONTROL (TPC) .................................................................. 9 2.7 STATEMENT OF MAUNFACTURER ...................................................................... 9 3. U-NII DFS RULE REQUIREMENTS ..................................................................... 10 3.1 WORKING MODES AND REQUIRED TEST ITEMS ............................................ 10 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ........................................... 11 4. TEST & SUPPORT EQUIPMENT LIST ................................................................. 14 4.1 TEST INSTRUMENTS .......................................................................................... 14 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................. 14 5. TEST PROCEDURE ............................................................................................. 15 5.1 BVADT DFS MEASUREMENT SYSTEM: ............................................................. 15 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: ............................... 16 5.3 DEVIATION FROM TEST STANDARD ................................................................. 17 5.4 CONDUCTED TEST SETUP CONFIGURATION .................................................. 17 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE ................................................. 17 6. TEST RESULTS ................................................................................................... 18 6.1 SUMMARY OF TEST RESULTS .......................................................................... 18 6.2 DETAILED TEST RESULTS ................................................................................. 19 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. ................................................................................................................. 19 6.2.1.1 DFS DETECTION THRESHOLD .......................................................................... 19 6.2.1.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME ................. 20 6.2.1.3 NON- OCCUPANCY PERIOD .............................................................................. 21 6.2.1.4 NON-ASSOCIATED TEST .................................................................................... 23 6.2.1.5 NON- CO-CHANNEL TEST .................................................................................. 23 7. INFORMATION ON THE TESTING LABORATORIES .......................................... 24 8. APPENDIX-A ........................................................................................................ 25 9. APPENDIX B - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB .................................................................................... 27 Report No.: RF130726E06-3 3 of 27 Report Format Version 5.2.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF130726E06-3 Original release Sep. 06, 2013 Report No.: RF130726E06-3 4 of 27 Report Format Version 5.2.0 1. CERTIFICATION PRODUCT: IEEE 802.11 a/b/g/n Wireless LAN and Bluetooth Comb…

Text truncated - open the document above for the full version.

Report No.: RF130726E06-2 1 of 54 Report Format Version 5.0.0 FCC TEST REPORT (BLUETOOTH) REPORT NO.: RF130726E06-2 MODEL NO.: AW-AM691NF FCC ID: TLZ-AM691NF RECEIVED: July 26, 2013 TESTED: Aug. 20 to 22, 2013 ISSUED: Sep. 06, 2013 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130726E06-2 2 of 54 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ........................................................................................................ 4 1 CERTIFICATION ................................................................................................................ 5 2 SUMMARY OF TEST RESULTS ......................................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ...................................................................................... 7 3 GENERAL INFORMATION ................................................................................................. 8 3.1 YGENERAL DESCRIPTION OF EUT ................................................................................. 8 3.2 DESCRIPTION OF TEST MODES .....................................................................................10 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ...................................... 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS .....................................................13 3.5 DESCRIPTION OF SUPPORT UNITS ...............................................................................14 3.6 CONFIGURATION OF SYSTEM UNDER TEST.................................................................14 4 TEST PROCEDURES AND RESULTS ..............................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT .....................................................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................15 4.1.2 TEST INSTRUMENTS .......................................................................................................15 4.1.3 TEST PROCEDURES .......................................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD ..............................................................................16 4.1.5 TEST SETUP ....................................................................................................................16 4.1.6 EUT OPERATING CONDITIONS .......................................................................................17 4.1.7 TEST RESULTS ................................................................................................................18 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..............................................20 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ............................20 4.2.2 TEST INSTRUMENTS .......................................................................................................21 4.2.3 TEST PROCEDURES .......................................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD ..............................................................................23 4.2.5 TEST SETUP ....................................................................................................................24 4.2.6 EUT OPERATING CONDITIONS .......................................................................................24 4.2.7 TEST RESULTS ................................................................................................................25 4.3 NUMBER OF HOPPING FREQUENCY USED ..................................................................32 4.3.1 LIMIT OF HOPPING FREQUENCY USED .........................................................................32 4.3.2 TEST INSTRUMENTS .......................................................................................................32 4.3.3 TEST PROCEDURES .....................................…

Text truncated - open the document above for the full version.

Report No.: RF130726E06 1 of 95 Report Format Version 5.2.0 FCC TEST REPORT (15.247) REPORT NO.: RF130726E06 MODEL NO.: AW-AM691NF FCC ID: TLZ-AM691NF RECEIVED: July 26, 2013 TESTED: Aug. 15 to 22, 2013 ISSUED: Sep. 06, 2013 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the result…
