TLZ-AWNU231Wireless 802.11 a/b/g/n Module

User Manual Wireless 802.11 a/b/g/n Module Chapter 1: Product Overview AzureWave Technologies, Inc. introduces the advanced IEEE 802.11a/b/g/n 2x2 dual-band WLAN USB 2.0 module - AW-NU231. The module supports both 2.4GHz and 5GHz bands and Multiple Input Multiple Output (MIMO) technology. With MIMO, information is simultaneously sent and received over two antennas in the same frequency band, thus providing greater range and increased throughput while maintaining compatibility with legacy IEEE 802.11a/b/g devices. By using AW-NU231, the customers can easily enable the development of USB 2.0-based Draft-802.11n WLAN client and router subsystem solutions for all WLAN markets that can take advantage of the high throughput and extended range of MIMO. In Compliance with the IEEE 802.11a/b/g/n standard, the AW-NU231 uses Direct Sequence Spread Spectrum (DSSS), orthogonal frequency division multiplexing (OFDM), DBPSK, DQPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize the system power requirements. By using AW-NU231, state-of-the-art security is provided by industry standard system support for WPA, WPA2, and hardware accelerated AES encryption/decryption coupled with TKIP and IEEE 802.1X support. Embedded hardware acceleration enhances system performance and significantly reduces host-CPU utilization in both client and access point configurations. The AW-NU231 also supports Broadcom’s widely accepted and deployed SecureEasySetup™ (SES) application for ease-of-use wireless secured networks. The AW-NU231 module adopts Broadcom’s latest Draft-802.11n-based chip, BCM4323, innovations designed to increase WLAN system performance and extend range using MIMO technology. The module integrates two dual-band antennas which are used for 2x2 MIMO and supports 2-stream spatial multiplexing up to 300Mbps. Chapter 2: Installation This chapter describes the procedure for installing the NU231 To install the module: 1 Insert the CD into your CD-ROM drive 2 Click Set up your NU231 If you do not see this, access setup on the CD directly To do so, perform the following steps for your specific operating system: Windows 7 a Go to Start > Computer b Double-click your CD-ROM drive Windows Vista a Go to Start > Computer b Double-click your CD-ROM drive Windows XP a Go to Start > My Computer and select your CD-ROM drive b Double-click Setup.exe 3 Read the Software End User License Agreement To accept the agreement and continue with the installation, click Next License Agreement 4 An Easy Setup Key helps you quickly connect to your wireless hotspot or router If you do not have an Easy Setup Key, select No, I don¡¦t have an Easy Setup Key If you have an Easy Setup Key, select Yes, I have an Easy Setup Key Click Next NOTE: Cisco Valet wireless hotspots come with an Easy Setup Key Cisco Valet wireless hotspots and some Linksys routers also let you create one from your own USB flash drive ( You do not need an Easy Setup Key to complete installation ) Do You Have an Easy Setup Key? If you do not have an Easy Setup Key, go to step 6 If you have an Easy Setup Key, go to step 8 6 A list of available wireless networks appears Select your network Click Next Connect to a Wireless Network 7 If your network does not use wireless security, go to step 9 If your network uses wireless security, enter the wireless password for your type of security: ¡E Wired Equivalent Privacy (WEP): Enter the WEP key ¡E Wi-Fi Protected Access ( WPA/WPA2): Enter the passphrase (also known as a pre-shared key) Click Next Go to step 9 Enter the Wireless Password 8 Follow the on-screen prompts to use your Easy Setup Key Click Next Insert your Easy Setup Key 9 The installation is complete Click Close You are Now Connected to Your Wireless Network NOTE: If you have any problems during the installation process, refer to the Frequently Asked Questions in the setup software Chapter 3: Wireless Network Configuration To configure the module ¡¦s wireless connection settings, use a wireless network installed such a utility on your computer, or if your configuration utility If you have computer came with one already installed, refer to that utility¡¦s documentation for instructions on use Otherwise, follow the instructions in the appropriate section below to use your operating system¡¦s built-in utility: Windows 7, Windows 7 After you have installed the module, the Wireless Network Configuration utility icon appears on your computer¡¦s system tray Wireless Network Configuration Utility Icon (If you do not see the icon, click the Show hidden icons arrow in the system tray ) When your mouse pointer hovers over the icon, the status information of your wireless connection appears Wireless Connection Status New Wireless Connection To connect to a different wireless network: 1 Click the Wireless Network Configuration utility icon. A list of available wireless networks appears After you have installed the module, the Wireless Network Configuration utility icon appears on your computer¡¦s Available Wireless Networks 2 Select your network, and then click Connect Select Network 3 If your network does not use wireless security, go to step 5 4 Enter the security key, Wired Equivalent Privacy (WEP) key, or Wi-Fi Protected Access (WPA/WPA2) passphrase (also known as a pre-shared key), depending on your type of security Click OK Secured Network 5 This screen appears while the module connects to your network Do not cancel, unless you want to end the connection Connecting to Network NOTE: For help with the Wireless Network Configuration utility, refer to Help and Support Click Start > Help and Support Your computer is now connected to your wireless network. Windows Vista After you have installed the module, the Wireless Network Configuration utility icon appears on your computer¡¦s system tray Wireless Network Configuration Utility Icon When your mouse p…

Text truncated - open the document above for the full version.

8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. TEL.:+886+2-6628-9888 FAX:+ 886-2- 6628-9666 G E N E R A L D E C L A R A T I O N Date: May 6, 2010 We, AzureWave Technologies, Inc., declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the following product. The client software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes Model name: AW-NU231 FCC ID: TLZ-AWNU231 If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, Ivan Chen / Manager AzureWave Technologies, Inc. TEL.:+886+2-6628-9888 FAX:+ 886-2- 6628-9666 E-mail: [email protected]

FCC ID: TLZ-AWNU231 Report No.: RF990226L03/ -1/ -2 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch April 28, 2010 Dear Application Examiner, AzureWave Technologies, Inc., It’s a Wireless 802.11 a/b/g/n Module, FCC ID: TLZ-AWNU231 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4323. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is RT8020PQW. 3. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 4. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 5. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-AWNU231 Report No.: RF990226L03/ -1/ -2 6. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 7. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

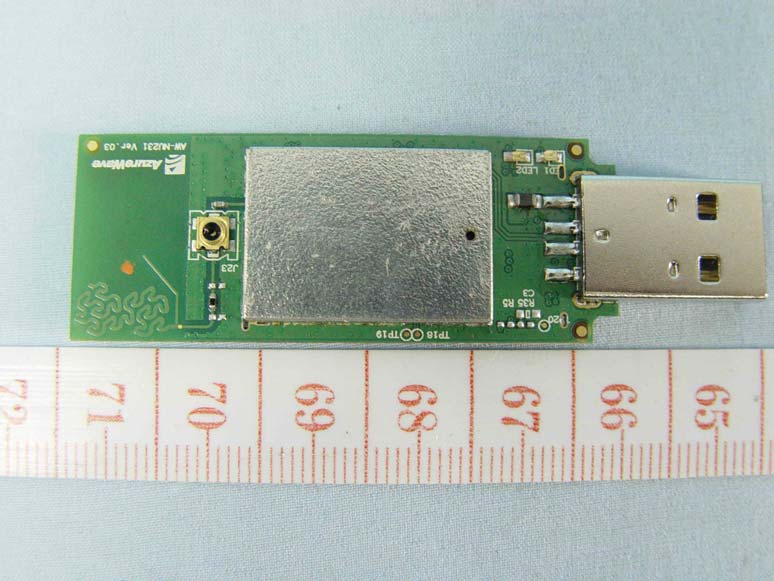

Page 1 CONSTRUCTION PHOTOS OF EUT

Label Location

Page 2 Page 3

FCC ID: TLZ-AWNU231 Report No.: RF990226L03/ -1/ -2 Operational Description This device is a Wireless 802.11 a/b/g/n Module, which operates in 2.4GHz & 5GHz bands, the maximum data rate could be up to 270Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 5Vdc from the host equipment. The antenna is PCB antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA990226L03 Report Format Version: 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990226L03 MODEL NO.: AW-NU231 FCC ID: TLZ-AWNU231 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei, Taiwan 231. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990226L03 Report Format Version: 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 ~ 2462 26.8 0.54 20 0.107 1.00 5180 ~ 5240 16.6 1.59 20 0.013 1.00 5260 ~ 5320 16.6 1.59 20 0.013 1.00 5500 ~ 5700 16.4 1.59 20 0.013 1.00 5745 ~ 5825 25.2 1.59 20 0.094 1.00

Report No.: RF990226L03 1 Report Format Version 3.0.1 FCC TEST REPORT (15.247) REPORT NO.: RF990226L03 MODEL NO.: AW-NU231 RECEIVED: Feb. 26, 2010 TESTED: Mar. 09 ~ Mar. 18, 2010 ISSUED: Mar. 22, 2010 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei, Taiwan 231. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 116 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990226L03 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 14 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 14 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND)................................................. 15 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 15 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 15 4.1.2 TEST INSTRUMENTS................................................................................................ 16 4.1.3 TEST PROCEDURES ................................................................................................ 17 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 17 4.1.5 TEST SETUP.............................................................................................................. 18 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 18 4.1.7 TEST RESULTS ......................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 32 4.2.2 TEST INSTRUMENTS................................................................................................ 32 4.2.3 TEST PROCEDURES ................................................................................................ 33 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 33 4.2.5 TEST SETUP.............................................................................................................. 34 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 34 4.2.7 TEST RESULTS ......................................................................................................... 35 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 37 4.3.2 TEST INSTRUMENTS................................................................................................ 37 4.3.3 TEST PROCEDURE................................................................................................... 37 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 37 4.3.5 TEST SETUP.............................................................................................................. 38 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 38 4.3.7 TEST RESULTS ......................................................................................................... 39 4.4 MAXIMUM OUTPUT POWER .................................................................................... 43 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT..................................... 43 4.4.2 INSTRUMENTS .......................................................................................................... 43 4.4.3 TEST PROCEDURE................................................................................................... 43 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 44 4.4.5 TEST SETUP.............................................................................................................. 44 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 44 4.4.7 TEST RESULTS ......................................................................................................... 45 4.5 POWER SPECTRAL DENSITY MEASUREMENT ..................................…

Text truncated - open the document above for the full version.

Report No.: RF990226L03-1 1 Report Format Version 3.0.1 FCC TEST REPORT (15.407) REPORT NO.: RF990226L03-1 MODEL NO.: AW-NU231 RECEIVED: Feb. 26, 2010 TESTED: Mar. 09 ~ Mar. 18, 2010 ISSUED: Mar. 22, 2010 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei, Taiwan 231. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 105 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990226L03-1 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 4 2. SUMMARY OF TEST RESULTS .................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY................................................................................ 5 3. GENERAL INFORMATION ........................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 13 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 13 4. TEST TYPES AND RESULTS .................................................................................... 14 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 14 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 14 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 14 4.1.3 TEST INSTRUMENTS................................................................................................ 15 4.1.4 TEST PROCEDURES ................................................................................................ 16 4.1.5 DEVIATION FROM TEST STANDARD....................................................................... 16 4.1.6 TEST SETUP.............................................................................................................. 17 4.1.7 EUT OPERATING CONDITION.................................................................................. 17 4.1.8 TEST RESULTS ......................................................................................................... 18 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 47 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 47 4.2.2 TEST INSTRUMENTS................................................................................................ 47 4.2.3 TEST PROCEDURES ................................................................................................ 48 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 48 4.2.5 TEST SETUP.............................................................................................................. 49 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 49 4.2.7 TEST RESULTS ......................................................................................................... 50 4.3 MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ............................... 54 4.3.1 LIMITS OF MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT............. 54 4.3.2 TEST INSTRUMENTS................................................................................................ 54 4.3.3 TEST PROCEDURE................................................................................................... 55 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 55 4.3.5 TEST SETUP.............................................................................................................. 55 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 55 Report No.: RF990226L03-1 3 Report Format Version 3.0.1 4.3.7 TEST RESULTS ......................................................................................................... 56 4.4 PEAK POWER EXCURSION MEASUREMENT ........................................................ 61 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT...................................... 61 4.4.2 TEST INSTRUMENTS................................................................................................ 61 4.4.3 TEST PROCEDURE................................................................................................... 61 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 62 4.4.5 TEST SETUP.............................................................................................................. 62 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 62 4.4.7 TEST RESULTS .............................................................................................…

Text truncated - open the document above for the full version.

Report No.:RF990226L03-2 1 Report Format Version 3.0.1 DFS TEST REPORT Report No.: RF990226L03-2 Model No.: AW-NU231 RECEIVED: Feb. 26, 2010 TESTED: Mar. 31, 2010 ISSUED: Mar. 31, 2010 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei, Taiwan 231. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 22 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.:RF990226L03-2 2 Report Format Version 3.0.1 Table of Contents 1. LAB DECLARATION.................................................................................................3 2. EUT INFORMATION.................................................................................................4 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT......................................4 2.2 EUT SOFTWARE AND FIRMWARE VERSION .......................................................4 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT .....................................4 2.4 EUT MAXIMUM AND MINIMUM CONDUCTED POWER ........................................5 2.5 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER ...................................................6 2.6 STATEMENT OF MAUNFACTURER........................................................................6 3. U-NII DFS RULE REQUIREMENTS.........................................................................7 3.1 WORKING MODES AND REQUIRED TEST ITEMS................................................7 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS...............................................8 4. TEST & SUPPORT EQUIPMENT LIST .................................................................. 11 4.1 TEST INSTRUMENTS............................................................................................ 11 4.2 DESCRIPTION OF SUPPORT UNITS ................................................................... 11 5. TEST PROCEDURE...............................................................................................12 5.1 ADT DFS MEASUREMENT SYSTEM:...................................................................12 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL:................................13 5.3 DEVIATION FROM TEST STANDARD...................................................................14 5.4 CONDUCTED TEST SETUP CONFIGURATION ...................................................14 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE ..................................................14 6. TEST RESULTS .....................................................................................................15 6.1 SUMMARY OF TEST RESULTS ............................................................................15 6.2 DETELED TEST RESULTS ....................................................................................16 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. ....................................................................................................................16 6.2.2 DFS DETECTION THRESHOLD............................................................................16 6.2.3 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME..................17 6.2.4 NON- OCCUPANCY PERIOD ................................................................................20 7. TESTING LABORATORIES INFORMATION..........................................................22 Report No.:RF990226L03-2 3 Report Format Version 3.0.1 1. LAB DECLARATION PRODUCT: Wireless 802.11 a/b/g/n Module MODEL: AW-NU231 BRAND: AzureWave APPLICANT: AzureWave Technologies, Inc. TEST SAMPLE: ENGINEERING SAMPLE TESTED: Mar. 31, 2010 STANDARDS: FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment (model: AW-NU231) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Mar. 31, 2010 Polly Chien / Specialist TECHNICAL ACCEPTANCE : , DATE :Mar. 31, 2010 Responsible for RF Dylan Chiou / Senior Engineer APPROVED BY : , DATE :Mar. 31, 2010 Gary Chang / Assistant Manager Report No.:RF990226L03-2 4 Report Format Version 3.0.1 2. EUT INFORMATION 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT TABLE 1: OPERATING FREQUENCY BANDS AND MODE OF EUT OPERATING FREQUENCY RANGE OPERATIONAL MODE 5250~5350MHz 5470~5725MHz Client without radar detection and ad hoc function 9 9 2.2 EUT SOFTWARE AND FIRMWARE VERSION TABLE 2: THE EUT SOFTWARE/FIRMWARE VERSION NO. PRODUCT MODEL NO. SOFTWARE/FIRMWARE VERSION 1 Wireless 802.11 a/b/g/n Module AW-NU231 5.10.79.30 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT TABLE 3: ANTENNA LIST ANT NO. ANTENNA TYPE OPERATION FREQUENCY RANGE (MHz) MAX. GAIN (dBi) 1 PCB Antenna 5250~5350 1.59 1 PCB Antenna 5470~5725 1.59 Report No.:RF990226L03-2 5 Report Format Version 3.0.1 2.4 EUT MAXIMUM AND MINIMUM CONDUCTED POWER TABLE 4: THE MEASURED CONDUCTED OUTPUT POWER IEEE 802.11a MAX. POWER MIN. POWER ANT NO. FREQUENCY BAND (MHz) OUTPUT POWER(dBm) OUTPUT POWER(mW) OUTPUT POWER(dBm) OUTPUT POWER(mW) 1 5250~5350 15.3 33.9 10.0 10.0 1 5470~5725 15.1 32.4 10.0 10.0 DRAFT 802.11n (20MHz) MAX. POWER MIN. POWER ANT NO. FREQUENCY BAND (MHz) OUTPUT POWER(dBm) OUTPUT PO…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FOR 2.4GHz BAND: 2TX 2 CONDUCTED EMISSION TEST FOR 5.0GHz BAND: 2TX 3 4 RADIATED EMISSION TEST FOR 2.4GHz BAND: 1TX 5 FOR 2.4GHz BAND: 2TX 6 7 RADIATED EMISSION TEST FOR 5.0GHz BAND: 1TX & 2TX 8
