TLZ-BT046Bluetooth Module

AzureWave Technologies, Inc.
Bluetooth Module - FCC ID TLZ-BT046 - AzureWave Technologies, Inc.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 03, 2010
Application Purpose
Original Equipment
Date of Application
Mar 03, 2010
Equipment Note
Bluetooth Module
Frequency Range
2402.00000000 - 2480.00000000
Company
AzureWave Technologies, Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AzureWave / AW-BT046 Bluetooth Software User Manual 1 Install the Bluetooth Driver..................................................2 Connect to other Bluetooth Enabled Devices..........................7 Uninstall the Bluetooth Driver..............................................11 2 Install the Bluetooth Driver Step1:Double click WIDCOMM Bluetooth Software 6.x.x.xx 3 Step2 :Choose 『I accept the terms in the license agreement』 4 Step3:Double click 『Next』 5 Step4:Choose『Install』 6 Step5:Install finish 7 Connect to other Bluetooth Enable Device Step1: Search new Bluetooth devices. 8 Step2 : Double click 『Next』 9 Step3 : Double click 『Next』 10 Step4: 11 Uninstalling the Bluetooth Driver Step1: 12 Step2: 13 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 14 This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna, As long as 1 condition above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: TLZ-BT046”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. 15  Canadian Regulatory Wireless Notice Canadian Regulatory Wireless Notice This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with Canada RF exposure compliance requirements, please follow operation instruction as documented in this manual. This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna, As long as 1 condition above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the Canada authorization is no longer considered valid and the Canada ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains IC: 6100A-AWBT046”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/wa…

Text truncated - open the document above for the full version.

Cover Letter(s)

FCC ID: TLZ-BT046 Report No.: RF990222L03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Mar. 03, 2010 Dear Application Examiner, AzureWave Technologies, Inc., It’s a Bluetooth Module, FCC ID: TLZ-BT046 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM2046. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM2046. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-BT046 Report No.: RF990222L03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

External Photos

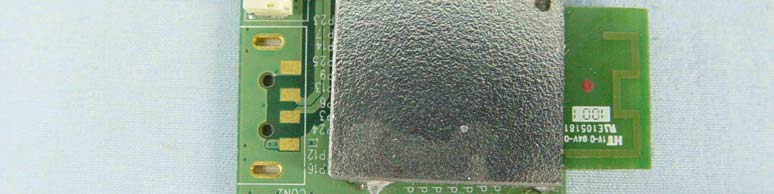

Page 1 CONSTRUCTION PHOTOS OF EUT Sample 1 with USB connector Sample 2 with Wire assembly connector

ID Label/Location Info

 Label drawing

ID Label/Location Info

FCC ID: TLZ-BT046

Internal Photos

Page 2 Sample 1 with USB connector Page 3 Page 4 Page 5 Sample 2 with Wire assembly connector Page 6 Page 7

Operational Description

FCC ID: TLZ-BT046 Report No.: RF990222L03 Operational Description The transmitter of the EUT (Bluetooth Module) is powered by host equipment. The antenna is PIFA antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.

RF Exposure Info

Report No.: SA990222L03 Report Format Version: 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990222L03 MODEL NO.: AW-BT046 FCC ID: TLZ-BT046 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990222L03 Report Format Version: 3.0.1 2 No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 1.10 1.30 EIRP Power 2.97 1.98 *Note: The antenna is PIFA antenna with 1.87dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.98mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Test Report

Report No.: RF990222L03 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990222L03 MODEL NO.: AW-BT046 RECEIVED: Feb. 12, 2010 TESTED: Feb. 12 ~ Feb. 24, 2010 ISSUED: Feb. 26, 2010 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990222L03 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION.......................................................................................................4 2. SUMMARY OF TEST RESULTS ..............................................................................5 2.1 MEASUREMENT UNCERTAINTY ...........................................................................5 3. GENERAL INFORMATION .......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.........................................................................6 3.2 DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 11 4. TEST TYPES AND RESULTS ................................................................................12 4.1 RADIATED EMISSION MEASUREMENT ..............................................................12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 12 4.1.2 TEST INSTRUMENTS ........................................................................................... 13 4.1.3 TEST PROCEDURES ............................................................................................ 14 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 14 4.1.5 TEST SETUP ......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 15 4.1.7 TEST RESULTS ..................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT .........................................................26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 26 4.2.2 TEST INSTRUMENTS ........................................................................................... 26 4.2.3 TEST PROCEDURES ............................................................................................ 27 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 27 4.2.5 TEST SETUP ......................................................................................................... 28 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 28 4.2.7 TEST RESULTS ..................................................................................................... 29 4.3 NUMBER OF HOPPING FREQUENCY USED ......................................................33 4.3.1 LIMIT OF HOPPING FREQUENCY USED ............................................................ 33 4.3.2 TEST INSTRUMENTS ........................................................................................... 33 4.3.3 TEST PROCEDURES ............................................................................................ 33 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 34 4.3.5 TEST SETUP ......................................................................................................... 34 4.3.6 TEST RESULTS ..................................................................................................... 34 4.4 DWELL TIME ON EACH CHANNEL ......................................................................37 4.4.1 LIMIT OF DWELL TIME USED............................................................................... 37 4.4.2 TEST INSTRUMENTS ........................................................................................... 37 4.4.3 TEST PROCEDURES ............................................................................................ 37 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 37 4.4.5 TEST SETUP ......................................................................................................... 38 Report No.: RF990222L03 3 Report Format Version 3.0.1 4.4.6 TEST RESULTS ..................................................................................................... 38 4.5 CHANNEL BANDWIDTH........................................................................................46 4.5.1 LIMITS OF CHANNEL BANDWIDTH ..................................................................... 46 4.5.2 TEST INSTRUMENTS ........................................................................................... 46 4.5.3 TEST PROCEDURE ...........................................…

Text truncated - open the document above for the full version.

Test Setup Photos

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) 2 3 CONDUCTED EMISSION TEST (TEST MODE B) 4 5 RADIATED EMISSION TEST (TEST MODE A) 6 7 RADIATED EMISSION TEST (TEST MODE B) 8

Contact Information

Applicant

Patrick Lin(Director)
[email protected]02-55995599Fax: 02-66289666

Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchGary Chang
[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan Hsien · Taiwan

Non-Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchEllis Wu
[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.30 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. Single Modular Approval, the antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Approval is limited to OEM installation only. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter.
