TLZ-BT253Bluetooth Module

Azurewave / AW-BT253 Bluetooth Software User Manual 1 Install the Bluetooth Driver..................................................2 Connect to other Bluetooth Enabled Devices..........................7 Uninstall the Bluetooth Driver..............................................11 2 Install the Bluetooth Driver Step1：Double click WIDCOMM Bluetooth Software 6.0.1.5600 3 Step2 ：Choose 『I accept the terms in the license agreement』 4 Step3：Double click 『Next』 5 Step4：Choose『Install』 6 Step5：Install finish 7 Connect to other Bluetooth Enable Device Step1: Search new Bluetooth devices. 8 Step2 : Double click 『Next』 9 Step3 : Double click 『Next』 10 Step4: 11 Uninstalling the Bluetooth Driver Step1: 12 Step2: 13 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 14 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: TLZ-BT253”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. 15
Canadian Regulatory Wireless Notice This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 16 For Taiwan警語 警語警語 警語
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立 即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線 電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之 干擾。 Note: 1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤 2. 系統廠商應於平台上標示「本產品內含射頻模組: XXXyyyLPDzzzz-x」字樣

FCC ID: TLZ-BT253 Report no.: RF961102L06 Modular Approval Request Letter Advance Data Technology Jan. 25, 2008 Dear Application Examiner, AzureWave Technologies, Inc., It’s AW-BT253, FCC ID: TLZ-BT253 , would like to have your authorization as a modular approval specific to the mobile device such as digital device emissions, PC peripheral requirements,...etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM2046. 3. “The modular transmitter must have its own power supply regulation.” The regulator is built in chip BCM2046. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an USB cable. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-BT253 Report no.: RF961102L06 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Advance Data Technology

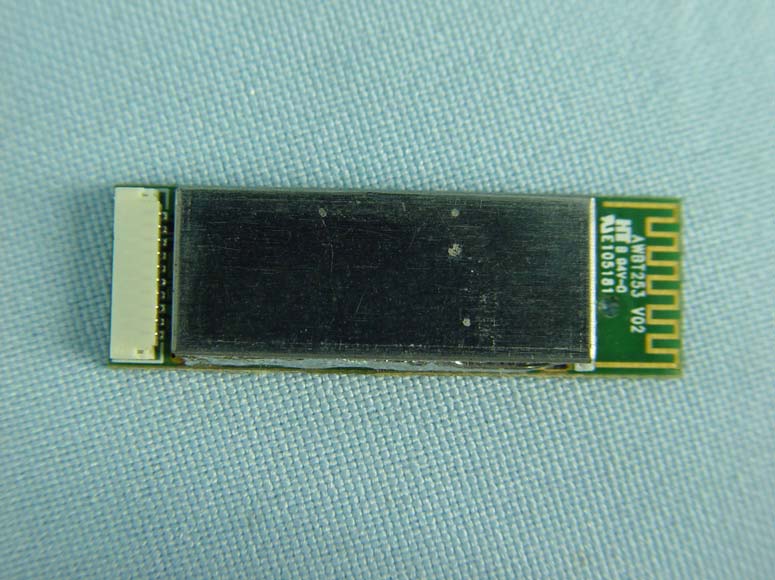

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID .: TLZ-BT253 Label Location

Page 2 Page 3

FCC ID: TLZ-BT253 Report No.: RF961102L06 Operational Description The transmitter of the EUT (Bluetooth Module) is powered by host equipment. The antenna is Printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.

FCC ID: TLZ-BT253 Report No: SA961102L06 1 RF EXPOSURE REPORT REPORT NO.: SA961102L06 MODEL NO.: AW-BT253 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: TLZ-BT253 Report No: SA961102L06 2 No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 1.69 1.476 EIRP Power 3.00 2.698 *Note: The antenna is Printed antenna with 1.31dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 2.698mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF961102L06 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF961102L06 MODEL NO.: AW-BT253 RECEIVED: Nov. 06, 2007 TESTED: Nov. 09 ~ Nov. 12, 2007 ISSUED: Nov. 20, 2007 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF961102L06 2 Report Format Version 2.0.6 Table of Contents 1. CERTIFICATION.......................................................................................................4 2. SUMMARY OF TEST RESULTS ..............................................................................5 2.1 MEASUREMENT UNCERTAINTY............................................................................5 3. GENERAL INFORMATION .......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.........................................................................6 3.2 DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................10 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................10 4. TEST TYPES AND RESULTS ................................................................................ 11 4.1 RADIATED EMISSION MEASUREMENT .............................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 11 4.1.2 TEST INSTRUMENTS ........................................................................................... 12 4.1.3 TEST PROCEDURES ............................................................................................ 13 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 13 4.1.5 TEST SETUP ......................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 14 4.1.7 TEST RESULTS ..................................................................................................... 15 4.2 CONDUCTED EMISSION MEASUREMENT .........................................................22 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 22 4.2.2 TEST INSTRUMENTS ........................................................................................... 22 4.2.3 TEST PROCEDURES ............................................................................................ 23 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 23 4.2.5 TEST SETUP ......................................................................................................... 24 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 24 4.2.7 TEST RESULTS ..................................................................................................... 25 4.3 NUMBER OF HOPPING FREQUENCY USED ......................................................27 4.3.1 LIMIT OF HOPPING FREQUENCY USED ............................................................ 27 4.3.2 TEST INSTRUMENTS ........................................................................................... 27 4.3.3 TEST PROCEDURES ............................................................................................ 27 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 28 4.3.5 TEST SETUP ......................................................................................................... 28 4.3.6 TEST RESULTS ..................................................................................................... 28 4.4 DWELL TIME ON EACH CHANNEL ......................................................................31 4.4.1 LIMIT OF DWELL TIME USED............................................................................... 31 4.4.2 TEST INSTRUMENTS ........................................................................................... 31 4.4.3 TEST PROCEDURES ............................................................................................ 31 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 31 4.4.5 TEST SETUP ......................................................................................................... 32 4.4.6 TEST RESULTS ..................................................................................................... 32 4.5 CHANNEL BANDWIDTH........................................................................................40 4.5.1 LIMITS OF CHANNEL BANDWIDTH ..................................................................... 40 4.5.2 TEST INSTRUMENTS ........................................................................................... 40 4.5.3 TEST PROCEDURE .............................................................................................. 40 4.5.4 DEVIATION FROM TES…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
