TLZ-CB178NF802.11ac/a/b/g/n 2X2 MIMO WLAN & Bluetooth M.2 module

- 1 - AW-CB178NF Wireless LAN & Bluetooth Module IC MFG Tool Command User Guide Version 0.1 Document release Date Modification Initials Approved Ver. 0.1 2014/09/22 Initial version Terry Chu - 2 - 1. AW-CB178NF WLAN & Bluetooth MFG Tool Command User Guide z When you test AW-CB178NF, please insert AW-CB178NF into connector J2 in the first. And you need to take a screw column with H1 hole to make AW-CB178NF combined with carrier board. 1.1 Environment set up and Bridge Mode Tool (1) The “Manufacturing Bridge” refers to the application that allows a user to send commands between Target platform and Windows XP platform. The environment enables the user to test performance of the AW-CB178NF. Manufacturing Bridge mode - 3 - (2) bin Folder Contents Download the latest MFG release from the Marvell Extranet and unzip it. The bin folder should look similar to the figure shown below. The release contains three folders: bridge, FwImage, and internal. (3) Bridge Folder Within the bridge folder are two .tgz files. a. File bridge_linux_0.1.0.29-fc13-bin contains the following files. b. File bridge_linux_0.1.0.22-src.tgz contains the source files for the bridge. - 4 - (4)FwImage Folder Within the FwImage folder are 15 .bin files. a. The corresponding Firmware should be placed in the /lib/Firmware/mrvl folder (5)Internal Folder Within the internal folder is the labtool and labtool_src folder. For this document’s purpose, only the details of the labtool folder will be discussed. The contents of the labtool folder is shown below. - 5 - The Labtool executable is labeled (DutApiMimoBtFmBridgeEth.exe) 1.2 Using the Contents of the MFG Release Package (1) For the Bridge Utility that runs on the target platform, go to the folder shown below. Obtain the bridge_linux_x.x.x.x_src.tgz file. The source files include a makefile for standard Linux distribution and Android. The same bridge tool can be compiled and run on an Android platform. After successful compilation, an “mfgbridge” executable will be produced and will run on the target platform. In the same folder, make sure to include the bridge_init.conf file from the bridge source code. On the given Host Linux system, the following files have to be transferred & reside on the system. (Transfer the files over via flash memory or tftp over the host.) Place the firmware in /lib/firmware/mrvl/ pcie8897_usb_combo.bin - 6 - PLEASE NOTE THE DRIVER IS NOT PART OF THE MANUFACTURING PACKAGE The user must compile the driver per your specific Linux OS and Kernel. This is due to that the driver is dependent on the actual OS and kernel version. This next section will describe the steps needed to be done before you can install the driver and run it. Please download the production driver package from the extranet at the below location: My Products/ Wireless/ 88W8897/ Software Unzip these three zipped files: a. XXX-8897-FC13-X86-X.X.X.X _X-app-src.tgz b. XXX-8897-FC13-X86-X.X.X.X_X-GPL-src.tgz c. XXX-8897-FC13-X86-X.X.X.X_X-mlan-src.tgz From the unzipped files, go to the subdirectory wlan_src *Make sure to have kernel headers and kernel libs before executing the “make” commands below. make clean make build Go up one folder to copy both *.ko files to your directory in where you have the other files in where you want to run the insmod command. Here is the sample list of files (as a minimum) at 1 location: bridge_init.conf mfgbridge mlan.ko pcie8897.ko Now you can run the following commands to install the driver and firmware and start the Manufacturing bridge application with the following commands. On the target platform, use the following commands to put the 88W8897 in MFG mode: - 7 - Bring up the ethernet interface and specify an IP address to the Target platform. This address must match the IP for the DUT in which the Host XP is expecting. At this point, the target is ready to receive Labtool commands. On the Windows XP laptop where the Labtool release was downloaded, go to the folder shown below: Edit the “SetUp.ini” file as shown in the lines highlighted in RED below. The setup DutIpAddress will be the IP address of your target. - 8 - 1.3 Initial Command As the information showed on your screen, please enter these commands below to start your test. (Figure 9) Command: 1 Wi-Fi testing Command: 2 BT testing Figure 9 1.3 Generate 802.11a/b/g/n Packet commands a. Tx on CH 6 at 10 dBm with a CCK-11Mbps data rate in 20 MHz BW mode on path A 25 // Stop Tx 10 1 1 // Set Path A Only 30 0 // Set to 2.4 GHz Band 112 0 // Set to 20 MHz BW 12 6 // Set to CH 6 - 9 - 22 0 6 10 0 // Set to CH 6 at 10 dBm Output Power with CCK/BPSK Data Rate on Path A 25 1 4 // Tx at 11 Mbps -------------------------------------------------------------------------------------------------------------------------------------- b. Tx on CH 6 at 10 dBm with a CCK-11Mbps data rate in 20 MHz BW mode on path B 25 // Stop Tx 10 2 2 // Set Path B Only 30 0 // Set to 2.4 GHz Band 112 0 // Set to 20 MHz BW 12 6 // Set to CH 6 22 1 6 10 0 // Set to CH 6 at 10 dBm Output Power with CCK/BPSK Data Rate on Path B 25 1 4 // Tx at 11 Mbps ---------------------------------------------------------------------------------------------------------------------------------- c. Tx on CH 36 at 8 dBm with a MCS7 Data rate in 20 MHz BW Mode on Path A 25 // Stop Tx 10 1 1 // Set Path A 30 1 // Set to 5 GHz Band 112 0 // Set to 20 MHz BW 12 36 // Set to CH 36 22 0 36 8 1 // Set to CH 36 at 8 dBm Output Power with OFDM Data Rate on Path A 25 1 22 // Tx at MCS 7 ----------------------------------------------------------------------------------------------------------------------------------- d. Tx on CH 36 at 12 dBm with a MCS7 Data rate in 40 MHz BW Mode on Path A 25 // Stop Tx 10 1 1 // Set Path A 30 1 // Set to 5 GHz Band 112 1 // Set to 40 MHz BW 12 36 // Set to CH 36. 22 0 36 12 1 // Set to CH 36 at 12 dBm Output Power with OFDM Data Rate on path A 25 1 22 // Tx at MCS 7 -------------------------------------------------------------------…

Text truncated - open the document above for the full version.

FCC ID: TLZ-CB178NF Report No.: RF140605E01 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch October 7, 2014 Dear Application Examiner, AzureWave Technologies, Inc., It’s an 802.11ac/a/b/g/n 2X2 MIMO WLAN & Bluetooth M.2 Module, FCC ID: TLZ-CB178NF would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip 88W8897P. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is 88W8897P. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

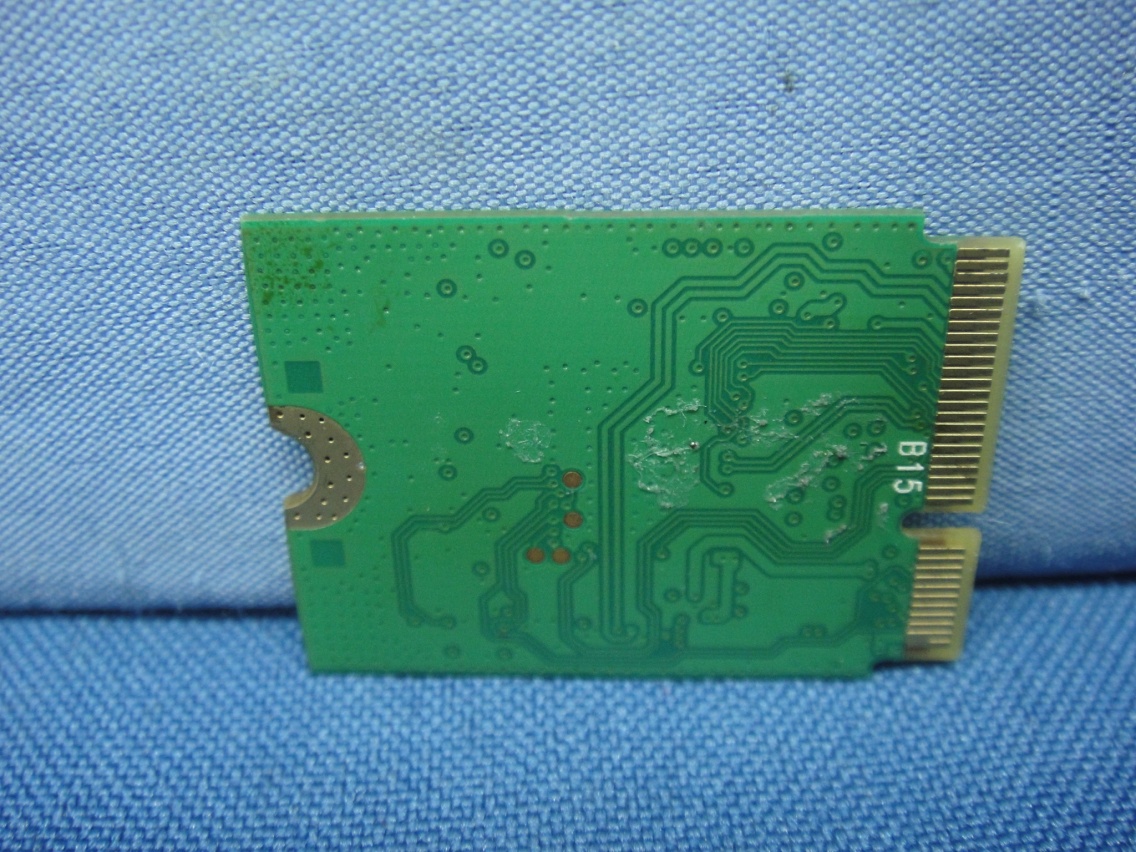

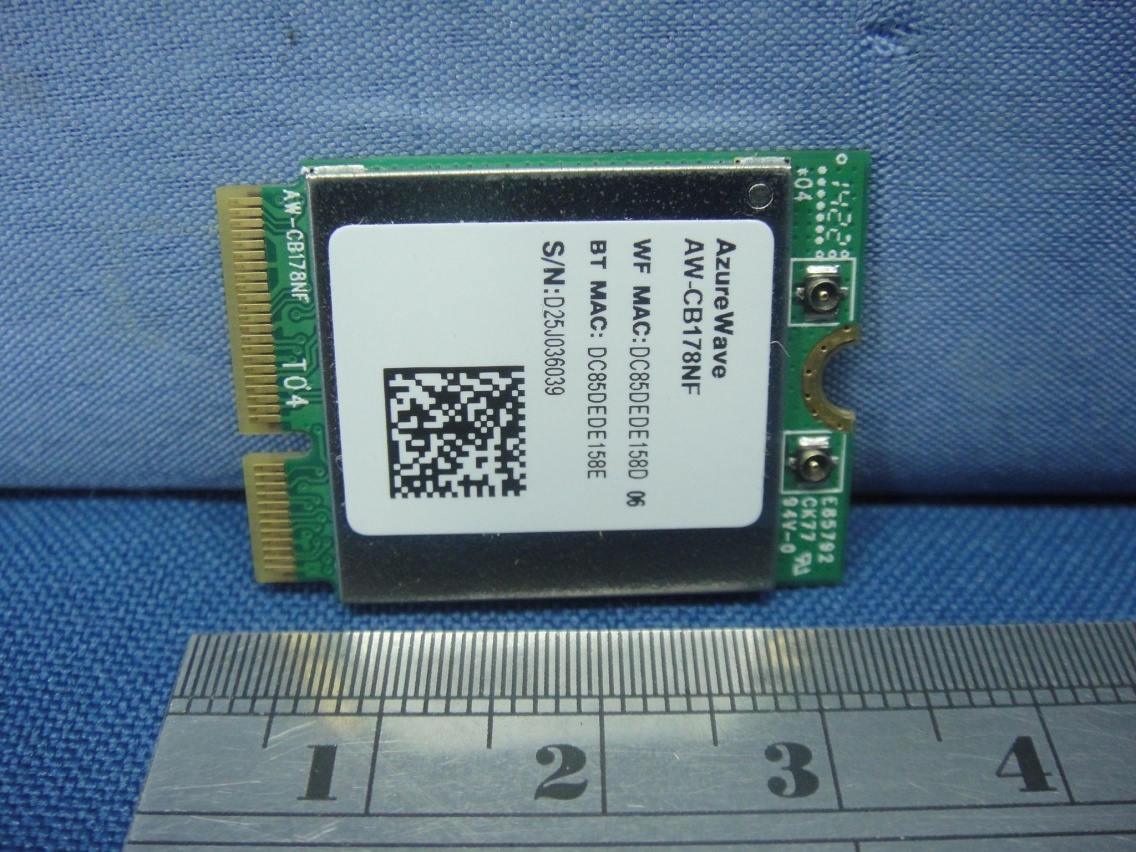

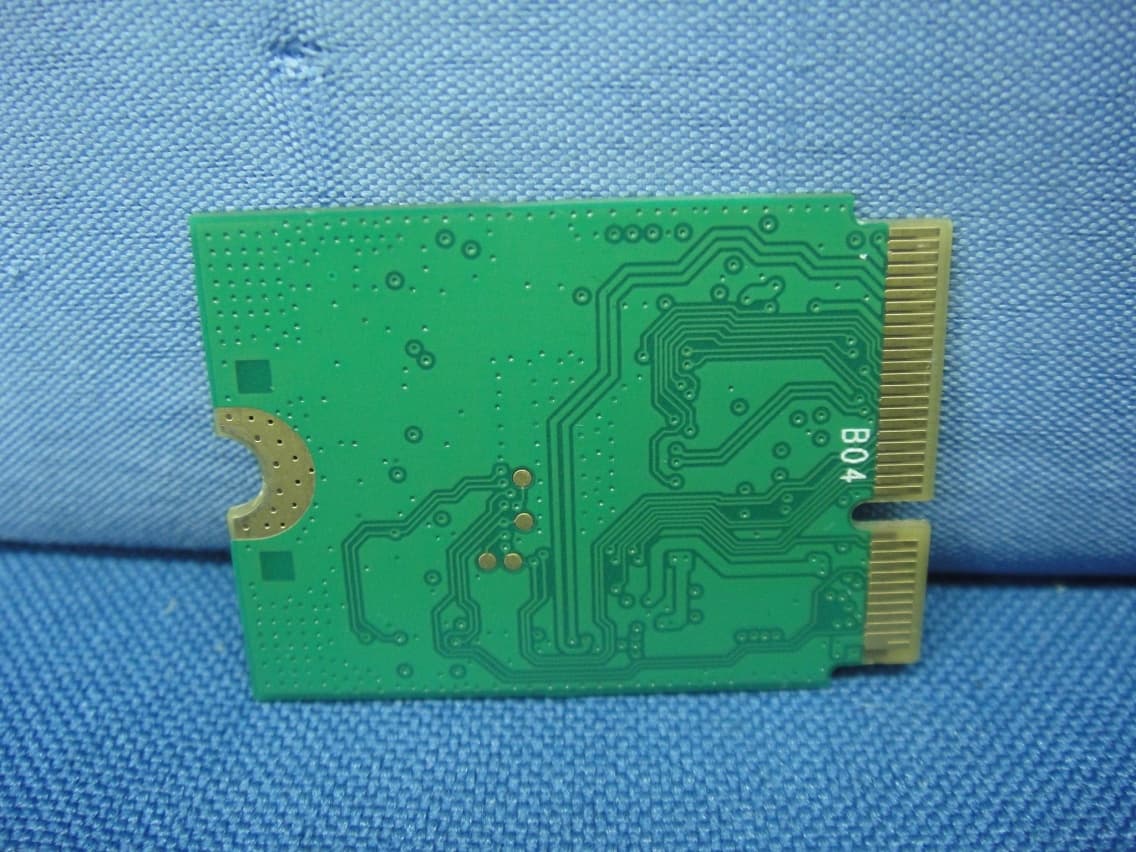

Report No.: 140605E01 Page 1 CONSTRUCTION PHOTOS OF EUT Model: AW-CB178NF Report No.: 140605E01 Page 3 Model: AW-CB178NF(UART)

FCC ID： TLZ-CB178NF LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Report No.: 140605E01 Page 2 Model: AW-CB178NF Report No.: 140605E01 Page 4 Model: AW-CB178NF(UART) Report No.: 140605E01 Page 5 Antenna (Brand: Microsoft / Model: 2118433-1) Report No.: 140605E01 Page 6 Report No.: 140605E01 Page 7 Report No.: 140605E01 Page 8 Antenna (Brand: Walsin / Model: RFPCA310715EMLB301) Report No.: 140605E01 Page 9 Report No.: 140605E01 Page 10 Antenna (Brand: Wistron NeWeb Corporation / Model: 81EAAX15.G12) Report No.: 140605E01 Page 11

Report No.: SA140605E01 1 of 11 Report Format Version 5.0.1 RF EXPOSURE REPORT REPORT NO.: SA140605E01 MODEL NO.: AW-CB178NF(UART), AW-CB178NF FCC ID: TLZ-CB178NF RECEIVED:Feb. 14, 2014 TESTED:Aug. 14, 2014 ISSUED:Sep. 26, 2014 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA140605E01 2 of 11 Report Format Version 5.0.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 7 Report No.: SA140605E01 3 of 11 Report Format Version 5.0.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140605E01 Original release Sep. 26, 2014 Report No.: SA140605E01 5 of 11 Report Format Version 5.0.1 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA140605E01 6 of 11 Report Format Version 5.0.1 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Set 1 Antenna Transmitter Circuit Brand Model Ant. Gain (dBi) < Excluding cable loss> Cable Loss (dB) Net. Gain (dBi) Frequency range (MHz to MHz) Ant. Type Connecter Type Cable Length (mm) 100 mm 180 mm Chain (0) Microsoft 2118433-1 2.18 1 0.540.642400~2484 PCB R-SMA 100+180 2.34 1.3 0.960.085150~5850 Chain (1) Microsoft 2118433-1 2.18 1 0.540.642400~2484 PCB R-SMA 100+180 2.34 1.3 0.960.085150~5850 Set 2 Antenna Transmitter Circuit Brand Model Ant. Gain(dBi) <Including cable loss> Frequency range (MHz to MHz) Ant. Type Connecter Type Cable Length (mm) Chain (0) Walsin RFPCA310715EMLB301 3.06 2400~2500 PIFA mini - ipex150 4.81 5150~5850 Chain (1) Walsin RFPCA310715EMLB301 3.06 2400~2500 PIFA mini - ipex150 4.81 5150~5850 Set 3 Antenna Transmitter Circuit Brand Model Ant. Gain(dBi) <Including cable loss> Frequency range (MHz to MHz) Ant. Type Connecter Type Cable Length (mm) Chain (0) Wistron NeWeb Corporation 81EAAX15.G12 1.02 2400~2484 PIFA mini - ipex254 -1.03 5150~5850 Chain (1) Wistron NeWeb Corporation 81EAAX15.G12 1.02 2400~2484 PIFA mini - ipex563 -1.03 5150~5850 Note: 1. From the above 1TX configuration mode, the worst case was found in transmission circuit on Chain (1). Report No.: SA140605E01 7 of 11 Report Format Version 5.0.1 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247 (2.4GHz) 802.11b FREQUENCY (MHz) CONDUCTED POWER (mW) TOTAL MAX. POWER OUTPUT (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) CHAIN 0 CHAIN 1 2412 - 2462 97.724 97.499 195.223 6.07 20 0.15713 1.00 NOTE: Directional gain = 3.06dBi + 10log(2) = 6.07dBi. 802.11g FREQUENCY (MHz) CONDUCTED POWER (mW) TOTAL MAX. POWER OUTPUT (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) CHAIN 0 CHAIN 1 2412 - 2462 363.915 374.973 738.888 6.07 20 0.59471 1.00 NOTE: Di…

Text truncated - open the document above for the full version.

Report No.: RF140605E01-3 1 of 27 Report Format Version 5.2.1 DFS TEST REPORT REPORT NO.: RF140605E01-3 MODEL NO.: AW-CB178NF(UART), AW-CB178NF FCC ID: TLZ-CB178NF RECEIVED: Feb. 14, 2014 TESTED: Sep. 10, 2014 ISSUED: Sep. 26, 2014 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140605E01-3 2 of 27 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD ............................................................................. 3 1. CERTIFICATION ........................................................................................... 4 2. EUT INFORMATION ..................................................................................... 5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT .......................... 5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ............................................ 5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT.......................... 6 2.4 EUT MAXIMUM CONDUCTED POWER ...................................................... 7 2.5 EUT MAXIMUM EIRP POWER ..................................................................... 8 2.6 TRANSMIT POWER CONTROL (TPC) ........................................................ 9 2.7 STATEMENT OF MAUNFACTURER ............................................................ 9 3. U-NII DFS RULE REQUIREMENTS ........................................................... 10 3.1 WORKING MODES AND REQUIRED TEST ITEMS .................................. 10 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ................................. 11 4. TEST & SUPPORT EQUIPMENT LIST ...................................................... 14 4.1 TEST INSTRUMENTS ................................................................................ 14 4.2 DESCRIPTION OF SUPPORT UNITS ....................................................... 14 5. TEST PROCEDURE ................................................................................... 15 5.1 BVADT DFS MEASUREMENT SYSTEM: ................................................... 15 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: .................... 16 5.3 DEVIATION FROM TEST STANDARD ....................................................... 17 5.4 CONDUCTED TEST SETUP CONFIGURATION ....................................... 17 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE ....................................... 17 6. TEST RESULTS ......................................................................................... 18 6.1 SUMMARY OF TEST RESULTS ................................................................ 18 6.2 DETAILED TEST RESULTS ....................................................................... 19 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. .................................................................................. 19 6.2.1.1 DFS DETECTION THRESHOLD ............................................................... 19 6.2.1.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME ...... 20 6.2.1.3 NON- OCCUPANCY PERIOD .................................................................... 21 6.2.1.4 NON-ASSOCIATED TEST ......................................................................... 23 6.2.1.5 NON- CO-CHANNEL TEST ....................................................................... 23 7. INFORMATION ON THE TESTING LABORATORIES ................................ 24 8. APPENDIX-A .............................................................................................. 25 9. APPENDIX B - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ...................................................... 27 Report No.: RF140605E01-3 3 of 27 Report Format Version 5.2.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF140605E01-3 Original release Sep. 26, 2014 Report No.: RF140605E01-3 5 of 27 Report Format Version 5.2.1 2. EUT INFORMATION 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT TABLE 1: OPERATING FREQUENCY BANDS AND MODE OF EUT OPERATIONAL MODE OPERATING FREQUENCY RANGE 5250~5350MHz 5470~5725MHz (5600~5650MHz will be disable) Client without radar detection and ad hoc function   2.2 EUT SOFTWARE AND FIRMWARE VERSION TABLE 2: THE EUT SOFTWARE/FIRMWARE VERSION PLATFORM NO. PRODUCT MODEL NO. SOFTWARE/FIRMWARE VERSION Linux 1 802.11ac/a/b/g/n 2X2 MIMO WLAN & …

Text truncated - open the document above for the full version.

Report No.: RF140605E01 1 of 140 Report Format Version 5.2.1 FCC TEST REPORT (WLAN 15.247) REPORT NO.: RF140605E01 MODEL NO.: AW-CB178NF(UART), AW-CB178NF FCC ID: TLZ-CB178NF RECEIVED: Feb. 14, 2014 TESTED: Feb. 14 to Aug. 14, 2014 ISSUED: Sep. 26, 2014 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140605E01 2 of 140 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 5 1. CERTIFICATION ...................................................................................................... 6 2. SUMMARY OF TEST RESULTS .............................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 9 3. GENERAL INFORMATION ..................................................................................... 10 3.1 GENERAL DESCRIPTION OF EUT (WLAN) ......................................................... 10 3.2 DESCRIPTION OF TEST MODES ......................................................................... 14 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 15 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 19 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 20 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 22 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 23 4. TEST TYPES AND RESULTS (FOR 2.4GHz, 2.400 ~ 2.4835GHz BAND) ............ 24 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 24 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 24 4.1.2 TEST INSTRUMENTS ........................................................................................... 24 4.1.3 TEST PROCEDURES ............................................................................................ 25 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 25 4.1.5 TEST SETUP ......................................................................................................... 25 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 26 4.1.7 TEST RESULTS (MODE 1) .................................................................................... 27 4.1.8 TEST RESULTS (MODE 2) .................................................................................... 29 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 31 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 31 4.2.2 TEST INSTRUMENTS ........................................................................................... 32 4.2.3 TEST PROCEDURES ............................................................................................ 35 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 35 4.2.5 TEST SETUP ......................................................................................................... 36 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 36 4.2.7 TEST RESULTS (MODE 1) .................................................................................... 37 4.2.8 TEST RESULTS (MODE 2) .................................................................................... 50 4.3 6DB BANDWIDTH MEASUREMENT ..................................................................... 63 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................. 63 4.3.2 TEST INSTRUMENTS ........................................................................................... 63 4.3.3 TEST PROCEDURE .....................................................................…

Text truncated - open the document above for the full version.

Report No.: RF140605E01-1 1 of 124 Report Format Version 5.2.1 FCC TEST REPORT (WLAN 15.407) REPORT NO.: RF140605E01-1 MODEL NO.: AW-CB178NF(UART), AW-CB178NF FCC ID: TLZ-CB178NF RECEIVED: Feb. 14, 2014 TESTED: Feb. 14 to Aug. 14, 2014 ISSUED: Sep. 26, 2014 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140605E01-1 2 of 124 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESC…

Text truncated - open the document above for the full version.
