TLZ-CU300IEEE 802.11 b/g/n WLAN Microcontroller Module

AW-CU300 EVB User Guide (PCB 2223 Ver:I1,I2) V0.2 2015/06/12 Kai. Wu Confidential Relative Software Application Software •FTDI VCP Drivers (FT2232D) •Libusb-win32-bin-1.2.6.0 •Cygwin Set-up Procedure 1. Download FTDI VCP Drivers (FT2232D) 2. Download Libusb-win32-bin-1.2.6.0 3. Set Up CU277 EVB for Windows 4. Install FTDI VCP Drivers 5. Install Libusb-win32-bin-1.2.6.0 6. Install Cygwin 7. Insert file “OpenOCD.zip” 8. Burning MCU Image with normal firmware 9. Run WIFI Normal Driver 10. Burning MCU Image with MFG firmware 11. Run WIFI/BT MFG tool 2 Confidential External QSPI (32M-Bit) flash to CU300 AW-CU300 USB B-type 5V Input FTDI USB to UART/JTAG with CU300 (COM Port 1 for CU300’s JTAG, COM Port 2 for CU300’s UART0) External 32.768KHz to CU300 EVB Power Supply Option: 1. USB B-type 5V Input 2. Power Jack 5V Input (If the USB B-type driving force shortage) LDO 5V to 3.3V LDO 5V to 3.3V CU300 Reset CU300 Wake Up Power Jack 5V Input Relative Hardware I1 3 CU300 Push SW Confidential External QSPI (32M-Bit) flash to CU300 AW-CU300 USB B-type 5V Input FTDI USB to UART/JTAG with CU300 (COM Port 1 for CU300’s JTAG, COM Port 2 for CU300’s UART0) External 32.768KHz to CU300 EVB Power Supply Option: 1. USB B-type 5V Input 2. Power Jack 5V Input (If the USB B-type driving force shortage) LDO 5V to 3.3V LDO 5V to 3.3V CU300 Reset CU300 Wake Up Power Jack 5V Input Relative Hardware I2 4 CU300 Push SW Confidential 1. Download FTDI VCP Drivers (FT2232D) Install the driver manually. You can get the driver from FTDI’s web site. http://www.ftdichip.com/Drivers/VCP.htm 5 Confidential 2. Download Libusb-win32 You can get the driver from libusb-win32’s web site. http://sourceforge.net/projects/libusb-win32 6 Confidential 3. Set Up CU300 EVB I1 for Windows The USB port (B type) connects the CU300 evaluation board to the PC. ANT2 ANT1 Please refer to “AW-CU300 EVB I1’s PCB Info” document. 7 5V IN LED 3.3V IN LED Confidential 3. Set Up CU300 EVB I2 for Windows The USB port (B type) connects the CU300 evaluation board to the PC. ANT2 ANT1 Please refer to “AW-CU300 EVB I2’s PCB Info” document. 8 5V IN LED 3.3V IN LED Confidential 4-1. Install FTDI VCP Drivers DONE 9 Confidential 4-2. Install FTDI VCP Drivers Verifying Driver Installation: To verify that driver installation has completed successfully, you can open the “Device Manager” (right-click My Computer, select Properties). In the System Properties windows, select Hardware, Device Manager. Two “USB Serial Port” should be listed under MY-PC\Ports (COM & LPT) 10 Confidential 5-1. Install Libusb-win32 Install inf-wizard: USB Serial Converter A (Interface 0) 11 Confidential 5-2. Install Libusb-win32 Verifying Driver Installation: To verify that driver installation has completed successfully, you can open the “Device Manager” (right-click My Computer, select Properties). In the System Properties windows, select Hardware, Device Manager. One “USB Serial Converter A” should be listed under MY-PC\Ports (lib usb- win32 devices) DONE 12 Confidential 6-1. Install Cygwin Install Cygwin: 1. Install Cygwin from: http://www.cygwin.com/setup_x86.exe (for x86 32-bit systems) or http://www.cygwin.com/setup_x86_64.exe (for x86 64-bit systems) 2. Select the option Install from Internet 3. Use default installation path: c:\cygwin. If you chose an alternate installation directory, please make sure that there are no spaces in the path. 4. Pick the Local Package Directory (this is the download cache directory) 5. Select the option Direct Connection 6. Select any mirror you want to use 7. Add additional packages to the default selection: Click “Next”. The Cygwin Setup window will show the progress as each package gets installed. Note: If you are not familiar with cygwin, please visit http://cygwin.com/ for additional information and details. In particular, the Cygwin User Guide (http://cygwin.com/cygwin-ug-net/) is a good resource for new users. 13 Confidential 6-2. Install Cygwin DONE 14 Confidential 7-1. Insert file “OpenOCD.zip” Unzip “CU300_OpenOCD.zip” and put “readelf.exe” to C:\cygwin\bin 15 Confidential Unzip “CU300_OpenOCD.zip” and put them to C:\cygwin\ 7-2. Insert file “OpenOCD.zip” 16 Confidential Process C:\cygwin\Cygwin.bat 7-3. Insert file “OpenOCD.zip” 17 Confidential Key in command : cd /cygdrive/c/cygwin/OpenOCD 7-4. Insert file “OpenOCD.zip” 18 Confidential 8-1. Burning Normal F/W Check config_normal_RTC.txt, layout.txt ... 6 files in the OpenOCD folder Check path name 19 Confidential 8-2. Burning Normal F/W Key in command : ./flashprog.sh -l layout.txt -b config_normal_RTC.txt 20 Confidential Burning information print as followed: Note : Please restart DUT after burning (Plug-in and Plug-out USB) 8-3. Burning Normal F/W 21 Confidential 9-1. Run normal F/W Open OS terminal and set USB comport (reference to the page9 ), set baud-rate as 115200 off off 115200 22 Confidential That will scan around AP 9-2. Run normal F/W EX: wlan-scan Enter help on the screen to see a full list of commands available for use 23 Confidential 10-1. Burning MFG F/W Check config_mfg.txt, layout.txt ... 5files in OpenOCD folder Check path name 24 Confidential Command : ./flashprog.sh –l layout.txt –b config_mfg.txt 10-2. Burning MFG F/W 25 Confidential Burning information print as followed: Note : Please restart DUT after burning (Plug-in and Plug-out USB) 10-3. Burning MFG F/W 26 Confidential Set USB comport Run Marvel MFG tool 11-1. Run Marvel WIFI MFG tool DutInitSet to 2(OTP) 27 Confidential 11-2. Run Marvel WIFI MFG tool 28 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Th…

Text truncated - open the document above for the full version.

AzureWave Technologies, Inc. 8F,No.94, Baozhong Rd., Xindain, Taipei, Taiwan 231. TEL:886-2-55995599 FAX:886-2-66289666 Declaration for no non-US channel operation July 7, 2015 We, AzureWave Technologies , Inc. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: TLZ-CU300 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Ivan Chen /Manager AzureWave Technologies , Inc. Phone: 02-55995805 / 02-5599-5599 Fax: 03-573-8097 / 02-6628-9666 [email protected]

FCC ID: TLZ-CU300 Report No.: RF150528E05 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch July 13, 2015 Dear Application Examiner, AzureWave Technologies, Inc., IEEE 802.11 b/g/n WLAN Microcontroller Module, FCC ID: TLZ-CU300, would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip 88MW300 QFN-68. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is 88MW300 QFN-68. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

AzureWave Technologies, Inc. 8F,No.94, Baozhong Rd., Xindain, Taipei, Taiwan 231. TEL:886-2-66289888 FAX:886-2-66289666 Date: 2015-07-08 FCC ID: TLZ-CU300 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned, hereby authorize Amanda Wu of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------- Ivan Chen /Manager AzureWave Technologies , Inc. Phone: 02-55995805 / 02-6628-9888 Fax: 03-573-8097 / 02-6628-9666 [email protected]

AzureWave Technologies, Inc. 8F,No.94, Baozhong Rd., Xindain, Taipei, Taiwan 231. TEL:886-2-55995599 FAX:886-2-66289666 Date: 2015-07-07 FCC ID: TLZ-CU300 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request 㻌 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Ivan Chen /Manager AzureWave Technologies , Inc. Phone: 02-55995805 / 02-5599-5599 Fax: 03-573-8097 / 02-6628-9666 [email protected]

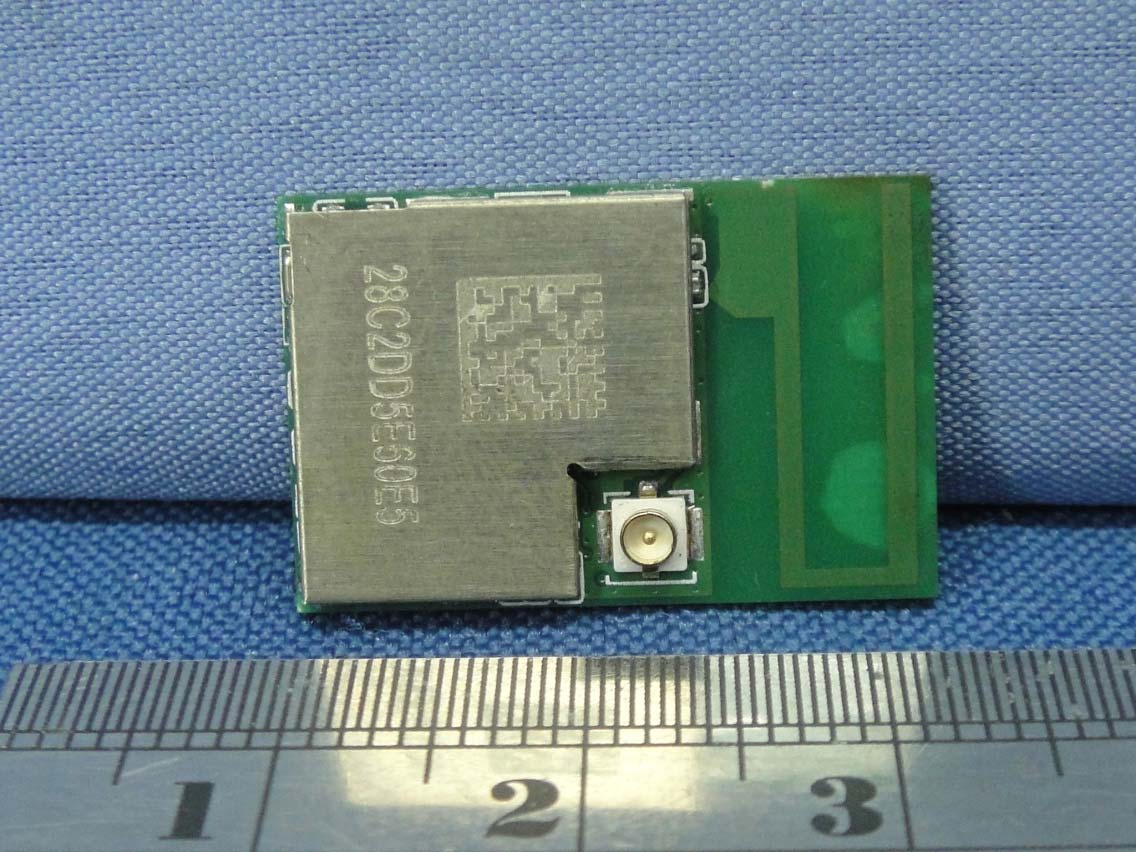

Report No. : 150528E05 Page 1 CONSTRUCTION PHOTOS OF EUT

IC: 6100A-CU300 Model: AW-CU300 AzureWave FCC ID: TLZ-CU300 CCAI15LPXXXXXX 5-PP00260794V-0 YY WK 15.00 mm 5.00 mm

Report No. : 150528E05 Page 2 Report No. : 150528E05 Page 3 Antenna 1 (Brand: AzureWave ; Model: AW-CU300 ANT) Report No. : 150528E05 Page 4 Antenna 2 (Brand: TAOGLAS ; Model: FXP73.07.0100A) Report No. : 150528E05 Page 5 Report No. : 150528E05 Page 6 Antenna 3 (Brand: TAOGLAS ; Model: PC11.07.0100A) Report No. : 150528E05 Page 7 Report No. : 150528E05 Page 8 Antenna 4 (Brand: TAOGLAS ; Model: FXP74.07.0100A) Report No. : 150528E05 Page 9 Report No. : 150528E05 Page 10 Antenna 5 (Brand: TAOGLAS ; Model: GW.17.07.0250E) Report No. : 150528E05 Page 11 Antenna 6 (Brand: TAOGLAS ; Model: PC17.07.0070A) Report No. : 150528E05 Page 12 Antenna 7 (Brand: LAIRD ; Model: NanoBlue-IP04_MAF94045) Report No. : 150528E05 Page 13 Antenna 8 (Brand: MAG.LAYERS ; Model: EDA_1313_2G4C1-A16)

FCC ID: TLZ-CU300 Report No.: RF140804E03 Operational Description This device is a IEEE 802.11 b/g/n WLAN Microcontroller Module. The transmitter of the EUT is powered from 3.3Vdc from host equipment. The antennas provided to the EUT, please refer to the following table: The other instruction, please have a look at the users manual.

Report No.: SA150528E05 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150528E05 FCC ID: TLZ-CU300 Test Model: AW-CU300 Received Date: May 28, 2015 Test Date: July 03, 2015 Issued Date: July 10, 2015 Applicant: AzureWave Technologies, Inc. Address: 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA150528E05 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ............................................................................. 5 2.2 Mpe Calculation Formula .................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result Of Maximum Conducted Power .......................................................................... 6 Report No.: SA150528E05 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150528E05 Original release. July 10, 2015 Report No.: SA150528E05 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 3 Antenna Gain The antennas provided to the EUT, please refer to the following table: Antenna No Brand Model Gain (dBi) (Including cable loss) Antenna Type Connector Type Frequency range (GHz to GHz) Cable Length (mm) 1(Internal) AzureWave AW-CU300 ANT 5.12 PCB NA 2.4~2.4835 NA 2(External) TAOGLAS FXP73.07.0100A 3 MonopoleI-PEX 2.4~2.4835 100 3(External) TAOGLAS PC11.07.0100A 3 Dipole I-PEX 2.4~2.4835 100 4(External) TAOGLAS FXP74.07.0100A 4 PIFA I-PEX 2.4~2.4835 100 5(External) TAOGLAS GW.17.07.0250E 2.7 Dipole I-PEX 2.4~2.4835 250 6(External) TAOGLAS PC17.07.0070A 0.9 PIFA I-PEX 2.4~2.4835 70 7(External) LAIRD NanoBlue-IP04_MAF940452 MonopoleI-PEX 2.4~2.4835 100 8(External) MAG.LAYERS EDA_1313_2G4C1-A16 2.39 Dipole I-PEX 2.4~2.4835 150 Antenna 1 was chosen for final calculation. Report No.: SA150528E05 Page No. 6 / 6 Report Format Version: 6.1.1 4 Calculation Result Of Maximum Conducted Power Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 204.644 5.12 20 0.13235 1 --- END ---

Report No.: RF150528E05 Page No. 1 / 77 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150528E05 FCC ID: TLZ-CU300 Test Model: AW-CU300 Received Date: May 28, 2015 Test Date: June 30 to July 03, 2015 Issued Date: July 10, 2015 Applicant: AzureWave Technologies, Inc. Address: 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150528E05 Page No. 2 / 77 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Duty Cycle of Test Signal ................................................................................................................... 11 3.4 Description of Support Units ............................................................................................................. 12 3.4.1 Configuration of System under Test .................................................................................................. 12 3.5 General Description of Applied Standards ........................................................................................ 13 4 Test Types and Results ...................................................................................................................... 14 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 14 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 14 4.1.2 Test Instruments ................................................................................................................................ 15 4.1.3 Test Procedures ................................................................................................................................. 16 4.1.4 Deviation from Test Standard ............................................................................................................ 16 4.1.5 Test Set Up ........................................................................................................................................ 17 4.1.6 EUT Operating Conditions ................................................................................................................. 18 4.1.7 Test Results (Mode 1) ........................................................................................................................ 19 4.1.8 Test Results (Mode 2) ........................................................................................................................ 29 4.1.9 Test Results (Mode 3) ........................................................................................................................ 39 4.1.10 Test Results (Mode 4) ........................................................................................................................ 49 4.2 Conducted Emission Me…

Text truncated - open the document above for the full version.

Report No.: 140407E07 1 of 9 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 140407E07 2 of 9 RADIATED EMISSION TEST (Mode 1) Report No.: 140407E07 3 of 9 Report No.: 140407E07 4 of 9 RADIATED EMISSION TEST (Mode 2) Report No.: 140407E07 5 of 9 Report No.: 140407E07 6 of 9 RADIATED EMISSION TEST (Mode 3) Report No.: 140407E07 7 of 9 Report No.: 140407E07 8 of 9 RADIATED EMISSION TEST (Mode 4) Report No.: 140407E07 9 of 9
