TLZ-CU442IEEE 802.11 b/g/n 1T1R WLAN and Bluetooth Low Energy Microcontroller Module

1 AW-CU442 IEEE 802.11 b/g/n 1T1R WLAN and Bluetooth Low Energy Microcontroller Module Datasheet (For Standard) (Halogen Free) 2 Features WiFi 802.11 b/g/n/ 1x1, 2.4GHz Support 20MHz/40MHz up to MCS7 Low power architecture Support low power TX/RX for short range application Low power beacon listen mode Low power Rx mode Very low power suspends mode (DLPS) Bluetooth Support BLE Support both central and peripheral modes Internal co-existence mechanism between and WIFI and BT to share the same antenna Support BLE5.0 Peripheral Interface USB host controller with HS/FS/LS capability HS-SD/MMC 2.0 SDIO device with highest SDR25 supported HS_UART/LP_UART supported Standard and fast mode I2C supported I2S with 8/12/16/24/32/48/..../176.4 KHz sampling rate Maximum 2 SPI supported. One supports baud rate up to 50MHz;the other one supports baud rate up to 25MHz Support PWM with configurable duration and duty cycle from 0~100% Support External Timer Trigger Event (ETE function) with configurable period in low power mode 3 Revision History Document NO: R2-2442-DST-01 Version Revision Date DCN NO. Description Initials Approved A 2020/02/03  Initial Peter Chen N.C. Chen B 2020/02/05  2.2 pin table correction Peter Chen N.C. Chen C 2020/02/12  2.1 pin map correction Peter Chen N.C. Chen 4 Table of Contents Features ........................................................................................................................................... 2 Revision History .............................................................................................................................. 3 Table of Contents ............................................................................................................................ 4 1. Introduction ................................................................................................................................. 5 1.1 Product Overview ................................................................................................................. 5 1.2 Specifications Table ............................................................................................................. 6 1.2.1 General ...................................................................................................................... 6 1.2.2 WLAN ........................................................................................................................ 7 1.2.3 Bluetooth.................................................................................................................... 8 1.2.4 Operating Conditions ................................................................................................. 8 2. Pin Definition ............................................................................................................................... 9 2.1 Pin Map ................................................................................................................................ 9 2.2 Pin Table ............................................................................................................................ 10 2.3 GPIO Function Table ......................................................................................................... 12 3. Electrical Characteristics ......................................................................................................... 14 3.1 Absolute Maximum Ratings ............................................................................................... 14 3.2 Recommended Operating Conditions ................................................................................ 14 3.3 Digital IO Pin DC Characteristics ....................................................................................... 14 3.4 Host Interface .................................................................................................................... 15 3.5 Power up Timing Sequence ............................................................................................... 15 3.6 Power Consumption * ............................................................................................................................................................. 15 3.6.1 WLAN ...................................................................................................................... 15 3.6.2 Bluetooth.................................................................................................................. 15 4. Mechanical Information ............................................................................................................ 16 4.1 Mechanical Drawing ........................................................................................................... 16 4.2 Recommend Footprint ....................................................................................................................... 17 5 1. Introduction 1.1 Product Overview AzureWave presents AW-CU442 802.11b/g/n 1T1R WLAN and Bluetooth low energy (5.0) Microcontroller Solution provides a highly cost-effective, flexible and easy to-use hardware/software platform to build a new generation of connected, smart devices. These smart-connected devices enable device to deliver a broad-range of services to consumers including energy-management, demand-response, home automation and remote access. This allows a user to manage comfort and convenience, also run diagnostics and receive alerts and notifications, in addition to managing and controlling the device. Developers can leverage the rich connectivity features of these new smart devices to create a new generation of innovative new applications and services The architecture features the Realtek RTL8721CSM -VA1 integrated single-chip low power dual band (2.4G) wireless LAN and Bluetooth Low Energy (5.0) communication controller. It consists of high- performance MCU (latest architecture v8m, Cortex-M4F instruction compatible) named KM4, a low pow…

Text truncated - open the document above for the full version.

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 SDoC Attestation Letter Date: 2020/7/3 We AzureWave Technologies, Inc., as the grantee of this project (FCC ID: TLZ-CU442 / Brand Name: AzureWave / Model No.: AW-CU442), would like to declare that the composite portion has been authorized under the Supplier's Declaration of Conformity procedures (Sporton report No.: FD061820, FCC designation number: TW1096). The final product shall consequently comply with the FCC rule applied for SDoC Procedure. Regards, Sincerely, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 *5580 Fax : 02-66289666

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Confidential Letter Date: 2020/7/3 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：TLZ-CU442 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 90 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Sincerely, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 *5580 Fax : 02-66289666

Module Approval Request Letter Date: 2020/7/29 Subject: Module Approval FCC ID: TLZ-CU442 To Whom It May Concern: We, Sporton International Inc., are authorized by AzureWave Technologies, Inc. to have their state-of-the-art device approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1.The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2.The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTL8721CSM. 3.The requirement of power supply regulation: The part number of the power regulator is in chip RTL8721CSM. 4.The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5.The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6.The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7.The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8.The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature: Name : Leo Huang Job Title : Manager

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Power of Attorney Date: 2020/7/3 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: TLZ-CU442 Sincerely, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 *5580 Fax : 02-66289666

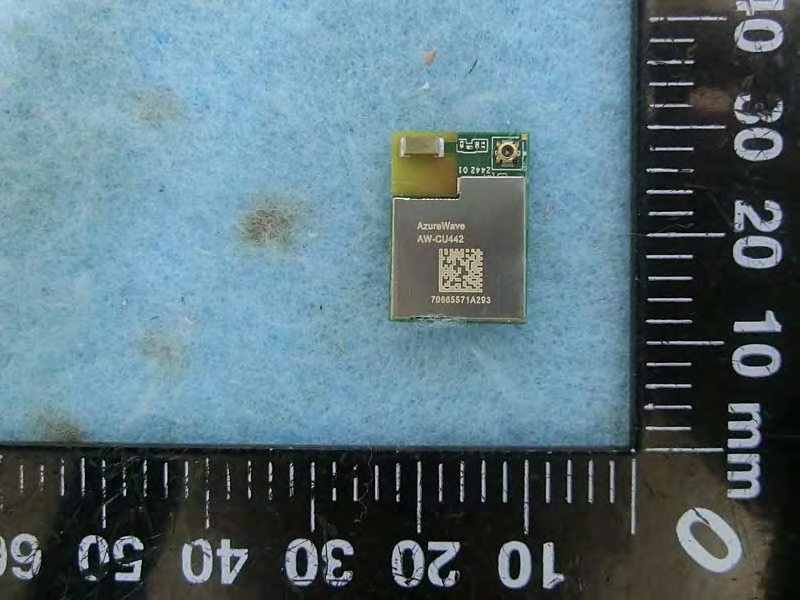

PHOTOGRAPHS OF EUT Report No. : EP061820 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 3 TEL : 886-3-656-9065 Issued Date : Jul. 27, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: AzureWave Model Name: AW-CU442 PHOTOGRAPHS OF EUT Report No. : EP061820 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 3 TEL : 886-3-656-9065 Issued Date : Jul. 27, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP061820 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 3 TEL : 886-3-656-9065 Issued Date : Jul. 27, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

Label Location Label Here

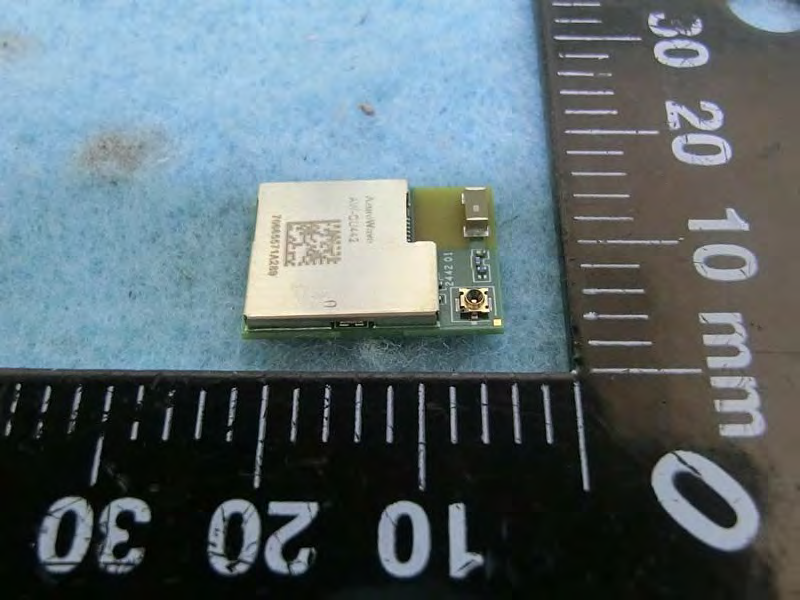

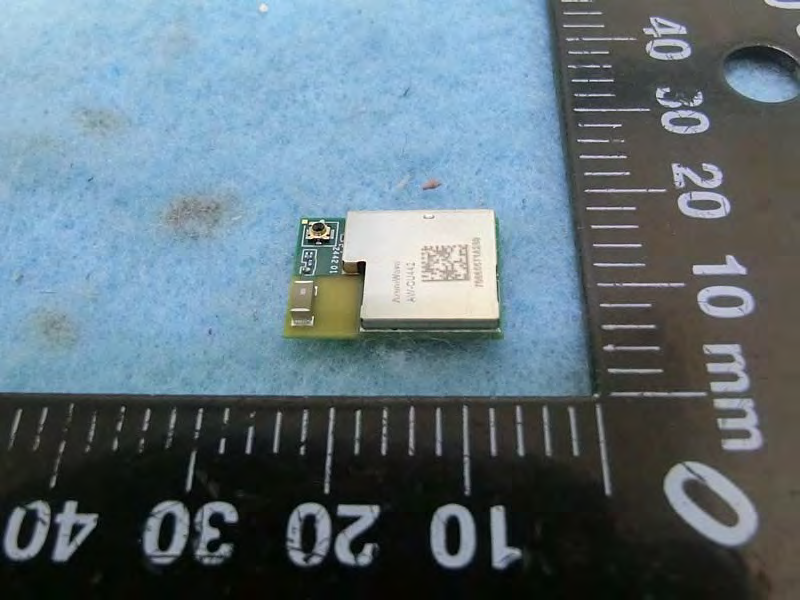

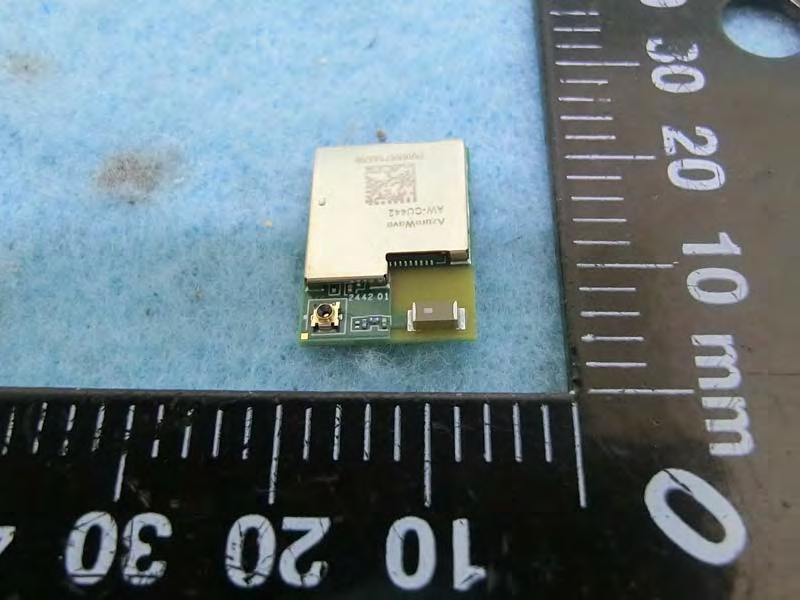

PHOTOGRAPHS OF EUT Report No. : EP061820 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 3 TEL : 886-3-656-9065 Issued Date : Jul. 27, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: AzureWave Model Name: AW-CU442 EUT 1 PHOTOGRAPHS OF EUT Report No. : EP061820 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 3 TEL : 886-3-656-9065 Issued Date : Jul. 27, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP EUT 2 PHOTOGRAPHS OF EUT Report No. : EP061820 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 3 TEL : 886-3-656-9065 Issued Date : Jul. 27, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

FCC RADIO EXPOSURE TEST REPORT Report No. : FA061820 TEL : 886-3-656-9065 Page Number : 2 of 7 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Table for EUT source ............................................................................................................................. 5 1.3 Testing Location ..................................................................................................................................... 5 2 Maximum Permissible Exposure ........................................................................................................ 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT v01 FCC RADIO EXPOSURE TEST REPORT Report No. : FA061820 TEL : 886-3-656-9065 Page Number : 3 of 7 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA061820 01 Initial issue of report Jul. 27, 2020 FCC RADIO EXPOSURE TEST REPORT Report No. : FA061820 TEL : 886-3-656-9065 Page Number : 4 of 7 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Vicky Huang FCC RADIO EXPOSURE TEST REPORT Report No. : FA061820 TEL : 886-3-656-9065 Page Number : 5 of 7 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Bluetooth 2400-2483.5 2402-2480 LE: GFSK 1.2 Table for EUT source This product is a transformer that has the following two Sources EUT Source Description 1 Main Source Which are identical to each other in all aspects except Y1, L1, C27, C36, C37, C40, C41, C42. 2 Second Source 1.3 Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Test site registered number IC 4086D with Industry Canada. FCC RADIO EXPOSURE TEST REPORT Report No. : FA061820 TEL : 886-3-656-9065 Page Number : 6 of 7 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   FCC RADIO EXPOSURE TEST REPORT Report No. : FA061820 TEL : 886-3-656-9065 Page Number : 7 of 7 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2.3 Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure Mode DG (dBi) Power (dBm) EIRP (dBm) Tolera nce (dB) Tune-up EIRP (dBm) Tune-up EIRP (W) Distance (cm) S (mW/cm 2 ) S Limit (mW/cm 2 ) 2.4G;D1D 3.62 23.84 27.46 0.50 27.96 0.62517 20 0.12437 1.00000 2.4G;BT-LE 3.62 17.25 20.87 0.50 21.37 0.13709 20 0.02727 1.00000 ─────THE EN…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR061820AA TEL : 886-3-656-9065 Page Number : 2 of 27 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A10_10 Ver1.2 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 Test Configuration of EUT ................................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 EUT Operation during Test .................................................................................................................. 10 2.4 Accessories .......................................................................................................................................... 10 2.5 Support Equipment ............................................................................................................................... 10 2.6 Test Setup Diagram ............................................................................................................................. 11 3 Transmitter Test Result ..................................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 DTS Bandwidth .................................................................................................................................... 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 21 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 22 4 Test Equipment and Calibration Data .............................................................................................. 26 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR061820AA TEL : 886-3-656-9065 Page Number : 3 of 27 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A10_10 Ver1.2 Report Version : 01 History of this test report Report No. Version Description Issued Date FR061820AA 01 Initial issue of report Jul. 27, 2020 FCC RADIO TEST REPORT Report No. : FR061820AA TEL : 886-3-656-9065 Page Number : 4 of 27 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A10_10 Ver1.2 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Vicky Huang FCC RADIO TEST REPORT Report No. : FR061820AA TEL : 886-3-656-9065 Page Number : 5 of 27 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A10_10 Ver1.2 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number 2400-2483.5 b, g, n (HT20) 2412-2462 1-11 [11] Band Mode BWch (MHz) Nant 2.4-2.4835GHz 802.11b 20 1TX 2.4-2.4835GHz 802.11g 20 1TX 2.4-2.4835GHz 802.11n HT20 20 1TX Note:  11b mode uses a combination of DSSS-DBPSK, DQPSK, CCK modulation.  11g, HT20 use a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation.  BWch is the nominal channel bandwidth. 1.1.2 Ante…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR061820AB TEL : 886-3-656-9065 Page Number : 2 of 28 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A10_6 Ver1.2 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 Test Configuration of EUT ................................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 EUT Operation during Test .................................................................................................................. 10 2.4 Accessories .......................................................................................................................................... 10 2.5 Support Equipment ............................................................................................................................... 10 2.6 Test Setup Diagram ............................................................................................................................. 11 3 Transmitter Test Result ..................................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 DTS Bandwidth .................................................................................................................................... 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 21 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 22 4 Test Equipment and Calibration Data .............................................................................................. 26 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR061820AB TEL : 886-3-656-9065 Page Number : 3 of 28 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A10_6 Ver1.2 Report Version : 01 History of this test report Report No. Version Description Issued Date FR061820AB 01 Initial issue of report Jul. 27, 2020 FCC RADIO TEST REPORT Report No. : FR061820AB TEL : 886-3-656-9065 Page Number : 4 of 28 FAX : 886-3-656-9085 Issued Date : Jul. 27, 2020 Report Template No.: CB-A10_6 Ver1.2 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The…

Text truncated - open the document above for the full version.
