TLZ-GA200Wireless Audio AP

Model Name: AW-GA200/AW-GA201 802.11g/54Mbps 802.11g Access Point + Wireless Audio Receiver Combo Solution User Manual AzureWave Technologies Inc, 2006 Contents Chapter 1 Introduction.................................................................... 1 Chapter 2Getting Start with AW-GA100......................................... 1 Chapter 3How to make wireless audio feature working? .............3 Chapter 4Installation and Setup Wizard......................................... 5 Chapter 5Wireless Audio Utility....................................................... 10 Appendix ATroubleshooting............................................................... 11 AW-GA100 1 Chapter 1: Introduction AW-GA100 is 802.11g Access Point + Wireless Audio Receiver Combo Solution. It support following feature ÿ 802.11g Access point feature, including AP feature and AP Client feature. ÿ Wireless sound card (WSC) feature: Wireless sound card (WSC) is the most advanced technology on wireless audio transmission. Users only need to install Azurewave driver/utility on your computer, computer can stream audio via 802.11 wireless network or 802.3 wire network to the receiver. ÿ Audio : Support 2.1 & 5.1 wireless sound card feature AW-GA100 connect your computer digital music to full glory through your stereo or surround sound system through 802.11 wireless connection. . The device will bundle with AzureWave wireless audio driver and utility. It creates a virtual sound system in your PC, which sends the audio output of any application to the AW-GA100 and the stereo system. Use your favorite media player to play your music, and listen in the comfort of the living room. Chapter 2: Getting Start with AW-GA100 2.1 System Requirements • 400 MHz or Faster PC • 128 MB of RAM Memory • CD-ROM Drive • Wireless Network Adapter • Internet Explorer 5.5 or Netscape Navigator 6.1 or Higher for Web-Based Configuration • Windows 2000 or XP with Service Pack 1 (or later) ÿ Note: Wireless Audio feature only works under Windows XP operating systems, Note: AzureWave wireless audio utility support Windows XP only, NOT support Windows 98 or Windows ME 2.2 Getting to know the AW-GA100 2.2.1The Back Panel 2 Audio Out L/R The Audio Out (Left and Right) ports connect to the Audio In (Left and Right) ports of your audio receiver. Ethernet This Ethernet port connects to Ethernet network devices, such as a switch or router, if using a wired connection. Reset Button There are two ways to Reset the Device's factory defaults. Either press the Reset Button, for approximately ten seconds, or restore the defaults from the Password tab in the device's Web Based Utility. *Important: Resetting the device will erase all of your settings and replace them with the factory defaults. Do not reset the device if you want to retain these settings. Line Out The Line Out port is where you can connect headphones or portable audio speakers with a headphone jack. Optical Out The Optical Out (SPDIF) port is where you connect the cable from the Optical In port of your audio receiver. Power The Power port is where you will connect the power adapter. 2.2.2 The LEDs The LEDs is located in front panel, it can indicate some device information Power (Green color) . The Power LED lights up when the device is powered on. Ready . The Ready LED lights up when the device is ready. It will be flashing while upgrading firmware, after firmware upgrade process is done, the Ready LED will be back to light 3 up status. Ethernet . The Ethernet LED displays two modes. If the LED is continuously lit, the device is successfully connected to a device through the Ethernet port. If the LED is flashing, it is an indication of any network activity. Wireless LAN If the LED is flashing, it means Wireless LAN is acting. Wireless Audio The Wireless Audio LED displays three modes. - LED is off, it means nobody run wireless audio feature (but could be use AP feature). - LED is continuously lit, means specific computer is successfully connected to the device and enable wireless audio feature. - LED is flashing, it means wireless audio transmission is acting. 2.3 Ceck your materials on the package The AW-GA100 package should includes following items, 1. AW-GA100 2. Installion CD, the CD includes driver, utility and user’s manual 3. RJ45 cable 4. Quick Installation Guide Power Adapter (5V DC output ) Chapter 3: How to Make Wireless Audio Feature Working? It’s very easy to enable AW-GA100 wireless audio feature, just need to following 3 steps, Step 1: Install your wireless audio driver and utility on your computer Step 2: Power on your AW-GA100, connect AW-GA100 to power speaker or decoder. Step 3: Connect PC to AW-GA100, Run the utility to enable wireless audio feature, then your can start to enjoy the convenience of wireless audio. Below is the detailed instruction for above 3 steps Step 1: Install your wireless audio driver and utility on your computer The AzureWave wireless audio driver will create a virtual sound system in your PC, which sends the audio output of any application to the AW-GA100 and the stereo system. The AzureWave wireless audio utility will help to manage single or milti-devices exist on the same network, you can also chose PC orginal audio output or wireless audio output on the utility. 4 For detailed installation and instruction of AzureWave wireless audio driver/utility, please refer to Chapter 4 and Chapter 5. Step 2: Power on your AW-GA100, connect AW-GA100 to powered speaker or decoder. Plug-in the power adapter bundled with AW-GA100, the power LED will be light up. AW- GA100 DON’T built-in speaker, so you have to connect to “Powered Speaker” ,Decoder(For SPDIF output) or Home stereo. Step 3: Connect PC to AW-GA100, Run the utility to enable wireless audio feature, then your can start to enjoy the convenience of Please connect your PC to AW-GA100 via 802.11 WLAN or 802.3 wired networks. For 802.11 WLAN setup, please refer to your PC WLAN adapter manual. The AW- GA100 defa…

Text truncated - open the document above for the full version.

Helen Zhao Subject: FW: FW: AzureWave Technologies, Inc., FCC ID: TLZ-GA200, Assessment NO.: AN06T6190, Notice#1 10/11/2006 From: kosame.lin [mailto:[email protected]]On Behalf Of application Sent: Tuesday, October 10, 2006 11:14 PM To: Helen Zhao Subject: Re:FW: AzureWave Technologies, Inc., FCC ID: TLZ-GA200, Assessment NO.: AN06T6190, Notice#1 Dear Helen: Question #1: This device is used in mobile configuration. But the test report does not include MPE calculation. Please update the test report. ANS:The test report had been revised, please see attachment. Question #2: This is for your information. FCC ID consists of Grantee code and Product code. For this application, "TLZ" is the grantee code, when you input product code, please enter "- GA200" only, not "TLZ-GA200", otherwise, the FCC ID will be "TLZTLZ-GA200". ANS: Thank you for your information, I'll be noticed in the future.

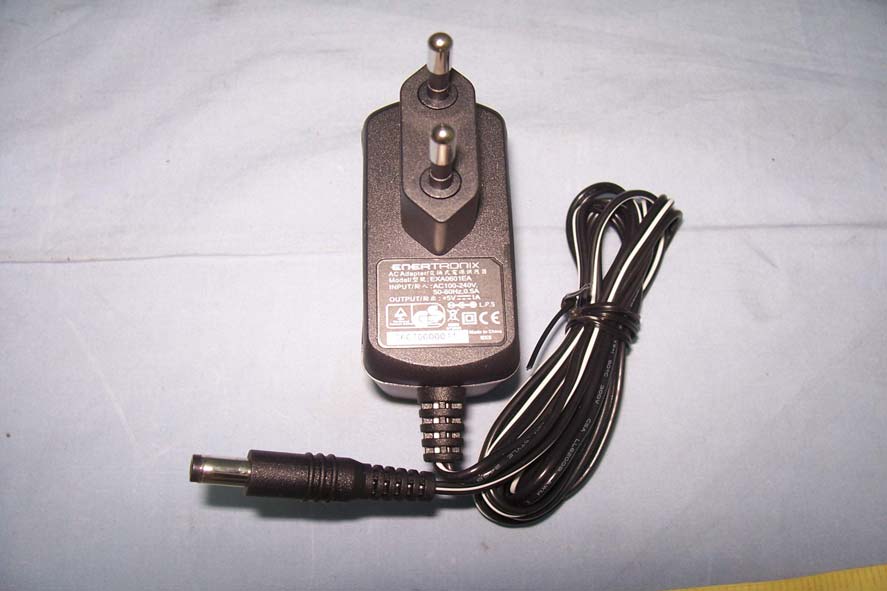

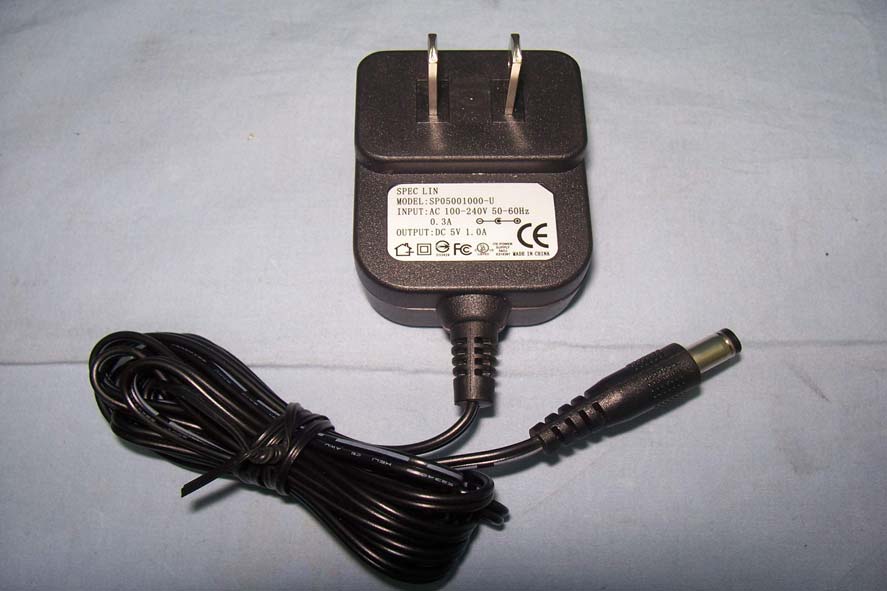

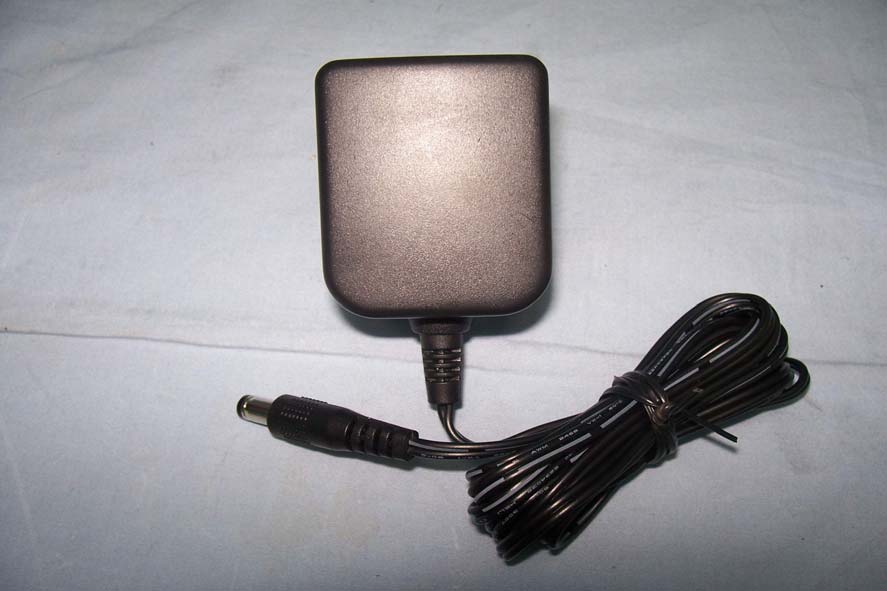

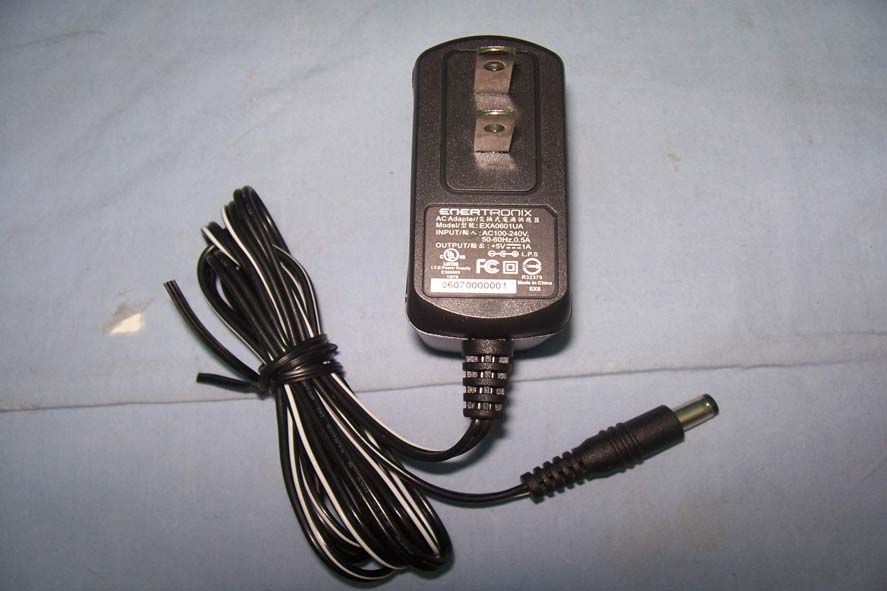

Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 1 Total Page: 11 Rev. 00 PHOTOGRAPHS OF EUT AW-GA200 Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 3 Rev. 00 Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 4 Rev. 00 AW-GA201 Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 5 Rev. 00 Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 6 Rev. 00 Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 7 Rev. 00 Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 8 Rev. 00 EXA0604UA Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 9 Rev. 00 SP05001000-U Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 10 Rev. 00 SP05001000-E Compliance Certification Services Inc. Report No: 60713102 Date of Issue: July 24, 2006 Page 11 Rev. 00 EXA0601EA

Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 1 Total Page: 12 Rev. 00 PHOTOGRAPHS OF EUT AW-GA200 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 7 Rev. 00 AW-GA201 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 9 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 10 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 11 Rev. 00 Compliance Certification Services Inc. Report No.: 60816008 Date of Issue: August 30, 2006 Page 12 Rev. 00

1 2 3 4 5 6 7 8 SGS Test Report Product：RF Antenna Contents No Description Report No. Page 1 Cable RG-178 Cable F690501/LF-CTS500034 F690501/LF-CTS500035 F690501/LF-CTSGP06-0418 F690501/LF-CTSGP05-5552 P.10~19 2 Antenna BodyTPE EL-630 GZSCR050640653/LP P.20~21 3 Antenna BasePC L-1250Z GZSCR050640656/LP P.22~23 4 Antenna BasePBT SH533383/CHEM P.24~25 5 Rivet Brass , Zn Plated GZML060201325 SZTYR050305623/LP P.26~28 6 Connector SMA Plug Reverse SH517723/CHEM GZML060201325 GZSCR050421403/LP 2054827/EC 2054838/EC P.29~40 7 Ground Tube Brass ; Tin Plated GZ0602013169/CHEM GZSCR051191692/LP P.41~43 Result for RoHS：PASS 9 10 11 12 13 Page 1 of 3Date: January 11, 2006 Test Report No. F690501/LF-CTSGP06-0418 BOGO CHEMICAL CORPORATION 123-4 Samsung-dong Gangnam-gu SEOUL Korea To: The following merchandise was submitted and identified by the client as : For further details, please refer to following page(s) Test Performed: SGS Testing Korea tested the sample(s) selected by applicant with following results Test Results : Received Date: January 06, 2006 Commodity: AP-210 (DAIKIN) SGS File No.: GP06-0418 Test Performing Date: January 09, 2006 SGS Testing Korea Co. Ltd. Jeff Jang / Technical MgrJason Han / Lab Director Brendan Lee Monet Jeong Jully Oh Jerry Jung /Testing Person This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. 14 Page 2 of 3Date: January 11, 2006 Test Report No. F690501/LF-CTSGP06-0418 Sample No. : GP06-0418.001 Style/Item No.: N/A Sample Description: AP-210 (DAIKIN) Material is PFA RESIN Comments: Heavy Metals Test ItemsUnitTest MethodMDLResults 0.5US EPA 3050B(1996), US EPA 6010B(1996) mg/kg Cadmium(Cd)N.D. 5US EPA 3050B(1996), US EPA 6010B(1996) mg/kg Lead (Pb)N.D. 2US EPA 3052(1996), US EPA 6010B(1996) mg/kg Mercury (Hg)N.D. 1US EPA 3060A(1996), US EPA 7196A(1992) mg/kg Hexavalent Chromium (Cr VI)N.D. Flame Retardants-PBBs/PBDEs Test ItemsUnitTest MethodMDLResults 5US EPA 3540C, GC/MS mg/kg MonobromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg DibromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg TribromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg TetrabromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg HeptabromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg HexabromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg PentabromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg OctabromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg NonabromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg DecabromobiphenylN.D. 5US EPA 3540C, GC/MS mg/kg Monobromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Dibromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Tribromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Tetrabromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Heptabromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Hexabromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Pentabromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Octabromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Nonabromobiphenyl etherN.D. 5US EPA 3540C, GC/MS mg/kg Decabromobiphenyl ether6.10 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. N.D. = Not detected.(<MDL) ppm = mg/kg MDL = Method Detection Limit "-" = No Regulation ** = Qualitative analysis (No Unit) Negative = Undetectable / Positive = Detectable NOTE: 15 Page 3 of 3Date: January 11, 2006 Test Report No. F690501/LF-CTSGP06-0418 Picture of Sample as Received: *** End *** This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. N.D. = Not detected.(<MDL) ppm = mg/kg MDL = Method Detection Limit "-" = No Regulation ** = Qualitative analysis (No Unit) Negative = Undetectable / Positive = Detectable NOTE: 16 Page 1 of 3Date: January 04, 2006 Test Report No. F690501/LF-CTSGP05-5552 BOGO CHEMICAL CORPORATION 123-4 Samsung-dong Gangnam-gu SEOUL Korea To: The following merchandise was submitted and identified by the client as : For further details, please refer to following page(s) Test Performed: SGS Testing Korea tested the sample(s) selected by applicant with following results Test Results : Received Date: January 02, 2006 Commodity: NP-21 (DAIKIN) SGS File No.: GP05-5552 Test Performing Date: January 03, 2006 SGS Testing Korea Co. Ltd. Jeff Jang / Technical MgrJason Han / Lab Director This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. 17 Page 2 of 3Date: January 04, 2006 Test Report No. F690501/LF-CTSGP05-5552 Sample No. : GP05-5552.001 Style/Item No.: N/A Sample Description: NP-21 (DAIKIN) Material is FEP Resin. Comments: Heavy Metals Test ItemsUnitTest MethodMDLResults 0.5EN 1122(2001), US EPA 6010B(1996) mg/kg Cadmium(Cd)N.D. 5US EPA 3050B(1996), US EPA 6010B(1996) mg/kg Lead (Pb)N.D. 2US EPA …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60816108-RP1 FCC ID: TLZ-GA200 Date of Issue: August 28, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 64 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Audio AP Trade Name: AzureWave Model Number: AW-GA200; AW-GA201 Issued to AzureWave Technologies, Inc. 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 60816108-RP1 FCC ID: TLZ-GA200 Date of Issue: August 28, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................4 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........ ...............................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................23 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................32 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................37 7.6 SPURIOUS EMISSIONS ................................................................................................................37 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................59 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................62 Compliance Certification Services Inc. Report No: 60816108-RP1 FCC ID: TLZ-GA200 Date of Issue: August 28, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: AzureWave Technologies, Inc. 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231, R.O.C. Equipment Under Test: Wireless Audio AP Trade Name: AzureWave Model Number: AW-GA200; AW-GA201 Date of Test: Aug. 19 ~ 21, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Susan Su Deputy Manager of Linkou Laboratory Section Manager of Linkou Laboratory Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 60816108-RP1 FCC ID: TLZ-GA200 Date of Issue: August 28, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Audio AP Trade Name AzureWave Model Number AW-GA200; AW-GA201 Model Discrepancy All the above models are identical except the flash memory capacity. ENERTRONIX Model EXA0601U…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60816108-RP1 FCC ID: TLZ-GA200 Date of Issue: August 28, 2006 Page 61 Rev. 00 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No: 60816108-RP1 FCC ID: TLZ-GA200 Date of Issue: August 28, 2006 Page 62 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No: 60816108-RP1 FCC ID: TLZ-GA200 Date of Issue: August 28, 2006 Page 63 Rev. 00 Powerline Conducted Emissions Setup Photos
