TLZ-GA821IEEE 802.11 b/g PCI-Express Wireless Module

AW-GA821 802.11 b/g PCI Express Wireless Module User Manual ii COPYRIGHT AzureWave Technologies, Inc. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of AzureWave Technologies, Inc. DISCLAIMER AzureWave provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. AzureWave may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS AzureWave is a trademark of AzureWave Technologies, Inc. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document provides detailed user guidelines to provide AzureWaveIEEE 802.11 b/g PCI-Express Wireless Moduleoperation and setting-up. Though every effort has been made to assure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your AzureWave representative for additional information that may help in the development process. iii Contents Safety statements............................................................................................................2-1 About this guide...............................................................................................................2-1 AW-GA800BTIEEE 802.11 b/g PCI-Express Wireless Modulespecification summary...............2-2 Chapter 1 Product Information........................................................................................2-2 1.1 Product overview.................................................................................................2-2 1.2 Features..............................................................................................................2-2 1.3 LED and antenna port.............................................................................................. 1.4 Supported network setup.....................................................................................2-3 1.4.1 Ad-Hoc mode.............................................................................................2-4 1.4.2 Infrastructure mode...................................................................................2-4 1.4.3 Software access point (Soft AP)..................................................................2-5 Chapter 2 Installation.....................................................................................................2-1 2.1 System requirements...........................................................................................2-1 2.2 Hardware Installation...........................................................................................2-1 Chapter 3 WiFi-AP Solo Wizard..........................................................錯誤! 尚未定義書籤。 3.1 Launch WiFi-AP Solo Wizard.................................................................................3-2 3.2 Wi-Setup Wizard Steps.........................................................................................3-3 3.3 Station Mode Configuration..................................................................................3-3 3.3.1 Configure Infrastructure type network.........................................................3-4 3.3.2 Build Ad-Hoc networking mode network......................................................3-5 3.4 Build Soft AP network..........................................................................................3-6 3.4.1 Normal User..................................................................錯誤! 尚未定義書籤。 3.4.2 Advanced User.........................................................................................3-11 Chapter 4 AsusWLAN: Wireless LAN Management GUI.....................................................4-1 4.1 How to Launch AsusWLAN....................................................................................4-3 4.2 Introduction of Main Window................................................................................4-3 4.3 Station mode.......................................................................................................4-6 4.3.1 Infrastructure and Ad-Hoc..........................................................................4-7 4.4 AP mode...........................................................................................................4-12 4.5 Windows Zero Configuration...............................................................................4-15 4.5.1 Swap from AsusWLAN to Windows Zero Configuration................................4-15 4.5.2 Rollback from Windows Zero Configuration to AsusWLAN...........................4-16 Appendix A: Mapping of country and channel plan.........................................................4-1 Appendix B: Q&A.........................................................................................................4-4 Appendix C: Release History.........................................................................................4-5 2-1 Safety statements FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. About this guide The user guide contains the information you need to install and configure your AzureWave802.11 b/g PCI Express WLAN Module. Guide organization This guide contains the following chapters: l Chapter 1: Product Information This chapter describes the general functionality, features and configuration modes of AzureWave802.11 b/g PCI Express WLAN Module. l Chapter 2: Installation It is recommen…

Text truncated - open the document above for the full version.

FCC ID: TLZ-GA821 Report No. RF951020H05 Modular Approval Request Letter Advance Data Technology Nov. 08, 2006 Dear Application Examiner, AzureWave Technologies, Inc.’s IEEE 802.11 b/g PCI-Express Wireless Module, FCC ID: TLZ-GA821, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2425. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The PCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AUSU_WL_BT_CON. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-GA821 Report No. RF951020H05 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

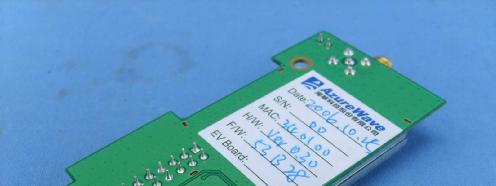

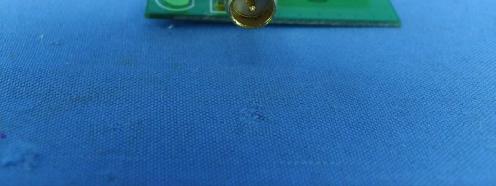

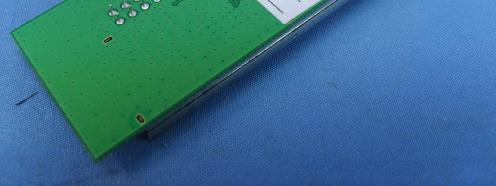

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID：TLZ-GA821 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 3 Page 4 Page 5 Antenna 1 Page 6 Antenna 2 Page 7 Antenna 3 Page 8 Antenna 4 Page 9 Page 10 Antenna 5 Page 11 Page 12 Antenna 6

FCC ID: TLZ-GA821 Report No. RF951020H05 Operational Description This device is an IEEE 802.11 b/g PCI-Express Wireless Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (IEEE 802.11 b/g PCI-Express Wireless Module) is powered by host equipment. The antennas used in this product are as below: No. Model No. Gain (dBi) Antenna Type Connector 1 13G018004000 2.3803 1/2λ Dipole RSMA 2 13G010067000 2.21 1/2λ Dipole RSMA 3 13G010067010 1.98 1/2λ Dipole RSMA 4 13G010071001 1 1/2λ Dipole RSMA 5 13G010071000 2.38 1/2λ Dipole RSMA 6 13-120001022 0.92 1/2λ Dipole RSMA The other instruction, please have a look at the users manual.

Report No.: SA951020H05 1 RF EXPOSURE REPORT REPORT NO.: SA951020H05 MODEL NO.: WUS-G09V, AW-GA821 version B FCC ID: TLZ-GA821 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA951020H05 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA951020H05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA951020H05 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.3803dBi or 1.729936 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 79.433 0.027 1.0 6 2437 94.406 0.032 1.0 11 2462 100.000 0.034 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 55.590 0.019 1.0 6 2437 142.889 0.049 1.0 11 2462 59.566 0.021 1.0

Report No.: RF951020H05 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF951020H05 MODEL NO.: AW-GA821, AW-GA821 version B RECEIVED: Oct. 20, 2006 TESTED: Oct. 24 to Nov. 03, 2006 ISSUED: Nov. 06, 2006 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951020H05 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................11 3.5 DESCRIPTION OF SUPPORT UNITS........................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST.........................................12 4 TEST TYPES AND RESULTS.....................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT..............................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................13 4.1.2 TEST INSTRUMENTS.................................................................................13 4.1.3 TEST PROCEDURES.................................................................................14 4.1.4 TEST SETUP..............................................................................................14 4.1.5 EUT OPERATING CONDITIONS................................................................15 4.1.6 TEST RESULTS..........................................................................................16 4.2 Radiated Emission Measurement................................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2 TEST INSTRUMENTS.................................................................................19 4.2.3 TEST PROCEDURES.................................................................................20 4.2.4 TEST SETUP..............................................................................................21 4.2.5 EUT OPERATING CONDITIONS................................................................21 4.2.6 TEST RESULTS..........................................................................................22 4.2.7 TEST RESULTS –DSSS.............................................................................23 4.2.8 TEST RESULTS – OFDM............................................................................30 4.3 6dB BANDWIDTH MEASUREMENT...........................................................37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................37 4.3.2 TEST INSTRUMENTS.................................................................................37 4.3.3 TEST PROCEDURE....................................................................................38 4.3.4 TEST SETUP..............................................................................................38 4.3.5 EUT OPERATING CONDITIONS................................................................38 4.3.6 TEST RESULTS –DSSS.............................................................................39 4.3.7 TEST RESULTS-OFDM..............................................................................42 4.4 MAXIMUM PEAK OUTPUT POWER...........................................................45 Report No.: RF951020H05 3 Report Format Version 2.0.5 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........45 4.4.2 TEST INSTRUMENTS.................................................................................45 4.4.3 TEST PROCEDURES.................................................................................46 4.4.4 TEST SETUP..............................................................................................46 4.4.5 EUT OPERATING CONDITIONS................................................................46 4.4.6 TEST RESULTS – DSSS............................................................................47 4.4.7 TEST RESULTS –OFDM.............................................................................48 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................49 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................49 4.5.2 TEST INSTRUMENTS.................................................................................49 4.5.3 TEST PROCEDURE....................................................................................50 4.5.4 TEST SETUP..............................................................................................50 4.5.5 EUT OPERATING CONDITIONS................................................................50 4.5.6 TEST RESULTS –DSSS.............................................................................51 4.5.7 TEST RESULTS –OFDM.............................................................................54 4.6 BAND EDGES MEASUREMENT................................................................57 4.6.1 LIMITS …

Text truncated - open the document above for the full version.

Report No.: RF951020H05 64 Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF951020H05 65 Report Format Version 2.0.5 Report No.: RF951020H05 66 Report Format Version 2.0.5 RADIATED EMISSION TEST (Below 1GHz) Report No.: RF951020H05 67 Report Format Version 2.0.5 Report No.: RF951020H05 68 Report Format Version 2.0.5 RADIATED EMISSION TEST (Above 1 GHz) Report No.: RF951020H05 69 Report Format Version 2.0.5
