FCC ID: TLZ-GM120 Report No. RF941020H04 Modular Approval Request Letter Advance Data Technology Nov. 18, 2005 Dear Application Examiner, AzureWave Technologies, Inc.’s Wireless Digital Media Adapter Module, FCC ID: TLZ-GM120, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2413. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The MiniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AR2413. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-GM120 Report No. RF941020H04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

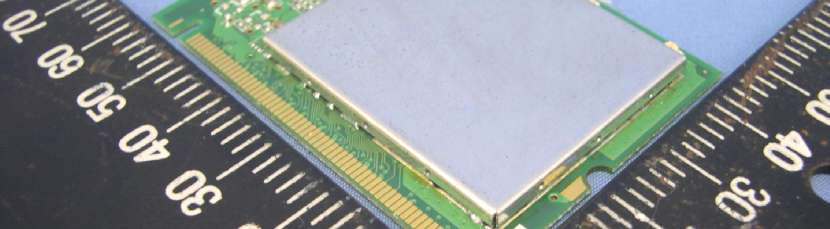

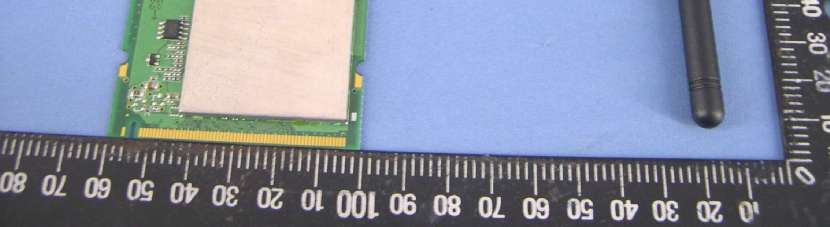

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Antenna 1 Page 2 EUT with Antenna 2 Page 3

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL (Fig. 1) FCC ID: TLZ-GM120

AzureWave Model:AW-GM120FCC ID:TLZ-GM120Wireless Digital Media Adapter ModuleAzureWave T echnologies,Inc Made in Taiwan

Page 4 Page 5 Page 6 Antenna 1 Page 7 Page 8 Antenna 2 Page 9

FCC ID: TLZ-GM120 Report No. RF941020H04 Operational Description This device is a Wireless Digital Media Adapter Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless Digital Media Adapter Module) is powered by host equipment. The antenna used in this product are as following: No.Gain (dBi)Antenna TypeAntenna Connector 13.0PIFAI-PEX 21.51/2 λ DipoleMHF The other instruction, please have a look at the users manual.

FCC ID: TLZ-GM120 Report No.: SA941020H04 1 RF EXPOSURE REPORT REPORT NO.: SA941020H04 MODEL NO.: AW-GM120 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1; FCC Part 1.1310 FCC Part 1.1307; FCC Part 2.1091 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: TLZ-GM120 Report No.: SA941020H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: TLZ-GM120 Report No.: SA941020H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: TLZ-GM120 Report No.: SA941020H04 4 6. Test Results 6.1 Antenna Gain No.Gain (dBi)Antenna TypeAntenna Connector 13.0PIFAI-PEX 21.51/2 λ DipoleMHF 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: (Antenna 1) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241257.411646220.0227892031.0 6243756.62392890.0224765231.0 11246257.016427230.0226323231.0 For Part 802.11b: (Antenna 2) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241257.411646220.016133521.0 6243756.62392890.015912161.0 11246257.016427230.0160224581.0 FCC ID: TLZ-GM120 Report No.: SA941020H04 5 For Part 802.11g: (Antenna 1) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241255.080769640.0218639751.0 6243754.200089040.0215143951.0 11246254.701596290.0217134651.0 For Part 802.11g: (Antenna 2) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241255.080769640.0154785091.0 6243754.200089040.0152310251.0 11246244.668359220.0125524681.0

FCC ID: TLZ-GM120 Report No.: RF941020H041Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941020H04 MODEL NO.: AW-GM120 RECEIVED: Oct. 20, 2005 TESTED: Oct. 24 to Nov. 12, 2005 ISSUED: Nov. 16, 2005 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 93 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 MRA ILAC FCC ID: TLZ-GM120 Report No.: RF941020H042Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS................................9 3.5DESCRIPTION OF SUPPORT UNITS........................................................10 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................10 4TEST TYPES AND RESULTS.....................................................................11 4.1CONDUCTED EMISSION MEASUREMENT..............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................11 4.1.2TEST INSTRUMENTS.................................................................................11 4.1.3TEST PROCEDURES.................................................................................12 4.1.4TEST SETUP..............................................................................................12 4.1.5EUT OPERATING CONDITIONS................................................................13 4.1.6TEST RESULTS..........................................................................................14 4.2RADIATED EMISSION MEASUREMENT...................................................16 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................16 4.2.2TEST INSTRUMENTS.................................................................................17 4.2.3TEST PROCEDURES.................................................................................18 4.2.4TEST SETUP..............................................................................................19 4.2.5EUT OPERATING CONDITIONS................................................................19 4.2.6TEST RESULTS (ANTENNA 1)...................................................................20 4.2.7TEST RESULTS (ANTENNA 2)...................................................................27 4.36dB BANDWIDTH MEASUREMENT...........................................................34 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................34 4.3.2TEST INSTRUMENTS.................................................................................34 4.3.3TEST PROCEDURE....................................................................................35 4.3.4TEST SETUP..............................................................................................35 4.3.5EUT OPERATING CONDITIONS................................................................35 4.3.6TEST RESULTS (ANTENNA 1)...................................................................36 4.3.7TEST RESULTS (ANTENNA 2)...................................................................42 4.4MAXIMUM PEAK OUTPUT POWER..........................................................48 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........48 4.4.2TEST INSTRUMENTS.................................................................................48 4.4.3TEST PROCEDURES.................................................................................49 4.4.4TEST SETUP..............................................................................................49 4.4.5EUT OPERATING CONDITIONS................................................................49 FCC ID: TLZ-GM120 Report No.: RF941020H043Report Format Version 2.0.4 4.4.6TEST RESULTS (ANTENNA 1)...................................................................50 4.4.7TEST RESULTS (ANTENNA 2)...................................................................52 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................54 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................54 4.5.2TEST INSTRUMENTS.................................................................................54 4.5.3TEST PROCEDURE....................................................................................55 4.5.4TEST SETUP..............................................................................................55 4.5.5EUT OPERATING CONDITIONS................................................................55 4.5.6TEST RESULTS (ANTENNA 1)...................................................................56 4.5.7TEST RESULTS (ANTENNA 2)...................................................................62 4.6BAND EDGES MEASUREMENT................................................................68 4.6.1LIMITS OF BAND EDGES MEASUREMENT..............................................68 4…

Text truncated - open the document above for the full version.

FCC ID: TLZ-GM120 Report No.: RF941020H0486Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: TLZ-GM120 Report No.: RF941020H0487Report Format Version 2.0.4 FCC ID: TLZ-GM120 Report No.: RF941020H0488Report Format Version 2.0.4 RADIATED EMISSION TEST (ANTENNA 1) FCC ID: TLZ-GM120 Report No.: RF941020H0489Report Format Version 2.0.4 FCC ID: TLZ-GM120 Report No.: RF941020H0490Report Format Version 2.0.4 RADIATED EMISSION TEST (ANTENNA 2) FCC ID: TLZ-GM120 Report No.: RF941020H0491Report Format Version 2.0.4
