TLZ-GU700802.11b/g USB 2.0 Mini-Card WLAN Module

AW-GU700 802.11b/g USB 2.0 Mini-Card WLAN Module User Guide ii COPYRIGHT AzureWave Technologies, Inc. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of AzureWave Technologies, Inc. DISCLAIMER AzureWave provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. AzureWave may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS AzureWave is a trademark of AzureWave Technologies, Inc. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document provides detailed user guidelines to provide AzureWave 802.11 b/g USB 2.0 Mini-Card WLAN Module operation and setting-up. Though every effort has been made to assure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your AzureWave representative for additional information that may help in the development process. iii Contents Safety statements...........................................................................................................2-1 About this guide..............................................................................................................2-1 AW-GU700 802.11 b/g USB2.0 Mini-Card WLAN Module specification summary..................2-2 Chapter 1 Product Information.......................................................................................2-2 1.1 Product overview................................................................................................2-2 1.2 Features.............................................................................................................2-3 1.3 LED and antenna port.............................................................錯誤! 尚未定義書籤。 1.4 Supported network setup....................................................................................2-3 1.4.1 Ad-Hoc mode............................................................................................2-4 1.4.2 Infrastructure mode..................................................................................2-4 1.4.3 Software access point (Soft AP).................................................................2-5 Chapter 2 Installation....................................................................................................2-1 2.1 System requirements..........................................................................................2-1 2.2 Hardware Installation..........................................................................................2-1 Chapter 3 Wi-Set Wizard...............................................................................................3-2 3.1 Launch Wi-Set Wizard.........................................................................................3-2 3.2 Wi-Setup Wizard Steps........................................................................................3-4 3.3 Station Mode Configuration.................................................................................3-4 3.3.1 Configure Infrastructure type network........................................................3-5 3.3.2 Build Ad-Hoc networking mode network.....................................................3-6 3.4 Build Soft AP network.........................................................................................3-8 3.4.1 Normal User..............................................................................................3-8 3.4.2 Advanced User.........................................................................................3-11 Chapter 4 RtWLAN: Wireless LAN Management GUI........................................................4-1 4.1 How to Launch RtWLAN......................................................................................4-2 4.2 Introduction of Main Window...............................................................................4-2 4.3 Station mode......................................................................................................4-6 4.3.1 Infrastructure and Ad-Hoc.........................................................................4-6 4.4 AP mode...........................................................................................................4-11 4.5 Windows Zero Configuration...............................................................................4-14 4.5.1 Swap from RtWLAN to Windows Zero Configuration...................................4-14 4.5.2 Rollback from Windows Zero Configuration to RtWLAN...............................4-15 Appendix A: Mapping of country and channel plan........................................................4-1 Appendix B: Q&A........................................................................................................4-2 Appendix C: Release History........................................................................................4-3 2-1 Safety statements FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. About this guide The user guide contains the information you need to install and configure your AzureWave 802.11 b/g USB WLAN Module. Guide organization This guide contains the following chapters: l Chapter 1: Product Information This chapter describes the general functionality, features and configuration modes of AzureWave 802.11 b/g USB WLAN Module. l Chapter 2: Installation It is recommended that use…

Text truncated - open the document above for the full version.

FCC ID: TLZ-GU700 Report No. RF950421H07 Mobile Modular Approval Request Letter Advance Data Technology May 18, 2006 Dear Application Examiner, AzureWave Technologies, Inc.’s 802.11b/g USB 2.0 Mini-Card WLAN Module, FCC ID: TLZ-GU700, would like to have your authorization as a mobile modular approval specific to the Notebook Computer Access Point...etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RTL8225. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The MiniPCIe interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is RTL8187. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-GU700 Report No. RF950421H07 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

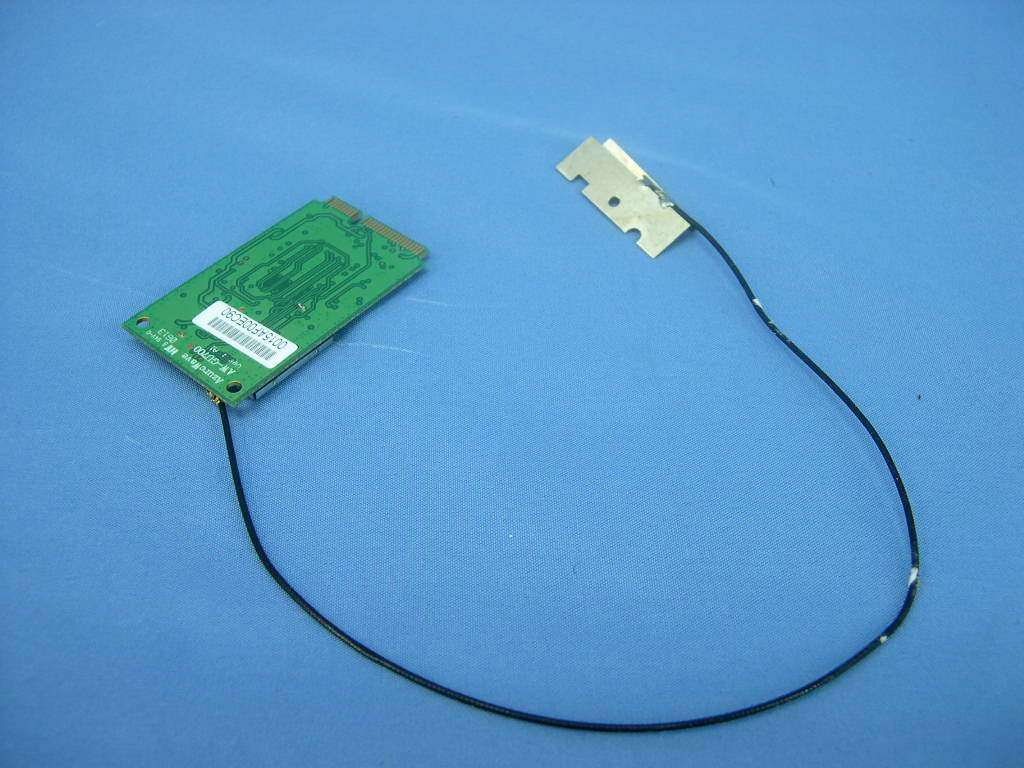

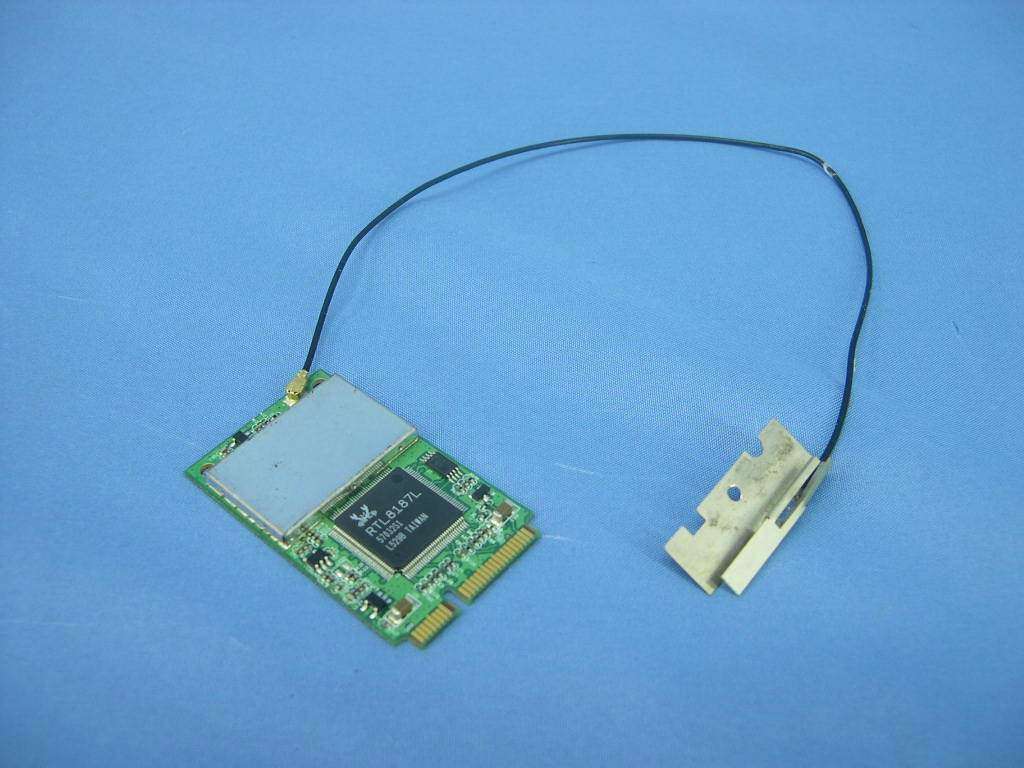

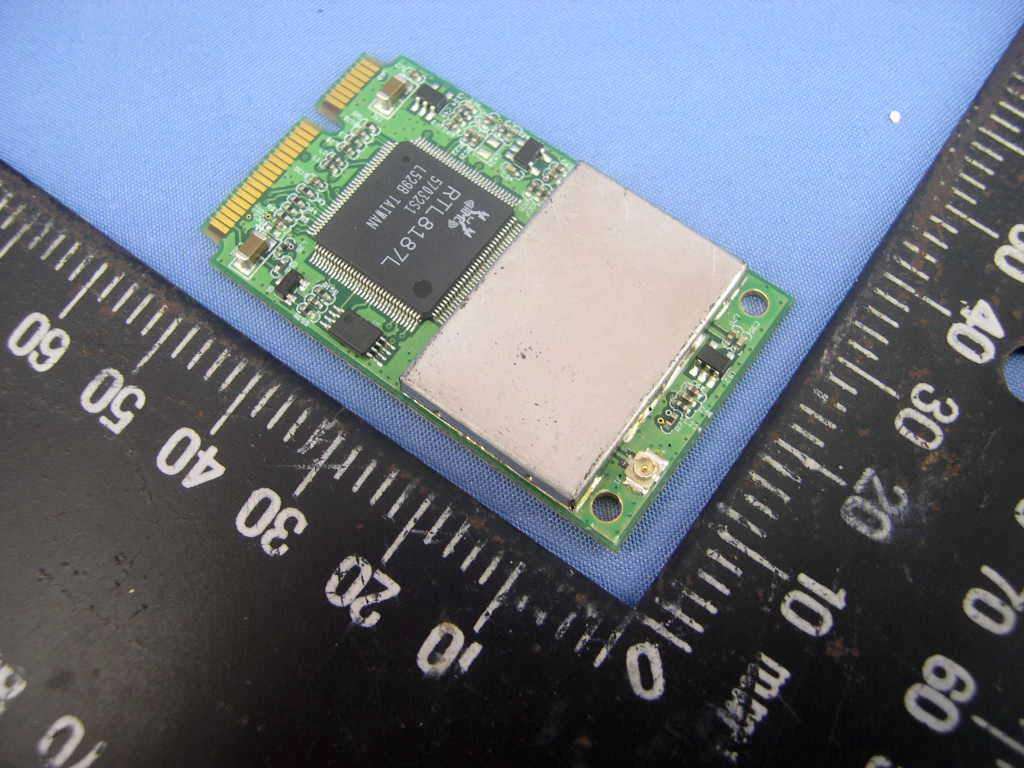

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Antenna 1 Page 2 EUT with Antenna 2 Page 3 Page 4 EUT with Antenna 3 Page 5 EUT with Antenna 4 Page 6 Page 7 EUT with Antenna 5 Page 8 EUT with Antenna 6 Page 9 Page 10 EUT with Antenna 7 Page 11 EUT with Antenna 8 Page 12 Page 13 EUT with Antenna 9 Page 14 Page 15

FCC ID ： TLZ-GU700 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

3.8cm 2.3cm AW-GU700 FCC ID:TLZ-GU700 201NY XXXXXXXX 201GZ XXXXXXXX IC:6100A-GU700

Page 16 Page 17 Page 18 Page 19 Antenna 1 Page 20 Page 21 Antenna 2 Page 22 Page 23 Antenna 3 Page 24 Page 25 Antenna 4 Page 26 Page 27

Page 28 Antenna 5 Page 29 Page 30 Antenna 6 Page 31 Page 32 Antenna 7 Page 33 Page 34 Antenna 8 Page 35 Page 36 Antenna 9 Page 37 Page 38

FCC ID: TLZ-GU700 Report No. RF950421H07 Operational Description This device is an 802.11b/g USB 2.0 Mini-Card WLAN Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g USB 2.0 Mini-Card WLAN Module) is powered by host equipment. There is one antenna provided to this EUT, and following nine different models could be chosen: ItemBrand nameModel nameAntenna TypeGain (dBi)Connector Type 1鴻呈(VSO)14-212-P60111PIFA0.46I-PEX 2鴻呈(VSO)82-101-01210110PIFA-0.31I-PEX 3鴻呈(VSO)82-101-01210120PIFA-1.55I-PEX 4惠貿(FVC)K05007001203PIFA-1.63I-PEX 5惠貿(FVC)K05007000403PIFA0.15I-PEX 6 Well Green Technology M560APIFA-1.8I-PEX 7鴻呈(VSO)82-101-01210080PIFA-0.22I-PEX 8鴻呈(VSO)82-101-01210070PIFA-0.22I-PEX 9 Well Green Technology SKM66WIPI01APIFA-1.67I-PEX From the above antenna, the Antenna 1 was selected as representative model for the test. The other instruction, please have a look at the users manual.

Report No.: SA950421H07 1 RF EXPOSURE REPORT REPORT NO.: SA950421H07 MODEL NO.: AW-GU700 FCC ID: TLZ-GU700 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950421H07 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950421H07 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950421H07 4 6. Test Results 6.1 Antenna Gain There is one antenna provided to this EUT, and following nine different models could be chosen: ItemBrand nameModel nameAntenna TypeGain (dBi)Connector Type 1鴻呈(VSO)14-212-P60111PIFA0.46I-PEX 2鴻呈(VSO)82-101-01210110PIFA-0.31I-PEX 3鴻呈(VSO)82-101-01210120PIFA-1.55I-PEX 4惠貿(FVC)K05007001203PIFA-1.63I-PEX 5惠貿(FVC)K05007000403PIFA0.15I-PEX 6 WELL GREEN TECHNOLOGY M560APIFA-1.8I-PEX 7鴻呈(VSO)82-101-01210080PIFA-0.22I-PEX 8鴻呈(VSO)82-101-01210070PIFA-0.22I-PEX 9 WELL GREEN TECHNOLOGY SKM66WIPI01APIFA-1.67I-PEX From the above antenna, the Antenna 1 was selected as representative model for the test and its data was recorded in this report. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412107.1520.0241.0 62437141.2540.0311.0 112462107.1520.0241.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412169.8240.0381.0 62437169.8240.0381.0 112462169.8240.0381.0

Report No.: RF950421H071Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950421H07 MODEL NO.: AW-GU700 RECEIVED: April 21, 2006 TESTED: April 21 to 25, 2006 ISSUED: April 26, 2006 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950421H072Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................8 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................9 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..............................11 3.5DESCRIPTION OF SUPPORT UNITS........................................................12 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................13 4TEST TYPES AND RESULTS.....................................................................14 4.1CONDUCTED EMISSION MEASUREMENT..............................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................14 4.1.2TEST INSTRUMENTS.................................................................................14 4.1.3TEST PROCEDURES.................................................................................15 4.1.4TEST SETUP..............................................................................................15 4.1.5EUT OPERATING CONDITIONS................................................................16 4.1.6TEST RESULTS..........................................................................................17 4.2RADIATED EMISSION MEASUREMENT...................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................19 4.2.2TEST INSTRUMENTS.................................................................................20 4.2.3TEST PROCEDURES.................................................................................21 4.2.4TEST SETUP..............................................................................................22 4.2.5EUT OPERATING CONDITIONS................................................................22 4.2.6TEST RESULTS..........................................................................................23 4.2.7TEST RESULTS - DSSS.............................................................................24 4.2.8TEST RESULTS - OFDM............................................................................31 4.36dB BANDWIDTH MEASUREMENT...........................................................38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................38 4.3.2TEST INSTRUMENTS.................................................................................38 4.3.3TEST PROCEDURE....................................................................................39 4.3.4TEST SETUP..............................................................................................39 4.3.5EUT OPERATING CONDITIONS................................................................39 4.3.6TEST RESULTS –DSSS..............................................................................40 4.3.7TEST RESULTS-OFDM..............................................................................43 4.4MAXIMUM PEAK OUTPUT POWER..........................................................46 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........46 4.4.2TEST INSTRUMENTS.................................................................................46 4.4.3TEST PROCEDURES.................................................................................47 4.4.4TEST SETUP..............................................................................................47 Report No.: RF950421H073Report Format Version 2.0.4 4.4.5EUT OPERATING CONDITIONS................................................................47 4.4.6TEST RESULTS – DSSS.............................................................................48 4.4.7TEST RESULTS –OFDM.............................................................................49 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................50 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................50 4.5.2TEST INSTRUMENTS.................................................................................50 4.5.3TEST PROCEDURE....................................................................................51 4.5.4TEST SETUP..............................................................................................51 4.5.5EUT OPERATING CONDITIONS................................................................51 4.5.6TEST RESULTS –DSSS..............................................................................52 4.5.7TEST RESULTS –OFDM.............................................................................55 4.6CONDUCTED EMISSION AND BAND EDGES MEASUREMENT..............58 4.6.1LIMITS OF CONDTCTED EMISSION AND …

Text truncated - open the document above for the full version.

Report No.: RF950421H0765Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950421H0766Report Format Version 2.0.4 RADIATED EMISSION TEST Report No.: RF950421H0767Report Format Version 2.0.4
