TLZ-NA830IEEE 802.11b/g/n USB Wireless Module

AW-NA830 802.11 n/b/g USB Wireless Module User Manual ii COPYRIGHT AzureWave Technologies, Inc. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of AzureWave Technologies, Inc. DISCLAIMER AzureWave provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. AzureWave may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS AzureWave is a trademark of AzureWave Technologies, Inc. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document provides detailed user guidelines to provide AzureWave 802.11 n/b/g USB WLAN Module operation and setting-up. Though every effort has been made to assure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your AzureWave representative for additional information that may help in the development process. iii Contents Safety statements.......................................................................................................... 2-1 About this guide ............................................................................................................ 2-1 AW-NA n/b/g USB WLAN Module specification summary ........................................................ Chapter 1 Product Information........................................................................................... 1.1 Product overview............................................................................................... 2-2 1.2 Features ........................................................................................................... 2-2 Chapter 2 Installation .................................................................................................. 2-1 2.1 System requirements ......................................................................................... 2-1 2.2 Hardware Installation......................................................................................... 2-1 Chapter 3 WiFi-AP Solo Wizard .......................................................................................... 3.1 Launch WiFi-AP Solo Wizard .................................................................................... 3.2 Wi-Setup Wizard Steps....................................................................................... 3-3 3.3 Station Mode Configuration ................................................................................ 3-3 3.3.1 Configure Infrastructure type network ....................................................... 3-4 3.3.2 Build Ad-Hoc networking mode network..................................................... 3-5 3.4 Build Soft AP network ........................................................................................ 3-6 3.4.1 Normal User ................................................................................................. 3.4.2 Advanced User....................................................................................... 3-10 Chapter 4 AsusWLAN: Wireless LAN Management GUI ......................................................... 4.1 How to Launch AsusWLAN................................................................................ 3-16 4.2 Introduction of Main Window............................................................................ 3-16 4.3 Station mode .................................................................................................. 3-19 4.3.1 Infrastructure and Ad-Hoc....................................................................... 3-20 4.4 AP mode.........................................................................................................3-25 4.5 Windows Zero Configuration............................................................................. 3-28 4.5.1 Swap from AsusWLAN to Windows Zero Configuration............................... 3-28 4.5.2 Rollback from Windows Zero Configuration to AsusWLAN .......................... 3-29 Appendix A: Mapping of country and channel plan ....................................................... 3-1 Appendix B: Q&A ...................................................................................................... 3-4 Appendix C: Release History....................................................................................... 3-5 2-1 Notice Safety statements FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. About this guide The user guide contains the information you need to install and configure your AzureWave802.11 n/b/g USB WLAN Module. Guide organization This guide contains the following chapters: z Chapter 1: Product Information This chapter describes the general functionality, features and configuration modes of AzureWave802.11 n/b/g USB WLAN Module. z Chapter 2: Installation It is recommended that users should read this chapter before installing both AzureWave802.11 n/b/g USB WLAN Module hardware and software. This chapter presents the systematic installation of AzureWave802.11 n/b/g USB WLAN Module and antenna, utilities and driver on the support CD. z Chapter 3: W-Set WizardSetting up This chapter shows you the setup of wireless network in your office or home. Follow The step-by-step direction provided by EZ Setup WiFi-AP Solo Wizard, you can have your own wireless local area network up and running very quickly. z Chapter 4: So…

Text truncated - open the document above for the full version.

FCC ID: TLZ-NA830 Report No. RF960612H01 Modular Approval Request Letter Advance Data Technology July 25, 2007 Dear Application Examiner, AzureWave Technologies, Inc. IEEE 802.11 b/g/n USB Wireless Module, FCC ID: TLZ-NA830, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT2770. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.2VDC powered. The USB interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is RT9179A. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-NA830 Report No. RF960612H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

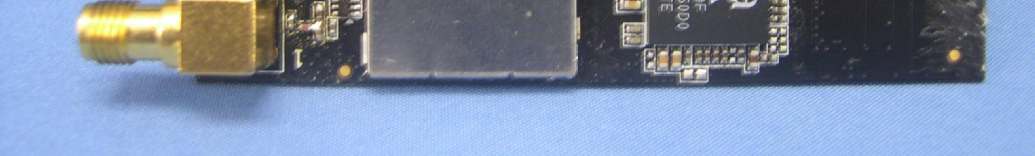

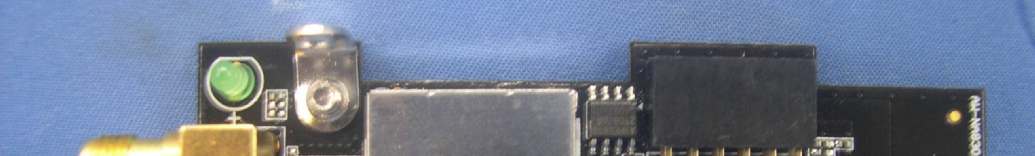

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID：TLZ-NA830 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 5 Page 6 Page 7 Antenna Model No.: 13G018004000 Page 8 Antenna Model No.: 13G010067000 Page 9 Antenna Model No.: 13G010067010 Page 10 Antenna Model No.: 13G010071001 Page 11 Page 12 Antenna Model No.: 13G010071000 Page 13 Page 14 Antenna Model No.: 13-120001022

FCC ID: TLZ-NA830 Report No. RF960612H01 Operational Description This device is an IEEE 802.11 b/g/n USB Wireless Module, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. 1. There are six antennas provided to this EUT, please refer to the following table: No. Brand Name Model No. Antenna Type Gain (dBi) Antenna Connector 1 GoldenBridege 13G018004000 1/2λ Dipole 2.3803 RSMA 2 INPAQ 13G010067000 1/2λ Dipole 2.21 RSMA 3 INPAQ 13G010067010 1/2λ Dipole 1.98 RSMA 4 INPAQ 13G010071001 1/2λ Dipole 1 RSMA 5 GoldenBridege 13G010071000 1/2λ Dipole 2.38 RSMA 6 GoldenBridege 13-120001022 1/2λ Dipole 0.92 RSMA From the above antennas, model: 13G018004000 was selected as representative model for the test and its data was recorded in this report. 2. The EUT incorporates a MISO function with 802.11b, 802.11g, draft 802.11n. Physically, the card provides one completed transmit and two receivers. 3. The EUT is 1 * 2 spatial MISO without beam forming function. The antenna configuration is one transmitter antenna and two receiver antennas, as there are 2 dipole antennas. Spatial multiplexing modes for simultaneous transmission using 1 antenna, and for simultaneous receiver using 2 antennas. 4. The EUT complies with draft 802.11n standards and backwards compatible with 802.11b, 802.11g products. 5. The EUT operates in the 2.4GHz frequency spectrum with data rate up to 150Mbps. 6. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual.

Report No.: SA960612H01 1 RF EXPOSURE REPORT REPORT NO.: SA960612H01 MODEL NO.: AW-NA830 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960612H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960612H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960612H01 4 6. Test Results 6.1 Antenna Gain There are six antennas provided to this EUT, please refer to the following table: No. Brand Name Model No. Antenna Type Gain (dBi) Antenna Connector 1 GoldenBridege 13G018004000 1/2λ Dipole 2.3803 RSMA 2 INPAQ 13G010067000 1/2λ Dipole 2.21 RSMA 3 INPAQ 13G010067010 1/2λ Dipole 1.98 RSMA 4 INPAQ 13G010071001 1/2λ Dipole 1 RSMA 5 GoldenBridege 13G010071000 1/2λ Dipole 2.38 RSMA 6 GoldenBridege 13-120001022 1/2λ Dipole 0.92 RSMA From the above antennas, model: 13G018004000 was selected as representative model for the test and its data was recorded in this report. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 89.125 0.031 1.0 6 2437 112.202 0.039 1.0 11 2462 65.615 0.023 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 56.234 0.019 1.0 6 2437 107.152 0.037 1.0 11 2462 52.119 0.018 1.0 Report No.: SA960612H01 5 DRAFT 802.11n (20MHz) OFDM modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 65.615 0.023 1.0 6 2437 107.152 0.037 1.0 11 2462 52.119 0.018 1.0 DRAFT 802.11n (40MHz) OFDM modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 39.811 0.014 1.0 4 2437 93.325 0.032 1.0 7 2452 50.119 0.017 1.0

Report No.: RF960612H01 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960612H01 MODEL NO.: AW-NA830 RECEIVED: June 12, 2007 TESTED: June 20 to 28, 2007 ISSUED: July 19, 2007 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 87 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960612H01 2 Report Format Version 2.0.6 TABLE OF CONTENTS 1. CERTIFICATION.........................................................................................4 2. SUMMARY OF TEST RESULTS.................................................................5 3. GENERAL INFORMATION..........................................................................6 3.1 GENERAL DESCRIPTION OF EUT.......................................................6 3.2 DESCRIPTION OF TEST MODES.........................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................11 3.4 DESCRIPTION OF SUPPORT UNITS..................................................12 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................12 4. TEST TYPES AND RESULTS...................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT........................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................13 4.1.2 TEST INSTRUMENTS..........................................................................13 4.1.3 TEST PROCEDURES..........................................................................14 4.1.4 DEVIATION FROM TEST STANDARD.................................................14 4.1.5 TEST SETUP.......................................................................................15 4.1.6 EUT OPERATING CONDITIONS.........................................................15 4.1.7 TEST RESULTS...................................................................................16 4.2 RADIATED EMISSION MEASUREMENT.............................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................18 4.2.2 TEST INSTRUMENTS..........................................................................19 4.2.3 TEST PROCEDURES..........................................................................20 4.2.4 DEVIATION FROM TEST STANDARD.................................................20 4.2.5 TEST SETUP.......................................................................................21 4.2.6 EUT OPERATING CONDITIONS.........................................................21 4.2.7 TEST RESULTS...................................................................................22 4.3 6dB BANDWIDTH MEASUREMENT....................................................51 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................51 4.3.2 TEST INSTRUMENTS..........................................................................51 4.3.3 TEST PROCEDURE.............................................................................51 4.3.4 DEVIATION FROM TEST STANDARD.................................................51 4.3.5 TEST SETUP.......................................................................................52 4.3.6 EUT OPERATING CONDITIONS.........................................................52 4.3.7 TEST RESULTS...................................................................................53 Report No.: RF960612H01 3 Report Format Version 2.0.6 4.4 MAXIMUM PEAK OUTPUT POWER....................................................61 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....61 4.4.2 INSTRUMENTS....................................................................................61 4.4.3 TEST PROCEDURES..........................................................................61 4.4.4 DEVIATION FROM TEST STANDARD.................................................61 4.4.5 TEST SETUP.......................................................................................62 4.4.6 EUT OPERATING CONDITIONS.........................................................62 4.4.7 TEST RESULTS...................................................................................63 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................65 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.............65 4.5.2 TEST INSTRUMENTS..........................................................................65 4.5.3 TEST PROCEDURE.............................................................................65 4.5.4 DEVIATION FROM TEST STANDARD.................................................65 4.5.5 TEST SETUP.......................................................................................66 4.5.6 EUT OPERATING CONDITION............................................................66 4.5.7 TEST RESULTS...................................................................................67 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT........75 4.6.1 LIMITS OF condtcted emission and BAND EDGES MEASUREMENT.75 4.6.2 TEST INSTRUMENTS..........................................................................75 4.6.3 TEST PROCEDURE.............................................................................75 4.6.4 DEVIATION FROM TEST STANDARD.................................................76 4.6.5 EUT OPERATING CONDITION..............................................…

Text truncated - open the document above for the full version.

Report No.: RF960612H01 51 Report Format Version 2.0.6 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 23, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100kHz RBW and 100kHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 4.3.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF960612H01 52 Report Format Version 2.0.6 4.3.5 TEST SETUP 4.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. SPECTRUM ANALYZER EUT Report No.: RF960612H01 53 Report Format Version 2.0.6 4.3.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 11.97 0.5 PASS 6 2437 12.33 0.5 PASS 11 2462 12.33 0.5 PASS CH1 Report No.: RF960612H01 54 Report Format Version 2.0.6 CH6 CH11 Report No.: RF960612H01 55 Report Format Version 2.0.6 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 16.56 0.5 PASS 6 2437 16.56 0.5 PASS 11 2462 16.56 0.5 PASS CH1 Report No.: RF960612H01 56 Report Format Version 2.0.6 CH6 CH11 Report No.: RF960612H01 57 Report Format Version 2.0.6 DRAFT 802.11n (20MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 17.73 0.5 PASS 6 2437 17.73 0.5 PASS 11 2462 17.73 0.5 PASS CH1 Report No.: RF960612H01 58 Report Format Version 2.0.6 CH6 CH11 Report No.: RF960612H01 59 Report Format Version 2.0.6 DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2422 36.64 0.5 PASS 4 2437 36.48 0.5 PASS 7 2452 36.48 0.5 PASS CH1 Report No.: RF960612H01 60 Report Format Version 2.0.6 CH4 CH7 Report No.: RF960612H01 61 Report Format Version 2.0.6 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 23, 2007 Agilent SIGNAL GENERATOR E8257C MY43320668 Dec. 28, 2007 TEKTRONIX OSCILLOSCOPE TDS380 B016335 July 14, 2007 NARDA DETECTOR 4503A FSCM99899 NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF960612H01 62 Report Format Version 2.0.6 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR Report No.: RF960612H01 63 Report Format Version 2.0.6 4.4.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 89.125 19.50 30 PASS 6 2437 112.202 20.50 30 PASS 11 2462 65.615 18.17 30 PASS 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 56.234 17.50 30 PASS 6 2437 107.152 20.30 30 PASS 11 2462 52.119 17.17 30 PASS Report No.: RF960612H01 64 Report Format Version 2.0.6 DRAFT 802.11n (20MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 65.615 18.17 30 PASS 6 2437 107.152 20.30 30 PASS 11 2462 52.119 17.17 30 PASS DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 39.811 16.00 30 PASS 6 2437 93.325 19.70 30 PASS 11 2462 50.119 17.00 30 PASS Report No.: RF960612H01 65 Report Format Version 2.0.6 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spe…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
