TLZ-NB086IEEE 802.11b/g/n WIFI/BT Combo slim module

AW-NB086 Product name： WIFI/ BT Combo slim module © 2000–2011 by Azurewave Technologies. Inc.,. All rights reserved. Notice The information in this document has been carefully reviewed and is believed to be accurate. Nonetheless, this document is subject to change without notice, and Azurewave Technologies. Inc., assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the contained information, or to notify a person or organization of any updates. Azurewave reserves the right to make changes, at any time, in order to improve reliability, function or design and to attempt to supply the best product possible. Azurewave does not represent that products described herein are free from patent infringement or from any other third party right. No part of this document may be reproduced, adapted or transmitted in any form or by any means, electronic or mechanical, for any purpose, except as expressly set forth in a written agreement signed by Azurewave. Azurewave or its affiliates may have patents or pending patent applications, trademarks, copyrights, mask work rights or other intellectual property rights that apply to the ideas, material and information expressed herein. No license to such rights is provided except as expressly set forth in a written agreement signed by Azurewave. AZUREWAVE MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THE CONTENT OF THIS DOCUMENT. IN NO EVENT SHALL AZUREWAVE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL SPECULATORY OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. IN PARTICULAR, AZUREWAVE SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA TRANSMITTED OR OTHERWISE USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE OR DATA. AZUREWAVE SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE AS THEY MIGHT OTHERWISE APPLY TO THIS DOCUMENT AND TO THE IDEAS, MATERIAL AND INFORMATION EXPRESSED HEREIN. Document Conventions Text Conventions bold Bold type within paragraph text indicates commands, file names, directory names, paths, output, or returned values. Example: The DK_Client package will not function unless you use the wdreg_install batch file. italic Within commands, italics indicate a variable that the user must specify. Example: mem_alloc size_in_bytes Titles of manuals or other published documents are also set in italics. Courier The Courier font indicates output or display. Example: Error:Unable to allocate memory for transfer! Menu The Menu character tag is used for menu items. Example: Choose Edit > Copy. [ ] Within commands, items enclosed in square brackets are optional parameters or values that the user can choose to specify or omit. { } Within commands, items enclosed in braces are options from which the user must choose. | Within commands, the vertical bar separates options. ... An ellipsis indicates a repetition of the preceding parameter. > The right angle bracket separates successive menu selections. Example: Start > Programs > DK > wdreg_install. Notices NOTE: This message denotes neutral or positive information that calls out important points to the text. A note provides information that may apply only in special cases. Azurewave Technologies. Inc., • iii COMPANY CONFIDENTIAL January 2011 Revision History Revision Description of Changes Aug 2011 Initial Release Azurewave Technologies. Inc., 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Contents Introduction .......................................................................................................... 8 System Requirements .................................................................................... 8 Profile Management ............................................................................................. 8 Create or Modify a Configuration Profile .................................................... 8 Remove a Configuration Profile ................................................................... 9 Auto Profile Selection Management.................................................................... 9 Switching to a Different Configuration Profile ................................................ 10 Import and Export Profiles ................................................................................. 10 Importing a Profile .............................................................................................. 10 Exporting a Profile .............................................................................................. 10 TCP/IP Configuration ....................................................................................... 10 Configuring the TCP/IP Address for the network device: ................................ 10 General Tab......................................................................................................... 11 Advanced Tab..................................................................................................... 11 Security Tab ........................................................................................................ 12 Using EAP-TLS Security.............................................................................. 13 Using EAP-TTLS Security ........................................................................... 13 Using PEAP (EAP-GTC) Security ............................................................... 14 Using PEAP-MSCHAP V2 Security............................................................ 15 Using LEAP Security ................................................................................... 16 Configuring LEAP ............................................................................................... 16 Pre-Shared Encryption Keys..........................…

Text truncated - open the document above for the full version.

Azurewave Technologies. Inc. FCC ID.: TLZ-NB086 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Tel : 886-2-5599-5805 Federal Communications Commission Aug. 15 , 2011 Authorization and Evaluation Division ATTESTATION FCC ID: TLZ-NB086 Product: IEEE 802.11b/g/n WIFI/ BT Combo slim module Model: AW-NB086 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Mr Ivan Chen / Manager Azurewave Technologies. Inc.

Azurewave Technologies. Inc. 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 TEL No: 886-2-5599-5805 FAX No.: 886-2-6628-9666 Attestation for FCC Declaration of Conformity FCC ID: TLZ-NB086 Data: Aug. 15, 2011 Please be notified that we, the undersigned, Azurewave Technologies. Inc. .declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001. (118059R-RFUSP37V02, 118059R-RFUSP37V02-A ) Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Mr Ivan Chen / Manager Azurewave Technologies. Inc. Tel: 886-2-5599-5805 Fax: 886-2-6628-9666 Email: [email protected]

Azurewave Technologies. Inc. FCC ID.: TLZ-NB086 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Tel : 886-2-5599-5805 Azurewave Technologies. Inc. 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Tel : 886-2-5599-5805 Fax: 886-2-6628-9666 Federal Communications Commission Aug. 15 , 2011 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (AW-NB086) Schem Block Diagram : (AW-NB086) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mr Ivan Chen / Manager Azurewave Technologies. Inc.

RF_160, Issue 02 Azurewave Technologies. Inc. Declaration of Authorization We Name: Azurewave Technologies. Inc. Address: 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 City: TAIPEI ............................................................... . Country: TAIWAN ..................................................................... . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: IEEE 802.11b/g/n WIFI/ BT Combo slim module Type designation: AW-NB086 Trademark: Azurewave on our behalf. Date: ...... 2011/08/15 ...... .. City: ...... TAIPEI ............... .. Name: ...... Mr Ivan Chen ...... .. (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Modular Approval Request FCC (per DA 00-1407) FCC ID: TLZ-NB086 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, it is integrated in Chip AR9485/AR3012 3. The modular transmitter must have its own power supply regulation. The EUT has power supply regulation, it is integrated in Chip AR9485/AR3012 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labelled with its own FCC ID number 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): _ Mr Ivan Chen ____ Date: _______________ Signature:

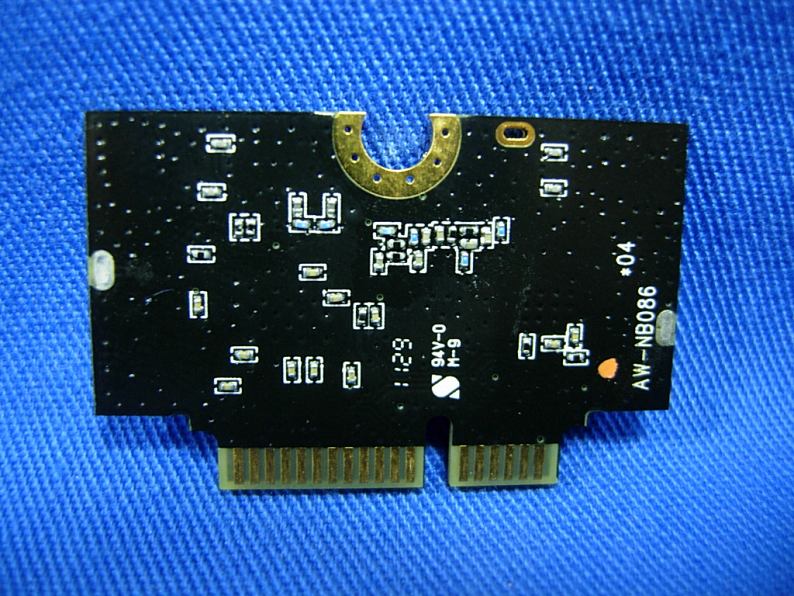

Report No.: 118059R-RFUSP43V01 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Azurewave Technologies. Inc. FCC ID.: TLZ-NB086 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Tel : 886-2-5599-5805 FCC ID Label The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Azurewave Technologies. Inc. FCC ID.: TLZ-NB086 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Tel : 886-2-5599-5805 FCC ID Label The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Report No.: 118059R-RFUSP43V01 Page : 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 118059R-RFUSP43V01 Page : 3 of 7 (5) EUT Photo (INPAQ/ WA-M-LA-03-007) (6) EUT Photo (INPAQ/ WA-M-LA-03-007) Report No.: 118059R-RFUSP43V01 Page : 4 of 7 (7) EUT Photo (INPAQ/ WA-M-LA-03-007) (8) EUT Photo (INPAQ/ WA-M-LA-03-007) Report No.: 118059R-RFUSP43V01 Page : 5 of 7 (9) EUT Photo (ACON/ APP6P-700597) (10) EUT Photo (ACON/ APP6P-700597) Report No.: 118059R-RFUSP43V01 Page : 6 of 7 (11) EUT Photo (ACON/ APP6P-700598) (12) EUT Photo (ACON/ APP6P-700598) Report No.: 118059R-RFUSP43V01 Page : 7 of 7 (13) EUT Photo (INPAQ / WA-F-LA-04-001) (14) EUT Photo (INPAQ / WA-F-LA-04-002)

Report No. 118059R-RFUSP43V01 Page: 7 of 74 1.2. Operational Description The EUT is an IEEE 802.11b/g/n WIFI/ BT Combo slim module with built-in 2.4GHz Bluetooth 4.0/3.0HS and V2.0+EDR transceiver. The number of the channels is 79 in 2402-2480MHz. The device adapts the frequency hopping spread spectrum modulation. The antenna is PIFA antenna and provides diversity function to improve the receiving function. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals Frequency hopping spread spectrum systems are not required to employ all available hopping channels during each transmission. The transmitter is presented with a continuous data stream. In addition, a system employing short transmission bursts must comply with the definition of a frequency hopping system and must distribute its 79 channels and over the minimum number of hopping channels (75 channels). The incorporation of intelligence within a frequency hopping spread spectrum system that permits the system to recognize other users within the spectrum band so that it individually and independently chooses and adapts its hopsets to avoid hopping on occupied channels is permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. The Main antenna is for WLAN with TX/RX mode, the Aux antenna is for WLAN RX mode and BT TX/RX function.

Report No. 118059R-RFUSP43V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name IEEE 802.11b/g/n WIFI/ BT Combo slim module Model No. AW-NB086 FCC ID TLZ-NB086 Applicant Azurewave Technologies. Inc. Address 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Date of Receipt July 28, 2011 Date of Declaration Aug. 11, 2011 Report No. 118059R-RFUSP43V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 118059R-RFUSP43V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 118059R-RFUSP43V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : IEEE 802.11b/g/n WIFI/ BT Combo slim module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.59 dBi in logarithm scale. 1Mbps (GFSK) Output Power Into Antenna & RF Exposure Evaluation Distance (3.59dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 00 2402.00 1.3002 0.000591 39 2441.00 1.5382 0.000699 78 2480.00 1.9011 0.000864 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. 3Mbps (8DPSK) Output Power Into Antenna & RF Exposure Evaluation Distance (3.59 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 00 2402.00 1.8155 0.000826 39 2441.00 2.2751 0.001035 78 2480.00 2.9648 0.001348 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 118059R-RFUSP43V01 Page: 1 of 74 Test Report Product Name IEEE 802.11b/g/n WIFI/ BT Combo slim module Model No. AW-NB086 FCC ID. TLZ-NB086 Applicant Azurewave Technologies. Inc. Address 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Date of Receipt July 28, 2011 Issued Date Aug. 11, 2011 Report No. 118059R-RFUSP43V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 118059R-RFUSP43V01 Page: 2 of 74 Test Report Certification Issued Date: Aug. 11, 2011 Report No.: 118059R-RFUSP43V01 Product Name IEEE 802.11b/g/n WIFI/ BT Combo slim module Applicant Azurewave Technologies. Inc. Address 8F.,No.94, Baozhong Rd.,Xiandian,Taipei,Taiwan 231 Manufacturer Azurewave Technologies. Inc. Model No. AW-NB086 FCC ID. TLZ-NB086 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/ 60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Sabrina Tsai ) Approved By : (Manager / Vincent Lin ) Report No. 118059R-RFUSP43V01 Page: 3 of 74 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit .....................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................17 4.1. Test Equipment ......................................................................................................................................17 4.2. Test Setup ..............................................................................................................................................17 4.3. Limits.....................................................................................................................................................18 4.4. Test Procedure .......................................................................................................................................19 4.5. Uncertainty ............................................................................................................................................19 4.6. Test Result of Radiated Emission ..........................................................................................................20 5. RF ANTENNA CONDUCTED TEST.........................................…

Text truncated - open the document above for the full version.

Report No. 118059R-RFUSP43V01 Page: 52 of 74 7. Channel Number 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limit Frequency hopping systems operating in the 2400-2483.5 MHz bands shall use at least 75 hopping frequencies. 7.4. Test Procedure The EUT was setup to ANSI C63.4, 2009; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 7.5. Uncertainty N/A SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 118059R-RFUSP43V01 Page: 53 of 74 7.6. Test Result of Channel Number Product : IEEE 802.11b/g/n WIFI/ BT Combo slim module Test Item : Channel Number Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) Frequency Range (MHz) Measurement (Hopping Channel) Required Limit (Hopping Channel) Result 2402 ~ 2480 79 >75 Pass 2402-2421MHz 2422-2441MHz 2442-2461MHz 2462-2480MHz Report No. 118059R-RFUSP43V01 Page: 54 of 74 Product : IEEE 802.11b/g/n WIFI/ BT Combo slim module Test Item : Channel Number Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) Frequency Range (MHz) Measurement (Hopping Channel) Required Limit (Hopping Channel) Result 2402 ~ 2480 79 >75 Pass 2402-2421MHz 2422-2441MHz 2442-2461MHz 2462-2480MHz Report No. 118059R-RFUSP43V01 Page: 55 of 74 8. Channel Separation 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated every one year. 2. The test instruments mark by “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. 8.4. Test Procedure The EUT was setup to ANSI C63.4, 2009; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 8.5. Uncertainty ± 150Hz SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 118059R-RFUSP43V01 Page: 56 of 74 8.6. Test Result of Channel Separation Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 760.0 Pass 39 2441 1000 >25 kHz 760.0 Pass 78 2480 1000 >25 kHz 766.7 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : IEEE 802.11b/g/n WIFI/ BT Combo slim module Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) Report No. 118059R-RFUSP43V01 Page: 57 of 74 Channel 39 2441MHz Channel 78 2480 MHz Report No. 118059R-RFUSP43V01 Page: 58 of 74 Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 946.7 Pass 39 2441 1000 >25 kHz 953.3 Pass 78 2480 1000 >25 kHz 960.0 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : IEEE 802.11b/g/n WIFI/ BT Combo slim module Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) Report No. 118059R-RFUSP43V01 Page: 59 of 74 Channel 39 2441MHz Channel 78 2480 MHz Report No. 118059R-RFUSP43V01 Page: 60 of 74 9. Dwell Time 9.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 9.2. Test Setup 9.3. Limit The dwell time shall be the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 30 second period. 9.4. Test Procedure The EUT was setup to ANSI C63.4, 2009; tested to FHSS test procedure of FCC Public Notice DA 00-7…
