TLZ-NH930IEEE 802.11 a/b/g/n Wireless LAN, Bluetooth and FM Combo Half Mini Card

FCC ID: TLZ-NH930 Report No.: RF110224E03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch April 12, 2011 Dear Application Examiner, AzureWave Technologies, Inc., It’s an IEEE 802.11 a/b/g/n Wireless LAN, Bluetooth and FM Combo Half Mini Card, FCC ID: TLZ-NH930 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4329. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM4329. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-NH930 Report No.: RF110224E03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

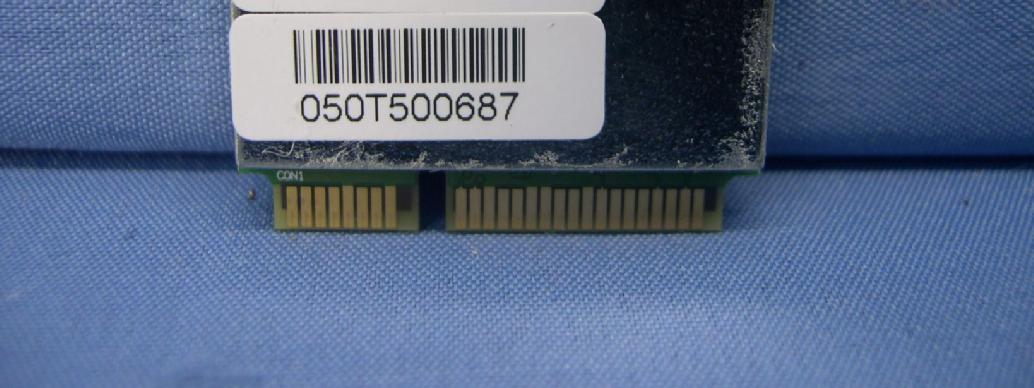

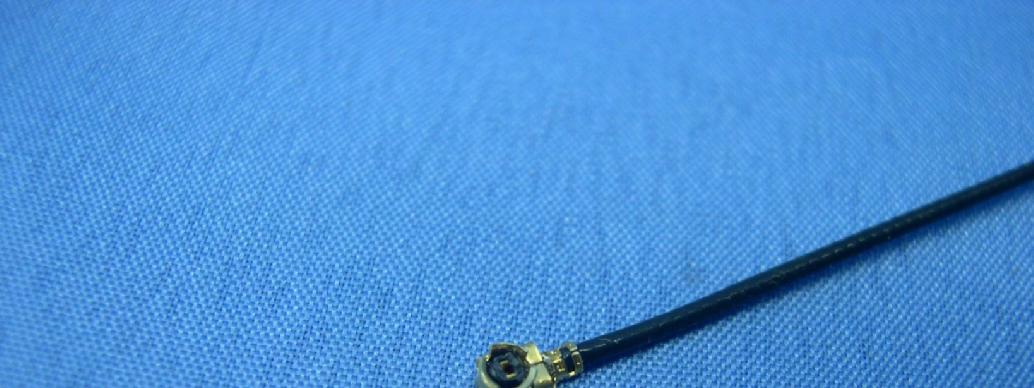

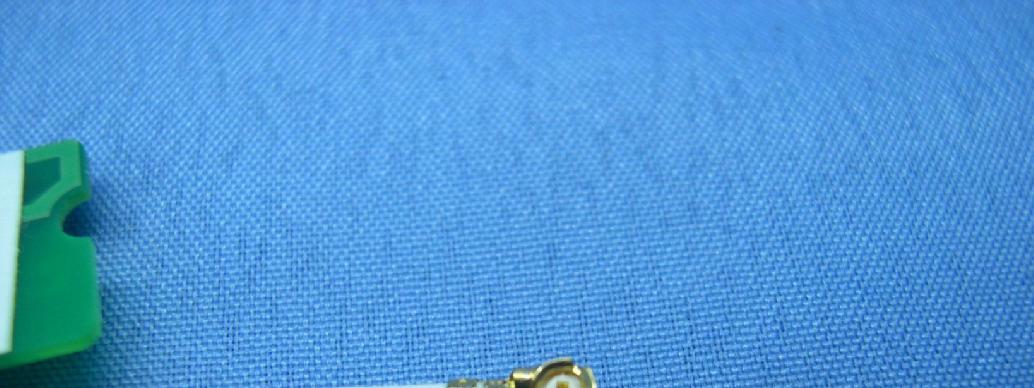

Page 1 CONSTRUCTION PHOTOS OF EUT Page 3 Antenna: MSA-4008-25GC1-A1 Page 4 Page 5 Antenna: MSA-3305-2G4C1-A1 Page 6 Page 7 Antenna: WA-P-LA-02-019 Page 8 Page 9 Page 10 Antenna: EAMS13001 Page 11 Page 12 Page 13 Antenna: 81XCAE15.G07 Page 14 Page 15 Page 16 Antenna: NA Page 17 Page 18 Page 19 Antenna: 6036B0067403 Page 20 Page 21 Page 22 Antenna: RFPCA2207101FABE01 Page 23 Page 24 Page 25 Antenna: 150872-30 Page 26 Page 27 Page 28 Antenna: C1335-520058-A Antenna: C1335-520059-A

(Fig. 1) FCC ID: TLZ-NH930 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2

Report No.: SA991223E06B Report Format Version 4.0.0. Reference No.: 110224E03 1 RF EXPOSURE REPORT REPORT NO.: SA991223E06B MODEL NO.: AW-NH930 FCC ID: TLZ-NH930 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991223E06B Report Format Version 4.0.0. Reference No.: 110224E03 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Apr. 08, 2011 Report No.: SA991223E06B Report Format Version 4.0.0. Reference No.: 110224E03 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA991223E06B Report Format Version 4.0.0. Reference No.: 110224E03 4 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 154.9 2.98 20 0.061 1.00 For WLAN: 15.247(5GHz) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745-5825 85.1 5.16 20 0.056 1.00 For WLAN: 15.407(5GHz) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5320 5500-5700 17.4 5.16 20 0.011 1.00 For Bluetooth FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 11.5 2.98 20 0.005 1.00 CONCLUSION: Both of the WLAN and Bluetooth can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.061 / 1 + 0.056 / 1 + 0.011 / 1 + 0.005 / 1= 0.133, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. ---END---

Report No.: RF991223E06B 1 Report Format Version 4.0.0 Reference No.: 110224E03 FCC TEST REPORT (15.247) REPORT NO.: RF991223E06B MODEL NO.: AW-NH930 FCC ID: TLZ-NH930 RECEIVED: Dec. 29, 2010 TESTED: Dec. 31, 2010 to Jan. 10, 2011 and Mar. 04 to 15, 2011 ISSUED: Apr. 08, 2011 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 100 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991223E06B 2 Report Format Version 4.0.0 Reference No.: 110224E03 Table of Contents RELEASE CONTROL RECORD..............................................................................5 1. CERTIFICATION...........................................................................................6 2. SUMMARY OF TEST RESULTS...................................................................7 2.1 MEASUREMENT UNCERTAINTY................................................................9 3. GENERAL INFORMATION.........................................................................10 3.1 GENERAL DESCRIPTION OF EUT............................................................10 3.2 DESCRIPTION OF TEST MODES..............................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................18 3.4 DESCRIPTION OF SUPPORT UNITS........................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................19 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).....20 4.1 CONDUCTED EMISSION MEASUREMENT..............................................20 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................20 4.1.2 TEST INSTRUMENTS................................................................................20 4.1.3 TEST PROCEDURES.................................................................................21 4.1.4 DEVIATION FROM TEST STANDARD.......................................................21 4.1.5 TEST SETUP..............................................................................................22 4.1.6 EUT OPERATING CONDITIONS................................................................22 4.1.7 TEST RESULTS..........................................................................................23 4.2 RADIATED EMISSION MEASUREMENT...................................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................25 4.2.2 TEST INSTRUMENTS................................................................................26 4.2.3 TEST PROCEDURES.................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD.......................................................28 4.2.5 TEST SETUP..............................................................................................29 4.2.6 EUT OPERATING CONDITIONS................................................................29 4.2.7 TEST RESULTS..........................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT..........................................................52 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................52 4.3.2 TEST INSTRUMENTS................................................................................52 4.3.3 TEST PROCEDURE...................................................................................52 4.3.4 DEVIATION FROM TEST STANDARD.......................................................52 4.3.5 TEST SETUP..............................................................................................52 4.3.6 EUT OPERATING CONDITIONS................................................................52 4.3.7 TEST RESULTS..........................................................................................53 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................56 Report No.: RF991223E06B 3 Report Format Version 4.0.0 Reference No.: 110224E03 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........56 4.4.2 INSTRUMENTS..........................................................................................56 4.4.3 TEST PROCEDURES.................................................................................56 4.4.4 DEVIATION FROM TEST STANDARD.......................................................56 4.4.5 TEST SETUP..............................................................................................56 4.4.6 EUT OPERATING CONDITIONS................................................................56 4.4.7 TEST RESULTS..........................................................................................57 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................58 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................58 4.5.2 TEST INSTRUMENTS................................................................................58 4.5.3 TEST PROCEDURE...................................................................................58 4.5.4 D…
