TLZ-NH931IEEE 802.11b/g/n Wireless LAN, Bluetooth and FM Rx Combo Half Mini Card

AW-NH931 IEEE 802.11 b/g/n Wireless LAN, Bluetooth and FM Rx Combo Half Mini Card Datasheet Version 0.6 -1- Document release Date Modification Initials Approved Version 0.1 2010/10/11Initial Version N.C. Chen CE Huang Version 0.2 2010/12/3 Update Bluetooth output power spec. output power item on page 8 6.5dBm(Typ.) Class 1.5 @ 7 dBm (±2 dBm) Class 2 @ 2 dBm ( ̈́ 2dBm) N.C. Chen CE Huang Version 0.3 2010/12/14 Update “Operating Temperature” on page 7 Add 2-7. “Power-on sequence” on page 19 N.C. Chen CE Huang Version 0.4 2010/12/24 Update Section 5. “Antenna port information” on page 27 N.C. Chen CE Huang Version 0.5 2011/1/5 Update page 7 Electrical Specifications Number of Channels item on page 7 N.C. Chen CE Huang Version 0.6 2011/1/12 Update page7 Electrical Specifications Frequency Range description on page 7 2.4G/5GHz  2.4GHz band N.C. Chen CE Huang -2- Table of Contents 1. General Description 1-1.Product Overview and Functional Description 1-2. Key Features 1-3. Specifications Table 2. Electrical Characteristic 2-1. Absolute Maximum Ratings 2-2. Recommended Operating Conditions 2-3. DC Characteristics for Host I/O 2-4. BT/FM Host Interface 2-5. SDIO Timing 2-6. LPO Clock (RTC_CLK) 2-7. Power-On sequence 3. Pin Definition 3-1. Pin Description 3-2. Pin Description comparison with PCI-Express specification 4. Mechanical Information 5. Antenna port Information -3- 1. General Description 1-1. Product Overview and Functional Description AzureWave Technologies, Inc. introduces the first IEEE 802.11b/g/n WLAN, Bluetooth and FM combo module - AW-NH931. The module is targeted to mobile devices including, Digital Still Cameras (DSCs), Portable Media Players (PMPs), and Gaming Devices, mobile phones which need small footprint package, low power consumption, multiple OS support. By using AW-NH931, the customers can easily enable the Wi-Fi, BT and FM embedded applications with the benefits of high design flexibility, short development cycle, and quick time-to-market. Compliance with the IEEE 802.11b/g/n standard, the AW-NH931 uses DSSS,OFDM,DBPSK,DQPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize the system power requirements by using AW-NH931. In addition to the support of WPA/WPA2 (personal) and WEP encryption, the AW-NH931 also supports the IEEE 802.11i security standard through AES and TKIP acceleration hardware for faster data encryption. The AW-NH931 is also Cisco Compatible Extension (CCX) certified. For the video, voice and multimedia applications the AW-NH931 support 802.11e Quality of Service (QoS). For Bluetooth operation, the AW-NH931 is Bluetooth 2.1+Enhanced Data Rate (EDR) compliant. The AW-NH931 supports extended Synchronous Connections (eSCO), for enhanced voice quality by allowing for retransmission of dropped packets, and Adaptive Frequency Hopping (AFH) for reducing radio frequency interference. It provides easier to connect devices, lower power consumption and improved security. For FM receiver/transmitter, the AW-NH931 is 76-MHz to 108-MHz FM bands supported and supports theEuropean Radio Data Systems (RDS) and the North American Radio Broadcast Data System (RBDS) modulations. The AW-NH931 supports standard interface SDIO v1.2 (4-bit and 1-bit) for WLAN, High-speed UART interface for BT/FM host controller interface, and PCM for BT audio data. The demodulated FM audio signal is available as line-level analog stereo output. AW-NH931 is suitable for multiple mobile processors for different applications. With the combo functions and the good performance, the AW- NH931 is the best solution for the consumer electronics and the laptops. -4- 1-2. Key Features General Integrates Broadcom solutions of BCM4329 WiFi/BT/FM SoC SDIO interfaces support for WLAN ECI—enhanced coexistence support, ability to coordinate BT SCO transmissions around WLAN receives High speed UART and PCM for Bluetooth FM subsystem control through Bluetooth HCI interface Flexible Power Supply(2.3V~5.5V) Multiple power saving modes for low power consumption Lead-free /Halogen Free Design WLAN Single - band 2.4 GHz 802.11 b/g/n Supports antenna diversity Supports IEEE 802.11d, e, h,i, j,r,k,w Security–WEP, WPA/WPA2 (personal), AES (HW), TKIP (HW), CKIP (SW). WMM/WMM-PS/WMM-SA Proprietary protocol –CCXv2/CCXv3/CCXv4/CCXv5, WFAEC Integrated CPU with on-chip memory for a complete WLAN subsystem minimizing the need to wake up the applications processor Bluetooth Fully supports Bluetooth Core Specification version 2.1 + EDR features Support BT3.0 Maximum UART baud rates up to 4 Mbps Multipoint operation with up to seven active slaves -5- FM 76-MHz to 108-MHz FM bands supported (US, Europe, and Japan) RDS and RBDS demodulator and decoder with filter and buffering functions Auto search and tuning modes FM line-level analog stereo output available By customer request Block Diagram A simplified block diagram of the AW-NH931 module is depicted in the figure below. VBAT 2.3~5.5V for internal PMU ANT 1 BCM4329 SP3T BPF 2.4 GHz WLAN Rx/BT Rx 2.4 GHz BT Tx XTAL FM Rx Antenna FM Rx RTC_Clk 32.768KHz 2.4 GHz WLAN Tx UART for BT/FM SDIO for WLAN PCM for BT Analog Line-out/in for FM SW ANT 2 -6- 1-3. Specifications Table *Specifications are subject to change without notice Model Name AW-NH931 Product Description Wireless LAN &Bluetooth & FM WLAN Standard IEEE 802.11b/g/n, Wi-Fi compliant Bluetooth Standard Bluetooth 2.1+Enhanced Data Rate (EDR) / BT3.0 Host Interface SDIO for WLAN UART for Bluetooth and FM Audio Interface Digital PCM for Bluetooth. Analog line level i/o for FM. Dimension 26.6 mm X 29.8 mm x 3.2 mm Package Half mini card package Operating Conditions Voltage Input supply for internal PMU: 2.3 ~ 5.5V Input supply for host I/O : 1.8 to 3.3V Temperature Operating: 0 ~ 70 o C ; Storage: -40 ~ 85 o C Relative Humidity< 60 % ( storage) <85% (operation) Electrical Specifications Frequency Ran…

Text truncated - open the document above for the full version.

FCC ID: TLZ-NH931 Report No.: RF991223E06 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch February 16, 2011 Dear Application Examiner, AzureWave Technologies, Inc., It’s an IEEE 802.11 b/g/n Wireless LAN, Bluetooth and FM Rx Combo Half Mini Card, FCC ID: TLZ-NH931 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4329. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM4329. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-NH931 Report No.: RF991223E06 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

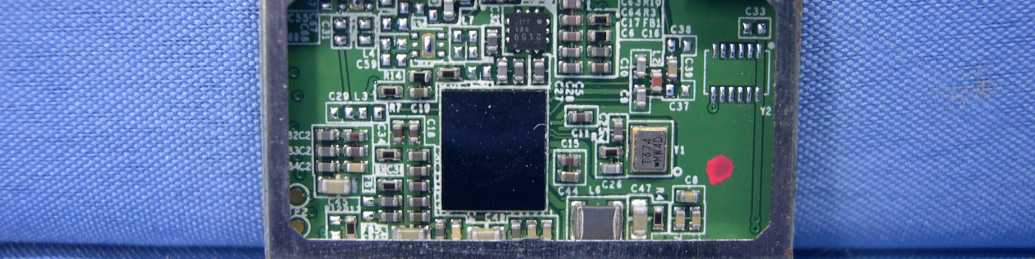

Page 2 Page 3 Page 4 Page 5 Page 6

(Fig. 1) FCC ID: TLZ-NH931 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6

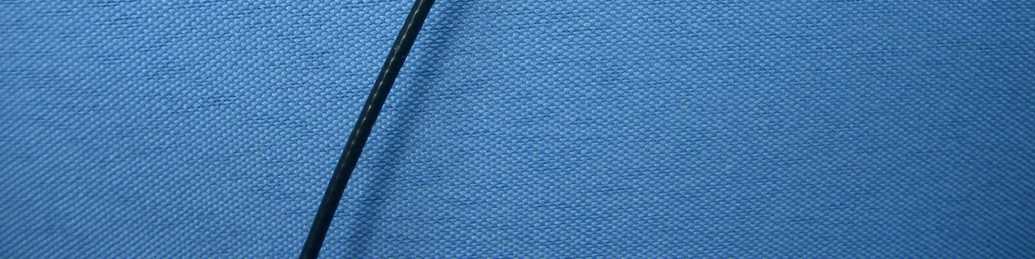

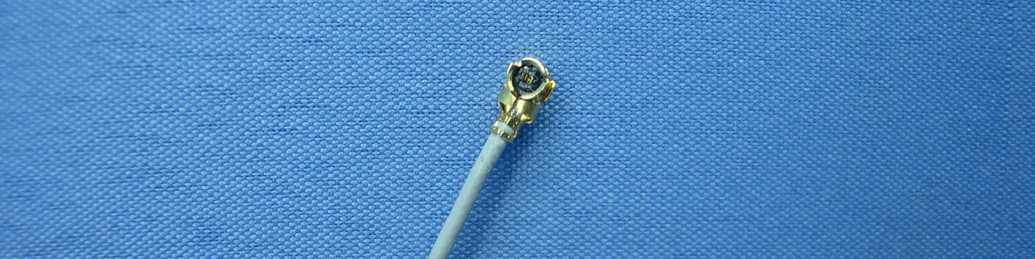

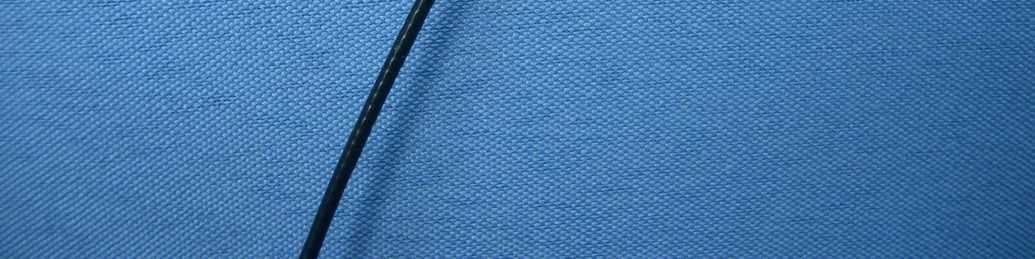

FCC ID: TLZ-NH931 Report No.: RF991223E06 Operational Description This device is an IEEE 802.11 b/g/n Wireless LAN, Bluetooth and FM Rx Combo Half Mini Card, which operates in the 2.4GHz band, the maximum data rate could be up to 65Mbps with OFDM technique. If the signal to noise ratio is too poor which could not support 65Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 1.8-3.3Vdc from host equipment or 2.3-5.5Vdc from internal PMU. The antenna is PIFA antenna with I-PEX antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA991223E06 Report Format Version 4.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA991223E06 MODEL NO.: AW-NH931 FCC ID: TLZ-NH931 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991223E06 Report Format Version 4.0.0. 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Feb. 14, 2011 Report No.: SA991223E06 Report Format Version 4.0.0. 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA991223E06 Report Format Version 4.0.0. 4 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 21.9 2.98 20 0.061 1.00 For Bluetooth FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 10.6 2.98 20 0.254 1.00 CONCLUSION: Both of the WLAN and Bluetooth can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.061 / 1 + 0.254 / 1= 0.315, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. ---END---

Report No.: RF991223E06-1 1 Report Format Version 4.0.0 FCC TEST REPORT (Bluetooth) REPORT NO.: RF991223E06-1 MODEL NO.: AW-NH931 FCC ID: TLZ-NH931 RECEIVED: Dec. 23, 2010 TESTED: Jan. 26 to Feb. 08, 2011 ISSUED: Feb. 14, 2011 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991223E06-1 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD........................................................................................................4 1 CERTIFICATION................................................................................................................5 2 SUMMARY OF TEST RESULTS.........................................................................................6 2.1 ME ASUREMENT UNCERTAINTY.....................................................................................7 3 GENERAL INFORMATION.................................................................................................8 3.1 GENERAL DESCRIPTION OF EUT....................................................................................8 3.2 DESCRIPTION OF TEST MODES.....................................................................................10 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:......................................11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................................12 3.5 DESCRIPTION OF SUPPORT UNITS...............................................................................13 3.6 CONFIGURATION OF SYSTEM UNDER TEST.................................................................13 4 TEST PROCEDURES AND RESULTS..............................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT.....................................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................................14 4.1.2 TEST INSTRUMENTS......................................................................................................14 4.1.3 TEST PROCEDURES......................................................................................................15 4.1.4 TEST SETUP...................................................................................................................15 4.1.5 EUT OPERATING CONDITIONS......................................................................................16 4.1.6 TEST RESULTS...............................................................................................................17 4.2 NUMBER OF HOPPING FREQUENCY USED..................................................................19 4.2.1 LIMIT OF HOPPING FREQUENCY USED........................................................................19 4.2.2 TEST INSTRUMENTS......................................................................................................19 4.2.3 TEST PROCEDURES......................................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD.............................................................................19 4.2.5 TEST SETUP...................................................................................................................20 4.2.6 TEST RESULTS...............................................................................................................20 4.3 DWELL TIME ON EACH CHANNEL..................................................................................24 4.3.1 LIMIT OF DWELL TIME USED.........................................................................................24 4.3.2 TEST INSTRUMENTS......................................................................................................24 4.3.3 TEST PROCEDURES......................................................................................................24 4.3.4 DEVIATION FROM TEST STANDARD.............................................................................25 4.3.5 TEST SETUP...................................................................................................................25 4.3.6 TEST RESULTS...............................................................................................................25 4.4 CHANNEL BANDWIDTH...................................................................................................37 4.4.1 LIMITS OF CHANNEL BANDWIDTH................................................................................37 4.4.2 TEST INSTRUMENTS......................................................................................................37 4.4.3 TEST PROCEDURE.........................................................................................................37 4.4.4 DEVIATION FROM TEST STANDARD.............................................................................37 4.4.5 TEST SETUP...................................................................................................................38 4.4.6 EUT OPERATING CONDITION..........................................................…

Text truncated - open the document above for the full version.

Report No.: RF991223E06-2 1 Report Format Version 4.0.0 Supplemental “Transmit Simultaneously” Test Report REPORT NO.: RF991223E06-2 MODEL NO.: AW-NH931 FCC ID: TLZ-NH931 IC ID: 6100A-NH931 RECEIVED: Dec. 23, 2010 TESTED: Jan. 26 to Feb. 08, 2011 ISSUED: Feb. 14, 2011 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 18 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991223E06-2 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD....................................................................................................3 1. CERTIFICATION...............................................................................................................4 2. DUAL XMIT, CONDUCTED EMISSION MEASUREMENT..................................................5 2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................5 2.2 TEST INSTRUMENTS.......................................................................................................5 2.3 TEST PROCEDURES.......................................................................................................6 2.4 DEVIATION FROM TEST STANDARD...............................................................................6 2.5 TEST SETUP....................................................................................................................6 2.5 EUT OPERATING CONDITIONS.......................................................................................7 2.6 TEST RESULTS................................................................................................................8 3. DUAL XMIT, RADIATED EMISSION MEASUREMENT.....................................................10 3.1 LIMITS OF RADIATED EMISSION MEASUREMENT.......................................................10 3.2 TEST INSTRUMENTS.....................................................................................................11 3.3 TEST PROCEDURES.....................................................................................................13 3.4 DEVIATION FROM TEST STANDARD.............................................................................13 3.5 TEST SETUP..................................................................................................................14 3.6 EUT OPERATING CONDITIONS.....................................................................................15 3.7 TEST RESULTS..............................................................................................................16 4. INFORMATION ON THE TESTING LABORATORIES.....................................................18 Report No.: RF991223E06-2 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Feb. 14, 2011 Report No.: RF991223E06-2 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT : IEEE 802.11 b/g/n Wireless LAN, Bluetooth and FM Rx Combo Half Mini Card BRAND NAME : AzureWave MODEL NO. : AW-NH931 TESTED: Jan. 26 to Feb. 08, 2011 APPLICANT : AzureWave Technologies, Inc. TEST SAMPLE: ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.247) Canada RSS-210 Issue 8 (2010-12) Canada RSS-Gen Issue 3 (2010-12) ANSI C63.4-2003 ANSI C63.10-2009 PREPARED BY : , DATE: ( Sunny Wen Specialist ) APPROVED BY : , DATE: ( May Chen, Deputy Manager ) Note: Per a request of the FCC, the EUT was tested for conducted emissions and radiated emissions in restricted bands while transmitting on both WLAN and Bluetooth at simultaneously. Report No.: RF991223E06-2 5 Report Format Version 4.0.0 2. DUAL XMIT, CONDUCTED EMISSION MEASUREMENT 2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT FREQUENCY OF EMISSION (MHz) CONDUCTED LIMIT (dBμV) Quasi-peak Average 0.15-0.5 0.5-5 5-30 66 to 56 56 60 56 to 46 46 50 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz. 3. All emanations from a class A/B digital device or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. 2.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATED DATE CALIBRATED UNTIL Test Receiver ESCS 30 100375 Mar. 09, 2010 Mar. 08, 2011 Line-Impedance Stabilization Network (for EUT) NSLK 8127 8127-522 Sep. 08, 2010 Sep. 07, 2011 Line-Impedance Stabilization Network (for Peripheral) ESH3-Z5 848773/004 Nov. 03, 2010 Nov. 02, 2011 RF Cable (JYEBAO) 5DFB COCCAB-002 Aug. 30, 2010 Aug. 29, 2011 50 ohms Terminator 50 3 Nov. 03, 2010 Nov. 02, 2011 Software BV ADT_Cond_V7.3.7 NA NA NA Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. The test was performed in Shielded Room No. C. 3 The VCCI Con C Registration No. is C-3611. Report No.: RF991223E06-2 6 Report Format Version 4.0.0 2.3 TEST PROCEDURES a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization …

Text truncated - open the document above for the full version.

Report No.: RF991223E06 1 Report Format Version 4.0.0 FCC TEST REPORT (WLAN) REPORT NO.: RF991223E06 MODEL NO.: AW-NH931 FCC ID: TLZ-NH931 RECEIVED: Dec. 23, 2010 TESTED: Jan. 18 to Feb. 08, 2011 ISSUED: Feb. 14, 2011 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF991223E06 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD............................................................................................4 1. CERTIFICATION.......................................................................................................5 2. SUMMARY OF TEST RESULTS...............................................................................6 2.1 MEASUREMENT UNCERTAINTY.............................................................................7 3. GENERAL INFORMATION........................................................................................8 3.1 GENERAL DESCRIPTION OF EUT..........................................................................8 3.2 DESCRIPTION OF TEST MODES..........................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...........................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..........................................13 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST......................................................14 4. TEST TYPES AND RESULTS.................................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT...........................................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................15 4.1.2 TEST INSTRUMENTS............................................................................................15 4.1.3 TEST PROCEDURES.............................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD....................................................................16 4.1.5 TEST SETUP..........................................................................................................16 4.1.6 EUT OPERATING CONDITIONS............................................................................17 4.1.7 TEST RESULTS......................................................................................................18 4.2 RADIATED EMISSION MEASUREMENT................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................................20 4.2.2 TEST INSTRUMENTS............................................................................................21 4.2.3 TEST PROCEDURES.............................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD....................................................................23 4.2.5 TEST SETUP..........................................................................................................24 4.2.6 EUT OPERATING CONDITIONS............................................................................24 4.2.7 TEST RESULTS......................................................................................................25 4.3 6DB BANDWIDTH MEASUREMENT......................................................................47 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT....................................................47 4.3.2 TEST INSTRUMENTS............................................................................................47 4.3.3 TEST PROCEDURE...............................................................................................47 4.3.4 DEVIATION FROM TEST STANDARD....................................................................47 4.3.5 TEST SETUP..........................................................................................................47 4.3.6 EUT OPERATING CONDITIONS............................................................................47 4.3.7 TEST RESULTS......................................................................................................48 4.4 MAXIMUM PEAK OUTPUT POWER.......................................................................51 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........................51 4.4.2 INSTRUMENTS......................................................................................................51 4.4.3 TEST PROCEDURES.............................................................................................51 4.4.4 DEVIATION FROM TEST STANDARD....................................................................51 4.4.5 TEST SETUP..........................................................................................................51 4.4.6 EUT OPERATING CONDITIONS............................................................................51 4.4.7 TEST RESULTS.......................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
