TLZ-NM383IEEE 802.11 b/g/n Wireless LAN Module

1 AW-NM383 IEEE 802.11 b/g/n Wireless LAN Module User Guide Version 0.1 Document release Date Modification Initials Approved Ver. 0.1 2013/10/07 Initial version Renton Tao Ivan Chen - 3 - 1. General Description 1-1.Product Overview and Functional Description AzureWave Technologies, Inc. introduces the first IEEE 802.11b/g/n WLAN module Card -AW-NM383. The module is targeted to mobile devices including Personal Digital Assistants (PDAs), Netbook, TV, Tablet and Gaming Device which need small package module, low power consumption, multiple interfaces and OS support. By using AW-NM383, the customers can easily enable the Wi-Fi embedded applications with the benefits of high design flexibility, short development cycle, and quick time-to-market. Compliance with the IEEE 802.11b/g/n standard, the AW-NM383 uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), DBPSK, DQPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize the system power requirements by using AW-NM383. In addition to the support of WPA/WPA2 and WEP 64-bit and 128-bit encryption, the AW-NM383 also supports the IEEE 802.11i security standard through the implementation of Advanced Encryption Standard (AES)/Counter Mode CBC-MAC Protocol (CCMP), Wired Equivalent Privacy (WEP) with Temporal Key Integrity Protocol (TKIP), Advanced Encryption Standard (AES)/Cipher-Based Message Authentication Code (CMAC), and WLAN Authentication and Privacy Infrastructure (WAPI) security mechanisms. For the video, voice and multimedia applications the AW-NM383 support 802.11e Quality of Service (QoS). The AW-NM383 supports SDIO for WLAN to the host processor. AW-NM383 is suitable for multiple mobile processors for different applications. With the support cellular phone co-existence, the AW-NM383 is also the best solution for mobile phones and PDA phones applications. AW-NM383 module adopts Marvell’s latest highly-integrated WLAN SoC---88W8782. All the other components are implemented by all means to reach the mechanical specification required. 1-2.Key Features Small footprint: 35mm(L) x 4 SDIO interfaces support for W Cellular phone co-existence s Multiple power saving modes IEEE 802.11i for advanced se Quality of Service (QoS) supp Drip-in WLAN Linux drivers Support for Linux kernel ver Support for BlueZ v4.47 Blue Simultaneous AP-STA Support China WAPI Lead-free design 1-3.Block Diagram - 4 - 40mm(W) x 5 mm(H) WLAN upport s for low power consumption ecurity port for multimedia applications s are Android ready and validated on And rsions up to 2.6.32. etooth profiles stack used in Android Éclai roid based systems. r. - 5 - 2. Specifications Table Product Description Wireless LAN Module Card WLAN Standard IEEE 802.11b/g/n, Wi-Fi compliant Host Interface SDIO / G-SPI for WLAN Major Chipset Marvell 8782 Dimension 40mm x 35mm x 5.0mm Operating Conditions Voltage 3.3V +/- 10%, 1.8V +/- 10% Temperature Operating: -20 ~ 70 o C ; Storage: -40 ~ 85 o C Electrical Specifications Frequency Range 2.4 GHz ISM radio band Number of Channels 802.11b: USA, Canada and Taiwan – 11 Most European Countries – 13 France – 4, Japan – 14 802.11g: USA, Canada and Taiwan – 11 Most European Countries – 13 Japan – 13 802.11n(HT20): Channel 1~13(2412~2472) 802.11n(HT40): Channel 3~11(2422~2462) Modulation DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM for WLAN Antenna 1 antenna for WLAN Medium Access Protocol CSMA/CA with ACK Data Rates WLAN 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n MCS0-7 up to 150Mbps Security WAPI WEP 64-bit and 128-bit encryption with H/W TKIP processing WPA/WPA2 (Wi-Fi Protected Access) AES-CCMP hardware implementation as part of 802.11i security standard 2 Step1: Power on notebook PC and choose Ubuntu OS. Step2: Plug in USB cable to connect DUT and notebook PC. Step3: Open terminal and key in commands. Password is “000000”. 3 Step4: Select below interface and connect to your AP. You can do further RF set up by using command “iwconfig”. Ex. sudo iwconfig –h. You can see how to set up by different commands. - 12 - 2-4. SDIO Host Interface Specifications Referred from Marvell hardware specifications SDIO Protocol Timing Diagram SDIO Protocol Timing Diagram—High Speed Mode Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee tha t interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located o…

Text truncated - open the document above for the full version.

FCC ID: TLZ-NM383 Report No.: RF121029E10A Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch November 20, 2013 Dear Application Examiner, AzureWave Technologies, Inc., It’s an IEEE 802.11 b/g/n Wireless LAN Module, FCC ID: TLZ-NM383 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip 88W8782. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is 88W8782. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

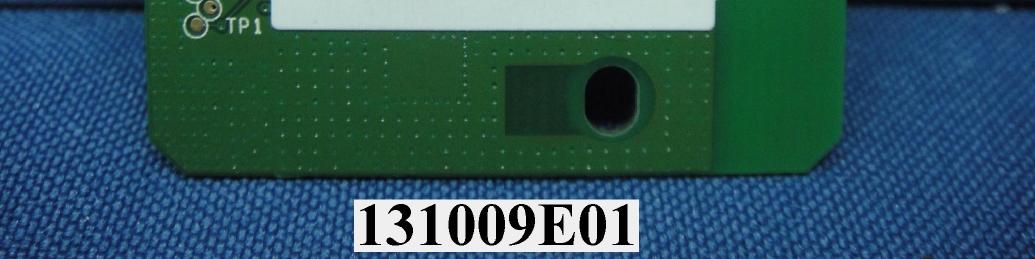

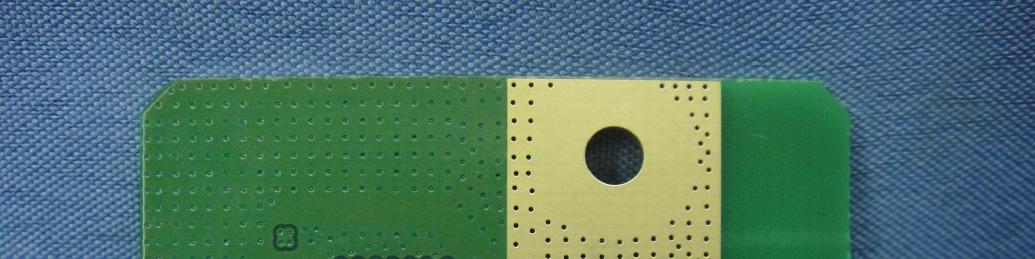

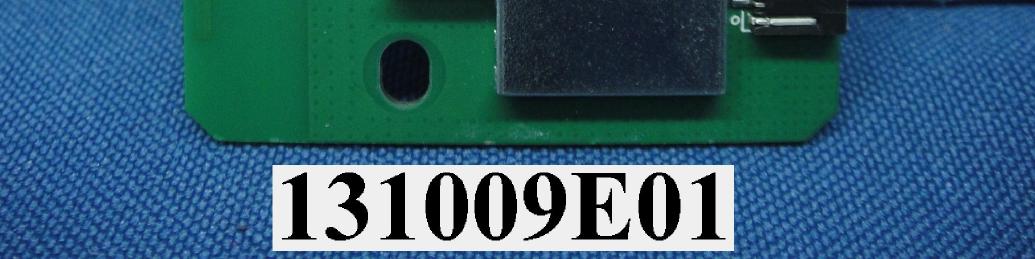

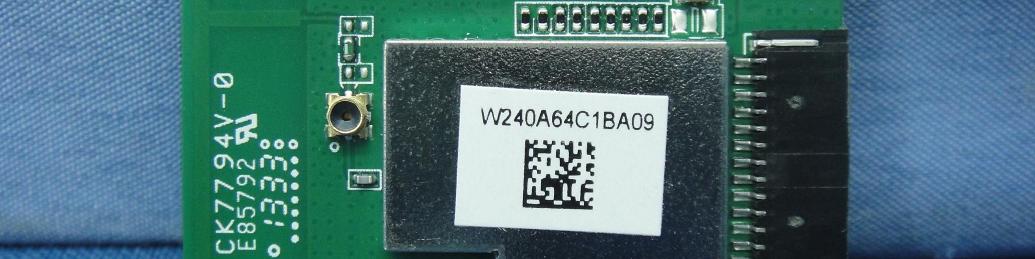

Report No.: 131009E01 Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: TLZ-NM383 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label 3557-11-4076 ( 0 1 ) 0 7 8 9 8 9 4 0 4 7 3 9 5 3 30 mm 18 mm 5.5 mm 14.5 mm 6.5 mm 7 mm 3 mm MSIP-CRM-TLA-NM383 Model: AW-NM383 IEEE 802.11 b/g/n Wireless LAN Module 201-135228 FCC ID: TLZ-NM383 IC: 6100A-NM383 CMIIT ID: Mexico: 2013AJ0939 RCPBRBC13-0920 ETA -015/2013/WRLO TA-2013/327 CCAF13LP0550T1 Complies with IDA standards DA 102889 NTC Type Accepted NO.: ESD-1105710C

Report No.: 131009E01 Page 2 Report No.: 131009E01 Page 3

FCC ID: TLZ-NM383 Report No.: RF121029E10A Operational Description This device is a IEEE 802.11 b/g/n Wireless LAN Module, which operates in 2.4GHz band, the maximum data rate could be up to 150M bps whth OFDM technique. If the s ignal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered from DC 3.3V±10% or DC 1.8V±10% from host equipment. The antennas provided to the EUT, please refer to the following table: The other instruction, please have a look at the users manual.

Report No.: RF121029E10A 1 of 59 Report Format Version 5.2.0 Reference No.: 131009E01 FCC TEST REPORT REPORT NO.: RF121029E10A MODEL NO.: AW-NM383 FCC ID: TLZ-NM383 RECEIVED: Oct. 09, 2013 TESTED: Oct. 11 to 31, 2013 ISSUED: Nov. 19, 2013 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121029E10A 2 of 59 Report Format Version 5.2.0 Reference No.: 131009E01 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 17 4. TEST TYPES AND RESULTS .............................................................................. 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES .......................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ....................................................................................................... 19 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 20 4.1.7 TEST RESULTS ................................................................................................... 21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 23 4.2.2 TEST INSTRUMENTS .......................................................................................... 24 4.2.3 TEST PROCEDURES .......................................................................................... 25 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 25 4.2.5 TEST SETUP ....................................................................................................... 26 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 26 4.2.7 TEST RESULTS ................................................................................................... 27 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 40 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ................................................. 40 4.3.2 TEST INSTRUMENTS .......................................................................................... 40 4.3.3 TEST PROCEDURE ............................................................................................. 40 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 40 4.3.5 TEST SETUP ...............................................................…

Text truncated - open the document above for the full version.

Report No.: 120702E04 1 of 4 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120702E04 2 of 4 RADIATED EMISSION TEST (Below 1GHz) Report No.: 120702E04 3 of 4 Report No.: 120702E04 4 of 4 RADIATED EMISSION TEST (Above 1GHz)
