TLZ-NM387IEEE 802.11b/g/n Wireless LAN & Bluetooth Module

- 1 - AW-NM387 IEEE 802.11 b/g/n Wireless LAN & Bluetooth Module Datasheet Version 0.4 Document release Date Modification Initials Approved Version0.1 2010/06/30 Initial version Max Huang Ivan Chen Version0.12 2010/7/1 Update page 9 pin out and page 10 reference design Max Huang Ivan Chen Version0.2 2010/7/8 Update final mechanical characteristic Scott Hsieh Ivan Chen Version0.3 2010/7/19 Update Page 10 reference design Scott Hsieh Ivan Chen Version0.4 2010/8/19 Update Sleep_CLK pin define Scott Hsieh Ivan Chen - 2 - 1. General Description 1-1. Product Overview and Functional Description AzureWave Technologies, Inc. introduces the first IEEE 802.11b/g/n WLAN & Bluetooth module IC--- AW-NM387. The module is targeted to mobile devices including Personal Digital Assistants (PDAs), Netbook, Tablet and Gaming Devices which need small package module, low power consumption, multiple interfaces and OS support. By using AW-NM387, the customers can easily enable the Wi-Fi , and BT embedded applications with the benefits of high design flexibility, short development cycle, and quick time-to-market. Compliance with the IEEE 802.11b/g/n standard, the AW-NM387 uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), DBPSK, DQPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize the system power requirements by using AW-NM387. In addition to the support of WPA/WPA2 and WEP 64-bit and 128-bit encryption, the AW-NM387 also supports the IEEE 802.11i security standard through the implementation of Advanced Encryption Standard (AES)/Counter Mode CBC-MAC Protocol (CCMP), Wired Equivalent Privacy(WEP) with Temporal Key Integrity Protocol(TKIP),Advanced Encryption Standard(AES)/Cipher- Based Message Authentication Code(CMAC), and WLAN Authentication and Privacy Infrastructure (WAPI) security mechanisms. For the video, voice and multimedia applications the AW-NM387 support 802.11e Quality of Service (QoS). For Bluetooth operation, AW-NM387 is Bluetooth 3.0 + High Speed (HS) also complaint with Bluetooth 2.1 + Enhanced Data Rate (EDR). Bluetooth 3.0 + HS can make it easier to connect The AW-NM387 supports SDIO for WLAN to the host processor. SDIO interface are available to connect the BT core the host processor. AW-NM387 is suitable for multiple mobile processors for different applications. With the support cellular phone co-existence, the AW-NM387 is also the best solution for mobile phones and PDA phones applications. AW-NM387 module adopts Marvell’s latest highly-integrated WLAN & Bluetooth SoC---88W8787. All the other components are implemented by all means to reach the mechanical specification required. - 3 - 1-2. Key Features Small footprint: 23mm(L) x 11mm(W) x 2.4 mm(H) SDIO interfaces support for WLAN SDIO for Bluetooth Bluetooth 3.0 + High Speed (HS) also complaint with Bluetooth 2.1 + Enhanced Data Rate (EDR) Cellular phone co-existence support Multiple power saving modes for low power consumption IEEE 802.11i for advanced security Quality of Service (QoS) support for multimedia applications Drip-in WLAN Linux drivers are Android ready and validated on Android based systems. Support for Linux kernel versions up to 2.6.32. Support for BlueZ v4.47 Bluetooth profiles stack used in Android Éclair Simultaneous AP-STA Support China WAPI Lead-free design - 4 - 2. Block Diagram 3. Specifications Table     Wireless LAN &Bluetooth Module   IEEE 802.11b/g/n, Wi-Fi compliant    Bluetooth 3.0 +high speed complaint with Bluetooth 2.1+Enhanced Data Rate (EDR)     WLAN and Bluetooth through SDIO     Marvell 8787    11mm x 23mm x 2.4mm   !    "! 3.3V/1.8V(optional)+/- 10% #   Operating: -20 ~ 70 o C ; Storage: -40 ~ 85 o C $        % & ' (! 2.4 GHz ISM radio band )     802.11b: USA, Canada and Taiwan – 11 Most European Countries – 13 France – 4, Japan – 14 802.11g: USA, Canada and Taiwan – 11 Most European Countries – 13 Japan – 13 802.11n(HT20): Channel 1~14(2412~2484) 802.11n(HT40): Channel 1~7(2422~2472)   DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM for WLAN GFSK (1Mbps), /4 DQPSK (2Mbps) and 8DPSK (3Mbps) for Bluetooth  *  WLAN: - 5 - 802.11b(Ch1~13): typical 17dBm +/- 2dBm 802.11b(Ch14): typical 10dBm +/- 2dBm 802.11g: typical 14dBm +/- 2dBm 802.11n: typical HT20 13dBm +/- 2dBm HT40 12dBm +/- 2dBm Typical power: Bluetooth Bluetooth Class 1.5>1dBm   WLAN&BT through U.FL connector (  +    + ' WLAN: 802.11b: Minimum -86dBm at 11Mbps 802.11g: Minimum -71dBm at 54Mbps 802.11n: Minimum -68dBm at HT20 MCS7 Minimum -65dBm at HT20 MCS7 Bluetooth: GFSK: typical -87dBm /4 DQPSK: typical -88dBm 8DPSK: typical -81dBm      CSMA/CA with ACK  ( WLAN 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n up to 150Mbps Bluetooth Bluetooth 2.1+EDR data rates of 1,2, and 3Mbps   ! (! Open Space: ~300m ; Indoor: ~100m for WLAN Minimum 10 m indoor for Bluetooth The transmission speed may vary according to the environment)   '  WAPI  WEP 64-bit and 128-bit encryption with H/W TKIP processing  WPA/WPA2 (Wi-Fi Protected Access)  AES-CCMP hardware implementation as part of 802.11i security standard ,$-   Bluetooth and cell phone(GSM/DCS/WCDMA/UMTS/3G) co-existence - 6 - 2. Electrical Characteristics 2-1. Absolute Maximum Ratings Symbol Parameter Condition Min Typ Max Units 3.3V PA and Internal voltage power supply 3.3 4.6 V VIO Host I/O power supply 1.8 2.3 V 2.6 3.1 3.3 4.2 External 1.8V Analog I/O power supply(optional) 1.8 2.3 V 2-2. Recommended Operating Conditions Symbol Parameter Condition Min Typ Max Units 3.3V PA and Internal voltage power supply 3 3.3 3.6 V VIO Host I/O power supply 1.62 1.8 1.98 V 2.5 2.6 2.7 2.97 3.3 3.63 External 1.8V Analog I/O pow…

Text truncated - open the document above for the full version.

FCC ID: TLZ-NM387 Report No.: RF991202E06 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch February 16, 2011 Dear Application Examiner, AzureWave Technologies, Inc., It’s an IEEE 802.11 b/g/n Wireless LAN & Bluetooth Module, FCC ID: TLZ-NM387 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” : The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip 8787 BGA. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is 8787 BGA. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-NM387 Report No.: RF991202E06 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

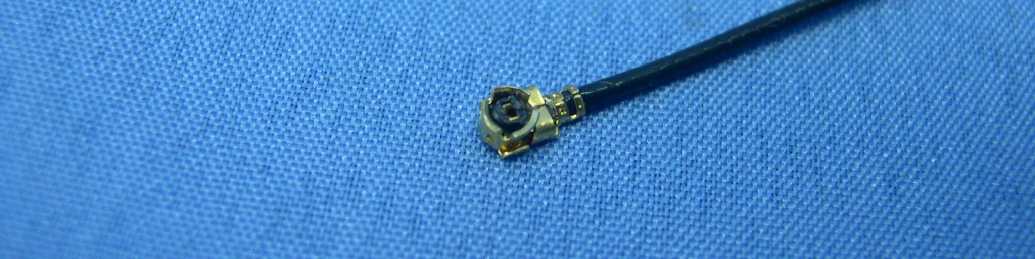

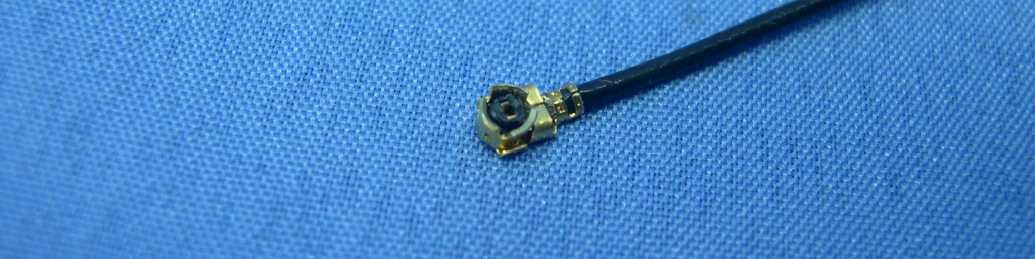

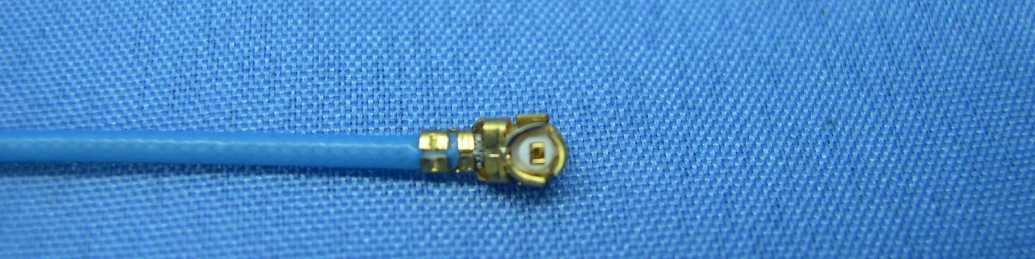

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Antenna 1 Page 4 Page 5 Antenna 2 Page 6 Page 7 Antenna 3 Page 8 Page 9 Antenna 4 Page 10 Page 11 Page 12 Antenna 5 Page 13 Page 14 Antenna 6 Page 15 Page 16 Page 17 Antenna 7 Page 18 Page 19 Antenna 8 Page 20 Page 21 Page 22 Antenna 9 Page 23 Page 24

(Fig. 1) FCC ID: TLZ-NM387 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: TLZ-NM387 Report No.: RF991202E06 Operational Description This device is an IEEE 802.11 b/g/n Wireless LAN & Bluetooth Module, which operates in the 2.4GHz band, the maximum data rate could be up to 135Mbps with OFDM technique. If the signal to noise ratio is too poor which could not support 135Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3Vdc±10% from host equipment. The antenna is PIFA antenna with I-PEX antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA991202E06 Report Format Version 4.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA991202E06 MODEL NO.: AW-NM387 FCC ID: TLZ-NM387 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991202E06 Report Format Version 4.0.0. 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Feb. 09, 2011 Report No.: SA991202E06 Report Format Version 4.0.0. 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA991202E06 Report Format Version 4.0.0. 4 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 22.3 2.98 20 0.067 1.00 For Bluetooth: FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 7.9 2.98 20 0.002 1.00 ---END---
