TLZ-NM388IEEE 802.11 b/g/n Wireless LAN & Bluetooth Module

- 1 - AW-NM388 Wireless LAN & Bluetooth Module IC For Mobile Phones, DSCs, PMPs and Gaming Devices XP MFG Tool Command User Guide Version 0.2 Document release Date Modification Initials Approved Ver. 0.1 2011/07/05 Initial version Lester Huang Ivan Chen Ver. 0.2 2012/01/31 Add Warning Statement Lester Huang Ivan Chen - 2 - 1. AW-NM388 WLAN & Bluetooth MFG Tool Command User Guide Figur1  When you test AW-NM388, AW-NM388 module put in socket and please connect the B type USB. It is necessary for two issues. One is for Bluetooth UART to USB interface control and the other one is apply the voltage for 32.768KHz OSC. 1.1 Step1: Environment set up(Win XP English Ver. is necessary) (1) Plug the USB cable in the host PC. (2) Copy the file “sd8787.sys” from the sub folder below: \MFG-8787-WIFI-SD-BT-SD-WIN-X86-1.2.6.22-14.0.3.p155\bin\lab_tool\drv\WinXP (Please contact Azurewave FAE for the sub folder) and phase it into the sub folder below: \Windows\system32\drivers As figure 2 BT Antenna B Type USB connector WIFI AUX Antenna Antenna Port WIFI Main Antenna SDIO Interface - 3 - Figure 2 Figure 3 - 4 - (3) Connect SDIO to the host PC. (4) Choose “Cancel” for all auto hardware detection. (5) Install the 8787 SDIO driver following the steps below: 1. Refer to Figure 3 for the indication of the 8787 device in the Windows Device manager. 2. At this point the host PC will auto detect 3 Marvell 802.11 SDIO devices. 3. Only one Marvell 802.11 SDIO is work, others can be ignored. 4. Update Driver following the picture below Figure 4 - 5 - Figure 5 Figure 6 - 6 - 5. Browse the driver from the folder as below: (Figure 6) \MFG-8787-WIFI-SD-BT-SD-WIN-X86-1.2.6.22-14.0.3.p155\bin\lab_tool\drv\WinXP 6. Installation will be successful as Figure 7 showed. WiFi is done. Figure 7 7. Setup Bluetooth UART to USB driver. FTDI IC is used in this adapter board. 8. Please indicated the install path to the FTDI folder (Check Azurewave FAE to get this one) 9. After installing, you can find the new comport showing up in the devices manager as figure 8. - 7 - Figure 8 1.2 Step2: Opening MFG Tool (1) Please make sure the AW-NM388 is enabling (check OS device manger). (2) Opening MFG tool, please double click on the “DutApiSDUART8787.exe.” in this sub folder: (3) \ MFG-8787-WIFI-SD-BT-SD-WIN-X86-1.2.6.22-14.0.3.p155\bin\labtool 1.3 Step3: Initial Command As the information showed on your screen, please enter these commands below to start your test. (Figure 9) Command: 1 Wi-Fi testing mode Command: 2 BT testing mode Command: 3 FM testing mode - 8 - Figure 9 1.3 Step3: Generate 802.11 b/g/n Packet (1)Command: Select WIFI Main Antenna: 69 90000200 40 69 90000208 0 69 9000020C 8 69 80002200 FFFF Select WIFI AUX Antenna: 69 90000200 400 69 90000208 0 69 9000020C 20 69 80002200 FFFF (2)Command: 22 1 12 1 22: Initial transmit power in the antenna 1: Set the wanted channel (1~14 for B/G/N mode) 12: Set the wanted power, typically G mode: 12 dBm/ B mode: 15 dBm 1: Set the mode, 1G mode & N mode , 0 B mode - 9 - (3)Command: 112 0 (only for N mode) 112: N mode HT20/40. 0: for HT20/40. 0HT20, 1HT40 (4)Command: 25 1 13 25: Set duty cycle, packet mode. 1: Data rate enable 13: Data rate set up A mode &B mode & G mode 1Mbps 5.5Mbps 11Mbps 6Mbps 9Mbps 12Mbps 18Mbps 24Mbps 1 3 4 6 7 8 9 10 36Mbps 48Mbps 54Mbps 11 12 13 N mode MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 MCS8 15 16 17 18 19 20 21 22 23 After you type above command, you can measure the 802.11b/g/n packet by your RF test instrument (exp: Agilent 4010, IQview...). (5) Command: 25 0 Stop transmitting packet signal. 1.4 Step4: Generate 802.11b/g/n continuous symbol (1)Please re-type the Step3 (1)~(5) commands. (2)Command 17 1 13 17: Set continuous mode. 1: Enable data rate 13: 54 Mbps, other data rate, please refer the above table. After you type above command, you can measure the 802.11b/g continuous symbol in your RF test instrument. (3)Command 17 0 Stop transmitting continuous signal - 10 - 1.5 Step5: Test RX sensitivity Before test RX, the Marvell standard waveform is needed. Please contact Azurewave FAE for this issue. (1)Command: Select WIFI Main Antenna: 69 90000200 40 69 90000208 0 69 9000020C 8 69 80002200 FFFF Select WIFI AUX Antenna: 69 90000200 400 69 90000208 0 69 9000020C 20 69 80002200 FFFF (2) Command 12 1 12: Choose RX text channel 1: Channel number, (1~14 for B/G/N mode) (3) Command: 112 0 (only for N mode) 112: N mode HT20/40. 0: for HT20/40. 0HT20, 1HT40 (4) 31: Clear all the received packets. (6) 32: Check the received packets. 1.6 Others Commands (1) Command 45 Check the MAC (2) Command 99 Quit the test mode/ Quit the MFG tool - 11 - 1.7 BT test mode Commands When you begin to test Bluetooth, please make sure your com port is correct. Please open the “setup.ini” file which is under: \ MFG-8787-WIFI-SD-BT-SD-WIN-X86-1.2.6.22-14.0.3.p155\bin\labtool As Figure 10. Figure 10 Find the BT COM port and make sure the com port is corresponding to the device manager. - 12 - As Figure 11. Figure 11 (1) Command 45Check BT MAC. (2) Command 78 1BT enter test mode. After you type above command, you can measure BT signal both TX/RX and the other BT test items by your BT instrument. - 13 - Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is …

Text truncated - open the document above for the full version.

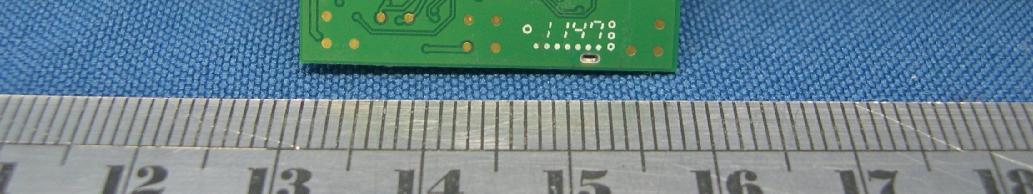

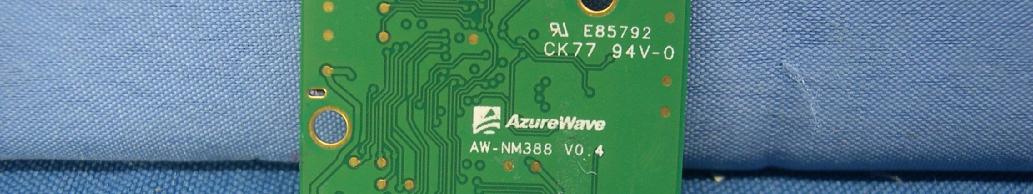

Report No.: 120102E08 1 CONSTRUCTION PHOTOS OF EUT Report No.: 120102E08 2 BT WLAN - Aux WLAN - Main

(Fig. 1) FCC ID: TLZ-NM388 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Report No.: 120102E08 3 Report No.: 120102E08 4

Report No.: SA120102E08 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120102E08 MODEL NO.: AW-NM388 FCC ID: TLZ-NM388 RECEIVED: Nov. 04, 2011 TESTED: Jan. 13 to 20, 2012 ISSUED: Feb. 07, 2012 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8 F., No. 94, Baozhong Rd., Xindian,Taipei, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120102E08 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA120102E08 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120102E08 Original release Feb. 07, 2012 Report No.: SA120102E08 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: IEEE 802.11 b/g/n Wireless LAN & Bluetooth Module BRAND NAME: Azurewave MODEL NO.: AW-NM388 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: AzureWave Technologies, Inc. TESTED DATE: Jan. 13 to 20, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: AW-NM388) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Feb. 07, 2012 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Feb. 07, 2012 ( May Chen, Deputy Manager ) Report No.: SA120102E08 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120102E08 Report Format Version 4.0.0 6 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 151.4 1.74 20 0.045 1.00 For Bluetooth: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 8.630 1.74 20 0.003 1.00 CONCLUSION: Both of the WLAN and Bluetooth can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.045 / 1 + 0.003 / 1= 0.048, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---
