1 AW-NU153H IEEE 802.11b/g/n USB Half-Mini-Card Wireless Module 2 I. Introduction i ii i. Overview . Overview. Overview . Overview AzureWave Technologies, Inc. introduces the pioneer of the IEEE 802.11b/g/n USB Half-Mini-Card wireless module ---AW-NU153H. The AW-NU153H USB Half-Mini-Card wireless module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. It enables a high performance, cost effective, low power, compact solution that easily fits onto one side of a USB Half-Mini-Card. Compliant with the IEEE 802.11b/g/n standard, the AW-NU153H uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize system power requirements by using AW-NU153H. Longer Range and Faster Speed Comparing to 802.11g technology, 802.11n standard make big improvement on speed and range. It Increases wireless range by up to 2 times and reduces dead spots in coverage area. The data rate can up to 150Mbps data rate. ii. Features USB Half-Mini-Card. Compliant with IEEE802.11n standard 2 antennas to support 1(Transmit) × ×× × 1(Receive) and RX diversity technology High speed wireless connection up to 150MbpsLow power consumption and high performance Enhanced wireless security 3 iii. Product Review 1. Connection Mode ◎Infrastructure Mode Infrastructure mode needs an access point to establish the network, which can provide wireless accesses within valid range for users to communicate with others or transmit data with a wired network. There are several benefits of Infrastructure networking: √ Roaming: a wireless LAN enabled computer can physically move from the operating range of one access point to the other without losing connection. There is a quick association made between new access point and wireless device as the computer traverses from the coverage of one access point to another. √ Range Extension: each wireless LAN enabled computer within the range of access point can communicate with other wireless LAN enabled computers within the effective range from the access point. √ Wired to wireless LAN connection: the access point will establish a bridge between wireless LAN and other wired counterparts. Infrastructure Mode 4 ◎Ad-hoc Mode The difference between Ad-hoc mode and Infrastructure mode is that Ad-hoc mode does not need the access point or router. When you use this mode, your computer will act as a server within the valid range and connect directly to others in the same LAN workgroup. Ad-hoc Mode It is recommended to choose this mode when there is no access point showed on your wireless network. 5 6 II. Installation i. System Requirements *Minimum of 64MB system memory *Operating system: XP/Vista * Driver installation ii. Setup: Windows XP OS 1. Find out the Driver, and launch the Setup Wizard 7 2. Please wait few seconds for wizard to prepare installation 3. Please select click [Install] to proceed 8 4. The Wizard is running installation 5. Please wait few seconds for Wizard to setup 9 6. When it is completed, please click [Finish] iii. Setup: Windows Vista OS Please follow the steps to complete installation. 1. Launch the setup driver 10 2. When you see the permission dialogue box, please click [Continue] 3. Now the Wizard is preparing installation 11 4. Please click [Install] to proceed 5. The system is processing installation 12 6. Please wait few seconds for Wizard to setup 7. When the setup is completed, please click [Finish] 13 III. Network Connection i. For Windows XP OS Please see the following steps to setup network connection for Windows XP. 1. Find the network icon on the desktop shortcut and right-click on it. Choose “View Available Wireless networks” 2. You will see several options, please select one and click [Connect] 14 3. Please wait for few seconds to let system connecting to selected wireless network 4. You may need to type the network key when it is required (if the network doesn’t request the key, the network will connect directly.) 5. Now the selected wireless network is connected 15 6. You can check the connection status by clicking [Status] in the pop-up dialogue 7. Here is the wireless network connection status ii. For Windows Vista OS Following are the instructions to setup wireless connection for Windows Vista. 1. Right-click on the network icon located on desktop shortcut. When you see the dialogue, please click [Connect to a network] 16 2. Choose wireless network within your range and click [Connect] * If selected network is not secure, please choose [Connect anyway] 3. You may need to wait for few seconds when Windows connects to wireless network 17 4. Now the selected wireless network is connected 5. If you want to see the connection status, please right-click on the network you choose and select [Status] 18 6. This is the information of network status 19 IV. Setup for Ad-hoc Mode i. For Windows XP OS If you want to choose Ad-hoc mode, please right-click network icon on desktop shortcut and choose “Open Network Connections”, or go to [Control Panel] and double-click “Network Connection” icon. When you see the “Network Connections” screen, please follow the steps below to setup Ad-hoc mode. 20 1. Double-click “Wireless Network Connection” icon to enter its properties 2. Click "General” tab and double-click the “Internet Protocol (TCP/IP)” item 21 3. Choose “Use the following IP address:” and type the IP address; then click [OK] *Note: the IP address of the other wireless card should be set with the same subnet mask 4. Right-click the “Wireless Network Connection” icon and choose “properties” 22 5. Select “Wireless Network” tab and choose [Add] 6. Type “Network name (SSID)” and choose “Data encryption” if you want to protec…

Text truncated - open the document above for the full version.

FCC ID: TLZ-NU153H Report No.: RF990924C13 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Nov. 09, 2010 Dear Application Examiner, AzureWave Technologies, Inc., It’s an IEEE 802.11b/g/n USB Half-Mini-Card Wireless Module, FCC ID: TLZ-NU153H would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9271. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is. AR9271, MMBT2907A 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extend cable 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-NU153H Report No.: RF990924C13 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

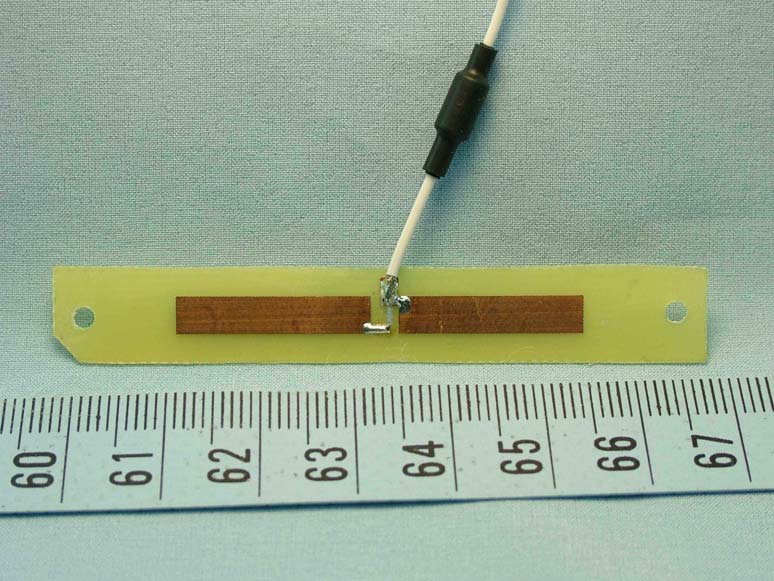

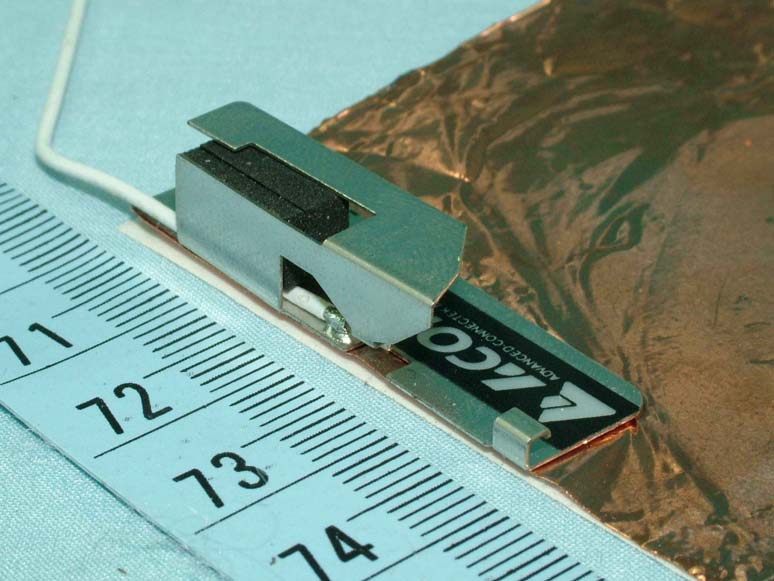

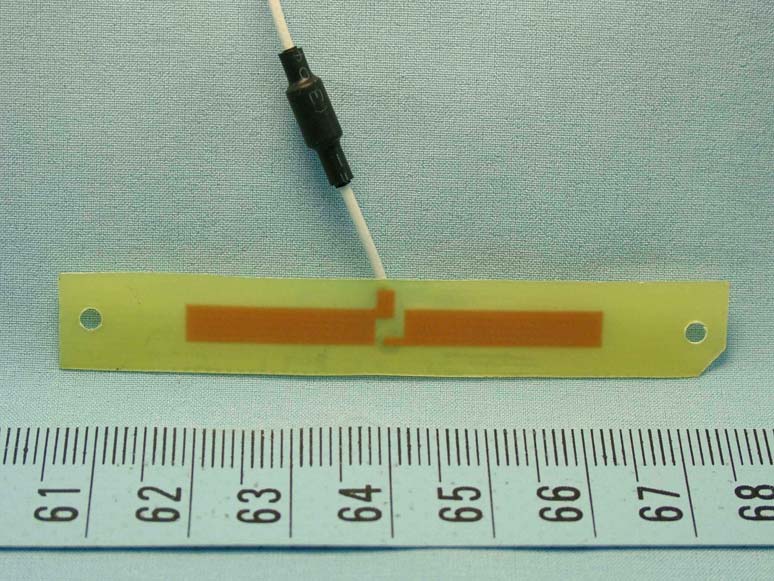

Page 1 CONSTRUCTION PHOTOS OF EUT EUT (Two antenna connector) EUT (one antenna connector) Page 2 Antenna 1 Model No.: AN2400-5776RS Page 3 Page 4 Antenna 2 Model No.: ADP6P-700003 Page 5 Page 6 Page 7 Antenna 3 Model No.: APM8P-700015 Page 8 Page 9 Antenna 4 Model No.: MSA-4008-25GC1-A1 Page 10 Page 11

Label sample

Label location

Page 12 EUT (Two antenna connector) Page 13 EUT (One antenna connector) Page 14

FCC ID: TLZ-NU153H Report No.: RF990924C13 Operational Description This device is a IEEE 802.11b/g/n USB Half-Mini-Card Wireless Module, which operates in the 2.4GHz band, the maximum data rate could be up to 135Mbps with OFDM technique. If the signal to noise ratio is too poor which could not support 135Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antennas are Dipole / PCB and PIFA antennas with Hirose U.FL-R-SMT antenna connectors. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA990924C13 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990924C13 MODEL NO.: AW-NU153H FCC ID: TLZ-NU153H ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No. 94, Baozhong Rd., Xindian, Taipei, Taiwan 231. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA990924C13 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER TEST MODE FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) A (Antenna 1 type : Dipole) 2412-2462 22.3 2.86 20 0.065 1.00 B (Antenna 2 type : PCB) 2412-2462 22.3 2.14 20 0.055 1.00 C (Antenna 4 type : PIFA) 2412-2462 22.3 2.98 20 0.067 1.00

Report No.: RF990924C13 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990924C13 MODEL NO.: AW-NU153H FCC ID: TLZ-NU153H RECEIVED: Sep. 24, 2010 TESTED: Sep. 27 ~ Oct. 26, 2010 ISSUED: Oct. 28, 2010 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No. 94, Baozhong Rd., Xindian, Taipei, Taiwan 231. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 108 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF990924C13 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION .......................................................................................................4 2. SUMMARY OF TEST RESULTS ...............................................................................5 2.1 MEASUREMENT UNCERTAINTY ............................................................................5 3. GENERAL INFORMATION........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2 DESCRIPTION OF TEST MODES ............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .........................................13 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................13 4. TEST TYPES AND RESULTS .................................................................................14 4.1 RADIATED EMISSION MEASUREMENT ...............................................................14 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................................14 4.1.2 TEST INSTRUMENTS.............................................................................................15 4.1.3 TEST PROCEDURES .............................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD ...................................................................16 4.1.5 TEST SETUP...........................................................................................................17 4.1.6 EUT OPERATING CONDITIONS ............................................................................17 4.1.7 TEST RESULTS ......................................................................................................18 4.2 CONDUCTED EMISSION MEASUREMENT ..........................................................57 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................57 4.2.2 TEST INSTRUMENTS.............................................................................................57 4.2.3 TEST PROCEDURES .............................................................................................58 4.2.4 DEVIATION FROM TEST STANDARD ...................................................................58 4.2.5 TEST SETUP...........................................................................................................59 4.2.6 EUT OPERATING CONDITIONS ............................................................................59 4.2.7 TEST RESULTS ......................................................................................................60 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................66 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................66 4.3.2 TEST INSTRUMENTS.............................................................................................66 4.3.3 TEST PROCEDURE................................................................................................66 4.3.4 DEVIATION FROM TEST STANDARD ...................................................................66 4.3.5 TEST SETUP...........................................................................................................67 4.3.6 EUT OPERATING CONDITIONS ............................................................................67 4.3.7 TEST RESULTS ......................................................................................................68 4.4 MAXIMUM OUTPUT POWER .................................................................................72 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT .................................72 4.4.2 INSTRUMENTS.......................................................................................................72 4.4.3 TEST PROCEDURES .............................................................................................72 Report No.: RF990924C13 3 Report Format Version 3.0.1 4.4.4 DEVIATION FROM TEST STANDARD ...................................................................72 4.4.5 TEST SETUP...........................................................................................................73 4.4.6 EUT OPERATING CONDITIONS ............................................................................73 4.4.7 TEST RESULTS ......................................................................................................74 4.5 POWER SPECTRAL DENSITY MEASUREMENT.........…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) 2 3 CONDUCTED EMISSION TEST (TEST MODE B) 4 5 CONDUCTED EMISSION TEST (TEST MODE C) 6 7 RADIATED EMISSION TEST (TEST MODE A) 8 9 RADIATED EMISSION TEST (TEST MODE B) 10 11 RADIATED EMISSION TEST (TEST MODE C) 12
