TLZ-NU182HIEEE 802.11b/g/n 2x2 USB Half-Mini-Card Wireless Module

AW-NU182H IEEE 802.11b/g/n 2x2 USB Half-Mini-Card Wireless Module User’s Manual I. Introduction i. Overview AzureWave Technologies, Inc. introduces the pioneer of the IEEE 802.11b/g/n 2x2 USB Half-Mini-Card wireless module ---AW-NU182H. The AW-NU182H USB Half-Mini-Card wireless module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. It enables a high performance, cost effective, low power, compact solution that easily fits onto one side of a USB Half-Mini-Card. Compliant with the IEEE 802.11b/g/n standard, the AW- NU182H uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize system power requirements by using AW- NU182H. Longer Range and Faster Speed Comparing to 802.11g technology, 802.11n standard make big improvement on speed and range. It Increases wireless range by up to 2 times and reduces dead spots in coverage area. The data rate can up to 300Mbps data rate. ii. Features USB Half-Mini-Card. Compliant with IEEE802.11n standard 2 antennas to support 2(Transmit)  2(Receive) technology High speed wireless connection up to 300Mbps Low power consumption and high performance Enhanced wireless security iii. Product Review When the USB wireless module is transmitting data through connection, LED indicator will blink. 1. Connection Mode ◎Infrastructure Mode Infrastructure mode needs an access point to establish the network, which can provide wireless accesses within valid range for users to communicate with others or transmit data with a wired network. There are several benefits of Infrastructure networking: √ Roaming: a wireless LAN enabled computer can physically move from the operating range of one access point to the other without losing connection. There is a quick association made between new access point and wireless device as the computer traverses from the coverage of one access point to another. √ Range Extension: each wireless LAN enabled computer within the range of access point can communicate with other wireless LAN enabled computers within the effective range from the access point. √ Wired to wireless LAN connection: the access point will establish a bridge between wireless LAN and other wired counterparts. Infrastructure Mode ◎Ad-hoc Mode The difference between Ad-hoc mode and Infrastructure mode is that Ad-hoc mode does not need the access point or router. When you use this mode, your computer will act as a server within the valid range and connect directly to others in the same LAN workgroup. AW-NU182H Ad-hoc Mode It is recommended to choose this mode when there is no access point showed on your wireless network. AW-NU182 H II. Installation i. System Requirements Before you install AW-NU182H, please make sure your system meets the following requirements. *Laptop with mini PCI-E slot (slot support USB D+ D-) *Minimum of 64MB system memory *Operating system: XP/Vista/Win7 *An optical drive/CD-ROM for utilities and driver installation ii. Hardware Installation 1. Find an available mini PCI-E port (slot support USB D+ D-) on your laptop. 2. Install AW-NU182H Wireless USB Module into laptop PCI-E slot. iii. Operation Range The operating range of AW-NU182H varies from the working environment. However, this device made improvement on speed and range, which also reduced dead spots in coverage area. AW-NU182H is two times wider than previous wireless products. By default, this USB wireless half size mini card will automatically adjust the data rate. The transmission speed may vary according to the environment. The closer the wireless stations are the better the signal and transmission speed they will receive. iv. Setup: Windows XP OS If your computer is running a Windows operating system, it will automatically detect the AW-NU182H after the system boots up and displays a “Found New Hardware Wizard” window. Please click [Cancel] and proceed with the following steps. 1. Find out the Driver, and launch the Setup Wizard 2. Please wait few seconds for wizard to prepare installation 3. Please select click [Install] to proceed 4. The Wizard is running installation 5. Please wait few seconds for Wizard to setup 6. When it is completed, please click [Finish] 9. When the process is finished, the system will show a message of “Found New Hardware” v. Setup: Windows Vista OS Please follow the steps to complete installation. 1. Launch the setup driver 2. When you see the permission dialogue box, please click [Continue] 3. Now the Wizard is preparing installation 4. Please click [Install] to proceed 5. The system is process installation 8. When the setup is completed, please click [Finish] III. Network Connection i. For Windows XP OS Please see the following steps to setup network connection for Windows XP. 1. Find the network icon on the desktop shortcut and right-click on it. Choose “View Available Wireless networks” 2. You will see several options, please select one and click [Connect] 3. Please wait for few seconds to let system connecting to selected wireless network 4. You may need to type the network key when it is required 5. Now the selected wireless network is connected 6. You can check the connection status by clicking [Status] in the pop-up dialogue 7. Here is the wireless network connection status ii. For Windows Vista OS Following are the instructions to setup wireless connection for Windows Vista. 1. Right-click on the network icon located on desktop shortcut. When you see the dialogue, please click [Connect to a network] 2. Choose wireless network within your range and click [Connect] * If selected network is not secure, please choose [Connect anyway] 3. You may need to wait for few seconds when Windows connects to …

Text truncated - open the document above for the full version.

FCC ID: TLZ-NU182H Report No.: RF120109C16 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch March 2, 2012 Dear Application Examiner, AzureWave Technologies, Inc., It’s an IEEE 802.11b/g/n 2x2 USB Half-Mini-Card Wireless Module, FCC ID: TLZ-NU182H would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT5372. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MS3410. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via USB to PCIe mini extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TLZ-NU182H Report No.: RF120109C16 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Supervisor Advance Data Technology

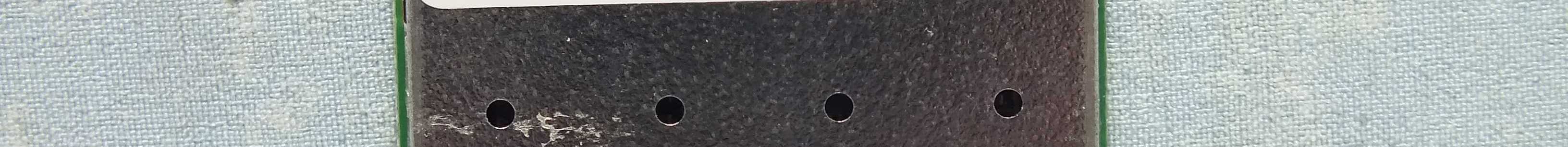

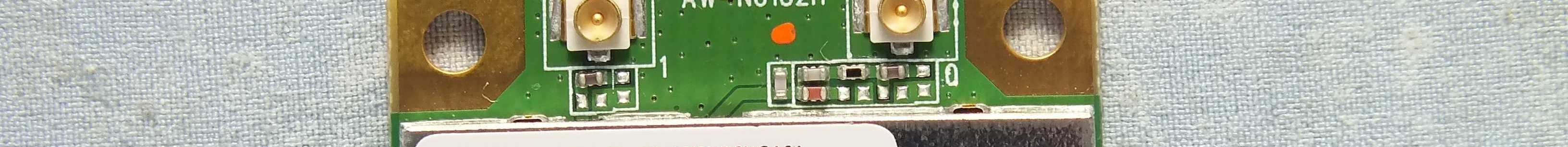

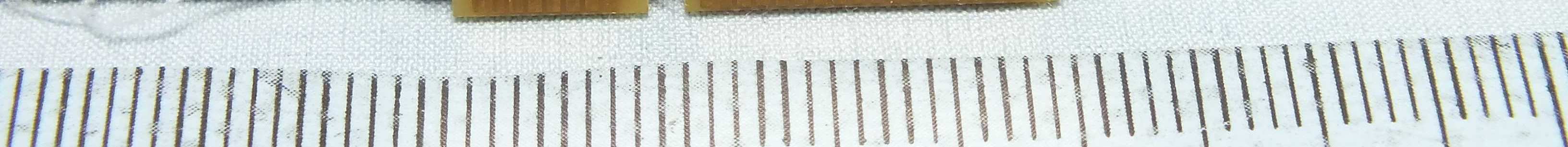

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

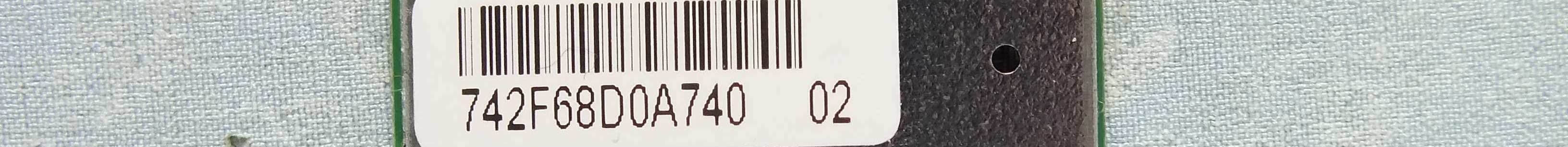

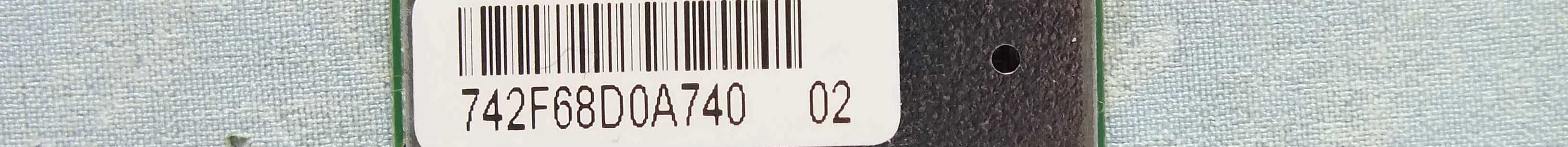

Label

Label Location

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: TLZ-NU182H Report No.: RF 120109C16 Operational Description This device is an IEEE 802.11b/g/n 2x2 USB Half-Mini-Card Wireless Module, which operates in both of the 2.4GHz band, the maximum data rate could be up to 300Mbps with OFDM technique. If the signal to noise ratio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3Vdc from host equipment. The antennas are dipole antennas with SMA Male Reverse antenna connectors.

Report No.: SA120109C16 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120109C16 MODEL NO.: AW-NU182H FCC ID: TLZ-NU182H RECEIVED: Jan. 09, 2012 TESTED: Jan. 13 ~ Jan. 19, 2012 ISSUED: Feb. 01, 2012 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 5 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120109C16 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE)......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER.................................. 5 Report No.: SA120109C16 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Feb. 01, 2012 Report No.: SA120109C16 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT:IEEE 802.11b/g/n 2x2 USB Half-Mini-Card Wireless Module MODEL:AW-NU182H BRAND:AZUREWAVE APPLICANT:AzureWave Technologies, Inc. TESTED:Jan. 13 ~ Jan. 19, 2012 TEST SAMPLE:ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: AW-NU182H) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Feb. 01, 2012 Andrea Hsia / Specialist APPROVED BY : , DATE :Feb. 01, 2012 Gary Chang / Technical Manager Report No.: SA120109C16 Report Format Version 4.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 26.1 2.92 20 0.159 1

Report No.: RF120109C16 1 Report Format Version 4.1.0 FCC TEST REPORT REPORT NO.: RF120109C16 MODEL NO.: AW-NU182H FCC ID: TLZ-NU182H RECEIVED: Jan. 09, 2012 TESTED: Jan. 13 ~ Jan. 19, 2012 ISSUED: Feb. 01, 2012 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan (R.O.C) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF120109C16 2 Report Format Version 4.1.0 TABLE OF CONTENTS RELEASE CONTROL RECORD...............................................................................................4 1. CERTIFICATION ...........................................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................................6 2.1 MEASUREMENT UNCERTAINTY.................................................................................6 3. GENERAL INFORMATION............................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ..............................................................................7 3.2 DESCRIPTION OF TEST MODES ................................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...........................................................9 3.2.2 DESCRIPTION OF SUPPORT UNITS ..........................................................................9 3.2.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................12 4. TEST TYPES AND RESULTS .....................................................................................13 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT......................................13 4.1.1 LIMITS OF RADIATED AND BANDEDGE EMISSION MEASUREMENT ...................13 4.1.2 TEST INSTRUMENTS.................................................................................................14 4.1.3 TEST PROCEDURES .................................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD .......................................................................15 4.1.5 TEST SETUP...............................................................................................................16 4.1.6 EUT OPERATING CONDITIONS ................................................................................16 4.1.7 TEST RESULTS ..........................................................................................................17 4.2 CONDUCTED EMISSION MEASUREMENT ..............................................................30 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................30 4.2.2 TEST INSTRUMENTS.................................................................................................30 4.2.3 TEST PROCEDURES .................................................................................................31 4.2.4 DEVIATION FROM TEST STANDARD .......................................................................31 4.2.5 TEST SETUP...............................................................................................................32 4.2.6 EUT OPERATING CONDITIONS ................................................................................32 4.2.7 TEST RESULTS ..........................................................................................................33 4.3 6dB BANDWIDTH MEASUREMENT...........................................................................35 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................................35 4.3.2 TEST SETUP...............................................................................................................35 4.3.3 TEST INSTRUMENTS.................................................................................................35 4.3.4 TEST PROCEDURE....................................................................................................35 4.3.5 DEVIATION FROM TEST STANDARD .......................................................................35 4.3.6 EUT OPERATING CONDITIONS ................................................................................35 4.3.7 TEST RESULTS ..........................................................................................................36 4.4 CONDUCTED OUTPUT POWER ...............................................................................37 4.4.1 LIMITS OF CONDUCTED OUTPUT POWER MEASUREMENT ................................37 4.4.2 TEST SETUP...............................................................................................................37 4.4.3 TEST INSTRUMENTS.................................................................................................37 4.4.4 TEST PROCEDURES .................................................................................................37 4.4.5 DEVIATION FROM TEST STANDARD .......................................................................37 4.4.6 EUT OPERATING CONDITIONS ................................................................................37 4.4.7 TEST RESULTS ..................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
