TLZ-R20HSPA+ MOBILE ROUTER

1 HSPA+ Mobile Router User Manual V1.3 2 Table of Contents 1. Introduction ...................................................................................................................... 4 1.1 Features ..................................................................................................................................4 1.2 General Specifications ............................................................................................................5 1.3 Product Overview ...................................................................................................................6 1.3.1 Appearance ......................................................................................................................6 1.3.2 HSPA+ Mobile Router .....................................................................................................7 1.3.3 FCC Regulations: .............................................................................................................8 1.3.4 RF Exposure Information (SAR) ......................................................................................8 2. HSPA+ Mobile Router Connection ..................................................................................... 10 2.1 Install HSPA+ Mobile Router for Ethernet connection ....................................................... 10 2.2 HSPA+ Mobile Router for Wi-Fi connection ....................................................................... 10 3. Connection Manager ........................................................................................................ 11 3.1 Default Page for First Time ................................................................................................ 11 3.2 Information ........................................................................................................................ 12 3.2.1. Status ........................................................................................................................... 12 3.2.2. Usages.......................................................................................................................... 12 3.2.3. Wi-Fi User List .............................................................................................................. 13 3.2.4. History ......................................................................................................................... 13 3.3 3G Settings ......................................................................................................................... 13 3.3.1. Profile .......................................................................................................................... 13 3.3.2. Network Settings ......................................................................................................... 14 3.3.3. PIN Code ...................................................................................................................... 14 3.4 Wi-Fi Settings ..................................................................................................................... 15 3.4.1. Basic ............................................................................................................................. 15 3.4.2. Advanced ..................................................................................................................... 16 3.4.3. Mac filter ..................................................................................................................... 16 3.5 DHCP .................................................................................................................................. 17 3.6 Message ............................................................................................................................. 17 3.6.1. Write new .................................................................................................................... 17 3.6.2. Inbox ............................................................................................................................ 18 3 3.6.3. Sent .............................................................................................................................. 18 3.6.4. Draft ............................................................................................................................. 18 3.7 System ................................................................................................................................ 19 3.7.1. Administrator .............................................................................................................. 19 3.7.2. Configuration ............................................................................................................... 19 3.7.3. Firmware Upgrade ....................................................................................................... 20 3.7.4. Language...................................................................................................................... 20 4. Troubleshooting ............................................................................................................... 21 4 1. Introduction HSPA+ Mobile Router is a highly integrated wireless solution for 3G and Wi-Fi. It provides HSPA+ downlink data rate up to 21 Mbps, uplink data rate up to 5.76 Mbps and 3G mobile broadband wherever you are. With HSPA+ Mobile Router, you don’t have to worry about the availability of Internet access as long as 3G network is available. It provides connection with 1 PC USB host (via Ethernet) and at the same time connect up to 6 Wi-Fi enabled devices such as smart phones, laptops, or tablet PCs. HSPA+ Mobile Router is the best choice for users to enjoy the Internet for data transmission and media streaming while on-the-go. 1.1 Features  HSPA+/HSDPA/HSUPA/UMTS packet data service  EDGE/GPRS packet data service  HSPA/GSM Short Message Service (…

Text truncated - open the document above for the full version.

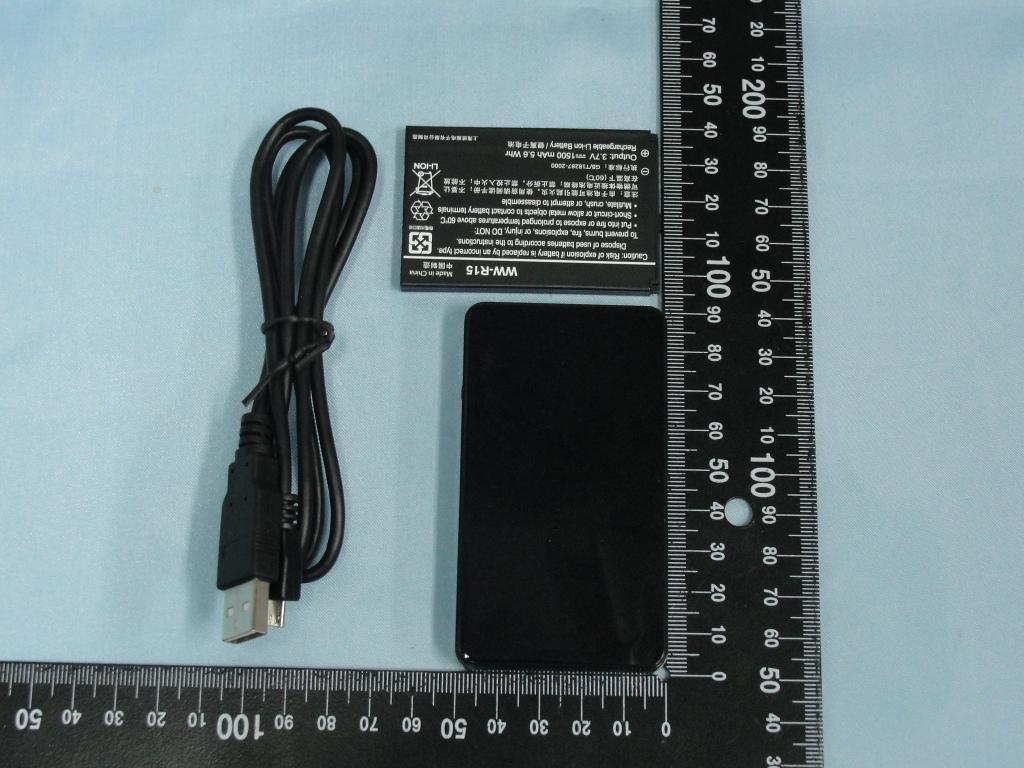

Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 1 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 2 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 3 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 List of Accessory: Specification of Accessory Battery Brand Name NA Model Name WW-R15 USB Cable Brand Name N/A Model Name N/A Signal Line 1 meter shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 4 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 720510 Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 5 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20

FCC ID: TLZ-R20

Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 6 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 7 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 8 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 9 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 WWAN Antenna Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 10 of 10 TEL : 886-3-327-3456 Report Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 WLAN Antenna

Photographs of EUT Report No.: EP270532 Brand Name: Azurewave / Model Name: WW-R20 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Aug. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : TLZ-R20 Antenna Length Width WWAN Antenna <TX / RX> 4.6 cm 2.0 cm WLAN Antenna <TX / RX> 2.0 cm 0.2 cm WWAN Antenna <TX / RX> 0.2 cm 0.2 cm WLAN Antenna <TX / RX> 2.5 cm 0.1 cm 0.35 cm 6.35 cm 0.5 cm

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 System Check_Body_835MHz_120710 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120710 Medium parameters used: f = 835 MHz; σ = 0.996 mho/m; ε r = 55.38; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.99, 8.99, 8.99); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.53 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.324 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.514 mW/g SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.54 mW/g 0 dB = 2.54 mW/g = 8.10 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 System Check_Body_1750MHz_120710 DUT: D1750V2-SN:1023 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: MSL_1750_120710 Medium parameters used: f = 1750 MHz; σ = 1.546 mho/m; ε r = 51.742; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.71, 7.71, 7.71); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.6 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.501 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 18.025 mW/g SAR(1 g) = 9.6 mW/g; SAR(10 g) = 5.06 mW/g Maximum value of SAR (measured) = 10.7 mW/g 0 dB = 10.7 mW/g = 20.59 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 System Check_Body_1900MHz_120710 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120710 Medium parameters used: f = 1900 MHz; σ = 1.521 mho/m; ε r = 53.218; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.29, 7.29, 7.29); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.1 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.031 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 18.453 mW/g SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.58 mW/g Maximum value of SAR (measured) = 11.1 mW/g 0 dB = 11.1 mW/g = 20.91 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/17 System Check_Body_2450MHz_120717 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL2450_120717 Medium parameters used: f = 2450 MHz; σ = 1.969 mho/m; ε r = 52.278; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.2 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.358 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 27.557 mW/g SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.96 mW/g Maximum value of SAR (measured) = 13.9 mW/g 0 dB = 13.9 mW/g = 22.86 dB mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 #27 GSM850_GPRS12_Front_1cm_Ch128 DUT: 270532 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium: MSL_850_120710 Medium parameters used: f = 824.2 MHz; σ = 0.985 mho/m; ε r = 55.449; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.99, 8.99, 8.99); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch128/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.217 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.854 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.287 mW/g SAR(1 g) = 0.201 mW/g; SAR(10 g) = 0.134 mW/g Maximum value of SAR (measured) = 0.215 mW/g 0 dB = 0.215 mW/g = -13.35 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 #28 GSM850_GPRS12_Back_1cm_Ch128 DUT: 270532 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium: MSL_850_120710 Medium parameters used: f = 824.2 MHz; σ = 0.985 mho/m; ε r = 55.449; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.99, 8.99, 8.99); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch128/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.333 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.298 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.430 mW/g SAR(1 g) = 0.306 mW/g; SAR(10 g) = 0.210 mW/g Maximum value of SAR (measured) = 0.325 mW/g 0 dB = 0.325 mW/g = -9.76 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 #28 GSM850_GPRS12_Back_1cm_Ch128_2D DUT: 270532 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium: MSL_850_120710 Medium parameters used: f = 824.2 MHz; σ = 0.985 mho/m; ε r = 55.449; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.99, 8.99, 8.99); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch128/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.333 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.298 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.430 mW/g SAR(1 g) = 0.306 mW/g; SAR(10 g) = 0.210 mW/g Maximum value of SAR (measured) = 0.325 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 #30 GSM850_GPRS12_Right Side_1cm_Ch128 DUT: 270532 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium: MSL_850_120710 Medium parameters used: f = 824.2 MHz; σ = 0.985 mho/m; ε r = 55.449; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.99, 8.99, 8.99); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch128/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.129 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.284 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.164 mW/g SAR(1 g) = 0.117 mW/g; SAR(10 g) = 0.079 mW/g Maximum value of SAR (measured) = 0.127 mW/g 0 dB = 0.127 mW/g = -17.92 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 #31 GSM850_GPRS12_Top Side_1cm_Ch128 DUT: 270532 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium: MSL_850_120710 Medium parameters used: f = 824.2 MHz; σ = 0.985 mho/m; ε r = 55.449; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.99, 8.99, 8.99); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch128/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.0166 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.276 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.021 mW/g SAR(1 g) = 0.015 mW/g; SAR(10 g) = 0.011 mW/g Maximum value of SAR (measured) = 0.0163 mW/g 0 dB = 0.0163 mW/g = -35.76 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/7/10 #32 GSM850_GPRS12_Bottom Side_1cm_Ch128 DUT: 270532 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium: MSL_850_120710 Medium parameters used: f = 824.2 MHz; σ = 0.985 mho/m; ε r = 55.449; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.99, 8.99, 8.99); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: SAM Right; Type: QD000P40C…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 Therefore the verification result should support extended calibration. <Dipole Verification Data> - D835 V2, serial no. 499 SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 835 MHz - Head 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 3.22.2012 -28.265 0.307 50.685 1.485 -3.2627 0.0166 -23.821 3.42 50.977 -0.911 -3.2487 -2.6165 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D835 V2, serial no. 499 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D1900V2, serial no. 5D041 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5D041 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedanc e (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginar y Impedan ce (ohm) Delta (ohm) 3.23.2010 -24.549 50.896 5.9141 -23.108 46.342 5.669 3.23.2011 -24.489 0.244 50.921 -0.025 5.9588 -0.045 -23.022 0.372 48.808 -2.466 6.991 -1.322 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D1900 V2, serial no. 5D041 1900 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 1900 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D1900V2, serial no. 5D041 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5D041 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedanc e (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginar y Impedan ce (ohm) Delta (ohm) 3.23.2010 -24.549 50.896 5.9141 -23.108 46.342 5.669 3.23.2011 -24.489 0.244 50.921 -0.025 5.9588 -0.045 -23.022 0.372 48.808 -2.466 6.991 -1.322 3.23.2012 -26.159 6.56 50.159 0.737 5.7824 0.1317 -24.341 5.33 47.059 -0.707 4.8668 0.8022 SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D1900 V2, serial no. 5D041 1900 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 1900 MHz - Body

SPORTON INTERNATIONAL INC. Page Number : F1 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA270532 Appendix F. FCC 3G SAR Measurement Procedures HSPA+ 3GPP release 7 (uplink category 7) 16QAM, Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting i. Data rates: Varied from HSPA ii. RMC Test Loop = Loop Mode 1 iii. Power Ctrl Mode = All Up bits d. The transmitted maximum output power was recorded. Setup Configuration SPORTON INTERNATIONAL INC. Page Number : F2 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA270532 HSPA+ 3GPP release 7 (uplink category 7) 16QAM, Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting * : i. Call Configs = 5.2E:HSPA+:UL with 16QAM ii. Set the Gain Factors (β c and β d ) and parameters (AG Index) were set according to each specific sub-test in the following table, C11.1.4, quoted from the TS 34.121-1 s5.2E iii. Set Channel Parms iv. Set Cell Power = -86 dBm v. Set Channel Type = HSPA vi. Set UE Target Power =21 dBm vii. Power Ctrl Mode= All Up Bits viii. Set Manual Uplink DPCH Bc/Bd = Manual ix. Set Manual Uplink DPCH Bc and Bd=15,15(for 34.121-1 v8.10.0 tableC11.1.4 sub-test 1) x. Set HSPA Conn DL Channel Levels xi. Set HS-SCCH Configs xii. Set RB Test Mode Setup xiii. Set Common HSUPA Parameters xiv. Set Serving Grant xv. Confirm that E-TFCI is equal to the target E-TFCI of 105 for sub-test 1, and other subtest’s E-TFCI d. The transmitted maximum output power was recorded. Setup Configuration Note: For details settings in the Agilent 8960 test equipment, please refer to the user guide “16QAM Measurement User Guide rev2” SPORTON INTERNATIONAL INC. Page Number : F3 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA270532 Example for HSPA+ Subtest 1, and other subtests following table, C11.1.4 (Gain Factors (β c = 15 and β d = 15)) Set HSPA Conn DL Channel Levels : CPICH =10dBm，P-CCPCH/SCH=-12dBm，PICH=15， (F-)DPCH=-10，E-AGCH=-20，E-HICH=-20，E-RGCH=off，HS-PDSCHs=-3dBm，HS-SCCH 1=-8dBm SPORTON INTERNATIONAL INC. Page Number : F4 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA1N2312-01 Set HS-SCCH Configs : HS-SCCH 2=off，HS-SCCH 3=off，HS-SCCH 4=off Set RB Test Mode Setup : E-RGCH Information State to Off，Set RB E-DPDCH Max Channel Codes (HSPA) to 2SF2 + 2SF4，Set E-DCH RLC SDU Size to 8808 SPORTON INTERNATIONAL INC. Page Number : F5 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA1N2312-01 Set Common HSUPA Parameters : E-DCH TTI to 2 ms ，E-DCH 16QAM State to On， E-DPCCH/DPCCH Power Offset (DeltaE-DPCCH)=8，E-TFCI Table Index=2ms Set Common HSUPA Parameters : Reference E-TFCI Power Offset Control to Predefined Reference E-TFCI Power Offsets to Definition 34.121-04 SPORTON INTERNATIONAL INC. Page Number : F6 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA1N2312-01 Set Common HSUPA Parameters : E-TFCI Boost Information State to On， E-TFCI Boost Value to 105，DeltaT2TP to 2， BetaEd Gain E-AGCH Table Selection to 1 E-DPDCH Power Calculation Formula to Extrapolation Set Serving Grant : AG Mode= Single Shot，Set RB Setup AG=74(75/15) SPORTON INTERNATIONAL INC. Page Number : F7 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA270532 Example: Confirm that E-TFCI is equal to the target E-TFCI of 105 for sub-test 1 SPORTON INTERNATIONAL INC. Page Number : F8 of F8 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA270532 Reference: [1] 941225 D01 SAR test for 3G devices v02, SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA/HSPA Oct. 2007 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2.] TS 34.121 Universal Mobile Telecommunications System (UMTS); Terminal Conformance Specification, Radio Transmission and Reception (FDD) [3.] HSUPA Measurement Guide with 8960 V7.5.0 Release 7 (2007-06) Ver.: v.02.18

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 22, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : TLZ-R20 FCC SAR Test Report Report No. : FA270532 FCC SAR Test Report APPLICANT : AzureWave Technologies, Inc. EQUIPMENT : HSPA+ Mobile Router BRAND NAME : Azurewave MODEL NAME : WW-R20 FCC ID : TLZ-R20 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product…

Text truncated - open the document above for the full version.
