TLZ-UR500Range Maximizer-515

Hardware Installation 1. Connect the antenna with the Range Maximizer 515. 2. Plug the power connector into the AC-in port on the unit, and plug the other end into a power outlet. 3. Connect the Range Maximizer 515 with your PC or note- book via a LAN cable. Configuration 1. Insert the Utility CD into the CD-ROM of your PC, which should run automatically. Follow the on-screen to com- plete the installation. If not, click the Start button and choose Run. Type E:\ setup.exe into the entry field to run the utility CD. (“E:\” is the CD-ROM drive label.) 2. Activate the UR Utility from Start Menu, and then the PC will search for the Universal Repeater (UR) device. Click NEXT to continue the configuration. 3. Enter your account name and password. Click NEXT to continue the installation. 4. The setup wizard will search for available wireless net- works. When found, they will appear as a list. Click on the appropriate network, and then click NEXT and go to STEP 8 to continue. Auto-Link After the hardware connection is ready, use the Auto-Link button on the bottom of the unit for quick wireless network setup. Press the Auto-Link button, the Range Maximizer 515 will automatically detect the wireless network and configure all settings. The whole process takes about 10 seconds. AUTO LINKRESET Auto-Link Button Power Connection LAN Connection Reset Default Press the reset button on the bottom of the Range Maxmizer for 4 seconds to reset all settings to their factory default set- ting. AUTO LINKRESET Reset Button If no wireless network is found, either click Rescan to search for available wireless networks, or click CANCEL to exit setup wizard. 5. If you wish to create a new wireless network, click Manu- al Setup at the left column. 6. Enter a specific name (SSID) for this new wireless net- work. 7. Select a encryption type from the drag-down menu for your wireless network. 7-1. WEP Encryption Setup a. WEP auth: This is to set the WEP authorization level. Select from Open System, Shared Key, or Both. b. Key size: This is the level of WEP encryption. Se- lect from h64-bit or 128-bit. c. Transmit WEP Key: There are 4 groups of the transmit WEP keys. Select from Key 1 to Key 4. d. WEP Key #: “#” represents the number of the Transmit WEP key. There are two types of WEP key, one is ASCII, and the other is HEX. The set - tings of each WEP key type are different. i. ASCII: For 64-bit encryption, use 5 letters (“A” through “Z”). For example, ‘abcde’, or ‘zyxwv’. For 128-bit encryption, use 13 letters (“A” through “Z”). For example, ‘abcdefghijklm’, or ‘zyx- wvutsrqpon’. ii. HEX: For 64-bit encryption, use 10 hexadecimal char- acters. For 128-bit encryption, use 26 hexadecimal characters. • Hexadecimal characters are the combination of letters “A” through “F”, and the numbers “0” through “9”. Note: All devices in the wireless network must use the same WEP key. Placement Beside placing the UR flately on an object, you can also use the buckle on the back of the UR and a fixed nail to straight the UR up on the wall. 7-2. WPA Encryption Setup In the WPA encription seup screen, enter the pass- phrase or pre-shared key in the Passphrase field. This key must be between 8~63 characters in length. After configuration is finished, click NEXT to continue. 8. Wait for few seconds. 9. Setup is complete. Click FINISH to exit this setup wizard Range Maximizer - 515 Sepcifications StandardIEEE 802.11g/IEEE802.11b PortEthernet ButtonsAuto link, Reset LEDs(1) Link: Ethernet (Orange) (2) Activity: Wireless (Blue) (3) Power: Power (Green) Transmit Power802.11g: Typ. 14±1 1dBm@Normal Temp Range 802.11b: Typ. 17±1 1dBm@Normal Temp Range Security Features WEP (64/128-bit keys,) WPA-PSK Dimensions86(L) x 61(W) x 19.2(T) mm PowerInput: 100~240V AC 0.15A Output: 5V DC 1A Operating Temp 0 o C to 40 o C (32 o F to 104 o F) Storage Temp -20 o C to 70 o C (-4 o F to 158 o F) Operating Humidity10% to 90% RH Storage Humidity5% to 95% RH Wireless Channels By country Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limite…

Text truncated - open the document above for the full version.

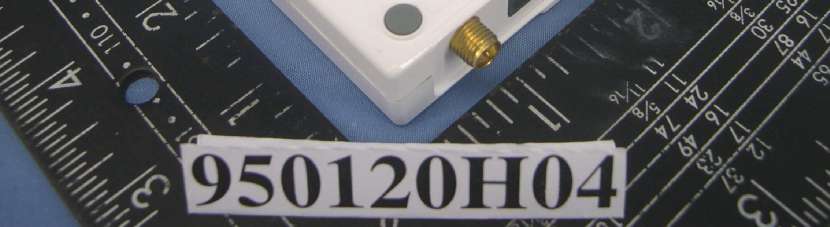

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL (Fig. 1) FCC ID: TLZ-UR500

FCC ID:TLZ-UR500

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: TLZ-UR500 Report No. RF950120H04 Operational Description This device is a Range Maximizer - 515, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Range Maximizer - 515) is powered by power adapter. The antenna used in this product is dipole antenna with reversed SMA connector. The other instruction, please have a look at the users manual.

Report No.: SA950120H04 1 RF EXPOSURE REPORT REPORT NO.: SA950120H04 MODEL NO.: Range Maximizer - 515 FCC ID: TLZ-UR500 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950120H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950120H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950120H04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.585(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241272.4440.0231.0 6243774.1310.0231.0 11246269.1830.0221.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241274.1310.0231.0 6243781.2830.0261.0 11246283.1760.0261.0

Report No.: RF950120H041Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950120H04 MODEL NO.: Range Maximizer - 515 RECEIVED: Jan. 20, 2006 TESTED: Jan. 25 to 27, 2006 ISSUED: Feb. 07, 2006 APPLICANT: AzureWave Technologies, Inc. ADDRESS: 8F, No.94, Baozhong Rd., Xindian, Taipei , Taiwan 231. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950120H042Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.5DESCRIPTION OF SUPPORT UNITS........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................12 4TEST TYPES AND RESULTS.....................................................................13 4.1CONDUCTED EMISSION MEASUREMENT..............................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................13 4.1.2TEST INSTRUMENTS.................................................................................13 4.1.3TEST PROCEDURES.................................................................................14 4.1.4TEST SETUP..............................................................................................14 4.1.5EUT OPERATING CONDITIONS................................................................15 4.1.6TEST RESULTS..........................................................................................16 4.2RADIATED EMISSION MEASUREMENT...................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2TEST INSTRUMENTS.................................................................................19 4.2.3TEST PROCEDURES.................................................................................20 4.2.4TEST SETUP..............................................................................................21 4.2.5EUT OPERATING CONDITIONS................................................................21 4.2.6TEST RESULTS..........................................................................................22 4.2.7TEST RESULTS - DSSS.............................................................................23 4.2.8TEST RESULTS - OFDM............................................................................26 4.36dB BANDWIDTH MEASUREMENT...........................................................29 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT........................................29 4.3.2TEST INSTRUMENTS.................................................................................29 4.3.3TEST PROCEDURE....................................................................................30 4.3.4TEST SETUP..............................................................................................30 4.3.5EUT OPERATING CONDITIONS................................................................30 4.3.6TEST RESULTS – DSSS.............................................................................31 4.3.7TEST RESULTS - OFDM............................................................................34 4.4MAXIMUM PEAK OUTPUT POWER..........................................................37 Report No.: RF950120H043Report Format Version 2.0.4 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........37 4.4.2TEST INSTRUMENTS.................................................................................37 4.4.3TEST PROCEDURES.................................................................................38 4.4.4TEST SETUP..............................................................................................38 4.4.5EUT OPERATING CONDITIONS................................................................38 4.4.6TEST RESULTS – DSSS.............................................................................39 4.4.7TEST RESULTS – OFDM............................................................................40 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................41 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................41 4.5.2TEST INSTRUMENTS.................................................................................41 4.5.3TEST PROCEDURE....................................................................................42 4.5.4TEST SETUP..............................................................................................42 4.5.5EUT OPERATING CONDITIONS................................................................42 4.5.6TEST RESULTS – DSSS.............................................................................43 4.5.7TEST RESULTS – OFDM............................................................................46 4.6BAND EDGES MEASUREMENT................................................................49 4…

Text truncated - open the document above for the full version.

Report No.: RF950120H0460Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950120H0461Report Format Version 2.0.4 RADIATED EMISSION TEST
