TLZ-WH029TWirelessHD TX Module

WirelessHD TX/RX Module User’s Manual FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: TLZ-WH029T". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Module may not be integrated into host devices that are addressed for operation inside airplanes/satellites.. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the IC RSS-102 radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-frequency exposure g…

Text truncated - open the document above for the full version.

Page No. : 19 Module Approval Request Letter Subject: Module Approval Date: 2012/2/21 FCC ID: TLZ-WH029T Dear Reviewer, We, Sporton International Inc., are authorized by AzureWave Technologies, Inc. to have their state-of-the-art WirelessHD TX Module approved under limited module approval authorization. The application of this module is specified to portable host and mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip SB9210. 3. The requirement of power supply regulation: The part number of the power regulator is IT7803. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE and SAR RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

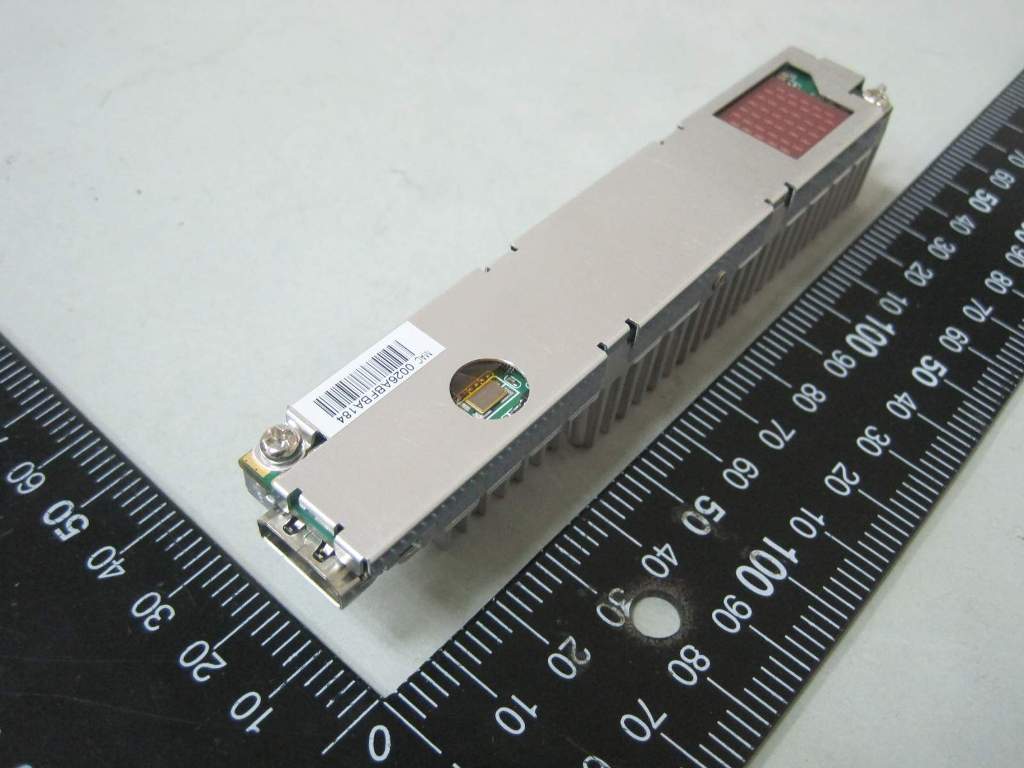

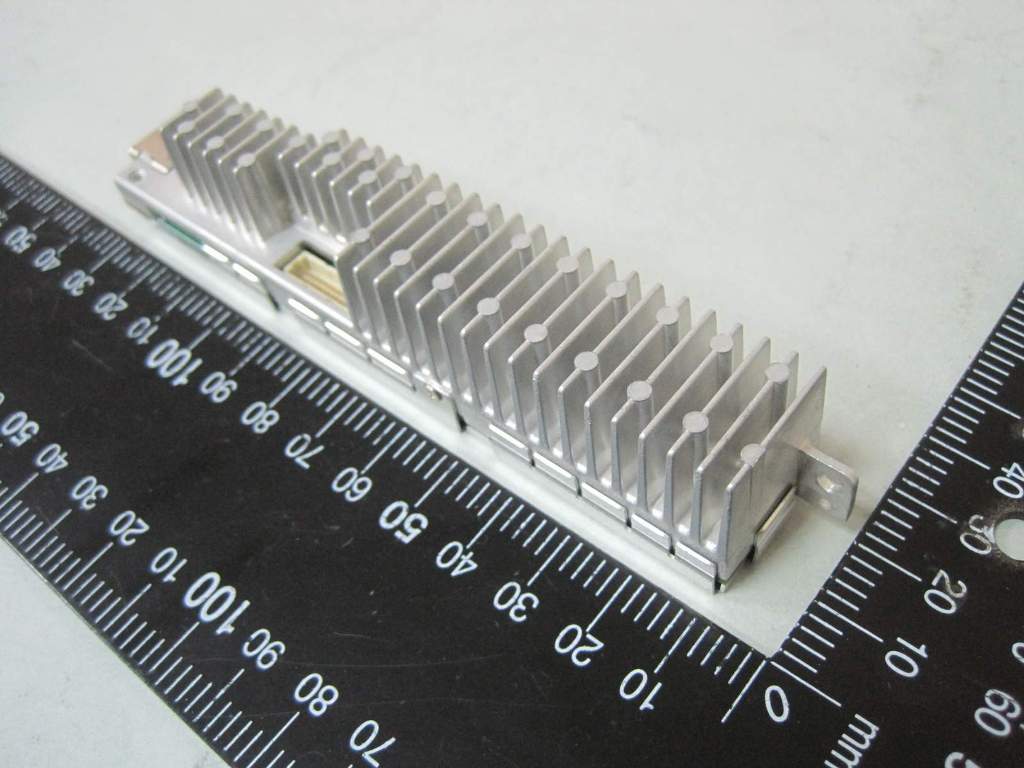

Report No.:221716 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 27, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:221716 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 27, 2012 FAX : 886-2-2696-2255

Label Content Label Location

Report No.:221716 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 27, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:221716 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 27, 2012 FAX : 886-2-2696-2255 Report No.:221716 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 27, 2012 FAX : 886-2-2696-2255 Report No.:221716 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 27, 2012 FAX : 886-2-2696-2255 Report No.:221716 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 27, 2012 FAX : 886-2-2696-2255

FCC Test Report Report No. : FR221716 SPORTON INTERNATIONAL INC. Page No. : 56 of 66 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH029T 3.10 Maximum Permissible Exposure 3.10.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 NOTE 1: f = frequency in MHz ; *Plane-wave equivalent power density NOTE 2: For the applicable limit, see FCC 1.1310 3.10.2 MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 E 2 E ＝ Electric field (V/m) P ＝ RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 d377 GP30   FCC Test Report Report No. : FR221716 SPORTON INTERNATIONAL INC. Page No. : 57 of 66 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH029T 3.10.3 Result of Maximum Permissible Exposure Exposure Environment: General Population / Uncontrolled Exposure Test results Maximum EIPR Power of Test Frequency: Average EIRP Power (dBm) Average EIRP Power (mW) Power Density (S) (mW/cm²) Separation Distance (cm) Limit of Power Density (S) (mW/cm²) LRP 62.80 GHz 23.27 212.1930 0.042236 20 1.00 HRP 60.48 GHz 31.49 1408.1769 0.280290 20 1.00 Measurement uncertainty: ±2.7 dB NOTE: For the applicable limit, see FCC 1.1310

FCC Test Report Report No. : FR221716 SPORTON INTERNATIONAL INC. Page No. : 61 of 66 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH029T Appendix A. Test Photos Radiated Emissions 9kHz~30MHz Radiated Emissions 9kHz~30MHz FCC Test Report Report No. : FR221716 SPORTON INTERNATIONAL INC. Page No. : 62 of 66 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH029T Radiated Emissions below 1GHz Radiated Emissions below 1GHz FCC Test Report Report No. : FR221716 SPORTON INTERNATIONAL INC. Page No. : 63 of 66 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH029T Radiated Emissions above 1 GHz Radiated Emissions above 1 GHz FCC Test Report Report No. : FR221716 SPORTON INTERNATIONAL INC. Page No. : 64 of 66 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH029T AC Power Conducted AC Power Conducted FCC Test Report Report No. : FR221716 SPORTON INTERNATIONAL INC. Page No. : 65 of 66 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH029T AC Power Conducted
