TLZ-WH036WirelessHD Box

WirelessHD Tx/RX Box User’s Manual FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B onforme á la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device is not permitted for used on aircraft or satellites. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Index 1 Introduction ...................................................................................................................... 1 1.1 Product Layout ........................................................................................................ 1 1.2 Features ..................................................................................................................... 1 1.3 Package Content ..................................................................................................... 2 1.4 Specification Table ................................................................................................. 2 1.5 LED Indication.......................................................................................................... 3 1.6 Connectors and end-user interfaces ................................................................. 4 2 Installation Steps ............................................................................................................ 4 3 Important Notice .............................................................................................................. 6 1 1 Introduction AW-WH036T and AW-WH036R is a whole set of WirelessHD products. They can stream uncompressed audio and video up Full HD (FHD) resolution. It works at 60GHz band which is available on an unlicensed basis in many regulatory domains with a typical range of 10 meter. AW-WH036T and AW-WH036R replaces the HDMI cable and simplifies home theater system installation. The source devices, such as BD player or Set Top Box, don’t need to be located near to the TV. 1.1 Product Layout 1.2 Features
Standard: WirelessHD 1.0
Frequency: 60GHz
Data Rate: 4Gbps
Distance: 10m (In Room)
No Video Compression
Latency: <1ms
Video Resolution:
Up to 1920 X 1080 Progressive (1080P)
~ 8 Channels Audio (32 ~ 192KHz) Front View Back View 2
Array Antenna

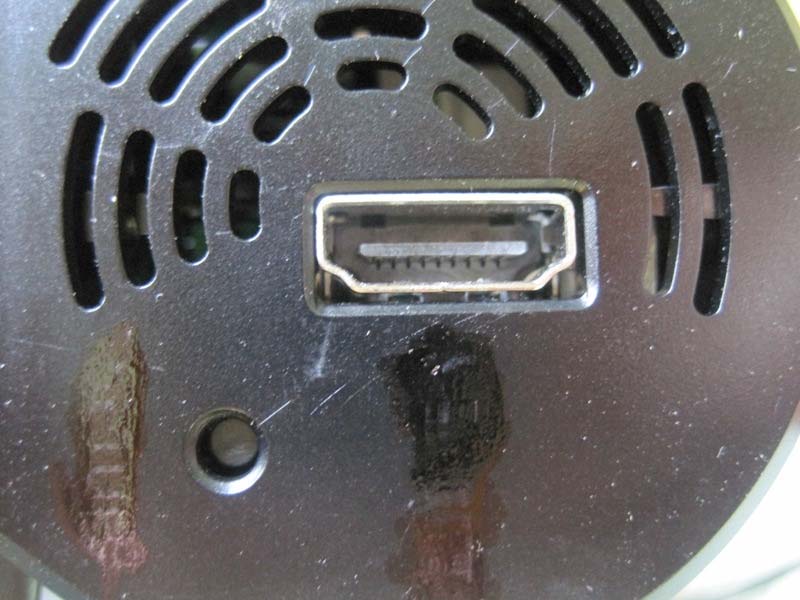

HDMI 1.3 Compatible
DTCP (Digital Transmission Content Protection):AES-128 CTR mode
HDCP 2.0 Support 1.3 Package Content The package include the below package content:
One set of AW-WH036T and AW-WH036R

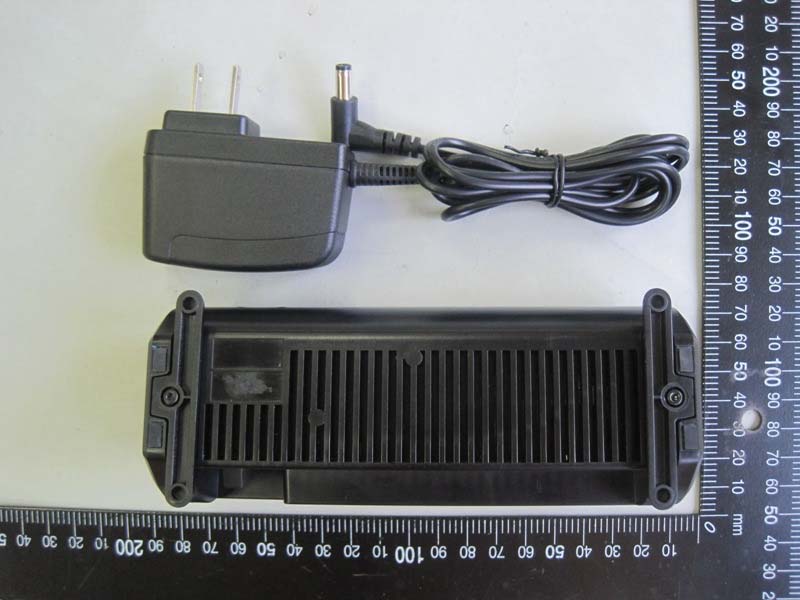

Power Adapter
User’s Manual 1.4 Specification Table Model Name AW-WH036T & R Product Description HDMI (type-A ) wireless module WirelessHD Standard WirelessHD V1.0 HDMI Standard HDMI 1.3a Interface HDMI (type-A ) Major Chipset Tx: SB9210A HRTX RF Transceiver SB9220A HRTX Network Processor AT91SAM7S256 Microcontroller Rx: SB9221A HRRX Network Processor SB9211A HRRX RF Transceiver AT91SAM7S256 Microcontroller Dimension 139.9 x 23.6 x 11.08 mm(exclude heat sinks) Antenna 32 Antenna Array support Beam-forming Operating Conditions Voltage 5V Currency 2A Operating Temperature 0~40°C °C°C °C Connector Micro USB Connector Display Resolution Support 480p/60Hz to 1080p/60Hz Video Format RGB: 4:4:4 3 YCbCr: 4:4:4 Audio Channel 2~8 Sample Rate 32-192kHz RF Specifications Frequency Range 57~66GHz Modulation HRP: OFDM with QPSK , 16-QAM…

Text truncated - open the document above for the full version.

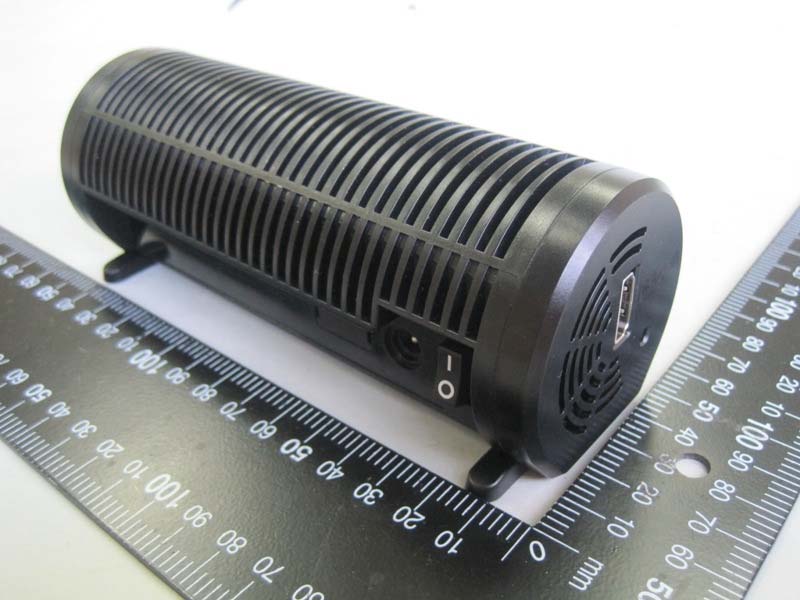

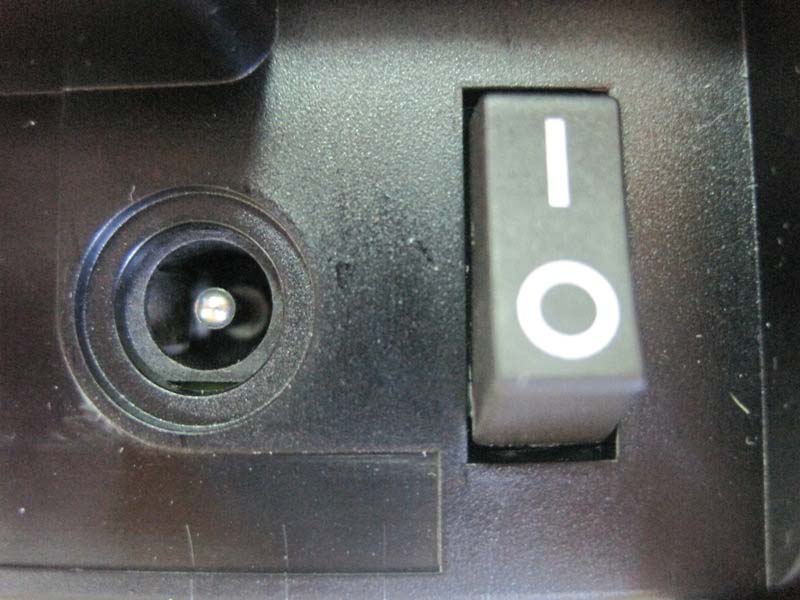

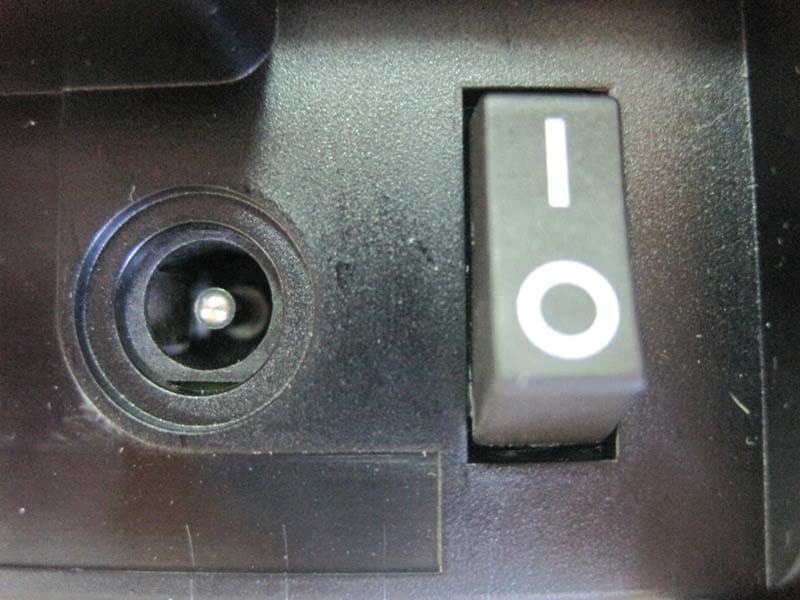

Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255

Label Content Label Location

Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A1 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A2 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A3 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A4 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A5 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A6 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A7 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A8 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A9 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A10 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255 Report No.: ON1918 SPORTON International Inc. PAGE NUMBER : A11 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 11, 2011 FAX : 886-2-2696-2255

FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 55 of 63 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 3.10 Maximum Permissible Exposure 3.10.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 NOTE 1: f = frequency in MHz ; *Plane-wave equivalent power density NOTE 2: For the applicable limit, see FCC 1.1310 3.10.2 MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 E 2 E ＝ Electric field (V/m) P ＝ RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 d377 GP30   FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 56 of 63 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 3.10.3 Result of Maximum Permissible Exposure Exposure Environment: General Population / Uncontrolled Exposure Test results Maximum EIPR Power of Test Frequency: Average EIRP Power (dBm) Average EIRP Power (mW) Power Density (S) (mW/cm²) Separation Distance (cm) Limit of Power Density (S) (mW/cm²) LRP 62.80 GHz 23.27 212.1930 0.042236 20 1.00 HRP 60.48 GHz 31.49 1408.1769 0.280290 20 1.00 Measurement uncertainty: ±2.7 dB NOTE: For the applicable limit, see FCC 1.1310

FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 2 of 65 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 TABLE OF CONTENTS TABLE OF CONTENTS ..................................................................................................................................... 2 SUMMARY OF TEST RESULT ......................................................................................................................... 3 REVISION HISTORY .......................................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Additional Information Provided by the Submitter .................................................................................. 8 1.3 Ancillary and/or Support Equipment ....................................................................................................... 9 1.4 EUT Setups ............................................................................................................................................ 9 1.5 Testing Applied Standards ................................................................................................................... 13 1.6 Testing Location ................................................................................................................................... 13 1.7 Abbreviations Used for the Test Report ............................................................................................... 13 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ................................................................ 14 2.1 Test Channel Frequencies ................................................................................................................... 14 2.2 Conformance Tests and Related Test Frequencies ............................................................................ 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 15 3.1 AC Power Conducted Emissions ......................................................................................................... 15 3.2 Occupied Bandwidth ............................................................................................................................ 19 3.3 EIRP Power and Power Density........................................................................................................... 25 3.4 Peak Conducted Power ........................................................................................................................ 33 3.5 Transmitter Spurious Emissions........................................................................................................... 36 3.6 Frequency Stability ............................................................................................................................... 48 3.7 Publicly-accessible Coordination Channel ........................................................................................... 51 3.8 Operation Restriction and Group Installation ....................................................................................... 54 3.9 Transmitter Identification ...................................................................................................................... 55 3.10 Maximum Permissible Exposure .......................................................................................................... 56 4 LIST OF MEASURING EQUIPMENTS ................................................................................................ 58 5 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 60 APPENDIX A. TEST PHOTOS ........................................................................................................................ 61 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... 65 FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 3 of 65 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 SUMMARY OF TEST RESULT FCC Standard Requirements and Conformance Test Specifications Report Clause Ref. Std. Clause Description Result Remark 3.1 15.207 AC Power Conducted Emissions Complied - 3.2 15.255(e) Occupied Bandwidth Complied - 3.3 15.255(b)(1) EIRP Power and Power Density Complied - 3.4 15.255(e) Peak Conducted Power Complied - 3.5 15.255(c) Transmitter Spurious Emissions Complied - 3.6 15.255(f) Frequency Stability Complied - 3.7 15.255(d) Publicly-accessible Coordination Channel Complied - 3.8 15.255(a),(h) Operation Restriction and Group Installation Complied - 3.9 15.255(i) Transmitter Identification Complied - 3.10 15.255(g) Maximum Permissible Exposure Complied - FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 4 of 65 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR0N1918 Rev. 01 Initial issue of report Jul. 13, 2011 FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 5 of 65 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 1 General Description 1.1 Information 1.1.1 The Channel Plan(s) The Channel Plan(s) Low-rate PHY (LRP) Band 60.32 – 60.64 GHz/ 62.48-62.80GHz LRP Channel List: 60.32 +n x 0.16 (n=0, 1, 2) GHz / 62.48 +n x 0.16 (n=0, 1, 2) GHz High rate PHY (HRP) Band 60.48 GHz / 62.64GHz 1.1.2 Transmit Operating Modes The Different Transmit Operating Mo…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 60 of 63 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 Appendix A. Test Photos Radiated Emissions below 1GHz Radiated Emissions below 1GHz FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 61 of 63 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 Radiated Emissions above 1 GHz Radiated Emissions above 1 GHz FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 62 of 63 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 AC Power Conducted AC Power Conducted FCC Test Report Report No. : FR0N1918 SPORTON INTERNATIONAL INC. Page No. : 63 of 63 TEL : 886-2-2696-2468 Report Version : 01 FAX : 886-2-2696-2255 FCC ID TLZ-WH036 Appendix B. Photographs of EUT Please refer to Sporton report number EP0N1918 as below.
