TLZ-WH064R60GHz Wireless HD RX module

WirelessHD RX Module User’s Manual 0G Module FCC Statement : Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following three conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (3) This module may not be integrated into host devices that are addressed for operation inside airplanes/satellites. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains RX FCC ID: TLZ-WH064R ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 60G Module IC Statement : CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance requirement of the end product, which integrates this module. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IC statement is required to be available in the users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled i…

Text truncated - open the document above for the full version.

Page No. : 19 Module Approval Request Letter Subject: Module Approval Date: 2013/7/10 FCC ID: TLZ-WH064R Dear Reviewer, We, Sporton International Inc., are authorized by AzureWave Technologies, Inc. to have their state-of-the-art 60GHz Wireless HD RX module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip SiI6321. 3. The requirement of power supply regulation: The power regulator has been integrated in chip SiI6321. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. Complies for mobile/fixed host configuration where a separation distance of 20cm between the radiating part and any person can be assured during normal operating conditions. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Report No.: 350803 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-3-656-9065 ISSUED DATE : Aug. 08, 2013 FAX : 886-3-656-9085 Photographs of EUT

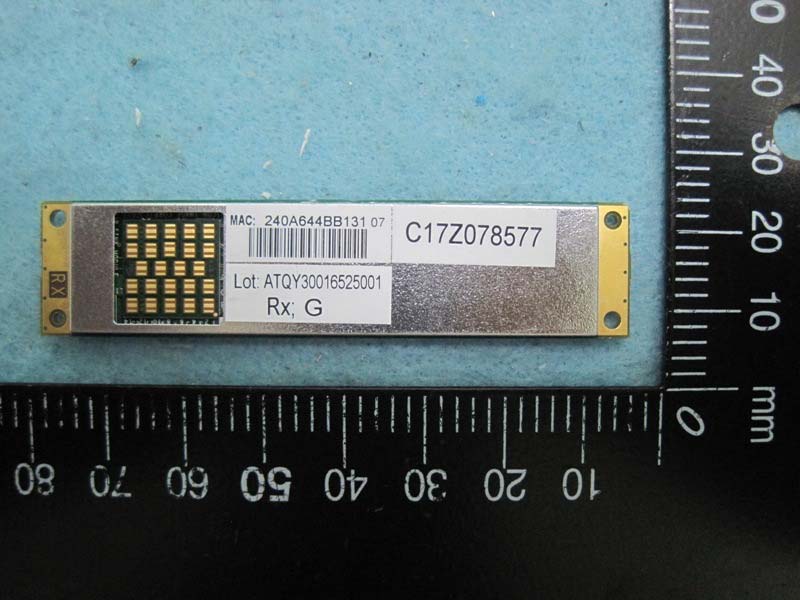

Report No.: 350803 SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-3-656-9065 ISSUED DATE : Aug. 08, 2013 FAX : 886-3-656-9085 Photographs of EUT Report No.: 350803 SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-3-656-9065 ISSUED DATE : Aug. 08, 2013 FAX : 886-3-656-9085 Report No.: 350803 SPORTON International Inc. PAGE NUMBER : 3 OF 3 TEL : 886-3-656-9065 ISSUED DATE : Aug. 08, 2013 FAX : 886-3-656-9085

Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : B2 of B3 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 NOTE 1: f = frequency in MHz ; *Plane-wave equivalent power density NOTE 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : B3 of B3 1.1.3 Result of Maximum Permissible Exposure Exposure Environment General Population / Uncontrolled Exposure Test results Maximum EIPR Power of Test Frequency (GHz) Average EIRP Power (dBm) Average EIRP Power (mW) Power Density (S) (mW/cm²) Separation Distance (cm) Limit of Power Density (S) (mW/cm²) LRP 62.64 GHz 25.95 393.3297 0.078290 20 1.00 NOTE: For the applicable limit, see FCC 1.1310

FCC Radio Test Report Report No. : FR350803 SPORTON INTERNATIONAL INC. Page No. : 1 of 57 TEL : 886-3-656-9065 / FAX : 886-3-656-9085 Report Version : Rev. 01 FCC ID: TLZ-WH064R Issued Date : Aug. 02, 2013 FCC Radio Test Report Equipment : 60GHz Wireless HD RX module Brand Name : AzureWave Model No. : AW-WH064R FCC ID : TLZ-WH064R Standard : 47 CFR FCC Part 15.255 Applicant : AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd., Xindian, Taipei, Taiwan 231 Manufacturer : AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd., Xindian, Taipei, Taiwan 231 The product sample received on May 08, 2013 and completely tested on Jun. 15, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Sam Chen SPORTON INTERNATIONAL INC. Tested by: XXXX / Engineer Certificate No.: CB10207193 FCC Radio Test Report Report No. : FR350803 SPORTON INTERNATIONAL INC. Page No. : 2 of 57 TEL : 886-3-656-9065 / FAX : 886-3-656-9085 Report Version : Rev. 01 FCC ID: TLZ-WH064R Issued Date : Aug. 02, 2013 TABLE OF CONTENTS TABLE OF CONTENTS .....................................................................................................................................2 SUMMARY OF TEST RESULT .........................................................................................................................3 REVISION HISTORY..........................................................................................................................................4 1 GENERAL DESCRIPTION ....................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Additional Information Provided by the Submitter ..................................................................................7 1.3 Accessories ............................................................................................................................................8 1.4 Support Equipment.................................................................................................................................8 1.5 EUT Operation during Test ....................................................................................................................9 1.6 Test Setup Diagram .............................................................................................................................10 1.7 Testing Applied Standards ...................................................................................................................13 1.8 Testing Location ...................................................................................................................................13 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ................................................................14 2.1 Test Channel Frequencies ...................................................................................................................14 2.2 Conformance Tests and Related Test Frequencies ............................................................................14 3 TRANSMITTER TEST RESULT ..........................................................................................................15 3.1 AC Power Conducted Emissions .........................................................................................................15 3.2 Occupied Bandwidth ............................................................................................................................19 3.3 EIRP Power and Power Density...........................................................................................................27 3.4 Peak Conducted Power........................................................................................................................36 3.5 Transmitter Spurious Emissions...........................................................................................................38 3.6 Frequency Stability ...............................................................................................................................49 3.7 Publicly-accessible Coordination Channel ...........................................................................................52 3.8 Operation Restriction and Group Installation .......................................................................................54 3.9 Transmitter Identification ......................................................................................................................55 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................56 APPENDIX A. TEST PHOTOS .............................................................................................................. A1 ~ A7 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE....................................................................... B1 ~ B3 FCC Radio Test Report Report No. : FR350803 SPORTON INTERNATIONAL INC. Page No. : 3 of 57 TEL : 886-3-656-9065 / FAX : 886-3-656-9085 Report Version : Rev. 01 FCC ID: TLZ-WH064R Issued Date : Aug. 02, 2013 SUMMARY OF TEST RESULT Standard Requirements and Conformance Test Specifications Report Clause Ref. Std. Clause Description Result Remark 3.1 FCC 15.207 AC Power Conducted Emissions Complied - 3.2 FCC 15.255(e) Occupied Bandwidth Complied - 3.3 FCC 15.255(b)(1) EIRP Power and Power Density Complied - 3.4 FCC 15.255(e) Peak Conducted Power Complied - 3.5 FCC 15.255(c) Transmitter Spurious Emissions Complied - 3.6 FCC 15.25…

Text truncated - open the document above for the full version.

Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : A1 of A7 Appendix A. Test Photos Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : A2 of A7 1. Photographs of AC Power Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : A3 of A7 REAR VIEW Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : A4 of A7 2. Photographs of Transmitter Spurious Emissions Test Configuration Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : A5 of A7 REAR VIEW Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : A6 of A7 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR350803 FCC ID: TLZ-WH064R Page No. : A7 of A7 REAR VIEW
