TLZ-XM455IEEE 802.11 2X2 WiFi 6 MIMO Wireless LAN + Bluetooth 5.3 Combo LGA Module

1 FORM NO.: FR2-015_ A Responsible Department：WBU AW-XM455 IEEE 802.11 2X2 WiFi 6 MIMO Wireless LAN + Bluetooth 5.3 Combo LGA Module Datasheet Rev. F DF For Standard Features 2 FORM NO.: FR2-015_ A Responsible Department：WBU WLAN  Support 2x2 802.11 a/b/g/n/ac/ax  Dual bands: 2.4 GHz and 5 GHz  Support 20/40/80 MHz channel Bandwidths.  5GHz PHY data rates up to 1.2 Gbps  2.4 GHz PHY data rates up to 458 Mbps  Uplink and downlink OFDMA and MU-MIMO  Support DFS Bluetooth  Bluetooth 5.1  Bluetooth class 2  PCM interface for voice applications  2Mbit/s LE  Long range  LTE/MWS coexistence  2 x wide band speech (WBS) calls  Security: AES 3 FORM NO.: FR2-015_ A Responsible Department：WBU . Revision History Document NO: R2-24550-DST-01 Version Revision Date DCN NO. Description Initials Approved A 2020/05/26 DCN017597  Draft version Renton Tao N.C Chen B 2021/02/08 DCN020611  Update format  Update features  Update operating temperature  Update pin map  Update Host configuration table Renton Tao N.C Chen C 2021/10/06 DCN023737  Update block diagram  Update output power  Update receiver sensitivity  Update pin table  Update Mechanical drawing Roger Chen N.C Chen D 2022/01/28 DCN025432  Update Shielding Cover Temperature  Update block diagram  Update Power Consumption  Update Power up Sequence Roger Chen N.C Chen E 2022/10/24 DCN027754  Update Block Diagram  Update Power Consumption  Update ESD Protection Grace Yang N.C Chen F 2022/12/01 DCN028153  Update Power Consumption Grace Yang N.C Chen 4 FORM NO.: FR2-015_ A Responsible Department：WBU . Table of Contents Revision History .....................................................................................................................................3 Table of Contents ...................................................................................................................................4 1. Introduction .........................................................................................................................................5 1.1 Product Overview ............................................................................................................................ 5 1.2 Block Diagram .................................................................................................................................. 6 1.3 Specifications Table ........................................................................................................................ 7 1.3.1 General .................................................................................................................................... 7 1.3.2 WLAN ....................................................................................................................................... 7 1.3.3 Bluetooth ................................................................................................................................. 9 1.3.4 Operating Conditions ........................................................................................................... 10 2.1 Pin Map ........................................................................................................................................... 11 2.2 Pin Table ......................................................................................................................................... 12 2.3 Host Configuration Interface Table .............................................................................................. 14 3. Electrical Characteristics ................................................................................................................ 15 3.1 Absolute Maximum Ratings .......................................................................................................... 15 3.2 Recommended Operating Conditions ......................................................................................... 15 3.3 Digital IO Pin DC Characteristics ................................................................................................. 15 3.3.1 1.8/3.3V Operation (VIO) .................................................................................................... 15 3.4 Host Interface ................................................................................................................................. 16 3.4.1 PCI Express Interface ......................................................................................................... 16 3.4.2 High-Speed UART Interface ............................................................................................... 17 3.4.3 PCM Interface ....................................................................................................................... 18 3.5 Timing Sequence ........................................................................................................................... 20 3.6 Power Consumption* .................................................................................................................... 21 3.6.1 WLAN ..................................................................................................................................... 21 3.6.2 Bluetooth ............................................................................................................................... 22 4. Mechanical Information ................................................................................................................... 24 4.1 Mechanical Drawing ...................................................................................................................... 24 5. Packing Information ......................................................................................................................... 25 5 FORM NO.: FR2-015_ A Responsible Department：WBU . 1. Introduction 1.1 Product Overview AzureWave Technologies, Inc. introduces the IEEE 802.11a/b/g/n/ac/ax Concurrent Dual WiFi(…

Text truncated - open the document above for the full version.

1 FORM NO.: FR2-015_ A Responsible Department：WBU AW-XM455 IEEE 802.11 2X2 WiFi 6 MIMO Wireless LAN + Bluetooth 5.3 Combo LGA Module Datasheet Rev. F DF For Standard Features 2 FORM NO.: FR2-015_ A Responsible Department：WBU WLAN  Support 2x2 802.11 a/b/g/n/ac/ax  Dual bands: 2.4 GHz and 5 GHz  Support 20/40/80 MHz channel Bandwidths.  5GHz PHY data rates up to 1.2 Gbps  2.4 GHz PHY data rates up to 458 Mbps  Uplink and downlink OFDMA and MU-MIMO  Support DFS Bluetooth  Bluetooth 5.1  Bluetooth class 2  PCM interface for voice applications  2Mbit/s LE  Long range  LTE/MWS coexistence  2 x wide band speech (WBS) calls  Security: AES 3 FORM NO.: FR2-015_ A Responsible Department：WBU . Revision History Document NO: R2-24550-DST-01 Version Revision Date DCN NO. Description Initials Approved A 2020/05/26 DCN017597  Draft version Renton Tao N.C Chen B 2021/02/08 DCN020611  Update format  Update features  Update operating temperature  Update pin map  Update Host configuration table Renton Tao N.C Chen C 2021/10/06 DCN023737  Update block diagram  Update output power  Update receiver sensitivity  Update pin table  Update Mechanical drawing Roger Chen N.C Chen D 2022/01/28 DCN025432  Update Shielding Cover Temperature  Update block diagram  Update Power Consumption  Update Power up Sequence Roger Chen N.C Chen E 2022/10/24 DCN027754  Update Block Diagram  Update Power Consumption  Update ESD Protection Grace Yang N.C Chen F 2022/12/01 DCN028153  Update Power Consumption Grace Yang N.C Chen 4 FORM NO.: FR2-015_ A Responsible Department：WBU . Table of Contents Revision History .....................................................................................................................................3 Table of Contents ...................................................................................................................................4 1. Introduction .........................................................................................................................................5 1.1 Product Overview ............................................................................................................................ 5 1.2 Block Diagram .................................................................................................................................. 6 1.3 Specifications Table ........................................................................................................................ 7 1.3.1 General .................................................................................................................................... 7 1.3.2 WLAN ....................................................................................................................................... 7 1.3.3 Bluetooth ................................................................................................................................. 9 1.3.4 Operating Conditions ........................................................................................................... 10 2.1 Pin Map ........................................................................................................................................... 11 2.2 Pin Table ......................................................................................................................................... 12 2.3 Host Configuration Interface Table .............................................................................................. 14 3. Electrical Characteristics ................................................................................................................ 15 3.1 Absolute Maximum Ratings .......................................................................................................... 15 3.2 Recommended Operating Conditions ......................................................................................... 15 3.3 Digital IO Pin DC Characteristics ................................................................................................. 15 3.3.1 1.8/3.3V Operation (VIO) .................................................................................................... 15 3.4 Host Interface ................................................................................................................................. 16 3.4.1 PCI Express Interface ......................................................................................................... 16 3.4.2 High-Speed UART Interface ............................................................................................... 17 3.4.3 PCM Interface ....................................................................................................................... 18 3.5 Timing Sequence ........................................................................................................................... 20 3.6 Power Consumption* .................................................................................................................... 21 3.6.1 WLAN ..................................................................................................................................... 21 3.6.2 Bluetooth ............................................................................................................................... 22 4. Mechanical Information ................................................................................................................... 24 4.1 Mechanical Drawing ...................................................................................................................... 24 5. Packing Information ......................................................................................................................... 25 5 FORM NO.: FR2-015_ A Responsible Department：WBU . 1. Introduction 1.1 Product Overview AzureWave Technologies, Inc. introduces the IEEE 802.11a/b/g/n/ac/ax Concurrent Dual WiFi(…

Text truncated - open the document above for the full version.

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Attestation Statements Date: 2023/2/8 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Attestation Statements Part 2.911(d)(5)(i)-(ii) Filing FCC ID：TLZ-XM455 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) AzureWave Technologies, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Statement for 47 CFR section 2.911(d)(5)(ii) AzureWave Technologies, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Respectfully, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 Fax : 02-66289666

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 U.S. Agent for Service of Process Attestation Date: 2023/2/27 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 USA Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: TLZ To Whom It May Concern: AzureWave Technologies, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, AzureWave Technologies (USA), Inc. is our designated U.S. agent for service of process for the above referenced Gantee code. AzureWave Technologies, Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. AzureWave Technologies (USA), Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced Gantee code. Designated U.S. Agent Information: Name: AzureWave Technologies (USA), Inc. FRN: 0033444027 Address: 467 Saratoga ave #108 San Jose, CA95129 Contact Person: Patrick Lin Tel.: 5624633818 Email: [email protected] Sincerely, Applicant Designated U.S. Agent Company Name : AzureWave Technologies, Inc. Company Name : AzureWave Technologies (USA), Inc. Company Address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Company Address : 467 Saratoga ave #108 San Jose, CA95129 Signature : Signature : Name : Patrick Lin Name : Patrick Lin E-Mail : [email protected] E-Mail : [email protected] Tel : 02-55995599 Tel : 5624633818

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Confidential Letter Date: 2023/1/6 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：TLZ-XM455 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 90 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Respectfully, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 Fax : 02-66289666

Sub FCC To W e sta ho s 1. 2. 3. 4. 5. 6. 7. 8. Pl e Co Co Si g Na Jo b bject: Module C ID: TLZ‐XM4 Whom It May e, Sporton Inte te‐of‐the‐art st equipment The requi r The requir The requir ROHM_BD The requir been fulfil The requi stand‐alo n The requir manual of The requi r all the inst The requir ease do not he mpany name mpany Addre gnature me b Title e Approval 455 y Concern: ernational Inc device approv . The requirem rement of RF s rement of buf rement of pow D9B304QWZ ( rements of se led. Please re rement of s t ne test configu rement of lab f this module. rement of com tructions for m rement of RF e esitate to cont : ss : : : : Modul c. Hsinchu Lab ved under mo ments regulat shielding: The ffered inputs: wer supply reg EUT2, 4). ction 15.203 a ference the e tand‐alone te uration. beling: The in Please also se mpliance on sp maintaining co exposure: Ple tact me for an Sporton Inte No.8, Ln. 72 4 Leo Huang Manager le Appr boratory, are a odule approva ed in CFR47 P e shielding of t Buffered data gulation: The and 15.204(C) xhibition Test est configurat nstruction on ee the exhibit pecific rule or ompliance has ase refer exhi ny questions o rnational Inc. 4, Bo’ai St., Zh roval R authorized by al authorizatio Part 15.212 ha the radio port a inputs stage part number ): The require Report. tion: Please the labeling tion Label Sam r operating re s been clearly bition RF Exp o of this request Hsinchu Labo hubei City, Hsi equest AzureWave Te on. The applica ave been fulfil tion can be de has been inte of the power ments of ant e reference exh rule of the e mple. quirements: T stated in the osure for the t letter. Thank oratory nchu County 3 t Letter echnologies, I ation of this m led and clearl emonstrated i egrated in chip regulator is T enna connecto hibition Test end product The required F Users Manua compliance o you. 302010, Taiwa r Inc. to have th module is spec ly explained b n exhibition E p 88W9097. PS62822DLC ( or and spurio Configuratio has been st a FCC rule has b al. of MPE RF ex an (R.O.C.) Date: 2023/ 4 heir cified to mob below. External Photo (EUT1, 3) and us emission h n Photo for ated in the us been fulfilled posure rule. 4/26 ile o. have the sers and

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Power of Attorney Date: 2023/1/6 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Hsinchu Laboratory Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: TLZ-XM455 Respectfully, Applicant’s company name : AzureWave Technologies, Inc. Applicant’s company address : 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 Signature : Name and Job Title : Patrick Lin / Director E-Mail : [email protected] Tel : 02-55995599 Fax : 02-66289666

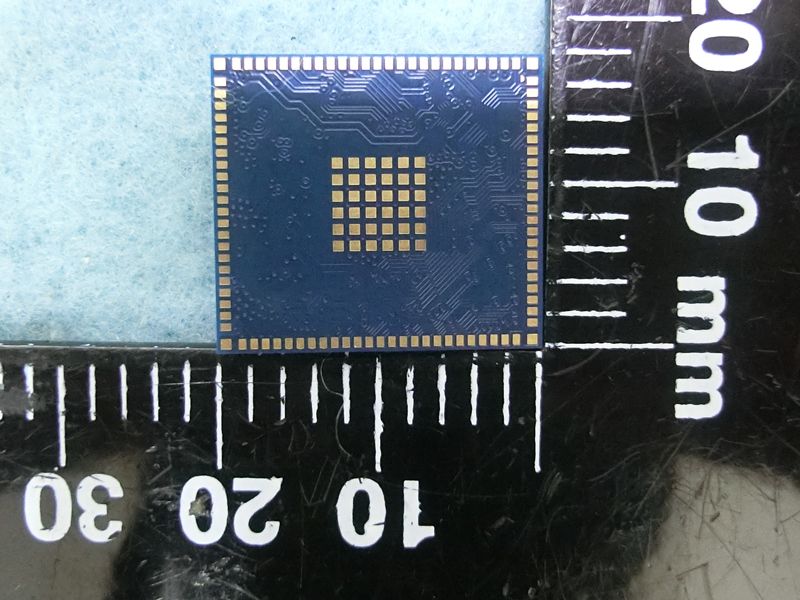

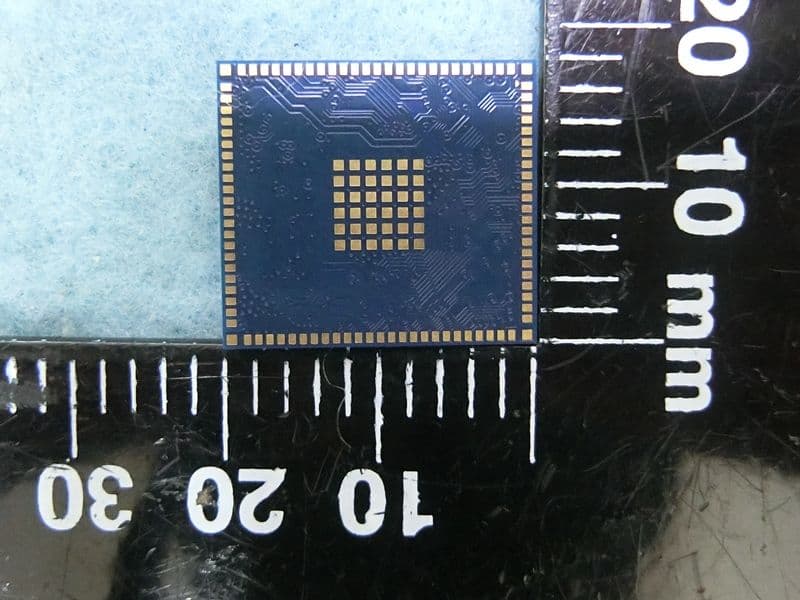

PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 1 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 Brand Name: AzureWave Model Name: AW-XM455 EUT 1 / EUT 3 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 2 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 3 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 4 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 EUT 2 / EUT 4 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 5 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 6 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 7 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 8 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 Antenna 1 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 9 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 Antenna 2 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 10 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01

Label and location

PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 1 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 Brand Name: AzureWave Model Name: AW-XM455 EUT 1 / EUT 3 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 2 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 3 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 4 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 EUT 2 / EUT 4 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 5 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP2O0714 Sporton International Inc. Page No. : 6 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Apr. 26, 2023 Report Version : 01

RADIO EXPOSURE TEST REPORT Report No. : FA2O0714 TEL : 886-3-656-9065 Page Number : 2 of 18 FAX : 886-3-656-9085 Issued Date : Apr. 26, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Table for Hardware Information ............................................................................................................ 15 1.4 Table for EUT Combination .................................................................................................................. 15 1.5 Accessories .......................................................................................................................................... 15 1.6 Applicable Standards ........................................................................................................................... 15 1.7 Testing Location ................................................................................................................................... 15 2 Maximum Permissible Exposure ...................................................................................................... 16 2.1 Limit of Maximum Permissible Exposure ............................................................................................. 16 2.2 MPE Calculation Method ...................................................................................................................... 16 2.3 MPE Exemption .................................................................................................................................... 17 2.4 Calculated Result and Limit .................................................................................................................. 18 Photographs of EUT v01 (Sporton report no.: EP2O0714) RADIO EXPOSURE TEST REPORT Report No. : FA2O0714 TEL : 886-3-656-9065 Page Number : 3 of 18 FAX : 886-3-656-9085 Issued Date : Apr. 26, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA2O0714 01 Initial issue of report Apr. 26, 2023 RADIO EXPOSURE TEST REPORT Report No. : FA2O0714 TEL : 886-3-656-9065 Page Number : 4 of 18 FAX : 886-3-656-9085 Issued Date : Apr. 26, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Declaration of Conformity: 1. The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to report ”Measurement Uncertainty”. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Vicky Huang RADIO EXPOSURE TEST REPORT Report No. : FA2O0714 TEL : 886-3-656-9065 Page Number : 5 of 18 FAX : 886-3-656-9085 Issued Date : Apr. 26, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) Bluetooth 2400-2483.5 2402-2480 BR / EDR: FHSS (GFSK / π/4-DQPSK / 8DPSK) LE: GFSK RADIO EXPOSURE TEST REPORT Report No. : FA2O0714 TEL : 886-3-656-9065 Page Number : 6 of 18 FAX : 886-3-656-9085 Issued Date : Apr. 26, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) WLAN 2.4GHz WLAN 5GHz Bluetooth 1 1/2 1/2 1 MAG. LAYERS MSA-4008-25GC1-A2 PIFA I-PEX Note 1 2 1/2 1/2 1 SONY IW611-IW620-D(100) Dipole I-PEX 3 1/2 1/2 1 SONY IW 611-IW620-D(110) Dipole I-PEX 4 1/2 1/2 1 SONY IW 611-IW620-D(120) Dipole I-PEX 5 1/2 1/2 1 SONY IW 611-IW620-D(130) Dipole I-PEX 6 1/2 1/2 1 SONY IW 611-IW620-D(140) Dipole I-PEX 7 1/2 1/2 1 SONY IW 611-IW620-D(150) Dipole I-PEX 8 1/2 1/2 1 SONY IW 611-IW620-D(160) Dipole I-PEX 9 1/2 1/2 1 SONY IW 611-IW620-D(170) Dipole I-PEX 10 1/2 1/2 1 SONY IW 611-IW620-D(180) Dipole I-PEX 11 1/2 1/2 1 SONY IW 611-IW620-D(190) Dipole I-PEX 12 1/2 1/2 1 SONY IW 611-IW620-D(200) Dipole I-PEX 13 1/2 1/2 1 SONY IW 611-IW620-D(210) Dipole I-PEX 14 1/2 1/2 1 SONY IW 611-IW620-D(220) Dipole I-PEX 15 1/2 1/2 1 SONY IW 611-IW620-D(230) Dipole I-PEX 16 1/2 1/2 1 SONY IW 611-IW620-D(240) Dipole I-PEX 17 1/2 1/2 1 SONY IW 611-IW620-D(250) Dipole I-PEX 18 1/2 1/2 1 SONY IW 611-IW620-D(260) Dipole I-PEX 19 1/2 1/2 1 SONY IW 611-I…

Text truncated - open the document above for the full version.

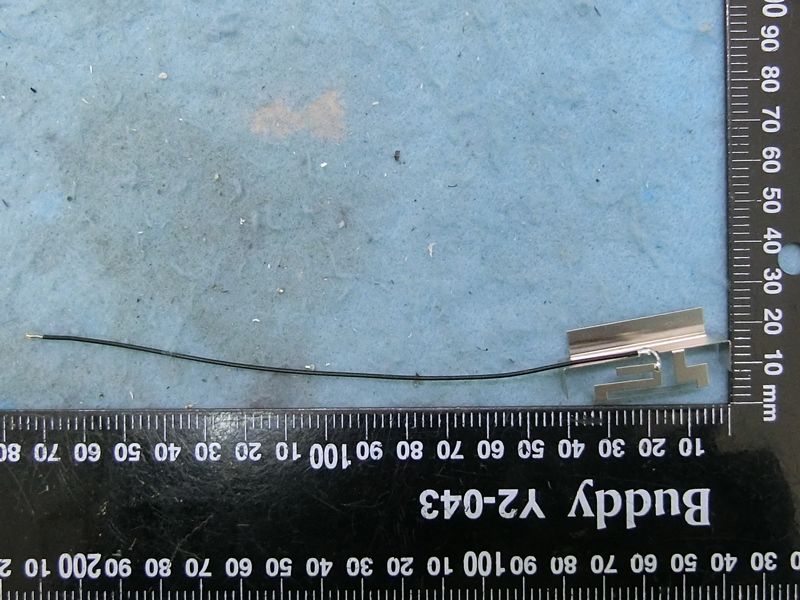

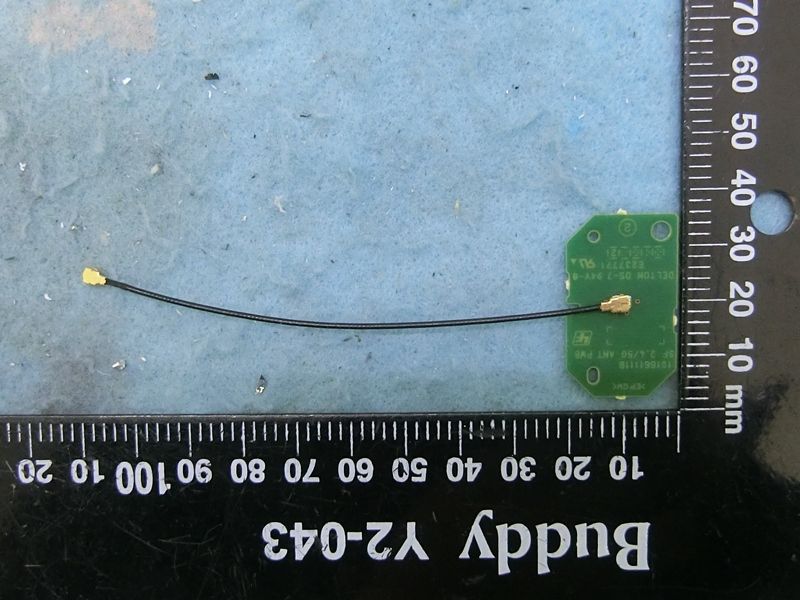

MAG.LAYERS APPROVAL SHEET (RoHS) CUSTOMER : 海華科技股份有限公司 CUSTOMER’S PART NO. : DESCRIPTION : METAL STAMPING ANTENNA ASSEMBLY PART NO. : MSA-4008-25GC1-A2 DATE : AUTHORIZED BY : Alvin Chen FULLY APPROVED PARTIALLY APPROVED REJECTED SIGN SUGGESTION 美磊科技股份有限公司 MAG. LAYERS SCIENTIFIC-TECHNICS CO., LTD No.270, Nanfeng Rd., Pingzhen Dist., Taoyuan City 324, Taiwan (R.O.C.) TEL: +886-3-4159111 FAX: +886-3-4192255 http://www.maglayers.com.tw E-mail：[email protected] MAG.LAYERS Revisions REV. Description Date Prepared by Approved by V01 New Release 2016/05/24 Fchou Alvin ■ PRODUCT IDENTIFICATION MSA – 4 0 0 8 –# # # x x – A2 –□□     ⑤  Product Code  Dimension Code  Series Type (### represents center frequency and xx represents material type)  Design Code ⑤ Inner Control Code MAG.LAYERS Contents Item Description Page 1. ．．．．．．．． Mechanical Specification ．．．．．．．．4 2. ．．．．．．．． Antenna Specification ．．．．．．．．5 3. ．．．．．．．． Test Report ．．．．．．．6~7 MAG.LAYERS Mechanical Specification MAG.LAYERS Antenna Specification ■ ELECTRICAL PROPERTIES 1.1 Frequency Range........... 2.4~2.5GHz /4.9~5.9GHz 1.2 Impedance.................... 50 Ohm Nominal 1.3 VSWR........................... 2 (Max) 1.4 Return Loss.................. -10dB (Max) 1.5 Radiation...................... Directional 1.6 3D Peak Gain.................. 2.98dBi(2.4~2.5GHz) 5.16dBi(4.9~5.9GHz) 1.7 Polarization.................... Linear Vertical 1.8 Admitted Power.............. 1W ■ PHYSICAL PROPERTIES 2.1 Antenna Material............. SUS430 鍍鎳 2.2 Cable............................. Coaxial Cable ψ1.13(Black) 2.3 Connector...................... IPEX-4 Compatible 2.4 Operating Temp................. -20°C ~ +65°C 2.5 Storage…

Text truncated - open the document above for the full version.
