TMB-G30FOCUSWireless Electric Meter

RES-3000-Focus PA-0129A Rev. 1.0 June 18, 2010Page 1 of 4 RES-3000-FocusAX Introduction This document will help the SecureMesh user to retrofit the product model RES-3000- Focus/FocusAX in a Landis &Gyr Focus ® meter as intended. Safety and Assembly Cautions - Warning: The meter carries lethal voltages. The meter must be completely disconnected from any external circuits. Failure to observe this practice can result in serious injury or death. - Caution: These devices are electrostatic sensitive. It is best to use a grounded electrostatic mat and wrist strap to prevent electrostatic discharge. - Important: It is not necessary to completely separate the top of the meter from the base of the meter for this retrofit procedure. However, if the two parts are completely disconnected and separated, it is extremely important to keep each meter component together for re-assembly. This is due to the top section of the meter containing calibration “characterization” programming for the CTs in the meter base. If these components get mixed up with other meter components, current measurement errors will occur. Material • Focus meter (must be AMR configured) • Trilliant SecureMesh RES-3000- Focus/FocusAX . • Mounting Screws - QTY=3 (provided by L&G, ref.Trilliant # HS-0029B & HS-0029C) • Self-Retaining Spacers-QTY=3 (provided by L&G, ref. Trilliant # HE- 0033C & HE-0033D) • Serial # & FCC/IC label (provided by L&G, ref Trilliant #.: HI-0307A) SecureMesh retrofit for Focus/FocusAX meter RES-3000-Focus PA-0129A Rev. 1.0 June 18, 2010Page 2 of 4 RES-3000-FocusAX Procedure 1. If it is not already done, dis-assemble the Focus meter clear cover and unsnap the base from the top portion of the case to access the 3 post receptacle holes in the Top Portion and the Focus/FocusAX board connector as shown. 2. Snap the 3 plastic spacers into the Trilliant SecureMesh RES-3000- Focus/FocusAX PCB as showm. 3. Install the SecureMesh board by first inserting the female connector in the Focus/FocusAX male connector as shown. The 3 spacers will be aligned with the 3 holes in Focus/FocusAX meter Top Portion. Meter TOP portion Post receptacles Plastic spacers Male-Female connector mating Female connector Male Interface connector HE-0033C Short Spacer HE-0033D HE-0033D Be careful to not damage components and or PCB traces when inserting spacers. Do not apply excessive stress on the PC board. Bending the board too much would damage components. RES-3000-Focus PA-0129A Rev. 1.0 June 18, 2010Page 3 of 4 RES-3000-FocusAX 4. Attach the three (3) mounting screws through the SecureMesh PCB into the 3 plastic spacers so that the SecureMesh board is held securely in place. 5. Affix any missing label (Ref.: HI-0307A) on the meter Top Portion, finalize inspection & test as required 6. Reassemble the Focus Top portion by snapping it into the bottom portion and affix the clear cover on its base. 7. Perform functional test. Screw Ref: HS-0029B Screw Ref: HS-0029B Screw Ref: HS-0029C RES-3000-Focus PA-0129A Rev. 1.0 June 18, 2010Page 4 of 4 RES-3000-FocusAX SecureMesh Radio Specifications: • IEEE Standard : IEEE 802.15.4 • Power Output : +30 dBm • Radio Sensitivity : -99 dBm • RF Data rate : 250 kbps • Operating Frequency : 2.400-2.483 GHz • Network Topology : Mesh • Modulation : O-QPSK • Physical Dimensions : 2.33” x 4.70” • Antenna : Dipole, 3.5 dBi Industry Canada and Federal Communication Commission Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To comply with FCC and Industry Canada RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Trilliant 1100 Island Drive Redwood City, CA 94065 Tel. +1.650.204.5050 Fax +1.650.508.8096 June 15, 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TMB-G30FOCUS To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: • Block Diagram • Schematics • Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant, and provide unjustified benefits to its competitors. Sincerely, Paul Aubin Compliance & Certification Manager Trilliant Inc. Phone: 450-375-0556 x222 e-mail: [email protected]

____________________________________________________________________________________________________________________________________________________________________________ FCC AUTHORIZATION June 15 , 2010 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Paul Aubin Compliance & Certification Manager Tel.: 450-375-0556 x222 Fax: 450-375-8746 Applicant: Trilliant Networks, Inc. Dear Ladies and/or Gentlemen: I appoint Thomas Smith, Brian Petted, and Kenneth Boston of LS Research, LLC to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application, and will implement any changes described in the test report. The labels described will be affixed to each item. By checking “yes”, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a); or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, which includes FCC benefits, pursuant to that section. Yes No Sincerely, Paul Aubin Compliance & Certification Manager Trilliant Networks, Inc. Trilliant Networks 610 du Luxembourg Street Granby, Quebec Canada J2J 2V2 Tel. : 450-375-0556 Fax : 450-375-8746

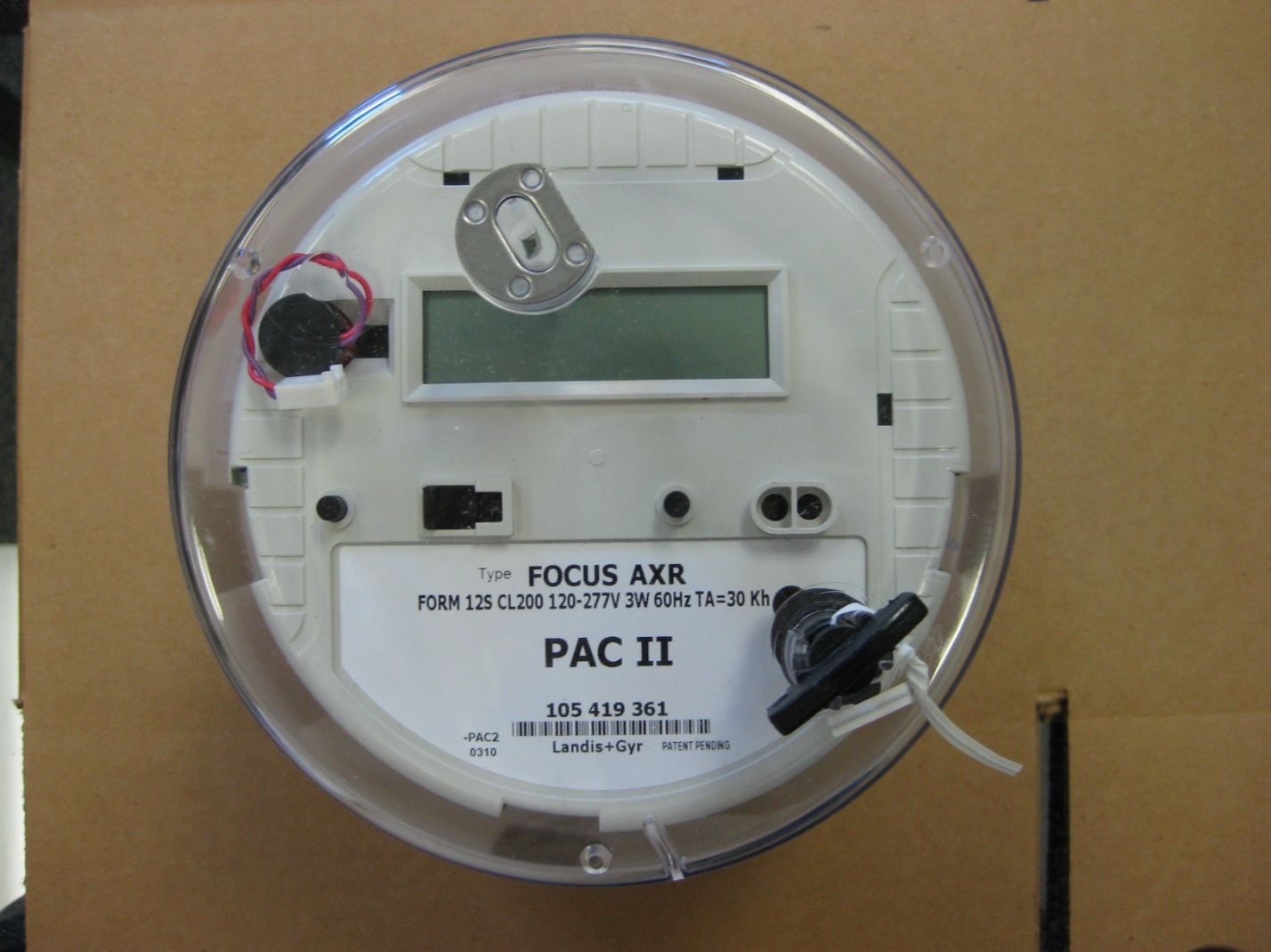

EXTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 1 of 5 Outside View of Front Side the RES‐3000‐FOCUSAX EXTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 2 of 5 Outside View of Back Side the RES‐3000‐FOCUSAX EXTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 3 of 5 Side View of the RES‐3000‐FOCUSAX Side View of the RES‐3000‐FOCUSAX EXTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 4 of 5 Side View of the RES‐3000‐FOCUS Side View of the RES‐3000‐FOCUS EXTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 5 of 5 Front View of the RES‐3000‐FOCUS

RES-3000-Focus June 21, 2010Page 1 of 1 FCC & IC Label SecureMesh™ 1-watt radio for L+G Focus® meter FCC & Industry Canada label PRODUC T SPECIFICA TION Material: 340 White Polyester for Durable Label Applications Description:This thermal transfer material is made from printing with our durable resin ribbons. Applications include, but are not limited to, instrument marking, long-term outdoor durable labels, asset- tracking and post-solder circuit board marking. It has also been tested for autoclaving pressure-wash applications up to 50°C. The face is scratch resistant and waterproof; the adhesive is aggressive and permanent. UL Recognized (File # MH27790) for indoor/outdoor use. RoHS Compliant Recommended Printing Ribbons: T84, T96, T80 Resins (T80 for UL) FacestockAdhesiveLiner Type: Polyester Acrylic S i l i c o n e paper Color:White, Gloss Caliper:0.002 inch0.0009 inch0.0031 inch Base Weight 42 lb / 3000 sq ft50# Brightness:75% Opacity:90% Min. Application Temperature+32°F (0°C) Service Temperature Range: -40°F to 302°F (-40°C to 150°C) Ultimate Tack:12 hours Storage Temperature Range:70°F (21°C) Humidity Range:50% R.H. Shelf Life:Two years

INTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 1 of 7 Internal View of Product Close‐up of Internal View INTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 2 of 7 Close‐up of RF Board inside Product Close‐up of RF Board outside Product Front Side INTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 3 of 7 Close‐up of RF Board outside Product Front Side Close‐up Side View of Antenna INTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 4 of 7 Close‐up Side View of Antenna INTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 5 of 7 Close‐up of RF Section with Shield Removed INTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 6 of 7 Front Side Non‐RF Board for RES‐3000‐FOCUS Back Side Non‐RF Board for RES‐3000‐FOCUS INTERNAL PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS and RES‐3000‐FOCUSAX FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 7 of 7 Front Side Non‐RF Board for RES‐3000‐FOCUSAX Back Side Non‐RF Board for RES‐3000‐FOCUSAX

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal: 28.50(dBm) Maximum peak output power at the antenna terminal:707.9457844(mW) Antenna gain(typical):4.6(dBi) Maximum antenna gain:2.884031503(numeric) Prediction distance:20(cm) Prediction frequency: 2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.406191(mW/cm^2) Therefore device complies with FCC and Industry Canada RF radiation exposure limits for gereral population as a mobile device (distance > 20cm) 2 4R PG S π =

W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # Q310124 LSR Job #: C-904 Compliance Testing of: Focus Meter with M-antenna Test Date(s): May 18-21, 24- 29, June 11, 2010 Prepared For: Trilliant 610 DU Luxembourg Granby, Quebec J2J 2V2 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Industry Canada (IC) RSS 210 Annex 8 Digital Modulation Transmitters (DTS) Operating in the Frequency Band 2400 MHz – 2483.5 MHz This Test Report is issued under the Authority of: Thomas T. Smith, Manager EMC Test Services Signature: Date: 06/30/10 Test Report Reviewed by: Thomas T. Smith, Manager EMC Test Services Signature: Date: 06/30/10 Tested by: Peter Feilen, EMC Engineer Signature: Date:06/30/10 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Trilliant EUT: Focus Meter LS Research, LLC Report # 310124 Model #: RES-3000-FOCUS Template: 15.109 Class B DTS RX 10-22-09 LSR Job #: C-904 Serial #: NBZB0000110 Page 2 of 59 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 MPE Calculation 8 2.6 Product Description 9 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 3.1 Climate Test Conditions 10 3.2 Applicability & Summary of EMC Emission Test Results 10 3.3 Modifications Incorporated in the EUT for Compliance Purposes 10 3.4 Deviations & Exclusions from Test Specifications 10 EXHIBIT 4: DECLARATION OF CONFORMITY 11 EXHIBIT 5: RADIATED EMISSIONS TESTING Note: Items 5.1 through 5.8 are for TRANSMIT MODE Item 5.9 is for RECEIVE MODE 5.1 Test Setup 12 5.2 Test Procedure 12 5.3 Test Equipment Utilized 13 5.4 Test Results 13 5.5 Calculation of Radiated Emissions Limits 14 5.6 Radiated Emissions Test Data Chart 15 5.7 Test Setup Photo(s) – Radiated Emissions Test 18 5.8 Screen Captures – Radiated Emissions Test 19 5.9 Receive Mode Testing 23 EXHIBIT 6: CONDUCTED EMISSIONS TEST, AC POWER LINE 6.1 Test Setup 27 6.2 Test Procedure 27 6.3 Test Equipment Utilized 27 6.4 Test Results 27 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports 28 6.6 Conducted Emissions Test Data Chart 29 6.7 Test Setup Photo(s) – Conducted Emissions Test 30 6.8 Screen Captures – Conducted Emissions Test 31 Prepared For: Trilliant EUT: Focus Meter LS Research, LLC Report # 310124 Model #: RES-3000-FOCUS Template: 15.109 Class B DTS RX 10-22-09 LSR Job #: C-904 Serial #: NBZB0000110 Page 3 of 59 TABLE OF CONTENTS (Page 2 of 2) EXHIBIT 7: OCCUPIED BANDWIDTH 7.1 Limits 33 7.2 Method of Measurements 33 7.3 Test Equipment List 33 7.4 Test Data 33 7.5 Screen Captures – Occupied Bandwidth 34 EXHIBIT 8: BAND-EDGE MEASUREMENTS 8.1 Method of Measurements 38 EXHIBIT 9: POWER OUTPUT (CONDUCTED): 15.247(b) 9.1 Method of Measurements 42 9.2 Test Equipment List 42 9.3 Test Data 42 9.4 Screen Captures – Power Output (Conducted) 43 EXHIBIT 10: POWER SPECTRAL DENSITY: 15.247(e) 10.1 Limits 46 10.2 Test Equipment List 46 10.3 Test Data 46 10.4 Screen Captures – Power Spectral Density 47 EXHIBIT 11: SPURIOUS RADIATED EMISSIONS: 15.247(d) 11.1 Limits 50 11.2 Test Equipment List 51 11.3 Test Data 51 11.4 Screen Captures – Spurious Radiated Emissions 52 EXHIBIT 12: FREQUENCY & POWER STABILITY OVER VOLTAGE & TEMPERATURE VARIATIONS 54 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 55 APPENDIX B: TEST STANDARDS – RADIO 56 APPENDIX C: UNCERTAINTY STATEMENT 57 APPENDIX D: JUSTIFICATIONS OF AVERAGE DUTY FACTOR CALCULATIONS 58 Prepared For: Trilliant EUT: Focus Meter LS Research, LLC Report # 310124 Model #: RES-3000-FOCUS Template: 15.109 Class B DTS RX 10-22-09 LSR Job #: C-904 Serial #: NBZB0000110 Page 4 of 59 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.247 and 15.209 FCC Part 2, Section 2.1043 paragraph (b)1. RSS GEN and RSS 210 Annex 8 Title: FCC : Telecommunication – Code of Federal Regulations, CFR 47, Part 15. IC : Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment Purpose of Test: To gain FCC and IC Certification Authorization for Low- Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: • Commercial, Industrial or Business • Residential 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2008-10 Code of Federal Regulations - Telecommunications RSS 210 Annex 8 2007 June Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment ANSI C63.4 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. FCC Public Notice DA 00-1407 2000 Part 15 Unlicensed Modular Transmitter Approval FCC ET Docket No. 99-231 2002 Amendment to FCC Part 15 of the Commission’s Rules Regarding Spread Spectrum Devices. FCC Procedures 2007 Measurement of Digital Transmission Systems operating under Section 15.247. Prepared For: Trilliant EUT: Focus Meter LS Research, LLC Report # 310124 …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 1 of 2 Test Setup for Radiated Emissions Testing TEST SETUP PHOTOS Company Name Trilliant Networks Model # RES‐3000‐FOCUS FCC ID # TMB‐G30FOCUS IC # 6028A‐G30FOCUS Page 2 of 2 Test Setup for Conducted AC Emissions Testing
