TMB-G30SGM30XATransceiver Module

Trilliant Networks
Transceiver Module - FCC ID TMB-G30SGM30XA - Trilliant Networks
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 02, 2014
Application Purpose
Original Equipment
Date of Application
Feb 02, 2014
Equipment Note
Transceiver Module
Frequency Range
2405.00000000 - 2475.00000000
Company
Trilliant Networks
Country
United States

Documents & Files

Select a file to view

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

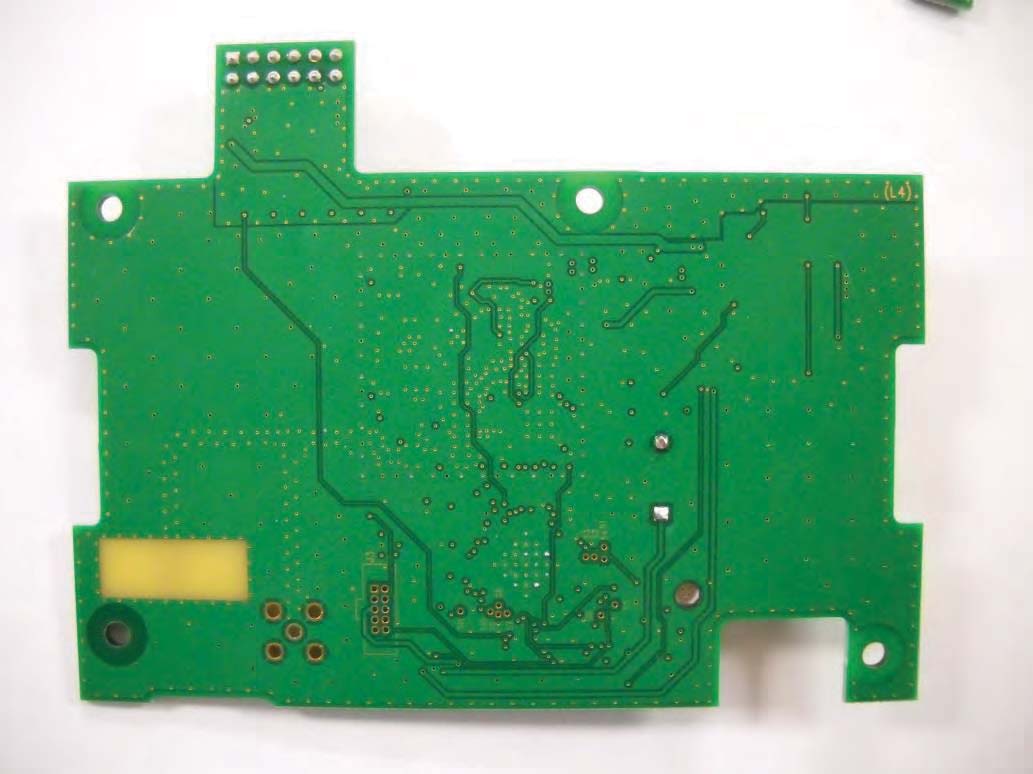

BoƩom Top with shield

ID Label/Location Info

Product picture with FCC/IC label Page 1 of 1 RES-2000- SGM30XA Trilliant Incorporated 1100 Island Drive, Redwood City, CA 94065 USA +1.650.204.5050 www.trilliantinc.com Trilliant™, CellReader ® , CellGateway™, SecureMesh™, SerViewCom ® , UnitySuite™, SkyPilot ® , SyncMesh™, the Trilliant logo, and the SkyPilot logo are trademarks of Trilliant Incorporated and/or its subsidiaries. All other trademarks are the property of their respective owners. This material is provided for informational purposes only; Trilliant assumes no liability related to its use and expressly disclaims any implied warrantie s of merchantability or fitness for any particular purpose. All specifications, descriptions, and information contained herein are subject to change without prior notice. Copyright © 2011 Trilliant Incorporated. ALL RIGHTS RESERVED.

RF Exposure Info

Global EMCScott Dry Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radi a R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:29.40(dBm) Maximum peak output power at antenna input terminal:870.96359(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.173273(mW/cm^2) Margin of compliance:-7.6(dB) This e quates to1.732727007W/m^2PASS 2 4R PG S   This equates to1.732727007W/m 2PASS For informationThis equates to25.55852268 V/m 2 4R PG S   ysdale ator

Test Report

REGISTRATION #6844B-1 FCC REGISTRATION #382292 Testing Laboratory Certificate #2555.01 Page 1 of 73 Report issue date: 1/16/2014 GEMC-FCC-24G-Q50065R4 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2012 Unlicensed Intentional Radiators on the RES-2100-SGM30XA Scott Drysdale, NCT General Manager Global EMC Inc. Laval 2972 Joseph-A-Bombardier Laval, QC, H7P 6E3 CANADA Ph: (450) 687- 4976 Testing produced for See Appendix A for full customer & EUT details . Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 2 of 73 Report issue date: 1/16/2014 GEMC-FCC-24G-Q50065R4 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 8 Sample calculation(s) ......................................................................................................... 9 Document Revision Status ................................................................................................. 9 Definitions and Acronyms ................................................................................................... 10 Testing Facility .................................................................................................................... 11 Calibrations and Accreditations ....................................................................................... 11 Testing Environmental Conditions and Dates ................................................................. 12 Detailed Test Results Section .............................................................................................. 13 Power Line Conducted Emissions ................................................................................... 15 Radiated Emissions .......................................................................................................... 23 6dB Bandwidth of Digitally Modulated Systems ............................................................ 41 Maximum conducted (average) output power ................................................................. 45 Spurious Conducted Emissions........................................................................................ 53 Power Spectral Density - DM .......................................................................................... 62 Appendix A – EUT Summary.............................................................................................. 65 Appendix B – EUT and Test Setup Photographs................................................................. 67 Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 3 of 73 Report issue date: 1/16/2014 GEMC-FCC-24G-Q50065R4 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the RES-2100- SGM30XA Unit, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 4 of 73 Report issue date: 1/16/2014 GEMC-FCC-24G-Q50065R4 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: TMB-G30SGM30XA EUT Industry Canada Certification #, IC: 6028A-G30SGM30XA EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Scott Drysdale Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 5 of 73 Report issue date: 1/16/2014 GEMC-FCC-24G-Q50065R4 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.207 Power line conducted emissions QuasiPeak Average Pass FCC 15.209 RSS-210 (Table 2) Spurious Radiated em…

Text truncated - open the document above for the full version.

Test Report

Trilliant 1 Watt SecureMesh Radio Module Relaxation Factor January 6th, 2014 The Trilliant SecureMesh 1 Watt Radio Module will not transmit for more than 4.35ms over a 43.5ms time period. The justification is based upon the following conditions: 1) Transmit packet size 131 bytes maximum, for 4.19ms transmission duration. 2) Data rate 250kbps. 3) Each radio waits for acknowledgement prior to retransmission. 4) Acknowledgement is 5 bytes, or 0.16ms transmission duration. 5) Maximum number of hops per mesh network is 10. Documentation is justified as below: Example 1 – Trilliant SecureMesh Network – Source to Destination Requires Ten Hops Typical broadcast over a large network (10 radios) includes: A) Message is transmitted by the initiating radio (first hop). Total transmit time is 4.19ms. B) Transmission time to the destination radio (10th hop- assuming no retries), requires an additional 37.71ms. C) Acknowledgement from destination radio to initiating radio requires 1.6 ms, assuming no retries. Large network, No Retries Transmit time: 4.19ms Total on time: 43.5ms Total on time per radio (Tx packet plus Ack Packet): 4.35ms Total percentage on time per radio/best case: 10.00 per cent Note: The Large Network, No Retries offers the highest utilization. A ten-hop mesh network will typically require retries which reduce the throughput of the system. Retries will effectively reduce the duty cycle of the radios. Network Topology Initiating Radio Radios 2-9 Destination Radio (Hop 10)

Test Setup Photos

Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 1 of 4 Report issue date: 12/18/2013 GEMC-FCC-24G-Q50065R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions Below 30 MHz Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 2 of 4 Report issue date: 12/18/2013 GEMC-FCC-24G-Q50065R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions 30 MHz to 1 GHz Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 3 of 4 Report issue date: 12/18/2013 GEMC-FCC-24G-Q50065R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions above 1 GHz Client Trilliant Networks Canada Inc. Product RES-2100-SGM30XA Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2012 Page 4 of 4 Report issue date: 12/18/2013 GEMC-FCC-24G-Q50065R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Antenna Conducted Measurements

Contact Information

Applicant

Daniel Tousignant(Certification & Compliance Eng.)
[email protected]450-915-1631Fax: 450-375-8746

Technical Contact

Trilliant Networks, Inc.Benoit Allard
[email protected]450-375-0556

610 Du Luxembourg · Granby · Canada

Test Firm

Global EMC Inc.Scott Drysdale
[email protected]4506874976

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz870.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval. Output power listed is average conducted power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter procedures. Output power levels on channels 11 and 25 must be reduced as documented in the filing. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
