TMGG1TDDMN006TPMS Module

[ TPMS B/T Adapter Manual] TPMS B/T Adapter 1. TPMS B/T Adapter is adapter for B/T commnuication TPMS with PAD. 2. Connect the TPMS andTPMS B/T Adapter like as a picture for use. 3. TPMS B/T Adapter is not used without TPMS. ●DESCRIPTION 4. For the power ON, press the RED button at top right sideof TPMS. -Red LED of top left side of TPMS is on, And, Red LED is on at top left side of TPMS BTA -Red LED of top left side of TPMS is on, And, Red LED is on at top left side of TPMS BTA 5. For the power OFF, Press the RED button about 3 seconds at top right side of TPMS. -The POWER LED oftop left side of TPMS is off, And, Red LED is off at top left side of TPMS BTA TPMS B/T Adapter •AC/DCadapter is not supplied. ITEMSpecification POWERDC 3.7V •Supply power from LI-ION BATTERY •BATTERY : 1,000mA 653745 -Charge : 0~45°C -Discharge : -20 ~ 60°C TemperatureActive Temperature•Active : 0 ~ 40°C Power ConsumptionPower•Status : Active( Max. 180mA ) ChargeDC 7V –35V •Input power from DC-JACK pin •When TPMS connect to TPMS_BTA Both able to be charged. Main CPU•STM32F205RGT6(LQFP64) -STMicroelectronics ●TPMS B/T Adapter CPU Main CPU•STM32F205RGT6(LQFP64) -STMicroelectronics Processing speed •32Bit Cortex120MHz Internal Memory Volume •Flash 1M Byte, RAM 128K Byte Interface •UART (TPMS/PC) BLUETOOTH IC•BlueCore4 (BT 2.1+EDR) Module•MBL0402E (12.9x10.xX2.2) -ADANIS Frequency•2.4GHz LED1•POWER ON/OFF / Low Battery warning / BT communication LED2•Status of charging(charging/full charged) 3 Display •CLASS2 Support ratings Interface• Communication with CPU by UART CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Changesor modifications not expressly approved by the party responsible for compliance Couldvoid the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation issuject to the following two conditions: (1)This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againt harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferende to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferende by one or more of the following measures: 4 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againt harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferende to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferende by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This product is CE marked according to the provision of the R&TTE Directive (99/5/EC). Here by G.I.T co., Ltd.. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

G. I . T C o . , L t d . GIT BLDG., 38-5 Garakbon-Dong, Songpa-Gu, Seoul, 138-801 Korea TEL: +82-2-2189-3353, FAX: +82-2-2189-3333 http://www.gitauto.com/ January 24, 2014 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize SK TECH Co., Ltd.(Mr. Jongsoo, Yoon) to act on our behalf in all matters relating to application for equipment authorization. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). APPLICANT/AGENT CERTIFICATION AND AGREEMENT: All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. Sincerely, MIN KYU JEON/ Research Fellow

Dielectric Chip Antenna - 1 - - Application Frequency Band[MHz] Bluetooth / WiFi/Zigbee 2400 ~ 2485 S-DMB2630 ~ 2655 Wibro 2300 ~ 2390 band1 : 2300 ~ 2327 band2 : 2331.5 ~ 2358.5 bnad3 : 2363 ~ 2390 Original Design Chip Antenna Data Sheet - P/N : SDBTPTR3015 - Dielectric Chip Antenna - 2 - ■ SDBTPTR3015 Dimension ParameterLWTABCDE Value[mm] 3.0 ±0.1 1.5 ±0.1 1.2 ±0.1 1.00.550.41.10.65 Unless Specified tolerances are ± 0.05 mm Dielectric Chip Antenna - 3 - ■ Antenna Marking System ◀S3 ①②③ ITEMDESCRIPTION ① Input Signal Input Signal ② Serial SDBTPTR3015 ③ Month ■ Antenna PAD Information 3 12 4 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line 123456 JanuaryFebruaryMarchAprilMayJune 789ABC JulyAugustSeptemberOctoberNovemberDecember ◀ S3 Dielectric Chip Antenna - 4 - ■ PCB Drawing Top View Case #1 <Default> 12 3 4 Case #2 12 3 4 Case #3 12 3 4 Case #4 12 3 4 Bottom View <Equivalent Circuit> Dielectric Chip Antenna - 5 - ■ Change of Antenna Position 3 1 2 4 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Antenna Position Feeding Position LeftDown DownRight 2 4 3 1 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Antenna Position Feeding Position LeftUp UpRight Antenna Position Feeding Position RightDown DownLeft 3 4 2 1 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Antenna Position Feeding Position RightUp UpLeft 3 1 2 4 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Dielectric Chip Antenna - 6 - ■ Matching Value Band (MHz) Matching Value (Default) Bluetooth / WiFi / Zigbee (2400 ~ 2485) Connector N/C Ant. 100pF 1.8pF 100 pF N/C S-DMB ( 2630 ~ 2655) Connector N/C Ant. 100pF 1.0pF 100 pF N/C Wibro (2300 ~ 2390) band1:2300~2327 band2:2331.5~2358.5 bnad3:2363~2390 Connector N/C Ant. 100pF 2.0pF 100 pF N/C Dielectric Chip Antenna - 7 - - 3D Passive Gain For Bluetooth / WiFi / Zigbee ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2400MHz1.96-0.9780.18 2425MHz1.99-0.6685.92 2445MHz1.74-0.8582.42 2465MHz1.27-1.2575.12 2485MHz0.86-1.6468.59 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 8 - - 3D Passive Gain For S-DMB ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2627MHz4.33-0.3891.80 2642MHz4.67-0.3692.06 2657MHz4.71-0.5688.02 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 9 - - 3D Passive Gain For Wibro ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2300MHz2.51-0.8482.52 2322.5MHz2.68-0.7883.71 2345MHz3.15-0.4590.20 2367.5MHz3.02-0.7883.76 2390MHz3.09-0.8682.12 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 10 - ■ AutoCAD Drawing of Reference PCB Design for SDBTPTR3015 Product 41 2 3

G. I . T C o . , L t d . GIT BLDG., 38-5 Garakbon-Dong, Songpa-Gu, Seoul, 138-801 Korea TEL: +82-2-2189-3353, FAX: +82-2-2189-3333 http://www.gitauto.com/ January 24, 2014 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN ATTESTATION: We, the undersigned, would like to declare that the composite portion categorized as Class B Computing device has been authorized under the Declaration of Conformity procedures. FCC ID Number Product Description (Model) TMGG1TDDMN006 TPMS Module(TPMS B/T Adapter) Sincerely, MIN KYU JEON/ Research Fellow

G. I . T C o . , L t d . GIT BLDG., 38-5 Garakbon-Dong, Songpa-Gu, Seoul, 138-801 Korea TEL: +82-2-2189-3353, FAX: +82-2-2189-3333 http://www.gitauto.com/ January 24, 2014 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, G.I.T Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Description (Model) TMGG1TDDMN006 TPMS Module(TPMS B/T Adapter) The requested Permanent and Short-Term Confidential exhibits art listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain G.I.T Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, MIN KYU JEON/ Research Fellow

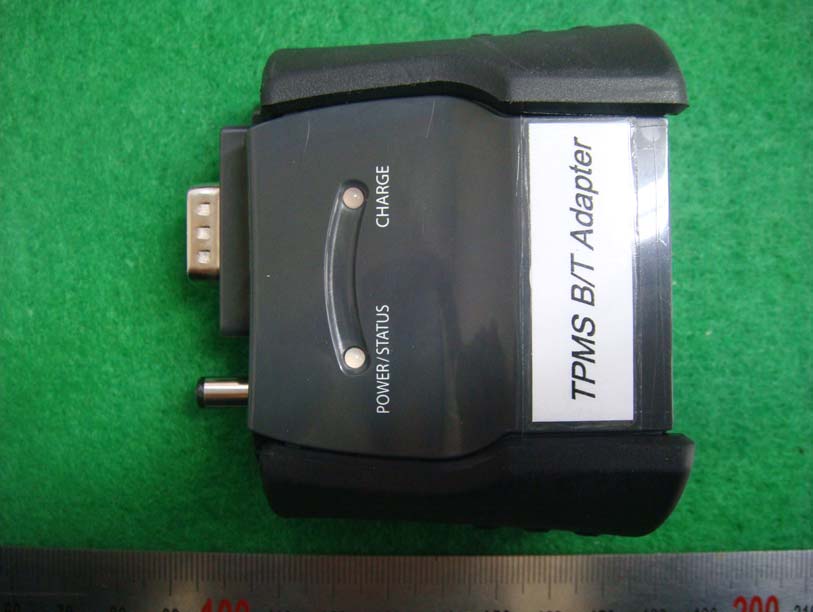

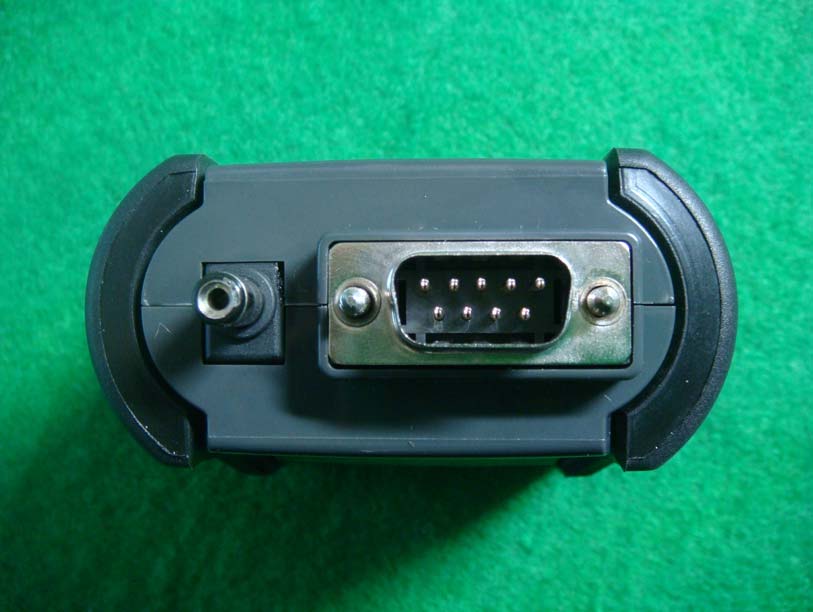

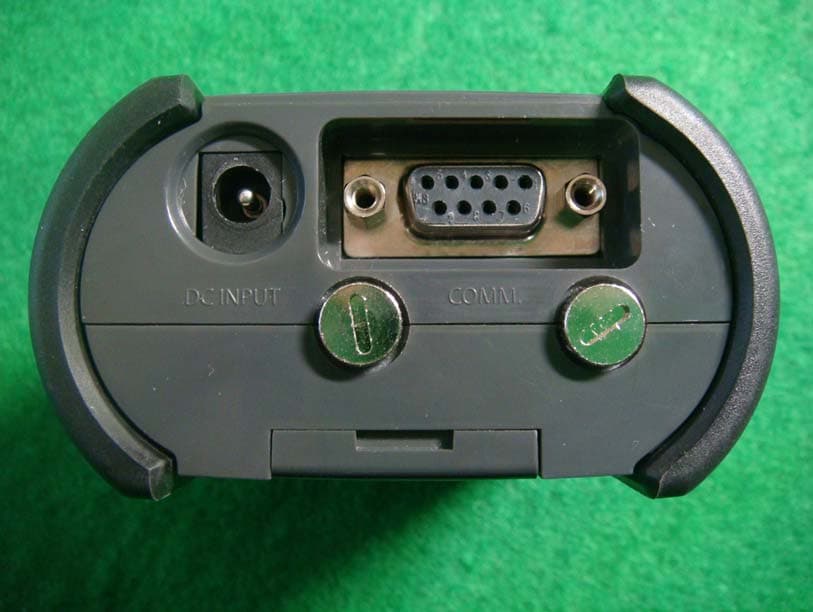

SK Tech Co., Ltd. Page 1 of 3 Photographs of EUT External view RS-232 (Connect to TPMS) Power Output (DC) SK Tech Co., Ltd. Page 2 of 3 SK Tech Co., Ltd. Page 3 of 3 RS-232 (Connect to PC) Power Input (DC)

ID Label Location & Sample LABEL LOCATION: Label will be attached to the Rear of the product LABEL Drawing:

SK Tech Co., Ltd. Page 1 of 4 Photographs of EUT Cover opened SK Tech Co., Ltd. Page 2 of 4 Main board front SK Tech Co., Ltd. Page 3 of 4 Main board rear SK Tech Co., Ltd. Page 4 of 4 Battery

RF Exposure requirements Product name TPMS Module Model number TPMS B/T Adapter FCC ID TMGG1TDDMN006 Radio specification 2.4 GHz Bluetooth transceiver Antenna 2.4 GHz Omni‐directional chip antenna Power source DC 3.7 V battery According to the KDB 447498, the following standalone SAR test exclusion was considered to qualify for the SAR test exclusion. Tx frequency range 2402 MHz ‐ 2480 MHz Device category Handheld portable device Maximum conducted output power 0.77 mW (‐1.12 dBm) Limit 10 mW (distance = 5 mm) RF average power output (measured): unit: mW Operating frequency (for Bluetooth device) Data rate (packet) 2402 MHz 2441 MHz 2480 MHz Basic (DH5) 0.43 0.39 0.25 EDR (2‐DH5) 0.76 0.55 0.38 EDR (3‐DH5) 0.77 0.57 0.39 SAR test exclusion thresholds: [(max. power of channel, mW) / (min. separaƟon distance, mm ] · √f (GHz) ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR MHz 5 10 15 20 25 293035404550 test separation distance (mm) 2450 10 19 29 38 48 565767778696 SAR test exclusion threshold (mW) The source‐based time‐averaged maximum conducted output power of the RF channel is less than 10 mW, and the minimum separation distance of 5 mm can be achived. Therefore the transmitter complies with the RF exposure requirements and the SAR is not required.

SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 2 of 40 Revision History of Report Rev. Revisions Effect pageReviewed by Date - Initial issue All Jongsoo Yoon January 21, 2014 SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 3 of 40 TABLE OF CONTENTS 1 Summary of test results ................................................................................................. 4 2 Description of equipment under test (EUT) .................................................................. 5 3 Test and measurement conditions ................................................................................ 6 3.1. Test configuration (arrangement of EUT) ................................................................................ 6 3.2. Description of support units (accessory equipment)................................................................ 6 3.3. Interconnection and I/O cables................................................................................................ 6 3.4. Measurement Uncertainty (U) ................................................................................................. 6 3.5. Test date .................................................................................................................................. 6 4 Facilities and accreditations .......................................................................................... 7 4.1. Facilities................................................................................................................................... 7 4.2. Accreditations .......................................................................................................................... 7 4.3. List of test and measurement instruments............................................................................... 7 5 Test and measurements ................................................................................................. 8 5.1. Antenna requirement ............................................................................................................... 8 5.2. Maximum peak output power ..................................................................................................9 5.3. Carrier frequency separations and 20 dB bandwidth ............................................................ 12 5.4. Number of Hopping channels ................................................................................................17 5.5. Time of occupancy (Dwell time).............................................................................................19 5.6. Spurious emissions, Band edge, and Restricted bands ........................................................ 22 5.7. AC power line conducted emissions...................................................................................... 38 SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 4 of 40 1 Summary of test results Requirement CFR 47 Section Result Antenna Requirement 15.203, 15.247(b)(4) Meets the requirements Maximum Peak Output Power 15.247(b)(1), (4) Meets the requirements Carrier Frequency Separation 15.247(a)(1) Meets the requirements 20dB Channel Bandwidth 15.247(a)(1) Meets the requirements Number of Hopping Channels 15.247(a)(iii), 15.247(b)(1) Meets the requirements Time of Occupancy (Dwell Time) 15.247(a)(iii) Meets the requirements Spurious Emission, Band Edge, and Restricted bands 15.247(d), 15.205(a), 15.209(a) Meets the requirements AC power line Conducted emissions 15.207(a) Meets the requirements SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 5 of 40 2 Description of equipment under test (EUT) Product: TPMS Module Model: TPMS B/T Adapter Serial number: None (prototype) Model differences: Model name Difference Tested (checked) TPMS B/T Adapter Original (basic model that was fully tested) GDS TPMS BTA GDS TPMS B/T Adapter GDSM TPMS BTA GDSM TPMS B/T Adapter GDS Mobile BTA GDS Mobile B/T Adapter TPMS BTA TPMS BT Adapter TPMS B/T Adaptor GDS TPMS B/T Adaptor Listed by the applicant's request without the tests; the applicant declared that the variant models were identical to the tested sample and added for the marketing purpose Note: All the differences were compared with the tested sample. Technical data: Power source DC 3.7 V battery Local Oscillator or X-Tal 25 MHz, 26 MHz Transmit Frequency 2402 MHz to 2480 MHz (79 channels) Antenna Type Omni-directional chip antenna, peak gain: 1.99 dBi Type of Modulation GFSK, 4QDPSK, 8DPSK RF Output power -1.12 dBm (measured conducted RF power) NOTE The test report for the compliance with FCC Part 15B as a digital device was issued with other test report number I/O port Type Q'ty Remark Power input (DC) Jack for charging the internal battery of EUT 1 DC 7 V to 35 V Power output (DC) Plug for charging the battery of GDS TPMS 1 RS-232 D-sub (9-pin female) connected to PC 1 RS-232 D-sub (9-pin male) connected to GDS TPMS 1 Equipment Modifications The temporary power switch was attached to the EUT. No modifications were made during the testing. SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 6 of 40 3 Test and measurement conditions 3.1. Test configuration (arrangement of EUT) The measurements were taken in continuous transmitting mode using the TEST MODE. For controlling the EUT as TEST MODE, the test program and the cable assembly were provided by the applicant. (SPI) Parallel Interface TEST JIG EU T PC Debug 3.2. Description of support units (accessory equipment) The following support units or accessories were used to form a representative test configuration during the tests. # Equipment Manufacturer Model No. Serial No. 1 PC DELL INC. 7XH86BX 17261795085 2 TEST JIG - - - Note: 1) For control of the RF module via SPI interface at the Debug port in the EUT. 2) For radiated spurious emission measurements, the measurements were performed without PC after setting the radio module to TEST MODE. 3) If not otherwise stated, for modulating the transmitter, a pseudo random bit sequen…

Text truncated - open the document above for the full version.

SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 1 of 4 Photographs of the test set-up Radiated emissions - front view Radiated emissions - rear view SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 2 of 4 Radiated emission test below 30 MHz Radiated emission test below 1 GHz SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 3 of 4 Radiated emission test above 1 GHz SK Tech Co., Ltd. Report No.: SKT-RFC-140001 Page 4 of 4 AC Power line conducted emissions - front view AC Power line conducted emissions - rear view
