TMGG1XDDMN001Scan Tool

GDS User’s Manual 1 G | Before Use Read the instructions thoroughly for proper operation of your GDS M. This manual contains information needed for using GDS M. The manual is subject to change without prior notice. Git assumes no liability for the Application which GIT do not produce GDS M application includes the several functions for uploading and downloading data. GIT assumes no liability for the fee due to the use of data Safety Warning and Caution before Use This section contains WARNING and CAUTION for safe usage of GDS M. Before use, the user should read the following information. WARNING This indicates incorrect handling may result in a major accident involving death or serious injury. The VCI should be secured in a safe location when operating the vehicle to avoid interference with other vehicle equipment. Only use the specified adapters and cables when connecting the VCI module. (7~35VDC) Ensure all cables are properly connected during operation. Do not disconnect communication cable or power cables unless finished with the equipment. When using the trigger module, ensure that the module is installed in a safe and secure location to avoid interference with other vehicle equipment. Do not disassemble the VCI module. Use only genuine accessory parts supplied by GIT. Never connect the device to equipment rather than vehicles. Products are to be stored within the right temperatures. (Refer to CAUTION) 2 G | CAUTION This indicates incorrect handling may lead to injury or damage to property. Under certain conditions more serious consequences may result. Do not remove the rubber shield from the VCI. Keep liquids and other contaminants away from the VCI. Do not drop the VCI. Do not place any objects (tools, manuals, etc.) on the VCI. Observe correct polarity when connecting the battery supply extension cable. When connecting cables under the hood, secure the cables to avoid damage caused by hot or moving parts. Unplugging the DLC and USB cables from the VCI module must only be done after releasing the cable connector lock tap(s). USB cable must be connected to VCI module in order to upgrade any vehicle ECU or VCI firmware. Properly store all components when not in use. Do not use cables as carrying handles. Do not store products in places where; Extremely high or low temperature (Refer to feature of products) Extremely high or low humidity (Refer to feature of products) Inside a vehicle during summer season for a long time Exposed to direct rays Avoid a shock or vibrations or under heavy weight. Avoid a shock or vibrations during shifting. Keep products away and store from moisture. GIT is not responsible for those causes that are generated by PCs, which are not recommended by GIT. Keep products away from flammable substances or places where fierce static electricity can occur. Products and accessories are not to be coated or painted with chemical substances or acid that can corrode the equipment. Do not expose the equipment to X-ray or Microwave. This might cause severe damage to the equipment. 3 G | Thank you for purchasing the Global Diagnostic System (GDS). Read the instructions thoroughly for proper operation of your Global Diagnostic System This Manual is copyrighted by Global Information Technology Co., Ltd. All rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Global Information Technology Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ⓒ2005 Global Information Technology Co., Ltd. All Right Reserved. Global Diagnostic System specifications and manual are subject to change without notice. Global Information technology Co., Ltd. assumes no liability for damage incurred directly or indirectly from error, omission or discrepancies between the Tablet PC, VCI, TPMS and the User Manual. Introduction Copyright Disclaimer 4 G | Introduction 5 G | Hardware VCI-II Component Identification and Functions VCI II Unlock button Unlock button for the pairing. When disconnecting VCI II from OBD-II(16Pin) on the vehicle side, unlock the pairing between . External Connector for USB cable Communication port for Connecting between VCI II and GDS PC with wire USB cable Bluetooth Paring Reset Button Reset button for re-pairing with Bluetooth GDS Trigger 1 2 3 6 G | GDS Trigger Component Identification and Functions Trigger Cigar Lighter connector Supplies the power to the GDS Trigger, should be connected to the Cigar Lighter on the vehicle Trigger Status LED Indicates VCI II communication status. Trigger Enter Button When using Trigger manually, the color of lights indicates the current status of trigger module. Notice Bluetooth Trigger Module must be inserted to Cigar Lighter when it is used for flight record (saving ECU input/output data on the vehicle) 1 2 3 7 G | VCI II Specifications Information Item Specifications CPU ARM 32-bit Cortex™-M3 (STM32F207VGT6) @ 120 MHz Memory Flash Memory 1MByte, SRAM 128KByte Operating Voltage 7 VDC to 35 VDC Operating Temperature -20 °C to 60 °C Storage Temperature -40 °C to 85 °C Operating humidity 20 %R.H. to 90 %R.H. Current Consumption Standby Mode 300 mA @ 12 V Wire Protocol USB 2.0 Full Speed(12Mbps) Wireless LAN Protocol Wireless LAN IEEE 802.11 a/b/g/n(20) Bluetooth Protocol Bluetooth 3.0, 2.1 (Class 1) Dimension 57.9 × 73.6 × 35.9 mm Weight 90 g Case PC+ABS GDS Trigger Specifications Information Item Specifications CPU ARM 32-bit Cortex™-M3 (STM32F205RGT6) @ 120 MHz Memory Flash Memory 1MByte, SRAM 128KByte Operating Voltage 7 VDC to 35 VDC Operating Temperature -30 °C to 70 °C Storage Temperature -40 °C to 85 °C Operating humidity 20 %R.H. to 90 %R.H. Current Consumption Standby Mode 70 mA @ 12 V Bluetooth Protocol Bluetooth 2.1 (Class 2) Dimension 38.3 × 111 × 25.3 mm Weight 55 g Case PC+ABS REMARK: the essential radio test suites for these products (model VCI II and GDS Trig ger) were performed under the extreme temperatures from ‐20 °C to…

Text truncated - open the document above for the full version.

G.I.T Co., Ltd. GIT BLDG., 38-5 Garakbon-Dong, Songpa-Gu, Seoul, 138-801 Korea TEL: +82-2-2189-3353, FAX: +82-2-2189-3333 http://www.gitauto.com/ March 31, 2014 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize SK TECH Co., Ltd.(Mr. Jongsoo, Yoon) to act on our behalf in all matters relating to application for equipment authorization. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). APPLICANT/AGENT CERTIFICATION AND AGREEMENT: All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. Sincerely, MIN KYU JEON/ Research Fellow

G.I.T Co., Ltd. GIT BLDG., 38-5 Garakbon-Dong, Songpa-Gu, Seoul, 138-801 Korea TEL: +82-2-2189-3353, FAX: +82-2-2189-3333 http://www.gitauto.com/ March 31, 2014 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN ATTESTATION: We, the undersigned, would like to declare that the composite portion categorized as Class B digital device has been authorized under the Declaration of Conformity procedures. FCC ID Number ProductDescription (Model) TMGG1XDDMN001 Scan Tool(VCIII) Sincerely, MIN KYU JEON/ Research Fellow

G.I.T Co., Ltd. GIT BLDG., 38-5 Garakbon-Dong, Songpa-Gu, Seoul, 138-801 Korea TEL: +82-2-2189-3353, FAX: +82-2-2189-3333 http://www.gitauto.com/ March 31, 2014 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, G.I.T Co., Ltd. requests confidentiality for the following products: FCC ID Number ProductDescription (Model) TMGG1XDDMN001 Scan Tool(VCIII) The requested Permanent and Short-Term Confidential exhibits art listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain G.I.T Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, MIN KYU JEON/ Research Fellow

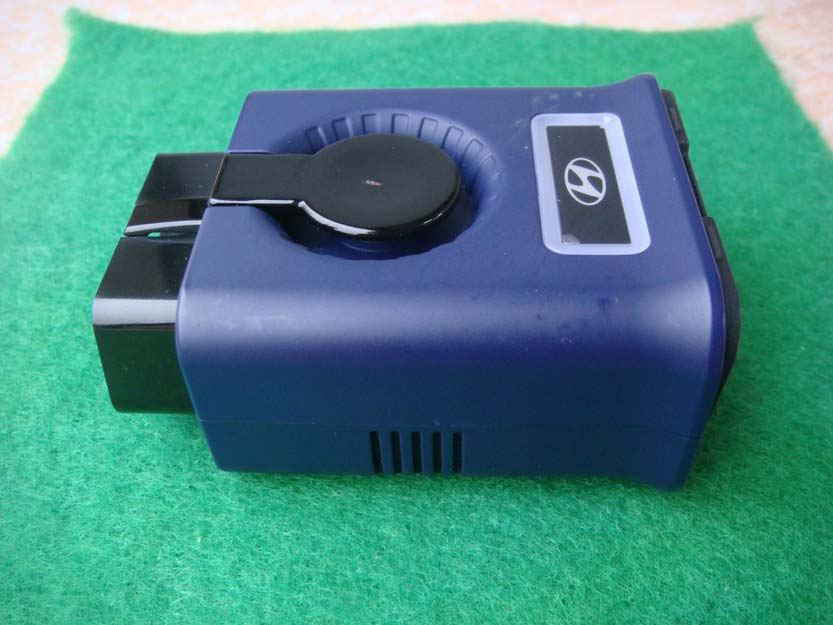

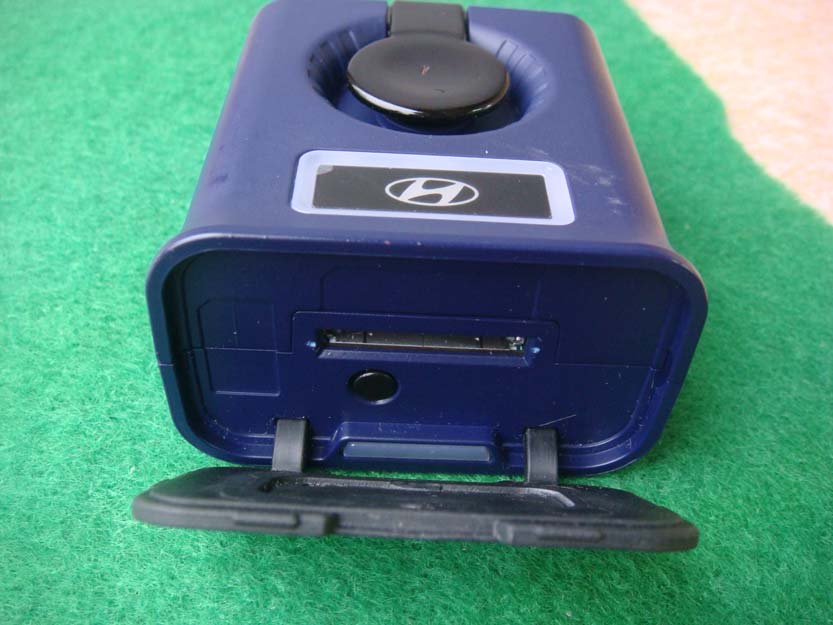

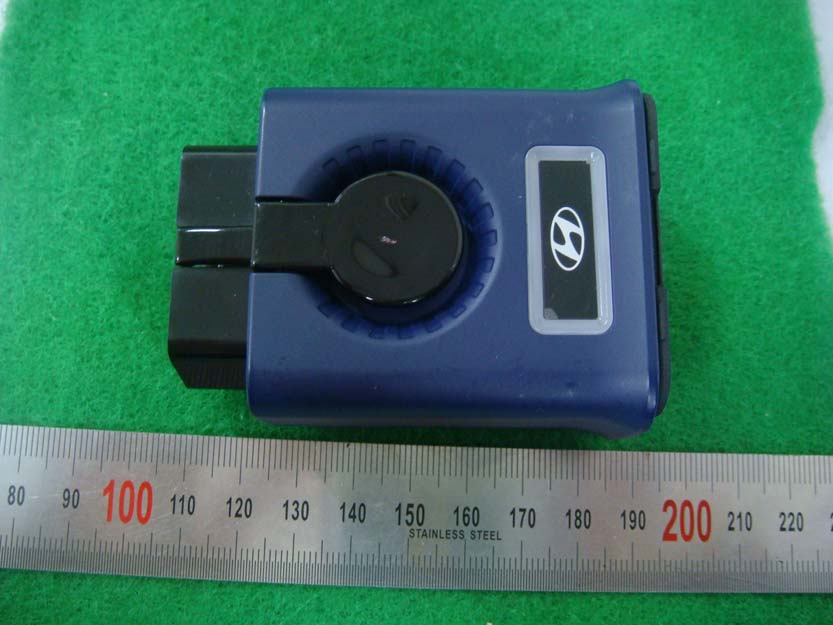

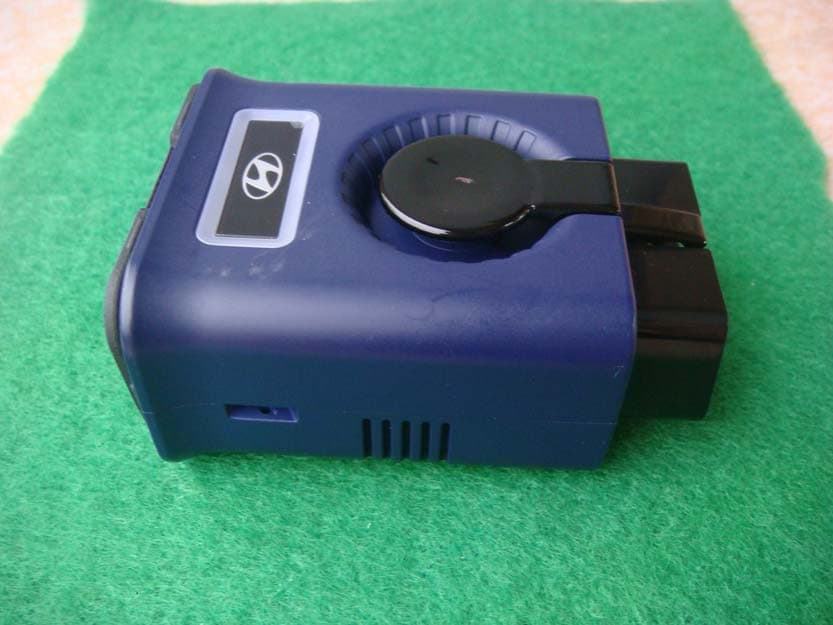

SK Tech Co., Ltd. Page 1 of 3 Photographs of EUT External view SK Tech Co., Ltd. Page 2 of 3 SK Tech Co., Ltd. Page 3 of 3

ID Label Location & Sample LABEL LOCATION: Label will be attached to the Rear of the product LABEL Drawing:

SK Tech Co., Ltd. Page 1 of 6 Photographs of EUT Cover opened SK Tech Co., Ltd. Page 2 of 6 Main board SK Tech Co., Ltd. Page 3 of 6 Power board SK Tech Co., Ltd. Page 4 of 6 CPU board & RF module(WLAN + BT) SK Tech Co., Ltd. Page 5 of 6 CPU board & RF module(WLAN + BT) SK Tech Co., Ltd. Page 6 of 6 WLAN + BT antenna

RF Exposure requirements Product name Scan Tool Model number VCI II FCC ID TMGG1XDDMN001 Radio specification (WLAN) 2.4 GHz, 5 GHz (Bluetooth) 2.4 GHz Antenna Internal PCB antenna Power source DC 7 V ~ DC 35 V(DC 12 V/24 V battery in a vehicle) According to the KDB 447498, the following standalone SAR test exclusion was considered to qualify for the SAR test exclusion. Tx frequency range (a) Bluetooth only (2402 MHz ‐ 2480 MHz), (b) WLAN 2.4 GHz only (2412 MHz ‐ 2462 MHz), (c) WLAN 5 GHz only (5180 MHz ‐ 5240 MHz), (d) Bluetooth and WLAN 5 GHz (simultaneously transmit) Maximum conducted output power (a) Bluetooth : 3.5 mW (5.48 dBm) @ 2.4 GHz (b) WLAN 2.4 GHz : 72 mW (18.56 dBm) @ 2.4 GHz, (c) WLAN 5 GHz : 27 mW (14.39 dBm) @ 5 GHz, (d) Bluetooth and WLAN 5 GHz (simultaneously transmit): (3.5 mW) + (27 mW) = (30.5 mW) Device category Mobile station This device is sold for use as a Mobile Device, and the antenna used for this transmitter is installed to provide a separation distance of at least 20 cm from all persons to comply with FCC RF exposure compliance requirements. Remark: the radio module has only one radio chip and one antenna that supports WLAN and BT technologies. (a) The Bluetooth and WLAN 2.4 GHz are not operated simultaneously, because the signal path for the Bluetooth and WLAN 2.4 GHz is selected by the RF switch including the switching of TX/RX. (b) The WLAN 2.4 GHz and WLAN 5 GHz are not operated simultaneously. The product can connect to one WLAN device such as Tablet PC via WiFi Direct function. It means the product can use either WLAN 2.4 GHz or WLAN 5 GHz. (c) The operating mode (BT + WLAN 5 GHz) is considered as the worst case. MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97‐01  SPGR RPGS   4 4 2   Operating mode: Bluetooth only Operating Frequency: 2402 MHz ‐ 2480 MHz Peak Antenna assembly gain(G): Peak 4.864 dBi EUT: Maximum peak output power = 3.5 [mW](= 5.48 dBm) & Antenna gain =3.06 (= 4.864 [dBi]) 3.5 mW, at 20 cm from the antenna 4.864 [dBi] S = PG/4πR² = 0.0022 [mW/cm2] < 1.0 [mW/cm 2 ] (calculation example) 100 mW, at 20 cm from an antenna 6 [dBi] S = PG/4πR² = 100 × 3.98 / (4 × π × 400) = 0.0792 [mW/cm2] < 1.0 [mW/cm 2 ] Operating mode: WLAN 2.4 GHz only Operating Frequency: 2412 MHz ‐ 2462 MHz Peak Antenna assembly gain(G): Peak 4.864 dBi EUT: Maximum peak output power = 72 [mW](= 18.56 dBm) & Antenna gain =3.06 (= 4.864 [dBi]) 72 mW, at 20 cm from the antenna 4.864 [dBi] S = PG/4πR² = 0.0438 [mW/cm2] < 1.0 [mW/cm 2 ] Operating mode: WLAN 5 GHz only Operating Frequency: 5180 MHz ‐ 5240 MHz Peak Antenna assembly gain(G): Peak 3.952 dBi EUT: Maximum peak output power = 27 [mW](= 14.39 dBm) & Antenna gain =2.47 (= 3.952 [dBi]) 27 mW, at 20 cm from the antenna 3.952 [dBi] S = PG/4πR² = 0.0136 [mW/cm2] < 1.0 [mW/cm 2 ] Operating mode: Bluetooth and WLAN 5 GHz (simultaneously transmit) Operating Frequency: 2402 MHz ‐ 2480 MHz and 5180 MHz ‐ 5240 MHz Peak Antenna assembly gain(G): Peak 4.864 dBi and Peak 3.952 dBi Maximum TX power with the summation: (3.5 mW) + (27 mW) = (30.5 mW) EUT: Maximum peak output power = 30.5 [mW](= 14.84 dBm) & Antenna gain =3.06 (= 4.864 [dBi]) 30.5 mW, at 20 cm from the antenna 4.864 [dBi] S = PG/4πR² = 0.0186 [mW/cm2] < 1.0 [mW/cm 2 ] S = power density [mW/cm 2 ] P = power input to antenna [mW] G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [cm]
