TNE-400LIC1411 TO 470 MHz Transceiver Module

70 Abele Road Suite 1201 Bridgeville, PA 15017 800.288.8178 800.298.3503 Fax www.magnetekmh.com Industry Canada Confidentiality Request regarding application for certification of IC ID: 6145A-400LIC1. Exhibit Type File Name Schematic, Operating Description, Block Diagram, Parts List, User Manual 6145A-4 00LIC1_Schem, 6145A-400LIC1_OpDes, 6145A- 400LIC1_BlkDia, 6145A-400LIC1_PartsLst, 6145A- 400LIC1_UserMan The proprietary exhibit above is a trade secret of Magnetek, It contains specific information including philosophy of standardizing throughout our products, and our proprietary protocols, which are all described in the manual. The above material contains trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The RF module in question is not intended for individual sale; it is housed within Magnetek products, and those products are supplied to the customer with a separate user’s manual. The user’s manual is an internal document, which includes proprietary information including circuit details held confidential in other exhibits. The user’s manual is very technical and is not provided to the consumer as the consumer cannot service the device. It is solely used as a design guide for Magnetek engineers to use as a reference on how to correctly incorporate this module into Magnetek products only. Sincerely, Eugene Novak

70 Abele Road Suite 1201 Bridgeville, PA 15017 800.288.8178 800.298.3503 Fax www.magnetekmh.com Federal Communications Commission Authorization and Evaluation Division Note regarding application for certification of FCC ID: TNE-400LIC1. The modular transmitter being submitted for approval complies with the following criteria: • The radio elements of the modular transmitter must have their own shielding • The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. • The modular transmitter must have its own power supply regulation. • The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. • The modular transmitter must be tested in a stand-alone configuration • The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. • The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. • The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Sincerely, Eugene Novak

70 Abele Road Suite 1201 Bridgeville, PA 15017 800.288.8178 800.298.3503 Fax www.magnetekmh.com Date: April 17, 2014 To: Federal Communications Commission Authorization and Evaluation Division From: Eugene Novak Subject: Agent Authorization for certification of FCC ID: TNE-400LIC1. Magnetek hereby appoints Richard Reitz of Retlif Testing Laboratories to act as our agent in the matter of FCC filings for the certification of FCC ID: TNE-400LIC1. Magnetek further attests that no party to the application is subject to denial of federal benefits pursuant to section 5301 of the Anti-Drug Abuse act of 1988, 21 USA 853(a). Sincerely, Eugene Novak Radio Product and Development Manager

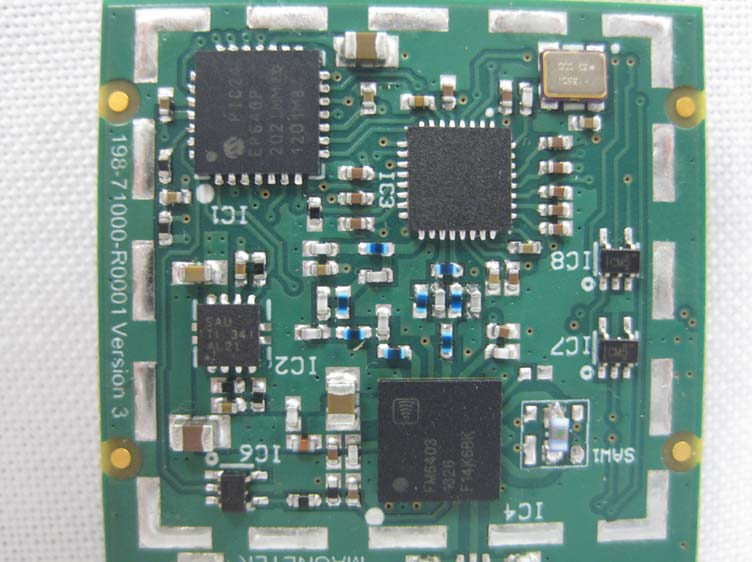

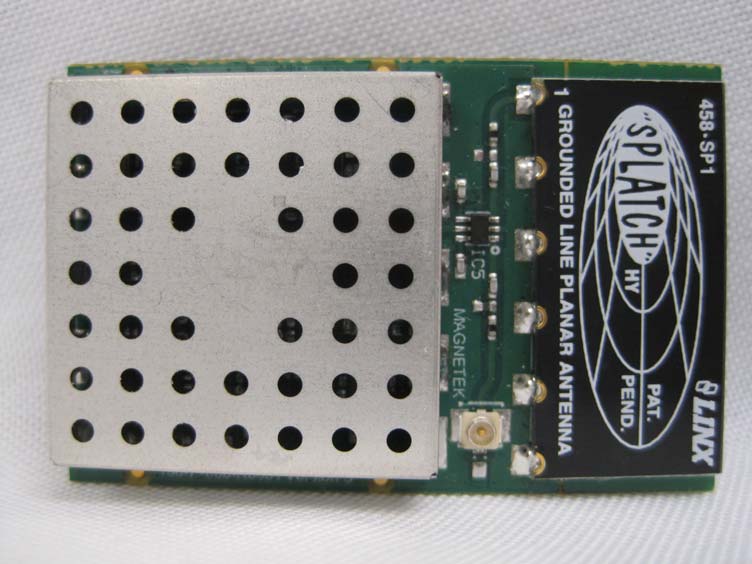

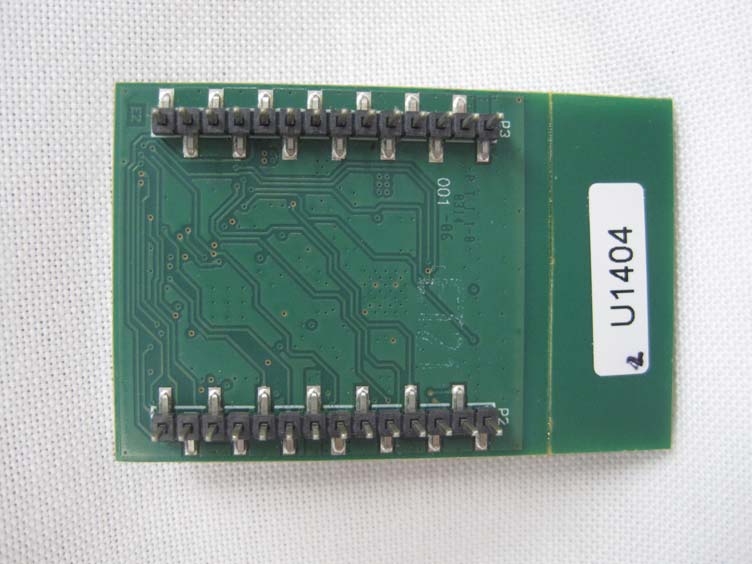

Retlif Testing Laboratories, Test Report R-2148P, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 1 of 2 Internal and External Photographs FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Front View of Module Close-up of Front of Module Retlif Testing Laboratories, Test Report R-2148P, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 2 of 2 Internal / External Photographs FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Rear View of Module Module with Shield

Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 1 of 2 Internal and External Photographs FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Front View of Module Close-up of Front of Module Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 2 of 2 Internal / External Photographs FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Rear View of Module

Retlif Testing Laboratories, Test Report R-2148P, Rev. C, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 2 of 68 Technical Information Report Number: R-2148P, Rev C Customer: Magnetek Address: N49 W13650 Campbell Drive Menomonee Falls, WI 53051 Manufacturer: Magnetek Manufacturer Address: N49 W13650 Campbell Drive Menomonee Falls, WI 53051 Test Sample: 411 to 470 MHz Transceiver Module Model Number: 71000-20400 FCC ID: TNE-400LIC1 IC: 6145A-400LIC1 Type (IC): Land-Mobile Transmitter and Receiver (27.41 to 960 MHz) Power Requirements: 3.3 VDC derived from Host Equipment Class: TNB Equipment Use: Mobile >20cm Test Specification: FCC Rules and Regulations Part 90.203 Radio Standards Specification, RSS-119, Issue 11, June 2011 Test Procedure: FCC Part 2 ANSI/TIA-603-C-2004 RSS-GEN, Issue 3, December 2010 Test Facility: Retlif Testing Laboratories 3131 Detwiler Road Harleysville, PA 19438 Retlif Testing Laboratories, Test Report R-2148P, Rev. C, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 3 of 68 The test methods performed on the 411 to 470 MHz Transceiver Module are shown below: FCC Section Industry Canada RSS-119 Industry Canada RSS-GEN Test Method 90.205 / 2.1046 5.4 N/A RF Power Output 90.209 / 2.1049 5.5 N/A Occupied Bandwidth 90.210 / 2.1051 5.8 N/A Spurious Emissions at Antenna Terminals 90.210 / 2.1053 5.8 N/A Field Strength of Spurious Radiation 90.213 / 2.1055 5.3 N/A Frequency Stability N/A 5.9 N/A Transient Frequency Behavior GENERAL REQUIREMENTS 1. All user accessible controls were adjusted to produce maximum emissions. 2. The unit operates at the following frequencies: FCC Part 90.203:  411 to 454 MHz  456 to 462.5375 MHz  462.7375 to 467.5375 MHz  467.7375 to 470 MHz IC RSS-119:  411 to 430 MHz  450 to 470 MHz 3. The unit was tested at the following frequencies: FCC Part 90.203:  Channel 0: 411 MHz  Channel 3: 433 MHz  Channel 10: 470 MHz IC RSS-119:  Channel 0: 411 MHz  Channel 5: 450 MHz  Channel 10: 470 MHz 4. The frequency range was scanned from 9 kHz to 5 GHz. All emissions not reported were more than 20 dB below the specified limit. *Note: In accordance with RSS-119, Paragraph 3.2, the Transceiver Module did not contain a data port in the radio terminal. Retlif Testing Laboratories, Test Report R-2148P, Rev. C, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 5 of 68 Requirements and Test Results Requirement: FCC Sections 90.205 and 2.1046 RF Power Output The RF Power Output of the EUT was measured with the transmitter adjusted for maximum power output. The highest observed power output was measured to be 26.0 dBm (398.1 mW), 11.0 dBm below the limit of 37.0 dBm (5 Watts). The measured power output is in compliance with the requirements specified in section 90.205(o) of the FCC Rules. RSS-119 Section 5.4 - RF Power Output The RF Power Output of the EUT was measured with the transmitter adjusted for maximum power output. The highest observed power output was measured to be 26.0 dBm (398.1 mW), 11.0 dBm below the limit of 37.0 dBm (5 Watts). The measured power output is in compliance with the requirements specified in Section 5.4 of RSS-119. Requirement: FCC Sections 90.209 and 2.1049 Occupied Bandwidth The Occupied Bandwidth of the transmitter was measured and found to be 10.7 kHz. Utilizing this Bandwidth, the transmitter complied with the requirements for Emissions Mask D contained in section 90.210(b) and the Bandwidth Limitations of section 90.209(b)(5). The Occupied Bandwidth was measured utilizing a 300 Hz resolution bandwidth. RSS-119 Section 5.5 – Authorized Bandwidth The Authorized Bandwidth of the transmitter was measured and found to be 10.7 kHz. Utilizing this Bandwidth, the transmitter complied with the requirements for Emissions Mask D as specified in Table 4, Section 5.8.1 of RSS-119. The Occupied Bandwidth was measured utilizing a 300 Hz resolution bandwidth. Requirement: FCC Sections 90.210 and 2.1051 Spurious Emissions at Antenna Terminals The Spurious Emissions present at the antenna terminals were measured over the frequency range of 9 kHz to 5 GHz (ten times the operating frequency) in accordance with section 2.1057. Spurious emissions were attenuated at least 43 + 10 Log P (5 Watts), 49.9897 dBm from the carrier as required by sections 90.209 and 90.210. RSS-119 Section 5.8 – Transmitter – Unwanted Emissions, Conducted The Unwanted Emissions present at the antenna terminals were measured over the frequency range of 400 MHz to 5 GHz (ten times the operating frequency). Spurious emissions were attenuated at least 43 + 10 Log P (92.5 mWatts), 19.66 dBm from the carrier as required by RSS-119. Retlif Testing Laboratories, Test Report R-2148P, Rev. C, Magnetek FCC ID: TNE-400LIC1 / IC: 6145A-400LIC1 Page 6 of 68 Requirements and Test Results (con’t) Requirement: FCC Sections 90.210 and 2.1053 Field Strength of Spurious Radiation The Field Strength of Spurious Radiation was measured over the frequency range of 9 kHz to 760 MHz. All spurious emissions complied with the requirements of sections 90.209 and 90.210. In addition, spurious digital emissions in the frequency range of 30 to 1000 MHz were found to be in compliance with the requirements for a Class B Digital Device as contained in section 2.1053. RSS-119 Section 5.8 - Field Strength of Spurious Radiation, Transmitter – Unwanted Emissions, Radiated The Field Strength of Spurious Radiation was measured over the frequency range of 9 kHz to 760 MHz. All spurious emissions complied with the requirements of RSS-119. In addition, spurious digital emissions in the frequency range of 30 to 1000 MHz were found to be in compliance with the requirements for an emission Mask B device. Requirement: FCC Sections 90.213 and 2.1055 Frequency Stability The frequency stability of the transmitter was measured over temperature extremes of - 30 o to + 50 o C. For varying of the DC power input, the voltage was reduced to the operating end point, which was 3.25 VDC. The EUT carrier frequency…

Text truncated - open the document above for the full version.

Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 1 of 13 Test Setup Photographs FCC ID: TNE-400LIC1 IC: 6145A-400LIC1 Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 2 of 13 Test Setup Photographs RF Power Output EUT Configuration Test Setup Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 3 of 13 Test Setup Photographs Occupied Bandwidth Test Setup Test Setup Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 4 of 13 Test Setup Photographs Spurious Emissions at Antenna Terminals EUT Configuration EUT Test Setup Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 5 of 13 Test Setup Photographs Field Strength of Spurious Radiation Test Setup Biconilog Antenna, Horizontal Antenna Polarization Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 6 of 13 Test Setup Photographs Field Strength of Spurious Radiation Biconilog Antenna, Horizontal Polarization, Substitution Method Biconilog Antenna, Vertical Polarization Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 7 of 13 Test Setup Photographs Field Strength of Spurious Radiation Biconilog Antenna, Vertical Polarization, Substitution Method Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 8 of 13 Test Setup Photographs Frequency Stability - Temperature Variation EUT Configuration Test Setup Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 9 of 13 Test Setup Photographs Conducted Limits Test Setup Test Setup, Hot Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 10 of 13 Test Setup Photographs Conducted Limits Test Setup, Neutral Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 11 of 13 Test Setup Photographs Receiver Radiated Emissions Test Setup, Internal Antenna Test Setup, External Antenna Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 12 of 13 Test Setup Photographs Receiver Radiated Emissions Biconilog Antenna, Vertical Polarization Biconilog Antenna, Horizontal Polarization Retlif Testing Laboratories, Test Report R-2148P-2, Magnetek FCC ID:TNE-400LIC1 / IC: 6145A-400LIC1 Page 13 of 13 Test Setup Photographs Transient Frequency Behavior Test Setup
