TNE-7276MLTXRemote Control Transmitter

Magnetek Material Handling Engineered MLTX Transmitter Remote Crane Controls Instruction Manual TCENGMLTX-0 Rev. B March 2006 Part Number: 178-00840 ©Copyright 2006 Magnetek Material Handling © 2006 MAGNETEK MATERIAL HANDLING All rights reserved. This notice applies to all copyrighted materials included with this product, including, but not limited to, this manual and software embodied within the product. This manual is intended for the sole use of the persons to whom it is provided, and any unauthorized distribution of the manual or dispersal of its contents is strictly forbidden. This manual may not be reproduced in whole or in part by any means, whatsoever, without the expressed written permission of MAGNETEK. Telemotive MLTX Transmitter Instruction Manual—03/1/2006 1 Table of Contents Your New Radio Remote & Service Phone Numbers p.2 1.1–1-13.3 Warnings, Cautions and Notes p.3-9 2-1. Power “ON-OFF” Switch p.10 2-2. E-STOP p.10 2-3. Motion Push Buttons, Joysticks or Levers p.10 2-4. Transmitter LED Indicator p.10 2-5. Time-Out Timer p.10 2-6. Key Switch (For Part 15 models not using active ESTOP, p.10 keyswitch disables power to transmitter circuitry only) 2-7. MLTX Transmitter Board Set-up Information p.11 2-8. Setting Access Code (For units with no external code plug only) p.11 2-9. Programming Switches p.12 2-10. To Check Out Data p.12 2-11. Battery Monitor p.12 2-12. Analog Voltage Reference p.12 2-13. Transmit LED p.12 2-14. Batteries p.12 2-15. Changing the Channel on the Part 15 Synthesized Transmitter p.12 2-16. Channel and Frequency Designating by Count p.13-14 2-17. Changing the Channel on the Part 90 VHF Synthesized Transmitter p.14 2-18. Replacement Parts p.15 Telemotive MLTX Transmitter Instruction Manual—03/1/2006 2 Your New Radio Remote Thank you for your purchase of Magnetek’s Telemotive ® brand MLTX Radio Remote Crane Control. Magnetek has set a whole new standard in radio-remote performance, dependability, and value with this unique new line of belly box transmitters. Without a doubt, our Telemotive MLTX is the ultimate solution for having precise, undeterred, and safe control of your material. If your product ever needs modification or service, please contact one of our representatives at the following locations: U.S. Service Information For questions regarding service or technical information, contact 1-866-MAG-SERV (1-866-624-7378). Magnetek Material Handling N49 W13650 Campbell Drive Menomonee Falls, WI 53051 Telephone: 800-288-8178 Website: www.magnetekmh.com e-mail: [email protected] Fax Numbers Main: 800-298-3503 Sales: 262-783-3510 Service: 262-783-3508 For Canada Service Information Contact Berlet Electronics: Phone: 1-905-564-2710 Fax: 1-905-564-2755 Telemotive MLTX Transmitter Instruction Manual—03/1/2006 3 1-1. Warnings, Cautions And Notes Throughout this document WARNING, CAUTION and NOTE statements have been deliberately placed to highlight items critical to the protection of personnel and equipment. WARNING – A warning highlights an essential operating or maintenance procedure, practice, etc. which if not strictly observed, could result in injury or death of personnel, or long term physi- cal hazards. Warnings are highlighted as shown below: WARNING CAUTION – A caution highlights an essential operating or maintenance procedure, practice, etc. which if not strictly observed, could result in damage to, or destruction of equipment, or loss of functional effectiveness. Cautions are high- lighted as shown below: CAUTION NOTE – A note highlights an essential operating or maintenance procedure, condition or state- ment. Notes are shown as below: NOTE WARNINGS, CAUTIONS AND NOTES SHOULD NEVER BE DISREGARDED. The safety rules in this section are not intended to replace any rules or regulations of any appli- cable local, state, or federal governing organiza- tions. Always follow your local lock out and tag out procedure when maintaining any radio equipment. The following information is intended to be used in conjunction with other rules or regulations already in existence. It is important to read all of the safety information contained in this section before installing or operating the Radio Control System. 1-2. Critical Installation Considerations WARNING ALL EQUIPMENT MUST HAVE A MAINLINE CONTACTOR INSTALLED AND ALL TRACKED CRANES AND SIMILAR EQUIPMENT MUST HAVE A BRAKE IN- STALLED. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT. WARNING ON ALL REMOTE CONTROLLED CRANES AN AUDIBLE AND/OR VISUAL WARNING MEANS MUST BE PROVIDED. THESE AU- DIBLE AND/OR VISUAL WARNING DE- VICES MUST MEET ALL GOVERNMENTAL REQUIREMENTS. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERI- OUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT. WARNING PLEASE FOLLOW YOUR LOCAL LOCK OUT TAG OUT PROCEDURE BEFORE MAINTAINING ANY REMOTE CONTROL EQUIPMENT. ALWAYS REMOVE ALL ELECTRICAL POWER FROM THE CRANE OR MACHINERY BEFORE ATTEMPTING ANY INSTALLATION PROCEDURES. DE- ENERGIZE AND TAG OUT ALL SOURCES OF ELECTRICAL POWER BEFORE TOUCH TESTING ANY EQUIPMENT. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT. Telemotive MLTX Transmitter Instruction Manual—03/1/2006 4 WARNING THE DIRECT OUTPUTS OF THIS PRODUCT ARE NOT DESIGNED TO INTERFACE DI- RECTLY TO TWO STATE SAFETY CRITI- CAL MAINTAINED FUNCTIONS, I.E., MAGNETS, VACUUM LIFTS, PUMPS, EMERGENCY EQUIPMENT, ETC. A ME- CHANICALLY LOCKING INTERMEDIATE RELAY SYSTEM WITH SEPARATE POWER CONSIDERATIONS MUST BE PROVIDED. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT. 1-3. General Radio controlled overhead cranes and other ma- terial handling equipment operate in several di- rections. They are large, bulky pieces of equip- ment that efficiently handle heavy loads at high speeds. Quite frequently, the equipment is oper- ated in areas where people are working on the floor below. The crane operator must exercise extreme caut…

Text truncated - open the document above for the full version.

Q: Is 400MHz Part 15 transmitter a different device that is covered by the same manual or is it the same device? A: Part 15 transmitter mentioned in the manual is a separate transmitter with its own FCC ID.

WWW.MAGNETEK.COM N49 W13650 Campbell Drive Menomonee Falls, WI 53051 P.O. Box 13615 Milwaukee, WI 53213 Magnetek’s VHF MLTX / SLTX Transmitter Antenna Gain It can be shown that the E field, is related to the power output of an isotropic radiator three meters away by the following equation: 23.95 /_ −= mVdBdBmtrans EP μ The attached test report, published by L.S. Research, dated 4/15/05, shows maximum field strength of 81.65 dBμV/m for our 100mW MLTX transmitter. The 750mW MLTX transmitter uses the identical antenna. Using the above equation we get: dBmmVdBP dBmtrans 58.1323.9565.81 _ −=−=μ Or, in mW: mWP dBm mWtrans 044.010 10 58.13 _ == − The antenna gain would be calculated as follows: () dB mW mW LogGainAntenna6.33 100 044.0 10_−=×= Our SLTX antenna uses the same antenna structure as the MLTX and should perform similarly. Please note that the original antenna gain submitted in the MPE calculation was an estimate. The above calculation is based on an actual measurement of field strength. 262-783-3500 800-288-8178 Fax 262-783-3510 Equipment Under Test: MLTX (72.16 MHz, nominal frequency). TITLE: MAGNETEK TEST REPORT PROJECT: MGNTK_TR_1. DATE: MAY 13, 2005 (262) 375-4400 FAX: (262) 375-4248 Email: [email protected] http://www.lsr.com FILENAME, FILES AFFECTED: magnetek_final_report_v1.1.doc REVISION: 1.0 DRAWING NUMBER: MGNTK_TR_1. SECURITY CLASSIFICATION: W66 N220 COMMERCE COURT CEDARBURG, WI 53012, USA COMMERCIAL CONFIDENTIAL PAGE: 15 OF 19 Design Report v0.6 55 60 65 70 75 80 85 90 95 100 30 210 60 240 90 270 120 300 150 330 1800 ____Vertical Polarization ------- Horizontal Polarization Device Orientationpolarization MaxAvg (V)vertical81.5376.26 (V)horizontal73.6368.56 (H)vertical81.6576.20 (H)horizontal74.4669.64 (F)vertical70.2369.47 (F)horizontal77.3977.19 Blue Magnetek 72.16 MHz [dBuV/m] 55 60 65 70 75 80 85 90 95 100 30 210 60 240 90 270 120 300 150 330 1800 ____Vertical Polarization ------- Horizontal Polarization 55 60 65 70 75 80 85 90 95 100 30 210 60 240 90 270 120 300 150 330 1800 ____Vertical Polarization ------- Horizontal Polarization

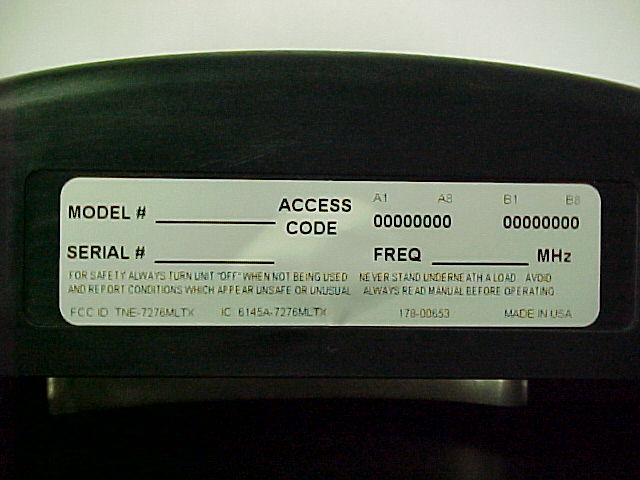

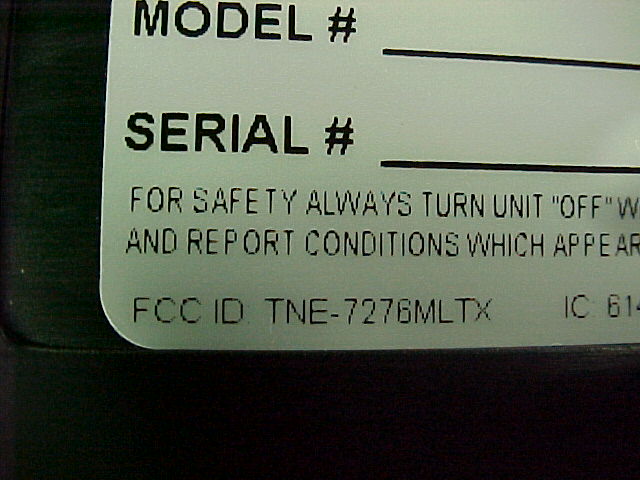

Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo One – External Front View Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Two – External Control Switches Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Three – External Base with FCC ID Label & Battery Pack Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Four – External Close-up of FCC ID Label Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Five – External Close-up of FCC ID Label, showing FCC ID Number

TDS No. B-423 Effective Date: 06/03/2004 BRADY WORLDWIDE, INC. P.O. Box 2131 Milwaukee, WI 53201-2131 Tel. 414/358-6600 Fax 800/292-2289 BRADYBONDZ(TM) B-423 THERMAL TRANSFER PRINTABLE GLOSSY WHITE POLYESTER LABEL STOCK Description: GENERAL Print Technology: Thermal transfer Materials Type: White polyester Finish: Glossy white Adhesive: Permanent acrylic APPLICATIONS Electronic PCB and component identification, bar code label and rating plates. RECOMMENDED RIBBONS Brady series R6000 Brady series R4400 (colors - red, blue, green, white) Brady series R4900 and R6200 (alternates) AGENCY APPROVALS UL: B-423 is a UL Recognized Component to UL969 Labeling and Marking Standard when printed with Brady Series R6000 ribbon. See UL file MH17154 for specific details. UL information can be accessed on line at UL.com. Search in Certifications area. The Brady Series R4900 ribbon is also UL approved. CSA: B-423 is CSA Accepted to C22.2 No.0.15-95 Adhesive Labels Standard when printed with Brady Series R6000 ribbon. See CSA file 041833 for specific details. CSA information can be accessed online at directories.csa- international.org. DIN VDE 0472 Part 815: Brady B-423 meets requirements of a halogen-free material per DIN VDE 0472 part 815. (Statement based on review of product construction and confirmation halogen content test run at an independent test laboratory.) Details: PHYSICAL PROPERTIES TEST METHODS AVERAGE RESULTS Thickness ASTM D 1000 -Substrate -Adhesive -Total 0.002 inch (0.0508 mm) 0.001 inch (0.0254 mm) 0.003 inch (0.0762 mm) Adhesion to: -Stainless Steel - Painted Enamel - Textured ABS ASTM D 1000 20 minute dwell 24 hour dwell 20 minutes dwell 24 hour dwell 20 minutes dwell 24 hour dwell 51 oz/inch (56 N/100 mm) 78 oz/inch (85 N/100 mm) 54 oz/inch (59 N/100 mm) 67 oz/inch (73 N/100 mm) 10 oz/inch (11 N/100 mm) 15 oz/inch (17 N/100mm) Tack ASTM D 2979 Polyken™ Probe Tack 1 second dwell 21 oz (600 g) Dielectric Strength ASTM D 1000 8600 Volts B-423 is not recommended for low surface energy surfaces such as polyethylene and polypropylene. Performance properties tested on B-423 printed with Series R6000 and R6200 ribbons using the Bradyprinter™ THT Model 300X-Plus thermal transfer printer. Printed samples were laminated to aluminum and allowed to dwell 24 hours before exposure to the indicated environments. Unless noted, results are the same for both ribbons. PERFORMANCE PROPERTIES TEST METHOD TYPICAL RESULTS High Service Temperature 30 days at various temperatures No visible effect to label at 110°C. Slight discoloration at 120°C; moderate discoloration at 145°C but label is still functional. Low Service Temperature 30 days at -70°C No visible effect Short Term High Service Temperature 5 minutes at various temperatures No visible effect to label at 180°C. Slight discoloration and label shrinkage at 200°C; label is functional. Label becomes nonfunctional at 210°C due to label shrinkage. Humidity Resistance 30 days at 100°F (37°C) and 95% relative humidity. No visible effect UV Light Resistance 30 days in UV Sunlighter™ 100 Slight discoloration Weatherability ASTM G26 30 days in Xenon Arc Weatherometer No visible effect Salt Fog Resistance ASTM B 117 30 days in 5% salt fog solution chamber No visible effect PERFORMANCE PROPERTY CHEMICAL RESISTANCE Samples were printed with Series R6000 and R6200 ribbons using a Bradyprinter™ 300X-Plus thermal transfer printer. Samples were laminated to aluminum panels and allowed to dwell 24 hours prior to testing. Testing was conducted at room temperature and consisted of 30 minute immersions in the specified test fluid. After immersion, the samples were removed from the test fluid and the printed image rubbed 10 times with a cotton swab saturated with the test fluid. The rating scale below shows the effect to the quality of the print for each sample. SUBJECTIVE OBSERVATION OF VISUAL CHANGE EFFECTS TO PRINTED IMAGE R6000 R6200 CHEMICAL REAGENT EFFECT TO LABEL STOCK WITHOUT RUB WITH RUBWITHOUT RUB WITH RUB Acetone Slight adhesive ooze 1 5 1 5 Toluene Slight adhesive ooze 1 5 1 5 Isopropyl Alcohol No visible effect 1 1 1 1 Mineral No visible 1 1 1 1 Spirits effect Gasoline Slight adhesive ooze 1 1 1 1 JP-8 Jet Fuel Slight adhesive ooze 1 1 1 1 Brake Fluid No visible effect 1 1-2 1 5 Skydrol® 500B-4 Slight adhesive ooze 1 5 2 5 SAE 20 WT Oil at 70°C No visible effect 1 1 1 1 MIL 5606 Oil No visible effect 1 1 1 1 Formula 409® Cleaner No visible effect 1 1 1 1 Northwoods™ Buzz Saw Citrus Degreaser No visible effect 1 1 1 1 Deionized Water No visible effect 1 1 1 1 Rating Scale: 1= no visible effect 2= slight smear or print removal, detectable but minimal smear 3= moderate smear or print removal (print still legible) 4= severe smear or print removal (print illegible or just barely legible) 5= complete print and/or topcoat removal NP= print removed prior to rub Product testing, customer feedback, and history of similar products, support a customer performance expectation of at least two years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80 degrees F and 60% RH . We are confident that our product will perform well beyond this time frame. However, it remains the responsibility of the user to assess the risk of using such product. We encourage customers to develop functional testing protocols that will qualify a product's fitness for use, in their actual applications. Trademarks and References: BradyBondz™ is a trademark of Brady Worldwide, Inc. BradyPrinter™ is a trademark of Brady Worldwide, Inc. Formula 409® is a registered trademark of the Clorox Company Northwoods™ is a trademark of the Superior Chemical Corporation Polyken™ is a trademark of Testing Machines Inc. Skydrol® is a registered trademark of the Monsanto Company Sunlighter™ is a trademark of the Test Lab Apparatus Company ASTM: American Society for Testing and Materials (U.S.A.) CSA: Canadian Standards Association SAE: Socie…

Text truncated - open the document above for the full version.

Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo One – Internal Open for Inspection Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Two – Internal RF PCB Shielded Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Three – Internal RF Board Top with PCB Antenna Bottom Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Four – Internal Antenna Connection Close up Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Five – Internal Component Side of RF Board Antenna Connector Lower Left Corner Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Six – Internal Close Up of Antenna Lead Connector Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Seven – Internal Flip Side of RF PCB Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Eight – Internal Component Side of PCB with Close-up of RF Section Magnetek MLTX VHF Transmitter FCC ID#: TNE-7276MLTX Photo Six – Internal Antenna Separation from Body

WWW.MAGNETEK.COM N49 W13650 Campbell Drive Menomonee Falls, WI 53051 P.O. Box 13615 Milwaukee, WI 53213 EIRP of Magnetek’s 750mW VHF MLTX / SLTX Transmitters This document will show that Magnetek’s Part 90, 750mW, MLTX / SLTX antennas have an effective isotropic radiated power (EIRP) significantly below the low threshold of GHz f60mW for the “General Population” exposure category. It can be shown that the E field, is related to the power output of an isotropic radiator three meters away by the following equation: 23.95 /_ −= mVdBdBmtrans EP μ The attached test report, published by L.S. Research, dated 4/15/05, shows maximum field strength of 81.65 dBμV/m for our 100mW MLTX transmitter. The 750mW MLTX transmitter supplied to L.S. Research for compliance testing measured 769.13mW, which is an 8.86dB higher output power than the 100mw transmitter. Using the above equation we get: () dBmdBmVdBP dBmtrans 72.423.9586.865.81 _ −=−+=μ Or, in mW: mWP dBm mWtrans 34.010 10 72.4 _ == − The low threshold for the general population exposure category from the TCB Handbook, Appendix A: TCB Exclusions List supplied to me by L.S. Compliance is: mW GHzf P GHz mWthreshold 47.789 076. 6060 _ === Comparing the two power levels shows the Magnetek MLTX transmitter to be 33.7dB below this threshold: () dB mW mW Log7.33 47.789 34.0 10−=× Since Magnetek’s SLTX transmitter uses the same antenna concept as the MLTX transmitter, it will exhibit similar field strength. 262-783-3500 800-288-8178 Fax 262-783-3510 Equipment Under Test: MLTX (72.16 MHz, nominal frequency). TITLE: MAGNETEK TEST REPORT PROJECT: MGNTK_TR_1. DATE: MAY 13, 2005 (262) 375-4400 FAX: (262) 375-4248 Email: [email protected] http://www.lsr.com FILENAME, FILES AFFECTED: magnetek_final_report_v1.1.doc REVISION: 1.0 DRAWING NUMBER: MGNTK_TR_1. SECURITY CLASSIFICATION: W66 N220 COMMERCE COURT CEDARBURG, WI 53012, USA COMMERCIAL CONFIDENTIAL PAGE: 15 OF 19 Design Report v0.6 55 60 65 70 75 80 85 90 95 100 30 210 60 240 90 270 120 300 150 330 1800 ____Vertical Polarization ------- Horizontal Polarization Device Orientationpolarization MaxAvg (V)vertical81.5376.26 (V)horizontal73.6368.56 (H)vertical81.6576.20 (H)horizontal74.4669.64 (F)vertical70.2369.47 (F)horizontal77.3977.19 Blue Magnetek 72.16 MHz [dBuV/m] 55 60 65 70 75 80 85 90 95 100 30 210 60 240 90 270 120 300 150 330 1800 ____Vertical Polarization ------- Horizontal Polarization 55 60 65 70 75 80 85 90 95 100 30 210 60 240 90 270 120 300 150 330 1800 ____Vertical Polarization ------- Horizontal Polarization

L.S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 COMPLIANCE TESTING OF : MLTX VHF Transmitter 100mW 7.2 VDC 100mW 12 VDC 750mW 12 VDC PREPARED FOR: MagneTek N50 W13605 Overview Drive Menomonee Falls, WI 53051 TEST REPORT NUMBER: 305264/304265 TCB Rev. 1 TEST DATE(S): June 1 st and 2 nd , 2005 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of L. S. Compliance, Inc. L.S. Compliance, Inc. FCC ID # TNE-7276MLTX Page 2 of 29 Test Report Number: 305264 -305265 TCB Rev. 1 Prepared For: MagneTek Table of Contents Section Description Page Index 2 1 L. S. Compliance in Review 3 2 A2LA Certificate of Accreditation 4 3 Validation Letter-U.S. Competent Body for EMC Directive 2004/108/EC (formerly 89/336/EEC) 5 4 Signature Page 6 5 Product and General Information 7 6 Product Description 7 7 Test Requirements 7 8 Summary of Test Report 8 9 Introduction 8 10 Purpose 8 11 Radiated Emissions Test 9-15 12 Power Output 47 CFR 2.1046 16-18 13 Conducted Spurious Emissions: 47 CFR 2.1051 19-24 14 Bandwidth Measurements 47 CFR 2.1049 25-27 15 Frequency Stability (47 CFR 2.1055; 90.213a) 28 Appendix A Test Equipment List 29 L.S. Compliance, Inc. FCC ID # TNE-7276MLTX Page 3 of 29 Test Report Number: 305264 -305265 TCB Rev. 1 Prepared For: MagneTek 2. L.S. Compliance in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 1999 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 L.S. Compliance, Inc. FCC ID # TNE-7276MLTX Page 4 of 29 Test Report Number: 305264 -305265 TCB Rev. 1 Prepared For: MagneTek 2. A2LA Certificate of Accreditation L.S. Compliance, Inc. FCC ID # TNE-7276MLTX Page 5 of 29 Test Report Number: 305264 -305265 TCB Rev. 1 Prepared For: MagneTek 3. Validation Letter – U.S. Competent Body for EMC Directive 2004/108/EC (formerly 89/336/EEC) L.S. Compliance, Inc. FCC ID # TNE-7276MLTX Page 6 of 29 Test Report Number: 305264 -305265 TCB Rev. 1 Prepared For: MagneTek 4. Signature Page Prepared By: April 19, 2006 Teresa A. White, Document Coordinator Date Tested and Approved By April 19, 2006 Kenneth L. Boston, EMC Lab Manager Date PE #31926 Licensed Professional Engineer Registered in the State of Wisconsin, United States L.S. Compliance, Inc. FCC ID # TNE-7276MLTX Page 7 of 29 Test Report Number: 305264 -305265 TCB Rev. 1 Prepared For: MagneTek 5. Product and General Information Manufacturer : Magnetek Model No. : MLTX VHF Transmitter Serial No. : prototypes Description : Portable FM transmitter 2.1033(c)(8) Information: MLTX Part 90 100mW Mode -- Driver (20dBm) - NEC NE664M04, Collector Current: 76mA @ 3.6V MLTX Part 90 750mW Mode -- Power Amp (28.75dBm) - Maxim MAX2601, Collector Current: 563mA @ 3.6V Driver (20dBm) - NE664M04, Collector Current: 76mA @ 3.6V 6. Product Description The MLTX VHF Transmitter is a 100mW / 750mW data transmitter. The RF board is factory configurable for either 100mW or 750mW output power and any four frequencies in the 72 – 76 MHz range. Any one of the four channels available is user selectable via jumpers on the RF board. The MLTX transmitter is typically used as a wireless remote control for large machinery such as an overhead crane. 7. Test Requirements The above mentioned tests were performed in order to determine the compliance of the EUT system with limits contained in various provisions of Title 47 CFR, FCC Part 90, and part 2. All radiated emissions tests were performed to measure the emissions in the frequency bands described by the above sections, and to determine whether said emissions are below the limits established by the above sections. These tests were performed in accordance with the procedure described in the American National Standard for methods of measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003). Another document used as reference for the EMI receiver specification was the International Special Committee on Radio Interference CISPR 16-1 (2003). L.S. Compliance, Inc. FCC ID # TNE-7276MLTX Page 8 of 29 Test Report Number: 305264 -305265 TCB Rev. 1 Prepared For: MagneTek 8. Summary of Test Report DECLARATION OF CONFORMITY The MLTX VHF Transmitter was found to MEET the requirements as described within the specification of Title 47 CFR FCC, Part 90, for a portable FM transmitter. 9. Introduction During June of 2005, a series of Radiated and Conducted Emission tests were performed on several samples of the MLTX VHF Transmitter, here forth referred to as the “Equipment Under Test” or “EUT”. These tests were performed using the procedures outlined in ANSI C63.4-2003 for intentional radiators, with further test methods described in EIA/TIA 603-1. These tests were performed by Ke…

Text truncated - open the document above for the full version.

Magnetek TNE-7276MLTX Test Setup Photos Page 1 of 1 Photos Taken During Radiated Emission Testing Setup for the Radiated Emissions Test
